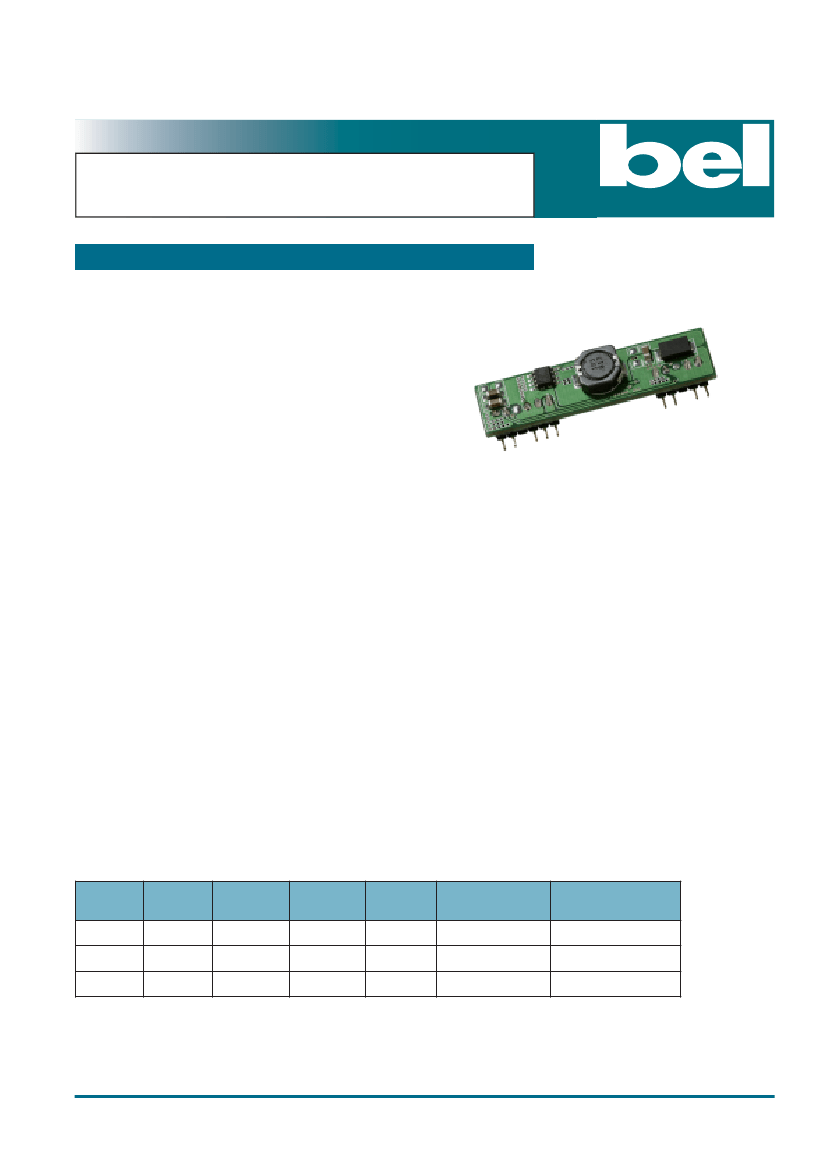

NON-ISOLATED DC/DC CONVERTERS
5V Input / 1.5 – 3.3V Output / 6A
VRPB-06B Series
•
•
•
•
•
•
•
•
•
Nonisolated
Industry standard pinout with shorter package length
Fixed frequency
High efficiency
Excellent thermal performance
Low cost
Remote on/off
Undervoltage lockout
Over current and short circuit protection
POWER PRODUCTS
BP06VRPB-06B
RoHS Compliant
Description
The Bel VRPB-06B series modules are non-isolated, step down DC/DC power converters that operate from a nominal 5V
source. These converters are available in a range of output voltages from 1.5V to 3.3V. They are packaged in an industry
standard single-in-line footprint and provide a maximum 6A output. Standard features include remote on/off, over current
protection and output voltage adjust. Optional features include remote sense and industrial temperature range. These
products may be used almost anywhere low-voltage silicon is employed and a 5V source is available. Typical applications
include file servers, routers, line cards and other computing and communications equipment.
Applications
•
•
•
Telecommunications
Networking
Computers and peripherals
Options
•
•
Remote sense
Industrial temperature range
Part Number Selection
Output
Voltage
3.3V
2.5V
1.5V
Input
Voltage
5V
5V
5V
Max. Output
Current
6A
6A
6A
Max.
Output
Power
19.8W
15.0W
9.0W
Typical
Efficiency
94%
91%
87%
Part Number
VRPB-06B330
VRPB-06B250
VRPB-06B150
Part Number
Remote Sense Option
VRPB-06B33S
VRPB-06B25S
VRPB-06B15S
©2006 Bel Fuse Inc. Specifications subject to change without notice. 06.06
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 1
POWER PRODUCTS
BP06VRPB-06B
NON-ISOLATED DC/DC CONVERTERS
5V Input / 1.5 – 3.3V Output / 6A
Absolute Maximum Ratings
Parameter
Continuous Input Voltage
Output Enable Terminal Voltage
Ambient Temperature
Storage Temperature
Symbol
Vin
Vouten
Tamb
Tstor
Min
-0.3
-0.3
0
-40
Typical
Max
6
6
70
105
Unit
V
V
°C
°C
Use beyond the maximum ratings may cause a reliability degradation of the DC/DC
converter or may permanently damage the device.
Input Specifications
Parameter
Operating Input Voltage
Input Current
No Load Input Current
Remote Off Input Current
Input Reflected Ripple Current
1
Input Reflected Ripple Current (P-P)
1
I
2
t Inrush Current Transient
Turn On Voltage Threshold
Turn Off Voltage Threshold
3.45
0.01
4
3.9
4.45
3
Symbol
Vin
Iin
Min
4.5
Typical
Max
5.5
5.5
50
10
35
120
0.02
Units
V
A
mA
mA
mA
rms
mApk
A
2
s
V
V
Note: Input capacitance 330µF/10V, ESR = 0.03
Ω
max at 100kHz @ 25° C.
1. With simulated source impedance of 500nH, 5Hz to 20MHz.
©2006 Bel Fuse Inc. Specifications subject to change without notice. 06.06
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 2
NON-ISOLATED DC/DC CONVERTERS
5V Input / 1.5 – 3.3V Output / 6A
Output Specifications
Parameter
Output Voltage Set Point
1
3.3V
2.5V
1.5V
Load Regulation
3.3V
2.5V
1.5V
Line Regulation
Regulation Over Temperature
0° - 70° C
All
7
5
3
3
16
10
10
10
Module
Symbol
Vout
3.234
2.450
1.470
3.3
2.5
1.5
3.366
2.550
1.530
Min
Typical
Max
POWER PRODUCTS
BP06VRPB-06B
Units
V
mV
mV
mV
3.3V
2.5V
1.5V
10
10
10
46
35
21
mV
Total Output Voltage Regulation
3.3V
2.5V
1.5V
Output Ripple and Noise
2
Output Ripple and Noise
2
Output Current Range
Output DC Current Limit
Short Circuit Surge
3.3V
2.5V
1.5V
Turn on Time
Overshoot at Turn On
Output Capacitance
Transient Response
3
∆
V 50% to 100% of Max Load
Settling Time
∆
V 100% to 50% of Max Load
Settling Time
All
50
Ts
20
100
40
Ts
50
20
100
40
All
All
All
Cout
0
Ton
All
All
All
All
Iout
Ioutlim
Ioutsurge
0.08
0.03
0.05
12
0
0.2
0.1
0.1
20
3
2200
0
7.8
20
18
16
60
13
72
55
40
100
20
6
15
mVp-p
mVrms
A
A
A
2
s
ms
%
µF
mV
µs
mV
µs
Note: All specifications are typical at nominal input, full load at 25° C unless otherwise stated.
1. Vin=5V, Iout=full load, Ta=25° C.
2. 0 - 20MHz BW, 0.1µF ceramic cap on output.
3. di/dt=0.5A/uS, Vin=5 VDC, Ta=25° C with a 47µF aluminum cap on output.
©2006 Bel Fuse Inc. Specifications subject to change without notice. 06.06
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 3
POWER PRODUCTS
BP06VRPB-06B
NON-ISOLATED DC/DC CONVERTERS
5V Input / 1.5 – 3.3V Output / 6A
General Specifications
Parameter
Efficiency
1
3.3V
2.5V
1.5V
Switching Frequency
Output Voltage Trim Range
3.3V
2.5V
1.5V
Remote Sense Compensation
Weight
All
All
6.1
70
70
90
110
110
110
0.5
V
g
All
Fsw
Module
Symbol
η
91
88
84
230
94
91
87
300
340
kHz
%
Min
Typical
Max
Units
%
1. Vin=5V, full load and Ta=25° C.
Control Specifications
Parameter
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Module
All
All
All
Symbol
Vouten
-0.3
2.8
0.3
5.5
Min
Typical
Max
Units
V
V
V
Thermal Considerations
This product operates at maximum output current over the entire specified temperature
range in a convection cooled environment. No thermal derating is necessary.
©2006 Bel Fuse Inc. Specifications subject to change without notice. 06.06
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 4
NON-ISOLATED DC/DC CONVERTERS
5V Input / 1.5 – 3.3V Output / 6A

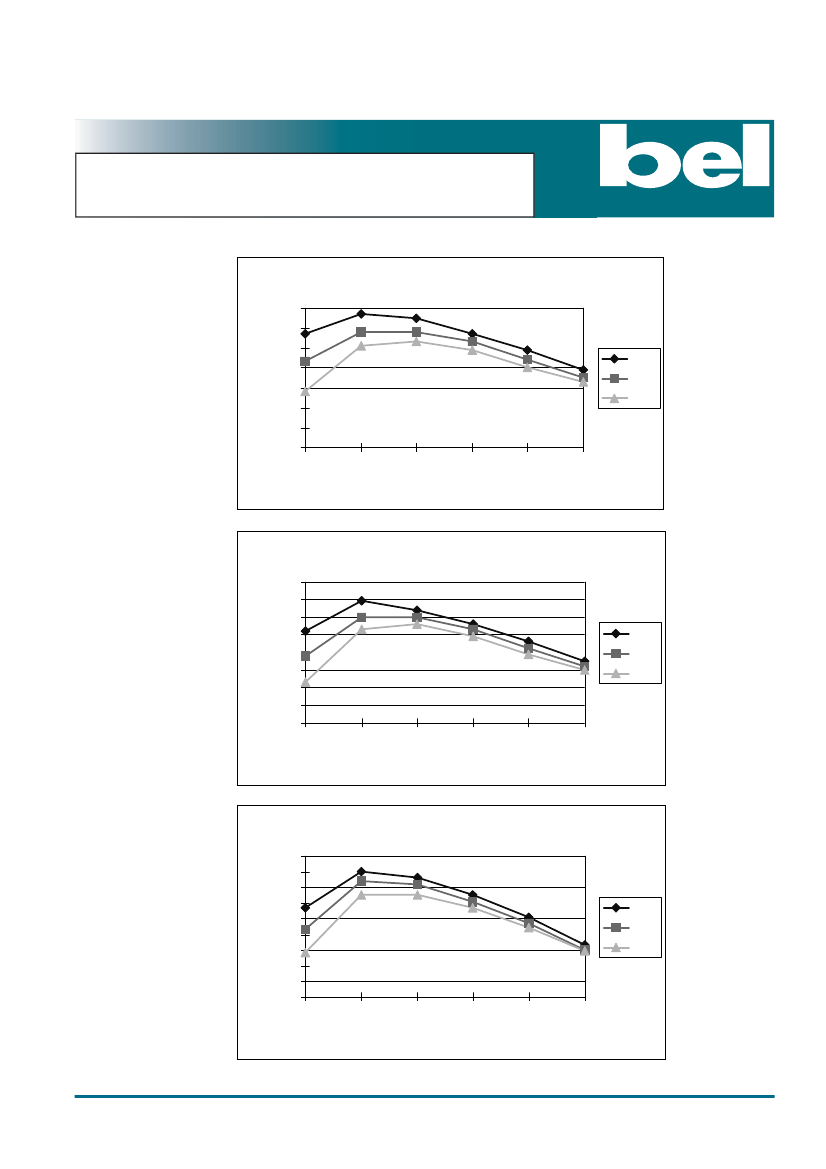

Efficiency Data
97%
96%
EFFICIENCY
95%
94%
93%
92%
91%
90%
1
2
3
4
5
6
OUTPUT CURRENT
POWER PRODUCTS
BP06VRPB-06B
Module 3.3V
4.5V
5.0V
5.5V
Module 2.5V
96%
95%
94%
93%
92%
91%
90%
89%
88%
1
2
3
4
5
6
OUTPUT CURRENT
EFFICIENCY
4.5V
5.0V
5.5V
Module 1.5V
93%
92%
91%
90%
89%
88%
87%
86%
85%
84%
1
2
3
4
5
6
OUTPUT CURRENT
EFFICIENCY
4.5V
5.0V
5.5V
©2006 Bel Fuse Inc. Specifications subject to change without notice. 06.06
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 5
