DSEC60-12A

Description
HiPerFRED Epitaxial Diode with common cathode and soft recovery
File Size316KB，5 Pages
ManufacturerIXYS ( Littelfuse )
Websitehttp://www.ixys.com/
Download Datasheet View All

DSEC60-12A Online Shopping

Suppliers Part Number Price MOQ In stock
DSEC60-12A - - View Buy Now

DSEC60-12A Overview

HiPerFRED Epitaxial Diode with common cathode and soft recovery

DSEC60-12A Preview

DSEC60-12A
HiPerFRED
V
RRM
I
FAV
t
rr
=
=
2x
=
1200 V
30 A
40 ns
High Performance Fast Recovery Diode
Low Loss and Soft Recovery
Common Cathode
Part number
DSEC60-12A
Backside: cathode
1
2
3
Features / Advantages:
●
Planar passivated chips
●
Very low leakage current
●
Very short recovery time
●
Improved thermal behaviour
●
Very low Irm-values
●
Very soft recovery behaviour
●
Avalanche voltage rated for reliable operation
●
Soft reverse recovery for low EMI/RFI
●
Low Irm reduces:
- Power dissipation within the diode
- Turn-on loss in the commutating switch
Applications:
●
Antiparallel diode for high frequency
switching devices
●
Antisaturation diode
●
Snubber diode
●
Free wheeling diode
●
Rectifiers in switch mode power
supplies (SMPS)
●
Uninterruptible power supplies (UPS)
Package:
TO-247
●
Industry standard outline
●
RoHS compliant
●
Epoxy meets UL 94V-0
Terms Conditions of usage:
The data contained in this product data sheet is exclusively intended for technically trained staff. The user will have to evaluate the suitability of the product for the intended application and
the completeness of the product data with respect to his application. The specifications of our components may not be considered as an assurance of component characteristics. The
information in the valid application- and assembly notes must be considered. Should you require product information in excess of the data given in this product data sheet or which concerns
the specific application of your product, please contact your local sales office.
Due to technical requirements our product may contain dangerous substances. For information on the types in question please contact your local sales office.
Should you intend to use the product in aviation, in health or life endangering or life support applications, please notify. For any such application we urgently recommend
- to perform joint risk and quality assessments;
- the conclusion of quality agreements;
- to establish joint measures of an ongoing product survey, and that we may make delivery dependent on the realization of any such measures.
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20160928a
© 2016 IXYS all rights reserved
DSEC60-12A
Fast Diode
Symbol
V
RSM
V
RRM
I
R
V
F
Definition
max. repetitive reverse blocking voltage
reverse current, drain current
Ratings
Conditions
T
VJ
= 25°C
T
VJ
= 25°C
T
VJ
= 25°C
T
VJ
= 150°C
T
VJ
= 25°C
T
VJ
= 150 °C
T
VJ
= 175 °C
d = 0.5
T
VJ
= 175 °C
1.12
16
0.25
T
C
= 25°C
t = 10 ms; (50 Hz), sine; V
R
= 0 V
V
R
= 600 V f = 1 MHz
I
F
=
30 A; V
R
= 600 V
T
VJ
= 45°C
T
VJ
= 25°C
T
VJ
= 25 °C
T
VJ
= 100 °C
T
VJ
= 25 °C
T
VJ
= 100 °C
-di
F
/dt = 200 A/µs
12
8.5
13
60
170
165
200
V
mΩ
K/W
W
A
pF
A
A
ns
ns
min.
typ.
max. Unit
1200
V
1200
250
1
2.74
3.27
1.79
2.30
30
V
µA
mA
V
V
V
V
A
max. non-repetitive reverse blocking voltage
V
R
= 1200 V
V
R
= 1200 V
I
F
=
I
F
=
I
F
=
I
F
=
30 A
60 A
30 A
60 A
forward voltage drop
I
FAV
V
F0
r
F
R
thJC
R
thCH
P
tot
I
FSM
C
J
I
RM
t
rr
average forward current
T
C
= 120 °C
rectangular
threshold voltage
slope resistance
for power loss calculation only
thermal resistance junction to case
thermal resistance case to heatsink
total power dissipation
max. forward surge current
junction capacitance
max. reverse recovery current
0.9 K/W
reverse recovery time
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20160928a
© 2016 IXYS all rights reserved
DSEC60-12A
Package
Symbol
I
RMS
T
VJ
T
op
T
stg
Weight
M
D
F
C
mounting torque
mounting force with clip
TO-247
Definition
RMS current
virtual junction temperature
operation temperature
storage temperature
Ratings
Conditions
per terminal
1)
min.
-55
-55
-55
typ.
max.
70
175
150
150
Unit
A
°C
°C
°C
g
Nm
N
6
0.8
20
1.2
120
Product Marking
Logo
Part No.
Assembly Line
Assembly Code
Date Code
IXYS
XXXXXXXXX
Zyyww
abcd
Ordering
Standard
Ordering Number
DSEC60-12A
Marking on Product
DSEC60-12A
Delivery Mode
Tube
Quantity
30
Code No.
476412
Equivalent Circuits for Simulation
I
V
0
R
0
threshold voltage
slope resistance *
Fast
Diode
* on die level
T
VJ
= 175 °C
V
0 max
R
0 max
1.12
13.4
V
mΩ
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20160928a
© 2016 IXYS all rights reserved
DSEC60-12A
Outlines TO-247
E
Q
A
A2
S
Ø
P
Ø
P1
D2
Sym.
Inches
min.
max.
Millimeter
min.
max.
D1
D
2x
E2
4
1
L1
L
2
3
E1
2x
b2
3x
b
C
A1
b4
2x
e
A
A1
A2
D
E
E2
e
L
L1
ØP
Q
S
b
b2
b4
c
D1
D2
E1
Ø P1
0.185 0.209
0.087 0.102
0.059 0.098
0.819 0.845
0.610 0.640
0.170 0.216
0.215 BSC
0.780 0.800
-
0.177
0.140 0.144
0.212 0.244
0.242 BSC
0.039 0.055
0.065 0.094
0.102 0.135
0.015 0.035
0.515
-
0.020 0.053
0.530
-
-
0.29
4.70
5.30
2.21
2.59
1.50
2.49
20.79 21.45
15.48 16.24
4.31
5.48
5.46 BSC
19.80 20.30
-
4.49
3.55
3.65
5.38
6.19
6.14 BSC
0.99
1.40
1.65
2.39
2.59
3.43
0.38
0.89
13.07
-
0.51
1.35
13.45
-
-
7.39
1
2
3
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20160928a
© 2016 IXYS all rights reserved
DSEC60-12A
Fast Diode
70
60
T
VJ
= 150°C
5
T
VJ
= 100°C
V
R
= 600 V
60
50
I
F
= 60 A
4
I
F
= 60 A
50
100°C
25°C
40
I
F
40
[A]
30
20
Q
r
3
[µC]
2
30 A
15 A
30 A
15 A
I
RM
30
[A]
20
1
10
0
0
1
2
3
4
0
100
10
0
1000
0
200
400
T
VJ
= 100°C
V
R
= 600 V
600
800
1000
V
F
[V]

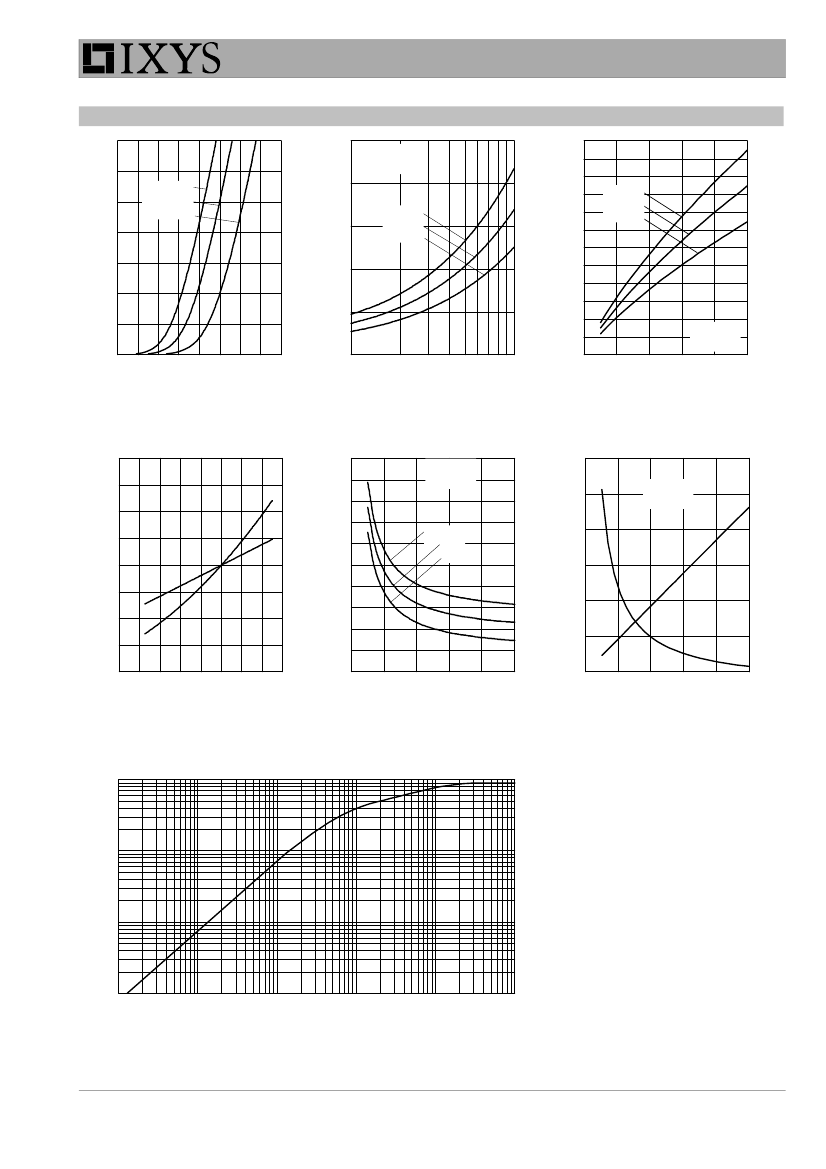

Fig. 1 Forward current
I
F
versus V
F
2.0
-di
F
/dt [A/µs]
Fig. 2 Typ. reverse recov. charge
Q
r
versus -di
F
/dt
220
-di
F
/dt [A/µs]
Fig. 3 Typ. peak reverse current
I
RM
versus -di
F
/dt
120
100
T
VJ
= 100°C
I
F
= 30 A
T
VJ
= 100°C
V
R
= 600 V
1.2
1.0
0.8
0.6
0.4
0.2
V
FR
t
rr
200
1.5
I
F
= 60 A
80
t
rr
K
f
1.0
180
30 A
15 A
V
FR
60
t
fr
[ns]
160
I
RM
[V]
40
[µs]
0.5
Q
R
140
20
0
0
200
400 600 800
-di
F
/dt [A/µs]
1000
0
200
400
600
800
0.0
0
40
80
120
T
VJ
[°C]
160
120
0.0
1000
-di
F
/dt [A/µs]
Fig. 6 Typ. peak forward voltage
V
FR
and t
fr
versus di
F
/dt
Fig. 4 Typ. dynamic parameters
Q
r
, I
RM
versus T
VJ
1
Fig. 5 Typ. recovery time
t
rr
versus -di
F
/dt
0.1
Z
thJC
[K/W]
0.01
Constants for Z
thJC
calculation:
i
1
2
3
4
R
thi
(K/W)
0.030
0.080
0.300
0.490
t
i
(s)
0.001
0.030
0.006
0.060
0.001
0.00001
0.0001
0.001
t [s]
0.01
0.1
1
Fig. 7 Transient thermal impedance junction to case
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20160928a
© 2016 IXYS all rights reserved
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

24V, 500mA regulated power supply circuit

HT-680/HT-6187/HT-600/HT-6207/HT-640/HT-6247 electric line-f

Using light-emitting diodes as a linear scale measurement circuit

4N25 to 4N28 type optocoupler circuit

Singing tumbler circuit

Clever use of LA4112 as a regulated power supply circuit diagram

WIFI(RTL8188EUS) Guide
[b]MY-IMX6 Development Guide WIFI (RTL8188EUS)[/b][color=rgb(37, 37, 37)][font=sans-serif][size=0.875em] [size=13.3px][align=center][b]Directory[/b][size=12.502px] [[color=rgb(11, 0, 128)][url=http://...
明远智睿Lan ARM Technology
What is the educational background of those who work on microcontrollers in the forum?
I am a senior in college and my skills are not very good. I paid attention to our forum during the competition and felt that some friends from higher vocational colleges have a solid technical foundat...
fish001 MCU
When softIce is started under XP, the screen goes black. How can I run it normally? ? ?
When softIce is started under XP, the screen goes black. How can I run it normally? ? ? Please give me some advice....
jackwellsun88 Embedded System
CAN
Hope you find it useful...
zxy0226 Analog electronics
How to write MCP2515 driver (wince under S3C2440)?
How to write MCP2515 driver (wince under S3C2440)?...
dg00010170 Embedded System
[Accountant Wang’s debate topic] It’s really hard to find a boss with vision these days
It's hard to find a boss with vision these days.Big companies are not ambitious. CEOs are satisfied with completing tasks. As for the future, they don’t care. Small companies have no capital and no co...
wangkj Talking about work
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 85101RA128SW50
  2. NTR25T1403BTRF
  3. M80-4T10605F1-06-322-11-301
  4. 25121WF4221BAE
  5. CN24JT684
  6. 345-033-521-178
  7. 362CLX8R2DS6ROHS
  8. BG274K0334M--
  9. A3961WVA-2P-V0-BK-C1148D1148
  10. A2508WV-17P-GWT
  11. A7921WRA-RH-3P-S-0F
  12. D3961HE-5P-YL

Popular Articles

  1. LPC1788--TIMER match interrupt setting--register operation
  2. PLC uses pulse mode to control servo motor
  3. Intel: Building a new digital infrastructure for cities with the power of ecology
  4. What are the characteristics of TKDCW-II DC power supply ripple tester
  5. Apple ranked first in global smartphone shipments in the fourth quarter of 2021
  6. atmega8 example: T1 timer CTC mode square wave output
  7. 5.LED Flowing Light
  8. Electric vehicle battery technology is moving away from cobalt dependence
  9. ON Semiconductor to Showcase Sustainable Innovation at Embedded World
  10. Morse Microelectronics partners with Quectel to bring Wi-Fi HaLow to market

Technical ResourceMore

  1. LPC1768 Land Rover development board program complete set
  2. IAR for arm 6.4 version crack
  3. Analog Engineer\'s Pocket Reference TI Chinese Edition
  4. Design of DVB-C Channel Demodulation and Decoding Chip GX1001
  5. \"PID Controller Parameter Adjustment and Implementation\" HD Complete Chinese Edition
  6. Design and calculation of electric induction heater
  7. FollowS3E4 code packaging
  8. Xilinx_zynq_book (Chinese version) + source code
  9. Robotics Engineering [by Yoshiaki Shirai (Japan)]
  10. OpenCV-Python-Tutorial (Chinese Version)

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1973  2169  2189  1587  2147  40  44  45  32  58
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
