1SMC5.0CA
THRU
1SMC170CA
SURFACE MOUNT SILICON
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1SMC5.0CA series
devices are surface mount bi-directional glass
passivated junction Transient Voltage Suppressors
designed to protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
Note: For uni-directional devices, please refer to the
1SMC5.0A series data sheet.
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
SMC CASE
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Power Dissipation (Note 1)
Operating and Storage Junction Temperature
SYMBOL
PPK
TJ, Tstg
1500
-65 to +150
UNITS
W
°C
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
REVERSE
STAND-OFF
VOLTAGE
TYPE
VRWM
V
1SMC5.0CA
1SMC6.0CA
1SMC6.5CA
1SMC7.0CA
1SMC7.5CA
1SMC8.0CA
1SMC8.5CA
1SMC9.0CA
1SMC10CA
1SMC11CA
1SMC12CA
1SMC13CA
1SMC14CA
1SMC15CA
1SMC16CA
1SMC17CA
1SMC18CA
1SMC20CA
1SMC22CA
1SMC24CA
1SMC26CA
1SMC28CA
1SMC30CA
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
BREAKDOWN
VOLTAGE
VBR @ IT
MIN
V
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
MAX
V
7.25
7.67
8.30
8.95
9.58
10.23
10.82
11.5
12.8
14
15.3
16.5
17.9
19.2
20.5
21.7
23.3
25.5
28
30.7
33.2
35.8
38.3
TEST
CURRENT
IT
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
μA
1000
1000
500
200
100
50
20
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
163
145.6
133.9
125
116.3
110.3
104.2
97.4
88.2
82.4
75.3
69.7
64.7
61.5
57.7
53.3
51.4
46.3
42.2
38.6
35.6
33
31
CBDE
CBDG
CBDK
CBDM
CBDP
CBDR
CBDT
CBDV
CBDX
CBDZ
CBEE
CBEG
CBEK
CBEM
CBEP
CBER
CBET
CBEV
CBEX
CBEZ
CBFE
CBFG
CBFK
MARKING
CODE
Note 1: Non-repetitive 10x1,000μs pulse.
R8 (17-March 2016)
1SMC5.0CA
THRU
1SMC170CA
SURFACE MOUNT SILICON
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
REVERSE
STAND-OFF
VOLTAGE
TYPE
VRWM
V
1SMC33CA
1SMC36CA
1SMC40CA
1SMC43CA
1SMC45CA
1SMC48CA
1SMC51CA
1SMC54CA
1SMC58CA
1SMC60CA
1SMC64CA
1SMC70CA
1SMC75CA
1SMC78CA
1SMC85CA
1SMC90CA
1SMC100CA
1SMC110CA
1SMC120CA
1SMC130CA
1SMC150CA
1SMC160CA
1SMC170CA
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
BREAKDOWN
VOLTAGE
VBR @ IT
MIN
V
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
MAX
V
42.2
46
51.1
54.9
57.5
61.3
65.2
69
74.1
76.7
81.8
89.5
95.8
99.7
108.2
115.5
128
140.5
153
165.5
192.5
205
217.5
TEST
CURRENT
IT
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
μA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
28.1
25.8
23.2
21.6
20.6
19.4
18.2
17.2
16
15.5
14.6
13.3
12.4
11.4
10.4
10.3
9.3
8.4
7.9
7.2
6.2
5.8
5.5
CBFM
CBFP
CBFR
CBFT
CBFV
CBFX
CBFZ
CBGE
CBGG
CBGK
CBGM
CBGP
CBGR
CBGT
CBGV
CBGX
CBGZ
CBHE
CBHG
CBHK
CBHM
CBHP
CBHR
MARKING
CODE

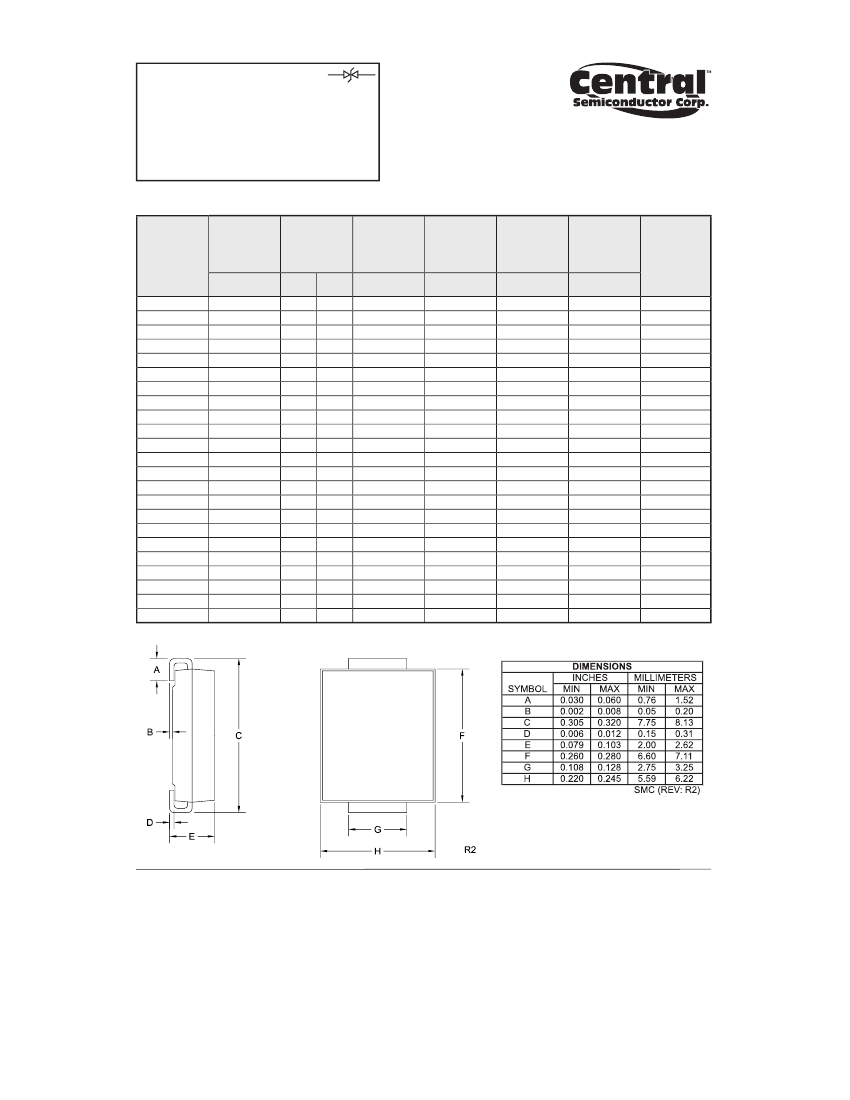

SMC CASE - MECHANICAL OUTLINE
R8 (17-March 2016)
w w w. c e n t r a l s e m i . c o m
1SMC5.0CA
THRU
1SMC170CA
SURFACE MOUNT SILICON
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
TYPICAL ELECTRICAL CHARACTERISTICS
R8 (17-March 2016)
w w w. c e n t r a l s e m i . c o m
