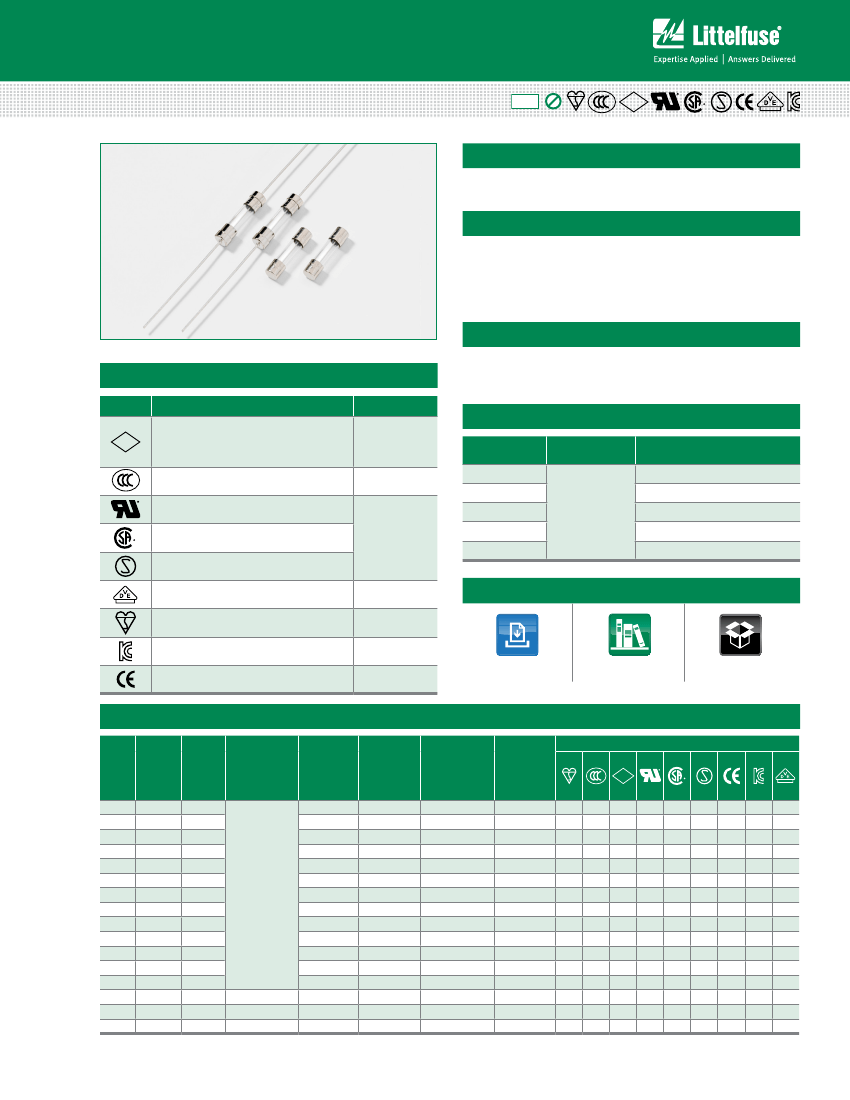

Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series
213 Series, 5×20 mm, Time-Lag Fuse
RoHS
Pb
PS
E
Description
5×20mm time-Lag surge withstand glass body cartridge
fuse designed to IEC specification.
Features
• Designed to International
(IEC ) Standards for use
globally
• Available in cartridge and
axial lead form
• Meets the IEC 60127-2,
Sheet 3 specification for
time-Lag fuses
• RoHS compliant and
lead-free.
Applications
Agency Approvals
Agency
PS
E
Used as supplementary protection in appliance or utilization
equipment to provide individual protection for components
or internal circuits.
Ampere Range
Agency File Number
Cartridge: NBK090205-E10480A
NBK120802-E10480C
Leaded: NBK090205-E10480B
NBK120802-E10480D
2003010207045592
E10480
029862
1403414
40015638
KM41462
SU05001-12002
SU05001-12001
N/A
1A-5A
6.3A
1A-5A
6.3A
0.200A – 6.3A
Electrical Characteristic for Series
% of Ampere
Rating
150%
210%
275%
All Ratings
400%
1000%
Ampere Rating
Opening Time
60 minutes, Minimum
2 minutes, Maximum
0.6 sec., Min.; 10 sec. Max.
.15 sec., Min.; 3 sec. Max.
0.02 sec., Min.; 0.3 sec. Max.
0.200A – 6.3A
0.200A – 6.3A
0.200A – 6.3A
3.15A-5A
6.3A
0.200A – 6.3A
Additional Information
Datasheet
Resources
Samples
Electrical Characteristic Specifications by Item
Voltage
Amp Ampere
Rating
Code Rating
(V)
.200
.250
.315
.400
.500
.630
.800
001.
1.25
01.6
002.
02.5
3.15
004.
005.
06.3
0.2
0.25
0.315
0.4
0.5
0.63
0.8
1
1.25
1.6
2
2.5
3.15
4
5
6.3
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Interrupting
Rating
Maximum
Maximum
Nominal
Voltage
Power
Nominal
Cold
Melting Drop at Rated Dissipation
Resistance
2
Current
at 1.5ln
I t (A
2
sec)
(Ohms)
(mV)
(W)
1.6000
0.22500
1500
1.6
1.0495
0.55500
1300
1.6
0.8475
1.14000
1100
1.6
0.5350
1.36000
1000
1.6
0.3700
2.90500
900
1.6
0.2750
4.80000
300
1.6
0.1635
9.42000
250
1.6
0.1165
19.20000
150
1.6
0.0817
27
.15000
150
1.6
0.0551
44.20000
150
1.6
0.0452
92.70500
150
1.6
0.0305
138.00000
120
1.6
0.0231
202.00000
100
1.6
0.0170
226.50500
100
1.6
0.0116
314.00000
100
1.6
0.0095
600.00000
100
1.6
Agency Approvals
PS
E
35A@250Vac
40A@250Vac
50A@250Vac
63A@250Vac
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice. Application testing is strongly recommended.
Revised: 05/08/17
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series

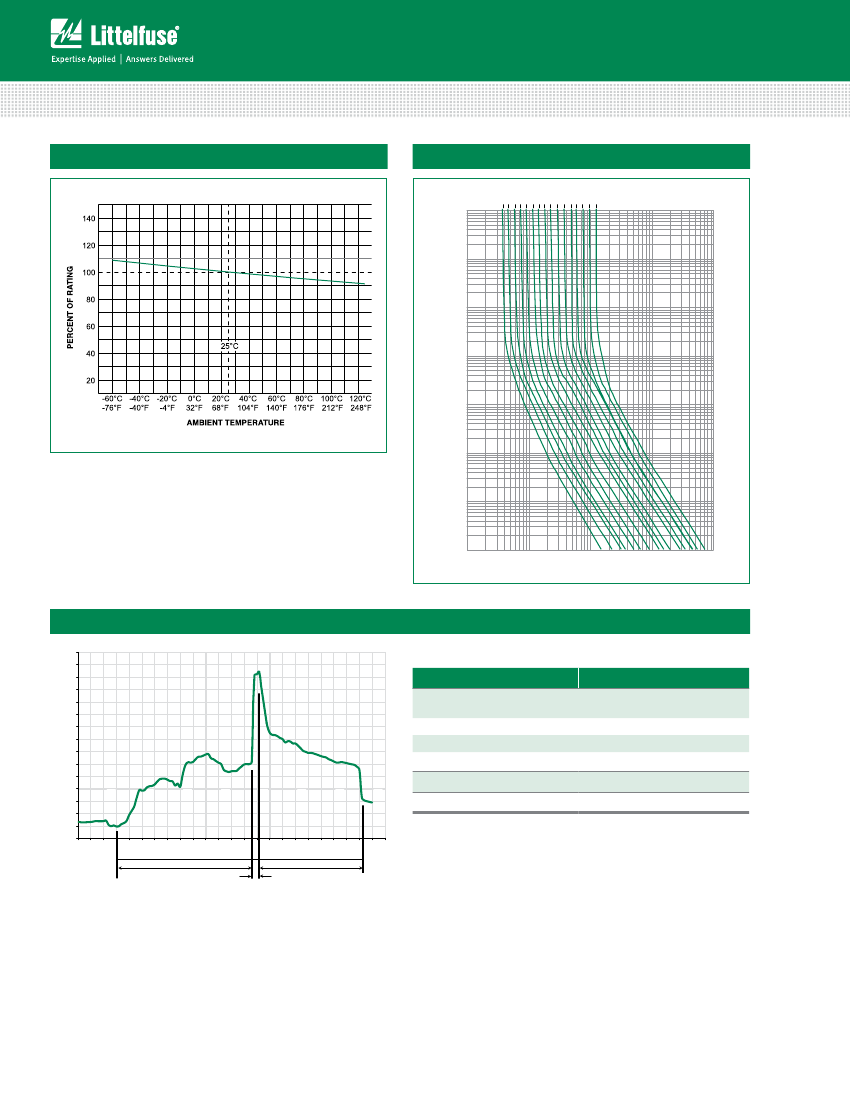

Temperature Re-rating Curve
Average Time Current Curves
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/08/17
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series
Product Characteristics
Material
Body: Glass
Cap: Nickel–plated brass
Leads: Tin–plated Copper
MIL
-STD-202, Method 211, Test Condition A
MIL-STD-202, Method 208
Cap1: Brand logo, current and voltage
Cap2: Agency approval marks Series
Available in Bulk (M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel)
Operating
Temperature
Thermal Shock
Vibration
Humidity
Salt Spray
–55ºC to +125ºC
MIL
-STD-202, Method 107 Test Condition
,
B: (5 cycles –65
°
C to +125
°
C)
MIL
-STD-202, Method 201
MIL
-STD-202, Method 103, Test
Condition A. High RH (95%) and elevated
temperature (40
°
C) for 240 hours.
MIL
-STD-202, Method 101, Test Condition B
Terminal Strength
Solderability
Product Marking
Packaging
Dimensions
20±0.5
Part Numbering System
5.2+0.1
-0.2
5.1±0.6
5.1±0.6
5.5±0.3
0213
000P
0213
000
XEP
0213 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Lead-free
Option Codes
Blank : Cartidge Type Fuse
E
: Axial Leaded Fuse
40±1.0
21.5±1.0
0.65±0.05*
Note:
- All dimensions in mm
Quantity Code
M = 1000
Packaging Code
X = Filler
Packaging
Packaging Option
213 Series
Bulk
Bulk
Reel and Tape
Bulk
Bulk
Bulk
Packaging Specification
N/A
N/A
N/A
N/A
N/A
N/A
Quantity
1000
1000
1000
1000
1000
100
Quantity & Packaging Code
MX
MXE
MRET1
MXG
MXB
HX
Taping Width
N/A
N/A
T1=53mm (2.087”)
N/A
N/A
N/A
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at
www.littelfuse.com/disclaimer-electronics.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/08/17
