0835008MXP Overview

Cartridge Fuses 250V 8A 5X20 I2T

0835008MXP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Cartridge Fuses
RoHS	Details
Product	Ceramic Fuse
Current Rating	8 A
Fuse Type	Time Delay / Slow Blow
Fuse Size / Group	5 mm x 20 mm
Voltage Rating AC	250 VAC
Mounting Style	Holder / Clip
Termination Style	Clip
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Bulk
Resistance	9.2 mOhms
Body Style	Cylindrical
Diameter	5.2 mm
Indicator Style	Without Indicator
Length	20 mm
Interrupt Rating	1.5 kA at 250 VAC
NumOfPackaging	1
Factory Pack Quantity	1000
Unit Weight	0.038801 oz

Preview

Download Datasheet

View All

Axial Lead & Cartridge Fuses

5×20 mm > Time-Lag > 835 Series

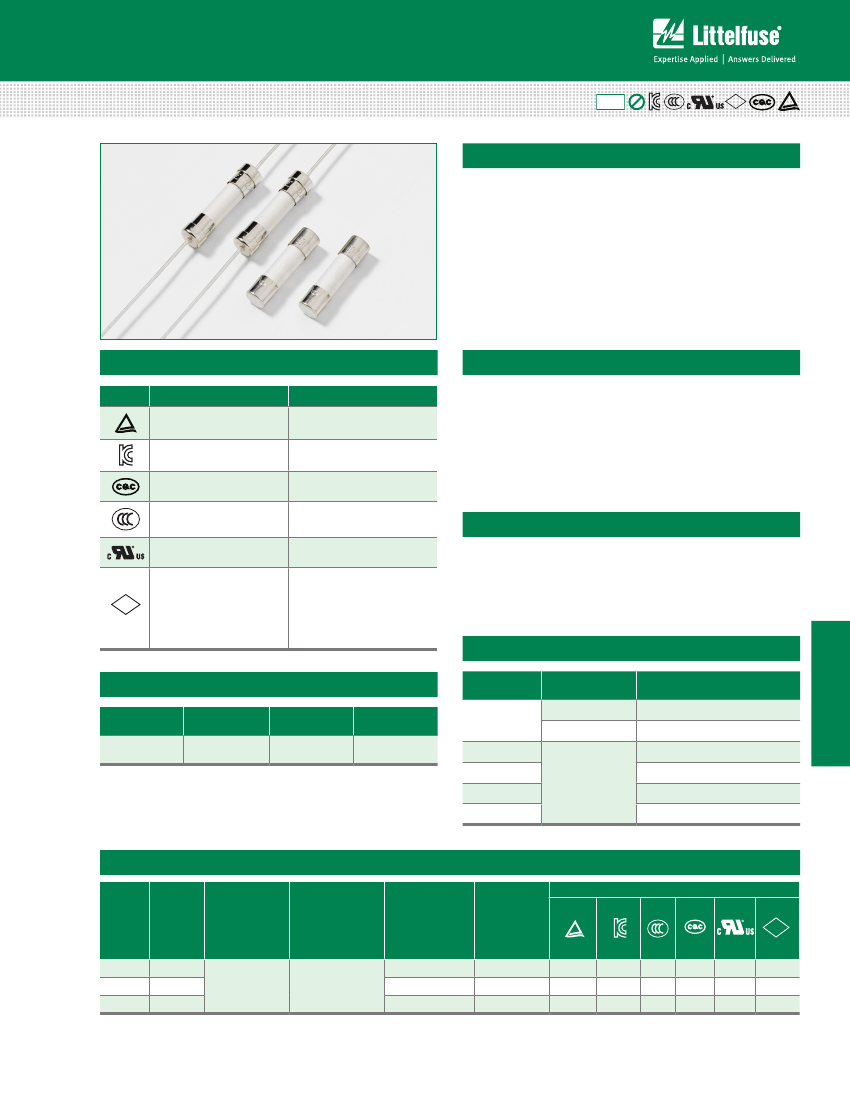

835 Series, 5×20 mm, Time-Lag Fuse

Description

RoHS

The 835 Series is a 5x20mm time-lag, ceramic body AC

fuse with higher I

t, high interrupting rating, and 1.5kA surge

withstand capability. This series fuse provides enhanced

over-current protection and surge withstand capability, ideal

for LED/LCD TVs, digital display systems, and digital signage

type of display applications. It is RoHS compliant and 100%

Pb-Free.

Agency Approvals

Agency

Agency File Number

Ampere Range

Features

• Higher I

t and 1.5kA

Surge Withstand

Capability

• High breaking capacity

• Operating temperature

range from -55°C to

125°C

Applications

• LED/LCD TVs

• Digital Display Systems

6.3A-8A

R50282025

SU05001-14001

SU05001-14002

CQC14012115993

2014010207723515

E10480

Cartridge:

NBK080205-E10480A

NBK250702-E10480E

Leaded:

NBK080205-E10480B

NBK250702-E10480F

5A-8A

5A-6.3A

5A-8A

• Meet the IEC 60127-2,

sheet 5 specifications for

Time-Lag Fuses

• RoHS compliant and

Lead-free

• White Goods

• Power Supply Units

• Digital Signage

Transient Surge Ratings

Surge Wave

Form

8/20µs

Notes:

1. Transient surge ratings are provided for reference only and may not represent surge

withstand capability in the end application. Factors including, but not limited to, series

impedance, mounting, and wiring may affect surge withstand capability.

2. In accordance with IEC 60060-1, front time = 8µs and time to half-value = 20µs

% of Ampere

Rating

Number of

Pulses

Ampere

Rating

5A-8A

150%

210%

275%

400%

1000%

Ampere Rating

5A- 6.3A

Opening Time

60 minutes, Minimum

30 minutes, Minimum

30 minutes, Maximum

Short-Circuit

Current

1,500A

5A- 8A

.75 sec. Min.; 80 secs. Max.

.150 sec. Min.; 5 secs. Max.

.010 sec. Min.; .150 sec. Max.

Electrical Characteristic Specifications by Item

Nominal Cold

Resistance

(Ohms)

Nominal

Melting

sec)

Agency Approvals

Amp

Code

Amp

Rating

Voltage Rating

(V)

Interrupting

Rating

005.

06.3

008.

6.3

250

1500A@250VAC

0.0155

0.0118

0.0092

155

300

230

t tested at 10x rated current

Specifications are subject to change without notice.

Revised: 01/21/15

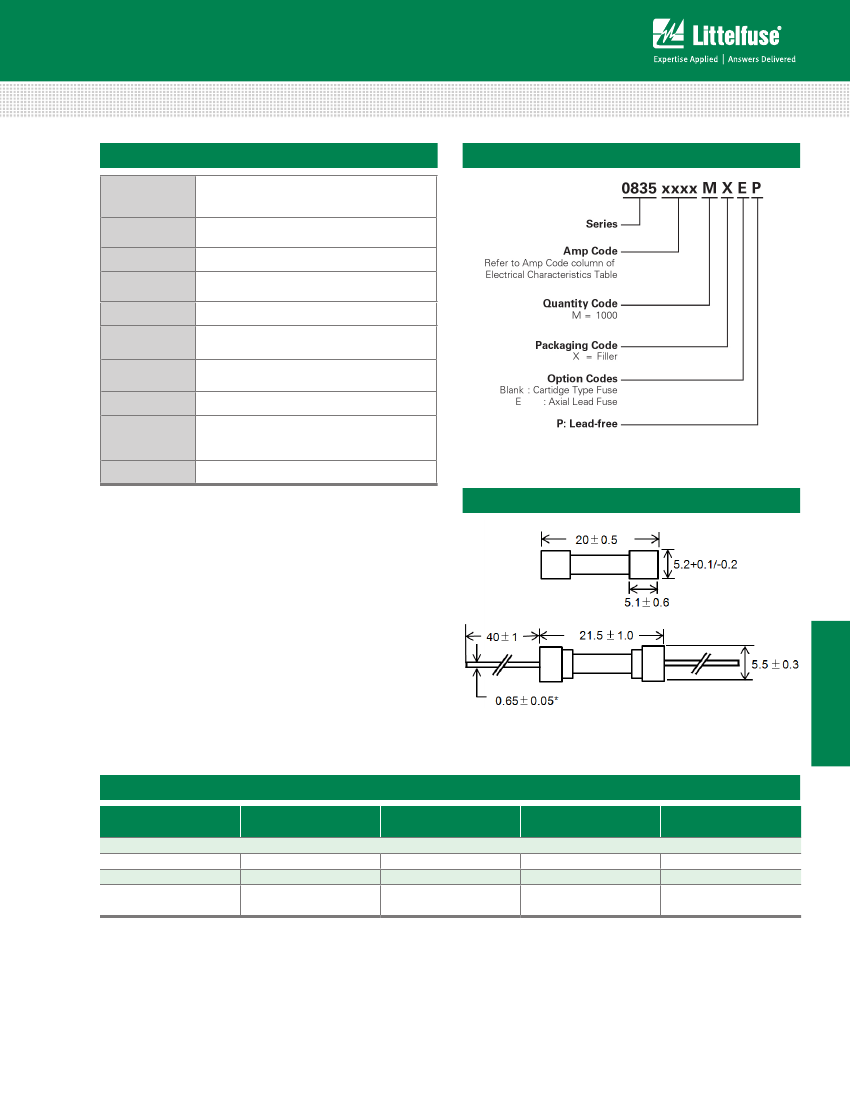

835 Series

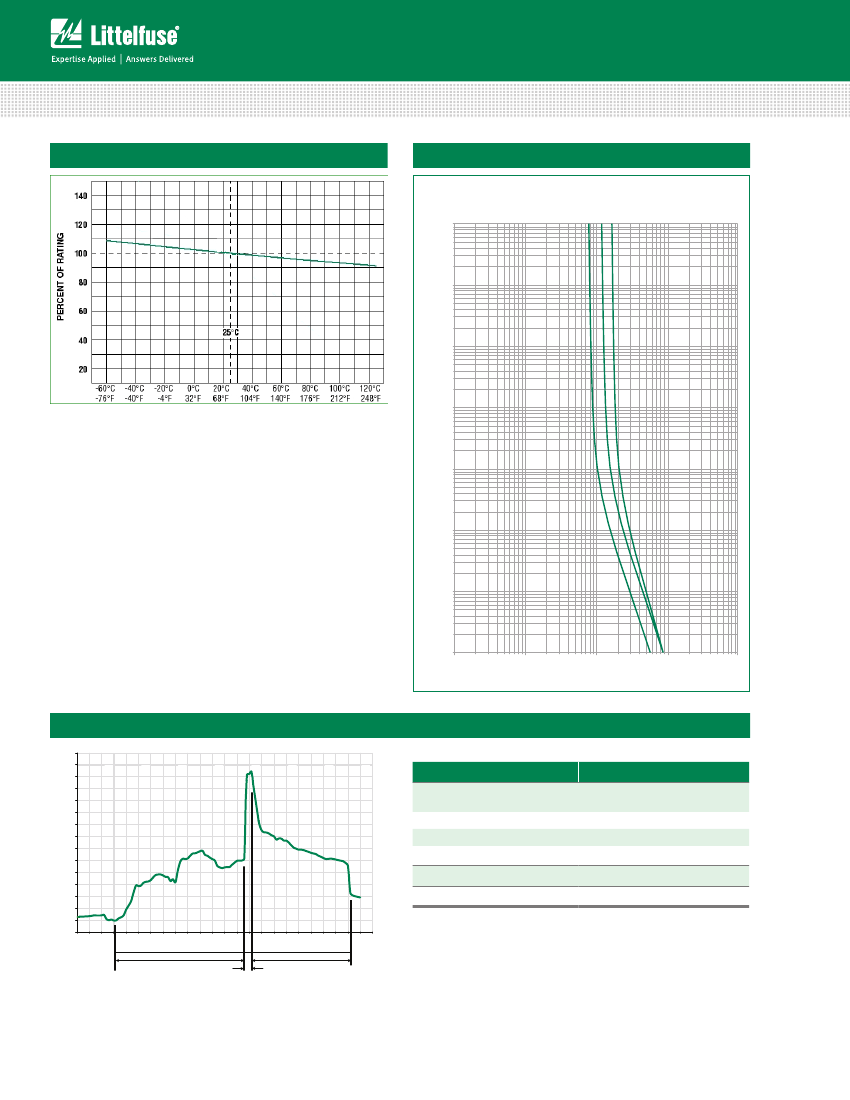

Electrical Characteristics for Series
