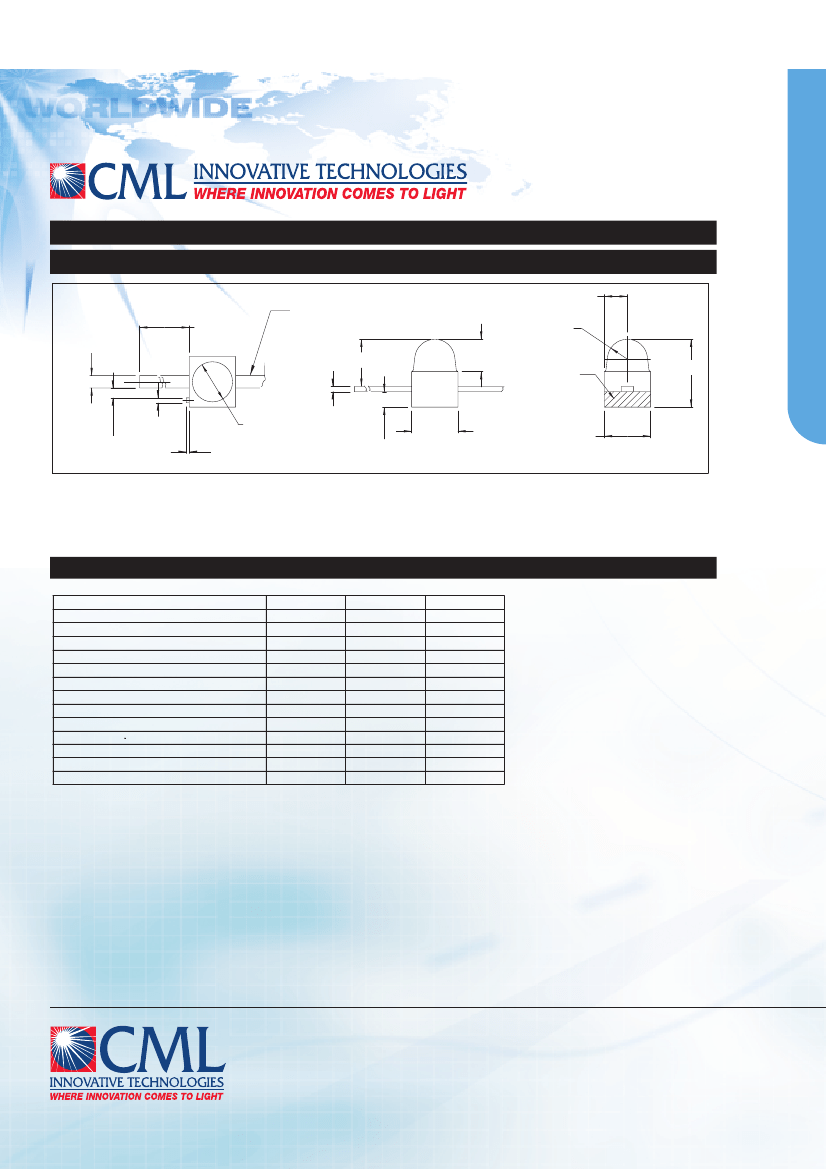

4302T-5V Sub Miniature 1.65mm Integrated Resistor-5 Volts
D E S C R I PT I O N AN D F EAT U R E S
.043±.006
C AT HODE (-)
.446±.006
.020±.002
.075 MAX.
.050
.055
R .030
R .035
C AT HODE (-)
S T R IP E
.
.115 MAX
.008±.001
.008 MAX.
.020 R E F .
.010 MAX.
Ø.070±.005
.030 MAX.
All dimensions in inches.
.075
.085
.087±.005
Sub-Miniature High Brite LED
• Integral current limiting resistor.
• TTL compatible-requires no external current limiter.
• Wide viewing angle 90°.
• High brightness-5mcd.
E L E C T R O - O P T I C A L C H A R A CT E R I S T I C S AN D R A T I N G S
P AR T NUMB E R
Output C olor
Diffusion
P ackage C olor
R ated C urrent (mA)
F orward Voltage Typ. (V)
F orward V oltage Max. (V )
Luminous Intensity Min. (mcd)
Luminous Intensity T yp. (mcd)
P eak Wavelength (nm)
Viewing Angle 20 1/2 (degrees)
C ontinuous F orward C urrent Max. (mA)
R everse B reakdown V oltage Min. (V )
P eak Forward C urrent Max. (1ms-300pps) (mA)
4302T 1-5V
R ed
Diffused
R ed
10
5
6
1.3
5.0
635
90
13
5
13
4302T 3-5V
Ambr
e
Diffused
Ambr
e
10
5
6
0.9
5.0
583
90
13
5
13
4302T 5-5V
G reen
Diffused
G reen
10
5
6
1.6
5.0
565
90
13
5
13
America:
CML Innovative Technologies,Inc.
147 Central Avenue
Hackensack -NJ 07601 -USA
Tel:1-201-489 -8989
Fax:1-201-489 -6911
e-mail:americas@cml-it.com
Europe:
CML Technologies GmbH &Co.KG
Robert-Bunsen-Str.1
67098 Bad Dürkheim -GERMANY
Tel:+49 (0)6322 9567-0
Fax:+49 (0)6322 9567-88
e-mail:europe@cml-it.com
Asia:
CML Innovative Technologies,Inc.
61 Aida Street
Singapore 459975
Tel:(65)9630 -5003
e-mail:asia@cml-it.com
CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product
