X31904 Overview

Fuse Holder Accessories TB3/CLEAR COVER CERT MFGR

X31904 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
Factory Lead Time	5 weeks 5 days
Connector bracket type	TERMINAL BLOCK ACCESSORY

Preview

Download Datasheet

View All

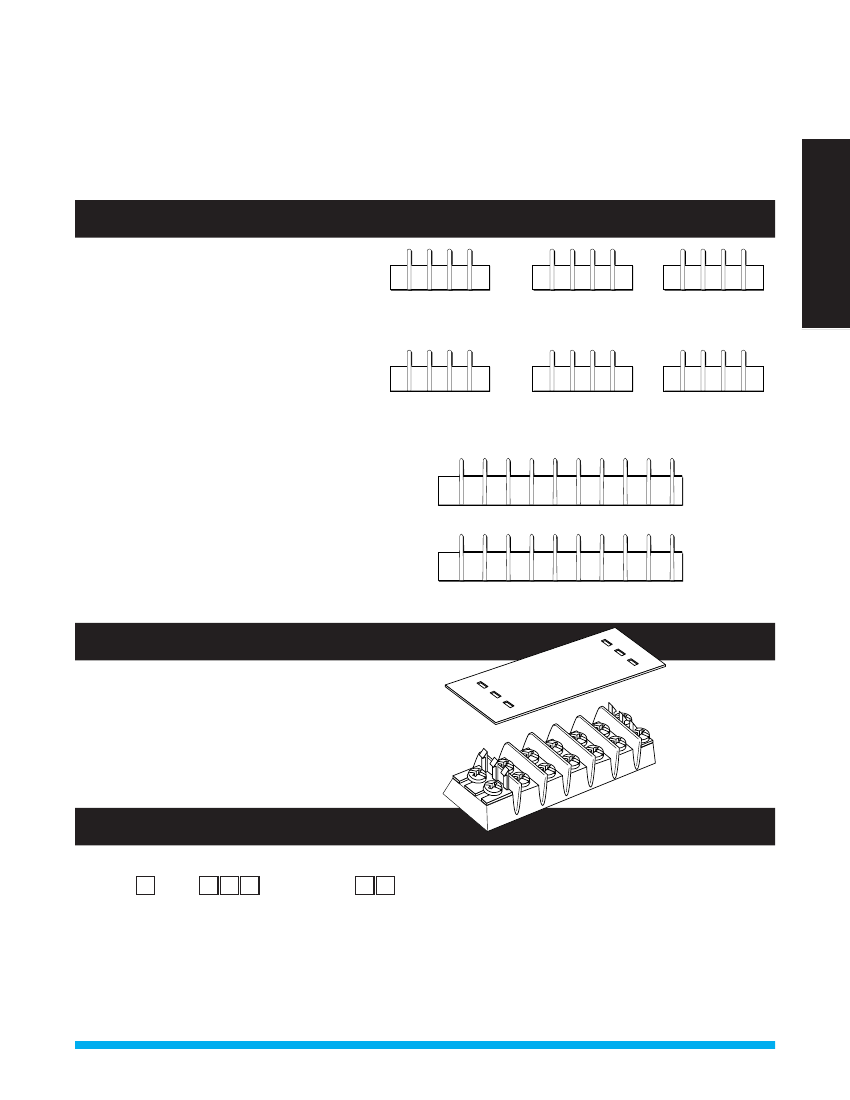

Marking Options & Accessories

Double Row Terminal Blocks (TB100, TB200, TB300, TB345 SERIES)

Single & Double Row

Filtered Connectors

Marking Options

Standard Marking

Standard markings are applied directly to the side(s) of a

block. Standard color is white. Standard height is .125”.

Note: Blocks marked on both sides require a different

code for each side. Example Style L1 on one side of the

block requires Style L2 on the other side to ensure com-

mon terminal marking. To order, add appropriate suffix

(L1, L2, L3, L4, L5 and/or L6) to block part number in the

proper sequence.

1 2 3

3 2 1

Special Marking

Special markings are available at an additional charge for

preparation. Production charges for setup, handling and

marking are the same as for standard marking. Drawing(s)

must be submitted to ensure accuracy of part required.

Consult factory for price and delivery.

MAS

TER

3AC

GND

RED

BLK

BLU

20A

INPUT

134

OUT

PUT

134

300V

MAX

Note: Marking is not available on TB400 Series

Covers

Covers prevent personnel, screws and foreign items from

contacting live terminals. Available in white or clear plas-

tic. Two cover clips supplied with each cover. Cover width

is 1.31 inches.

All covers must be ordered separately. Consult factory for

special legends.

Example: 10 position cover, white, TB100 Series, no leg-

ends . . . Part No. is X12010.

Part Numbering System

Series

Cover Strip

Poles

Cover Clips – Bulk

Part Number

DD1

– TB100 Series

DD2

– TB200 Series

DD2HB

– TB200HB Series

DD3

– TB300 Series

120

- TB100/white

119

- TB100/clear

220

- TB200 - white

220HB

- TB200HB - white

219

- TB200 - clear

219HB

- TB200HB - clear

320

- TB300 & TB345 - white

319

- TB300 & TB345 - clear

Note: Covers are not available on TB400 Series.

(TB100)

(TB200/TB200HB)

(TB300/TB345)

3 2 1

1 2 3

Euro-MAG Series

PCB – Spring Clamp

Base & Rail Mount

Connectors

Power Distribution Blocks

WIRE MANAGEMENT PRODUCTS
