855783: DescriptionSAW Filter, 1 Function(s), 114.99MHz,; CategoryAnalog mixed-signal IC filter; File Size59KB，1 Pages; ManufacturerSawtek Inc.

Download Datasheet Parametric View All

855783 Overview

SAW Filter, 1 Function(s), 114.99MHz,

855783 Parametric

Parameter Name	Attribute value
Maker	Sawtek Inc.
Reach Compliance Code	unknown
Maximum attenuation frequency (+/- delta f)	1793 kHz
Attenuation at maximum frequency	50 dB
Center frequency or cutoff frequency (fo/fc)	114.99 MHz
filter type	SAW FILTER
high	1.911 mm
input resistance	50 OHM
Maximum insertion loss	25 dB
length	19.3795 mm
Manufacturer's serial number	855783
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω
physical size	L0.791XB0.386XH0.078 (inch)
width	9.457 mm
Base Number Matches	1

Preview

Download Datasheet

View All

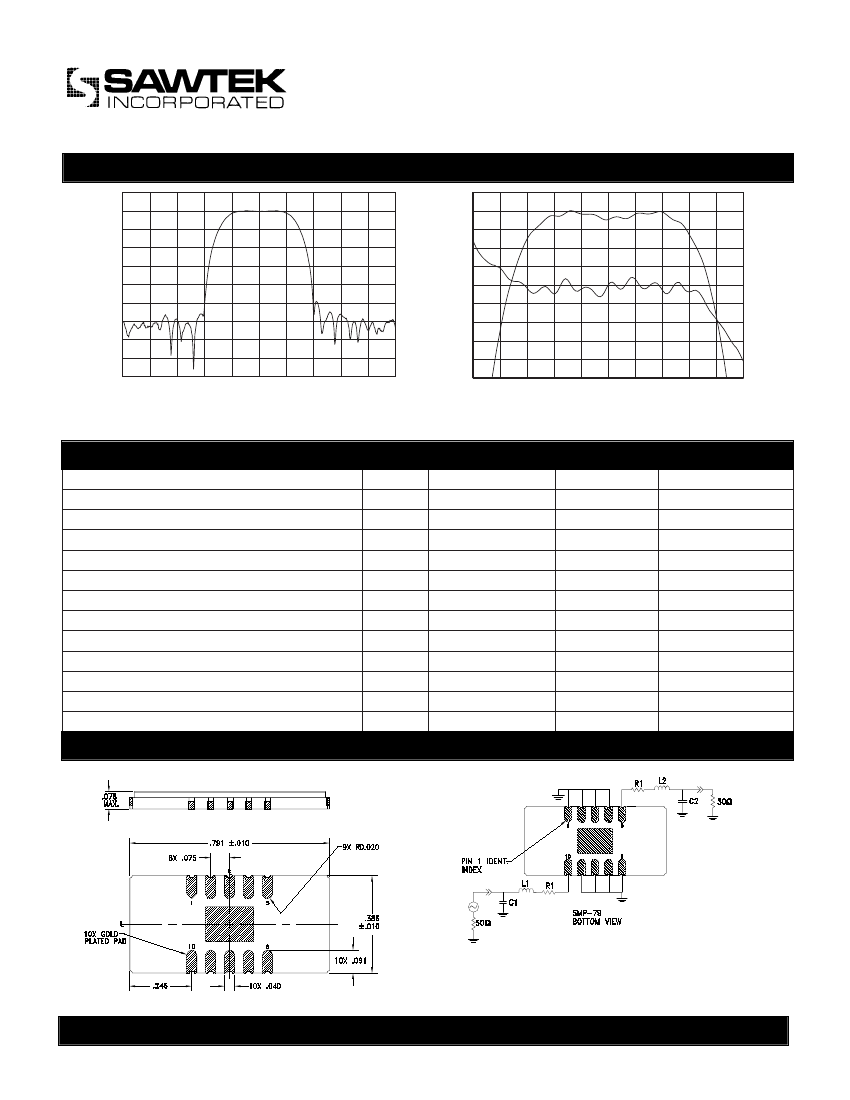

114.99 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

110.49

111.39

112.29

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

117.69

118.59

119.49

113.49

113.79

114.09

10

8

6

4

2

0

-2

-4

-6

-8

-10

115.89

116.19

-

25

114.29

-

118

0.65

5

-

85

116.49

1.4 MHz Bandwidth

Part Number 855783

113.19

114.09

114.99

115.89

116.79

114.39

114.69

114.99

115.29

Parameter

Center Frequency

Insertion Loss

.5 dB Lower Frequency

.5 dB Upper Frequency

50 dB Lower Frequency

50 dB Upper Frequency

Amplitude Ripple(114.375 - 115.605 MHz)

Phase Linearity(114.375 - 115.605 MHz)

Input / Output Return Loss

Triple Transit Suppression

Substrate Material

Temperature Range

Specifications

Unit

Minimum

MHz

dB

MHz

dB p-p

deg p-p

dB

-

°C

-

115.69

112

-

9

30

-

-40

Typical

114.99

21

114.262

115.732

113.197

116.804

0.3

2

16

40

Quartz

25

115.59

Horizontal: 900 kHz/Div

Vertical: 10 dB/Div

Horizontal: 300 kHz/Div

Vertical: 1 dB/Div

Vertical: 2 deg/Div

Maximum

Package Outline

Specifications subject to change or obsolescence without notice.

Matching Configuration

L1 = 150 nH , L2 = 150 nH , C1 = 56 pf

C2 = 33 pf , R1 = 2.2

Ω

, R2 = 18

Ω

Nominal Source/Load Impedance = 50Ω

Package Style SMP 79

4/19/00

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
