Fuse Holders
HB PCB Series (HBH, HBV, HBW)
Description
• For
1
⁄
4
" x 1
1
⁄
4
" and 5 x 20mm fuses
• Fuse carriers are interchangeable
• Carriers are color coded for easy identification:
• Gray for
1
⁄
4
" diameter fuses
• Black for 5mm fuses
• Vertical and horizontal body mounting versions
• Fuse carrier and knob are spring loaded
bayonet type with screwdriver slot
• “Kicked” terminals (all models) for optimum
wave-soldering
• Stabilizer pins on HBV model
• High dielectric molded thermoplastic meets UL 94V0
Resistance Ratings
• Insulation resistance: 10,000 megaohm at 500Vdc
• Contact resistance: Less than 0.005 ohms at 200mV
Dielectric Strength
• Dielectric strength: Over 200V/mil
Agency Information
• CE, VDE 4009241 (HBV, HBW) SEMKO 800444
• UL Recognized: IZLT2, E14853
• CSA Certified: Class 6225-01, File 47235
Environmental Data
• Operating Temperature: (-40ºC to + 85ºC )
• Temperature rating (RTI): The mounting body for all
devices has a temperature rating of 150°C. The knob
for all devices has a temperature rating of 130°C.
Ordering
• Specify packaging, product, and option code
Specifications
Catalog
Number
HBH-I
HBH-M
HBV-I
HBV-M
HBW-I
HBW-M
HBH
HBV
HBW
FBI
FBM
Fuse Holder
Body Mount
Carrier Size
1
Horizontal
⁄
4
" x 1
1
⁄
4
"
Horizontal
5 x 20mm
1
Vertical w/ Stability Pins
⁄
4
" x 1
1
⁄
4
"
Vertical w/ Stability Pins
5 x 20mm
1
Vertical w/o Stability Pins
⁄
4
" x 1
1
⁄
4
"
Vertical w/o Stability Pins
5 x 20mm
Horizontal
na
Vertical w/ Stability Pins
na
Vertical w/o Stability Pins
na
1
na
⁄
4
" x 1
1
⁄
4
"
na
5 x 20mm
Voltage Rating
Volts
250
250
250
250
250
250
250
250
250
–
–
Current Rating (amps) Agency Approval
UL
CSA
VDE
SEMKO
16
12
–
10
16
12
–
10
16
12
6.3
10
16
12
6.3
10
16
12
6.3
10
16
12
6.3
10
16
12
–
10
16
12
6.3
10
16
12
6.3
10
–
–
–
–
–
–
–
–
0608
BU-SB08247
Page 1 of 2
Data Sheet 2118

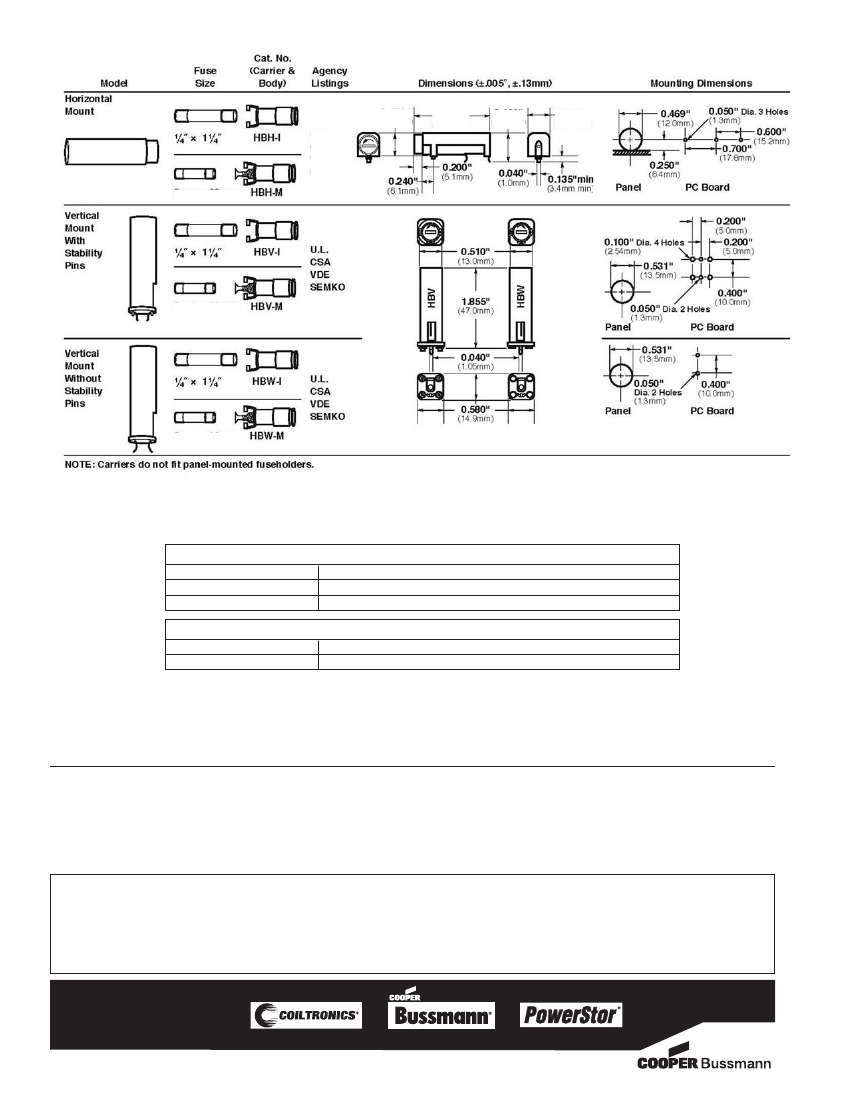

0.480˝
(12.19mm)
1.77˝
(45.0mm)
0.615˝
(15.62mm)
0.49˝
(12.44mm)
U.L.
CSA
SEMKO
5 x 20mm
5 x 20mm
5 x 20mm
Packaging Code
Packaging Code Prefix
Blank
BK
Description
10 fuse holders packed into a carton
100 fuse holders packed into a cardboard shelf package
Option Code
Option Code Suffix
-R
Description
RoHS compliant version
North America
Cooper Electronic Technologies
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Electronic Technologies
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Electronic Technologies
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Electronic Technologies
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2008 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0608
BU-SB08247
Page 2 of 2
Data Sheet 2118
