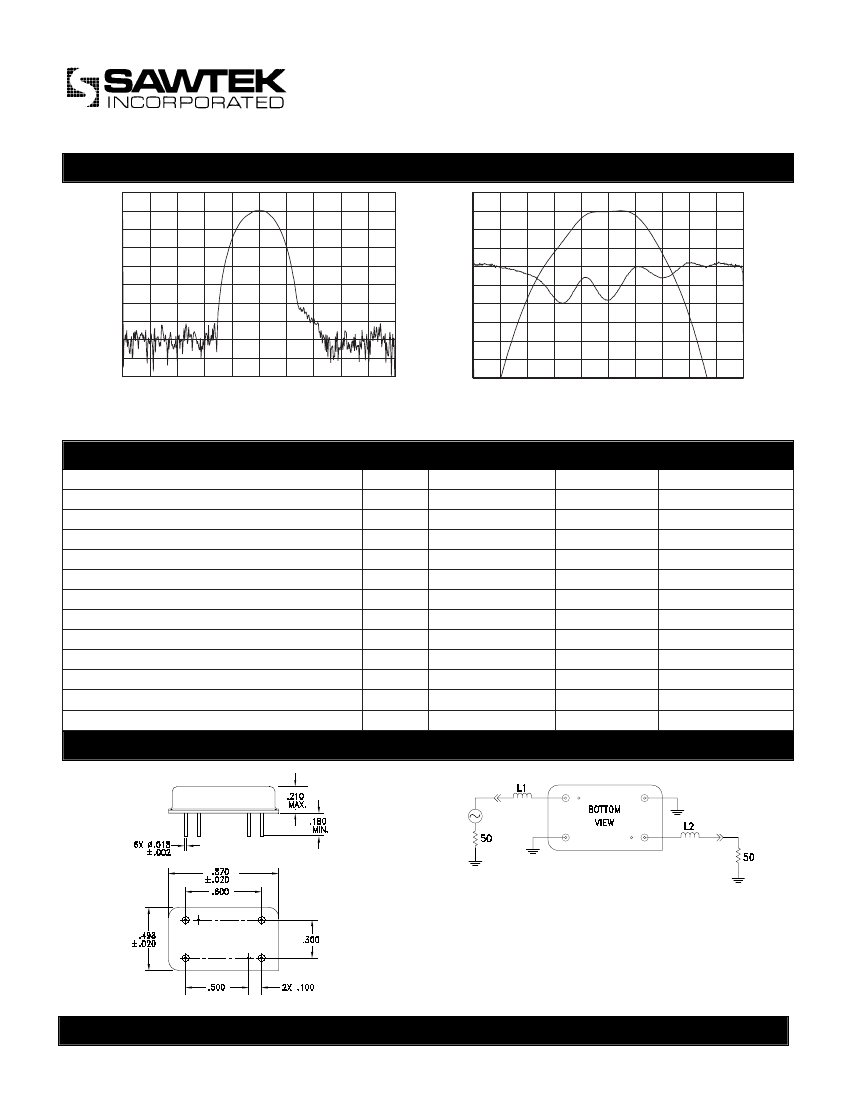

63 MHz SAW Bandpass Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
60.5 61 61.5
Horizontal: 500 kHz/Div
62 62.5 63 63.5 64 64.5 65 65.5
Vertical: 10 dB/Div
1
600
0
480
-1
360
-2
240
-3
120
-4
0
-5
-120
-6
-240
-7
-360
-8
-480
-9
-600
Horizontal: 100 kHz/Div
62.5 62.662.7 62.8 62.9 63 63.163.263.3 63.4 63.5
Vertical: 1 dB/Div
Vertical: 120 nsec/Div
for GSM Applications
Part Number 854509
Parameter
Center Frequency
Insertion Loss at F
o
Lower 3 dB Bandedge
Upper 3 dB Bandedge
Lower 50 dB Bandedge
Upper 50 dB Bandedge
Triple Transit Suppression
Group Delay Variation
Amplitude Ripple
Ultimate Rejection
Substrate Material
Operating Temperature Range
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
MHz
dB
nsec
dB
dB
-
°C
-
-
-
63.185
62.2
-
35
-
-
55
-
-30
Typical
63
14.5
62.76
63.22
62.27
63.71
40
250
0.1
65
Quartz
25
Maximum
-
15.8
62.815
-
-
63.8
-
300
1
-
-
85
Package Outline
Matching Configuration
Ω
Ω
L1 = 270nH, L2 = 270nH
Nominal Source/Load Impedance = 50Ω
Package Style I
11/24/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
