TPA-40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> TPA-40

TPA-40: DescriptionElectric Fuse, 40A, 170VDC, 100000A (IR), Inline/holder,; CategoryCircuit protection; File Size56KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

TPA-40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TPA-40	-	-	View	Buy Now

TPA-40 Overview

Electric Fuse, 40A, 170VDC, 100000A (IR), Inline/holder,

TPA-40 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8004277757
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Samacsys Description	Specialty Fuses TELPOWER ALARM FUSE
Samacsys Manufacturer	Eaton
Samacsys Modified On	2023-04-27 08:25:37
YTEOL	6.98
Other features	RATED BREAKING CAPACITY AT 170 VDC: 100000 A
body height	38.1 mm
Body length or diameter	10.31 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
Rated breaking capacity	100000 A
Rated current	40 A
Rated voltage (DC)	170 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

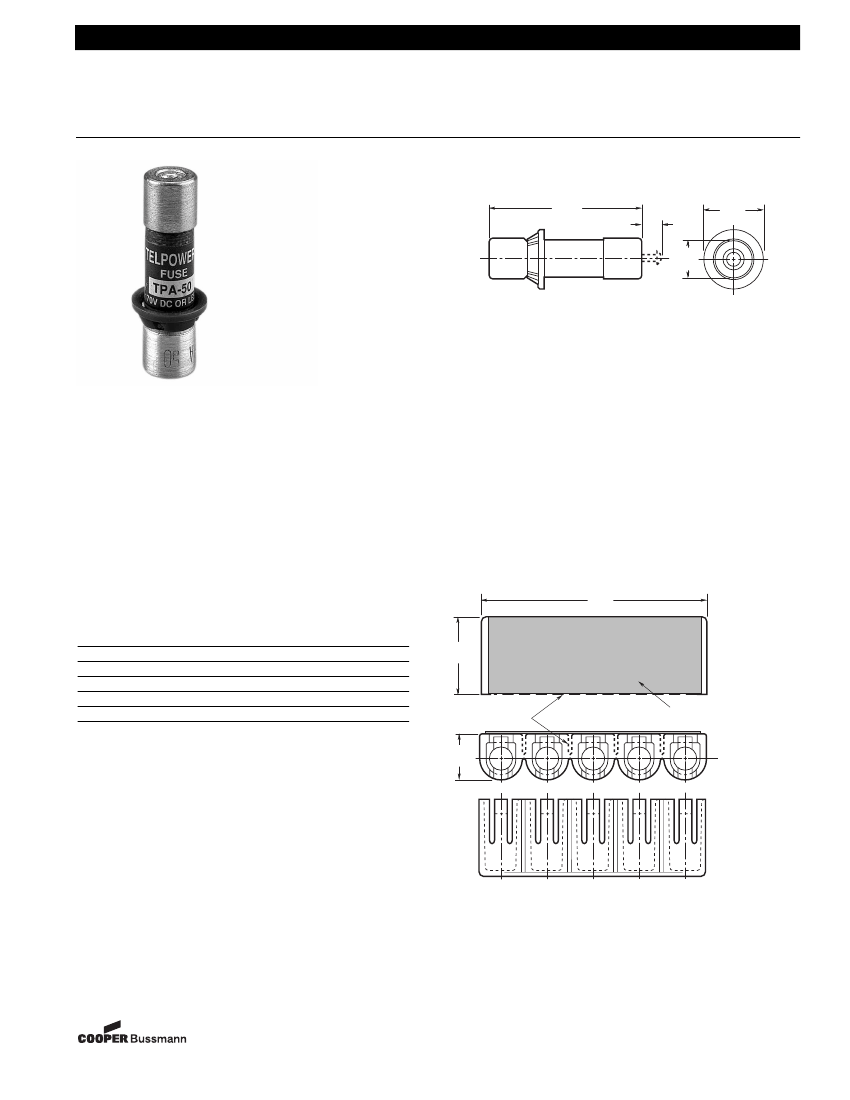

Bussmann

Telpower DC Power Distribution Fuses

TPA

170 Volts, DC, 3–50 Amps

Dimensional Data – TPA Fuses

38.10

1.50"

4.83

.19"

10.31

.41"

14.61

.58"

CATALOG SYMBOL: TPA and TPA-B

DC POWER DISTRIBUTION FUSES

AMPERE RATING: 3-50 Amps

VOLTAGE RATING: TPA - 170 VOLTS DC; TPA-B - 65V DC

INTERRUPTING RATINGS: TPA, 100 kA; TPA-B, 20kA

CONSTRUCTION:

• SILVER-PLATED BRASS FERRULES AND INDICATOR PIN.

• GLASS MELAMINE TUBE.

AGENCY APPROVALS:

U.L. RECOGNIZED (GUIDE # JFHR2, FILE E56412)

CSA CERTIFIED, CLASS 1422-30, FILE 53787

• Recognized branch circuit protection.

• Current-limiting capability.

• Complete system coordination capability.

• Use with Telpower

TP15914 and TP15900-4

Disconnect Switches.

• Five position spare fuseholder available –

Part No. 5TPH.

Five Position Spare Fuseholder – 5TPH

75.57

2.98"

Catalog Numbers

TPA-3

TPA-5

TPA-10

TPA-15

TPA-20

TPA-25

TPA-30

TPA-40

TPA-50

TPA-B-20

TPA-B-25

26.16

1.03"

SPARE FUSE

HOLDER BODY

15.88

.63"

DOUBLE SIDED

ADHESIVE TAPE

12-28-98

SB98107

Rev. A

Form No. TPA

Page 1 of 2

BIF Doc #5012

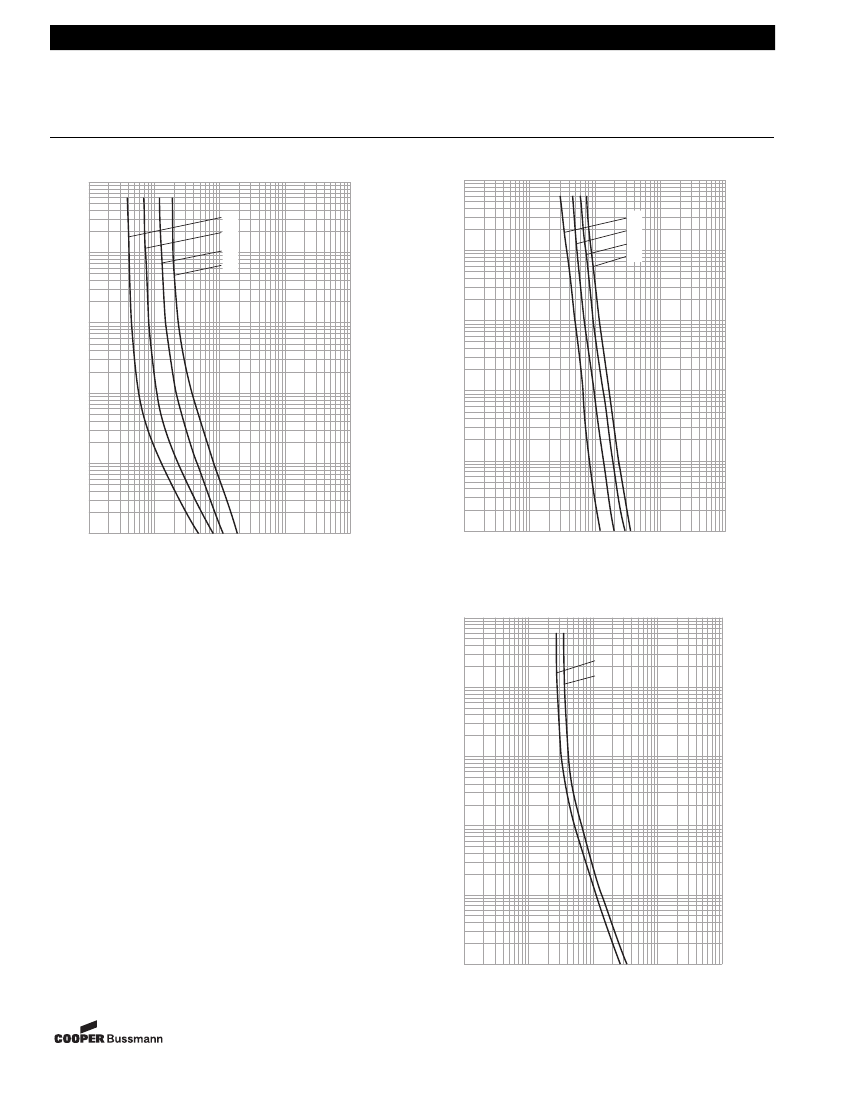

TPA-40 Related Products

	TPA-40	TPA-15
Description	Electric Fuse, 40A, 170VDC, 100000A (IR), Inline/holder,	Specialty Fuses TELPOWER ALARM FUSE
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	10 weeks	2 weeks
Other features	RATED BREAKING CAPACITY AT 170 VDC: 100000 A	RATED BREAKING CAPACITY AT 170 VDC: 100000 A
body height	38.1 mm	38.1 mm
Body length or diameter	10.31 mm	10.31 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER
Rated breaking capacity	100000 A	100000 A
Rated current	40 A	15 A
Rated voltage (DC)	170 V	170 V
Guideline	CSA; UL	CSA; UL
surface mount	NO	NO
Terminal shape	END CAP	END CAP
