Data Sheet
Low capacitance ESD Protection Diode
UDZU5.6B
lApplications
ESD Protection
lDimensions
(Unit : mm)
1.25±0.1
0.1±0.1
0.05
lLand
size figure
(Unit : mm)
0.9MIN.
1.7±0.1
3)By chip-mouter,automatic mouting is possible.
UMD2
lConstruction
Silicon epitaxial planer
2.5±0.2
lFeatures
1)Small mold type. (UMD2)
2)Low Capacitance
0.8MIN.
lStructure
0.3±0.05
0.7±0.2
0.1
ROHM : UMD2
JEDEC : SOD-323
JEITA : SC-901A
dot (year week factory)
lTaping
dimensions
(Unit : mm)
lAbsolute
maximum ratings
(Ta=25C)
Parameter
Symbol
Power dissipation
P
Junction temperature
Tj
Storage temperature
Tstg
Operation temperature
Topr
lElectrical
characteristics
(Ta=25C)
Parameter
Symbol
V
Z
Zener voltage
Reverse current
Capacitance between terminals
I
R
C
t
Limits
200
150
-55
to
+150
-55
to
+150
Unit
mW
C
C
C
Min.
5.49
-
-
Typ.
-
-
8.0
Max.
5.73
1.0
-
Unit
V
μA
pF
I
Z
=5mA
Conditions
V
R
=2.5V
f=1MHz,V
R
=0V
*Zener voltage(Vz) shall be measured at 40ms after loading current.
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
1/3
2011.11 - Rev.A
2.1

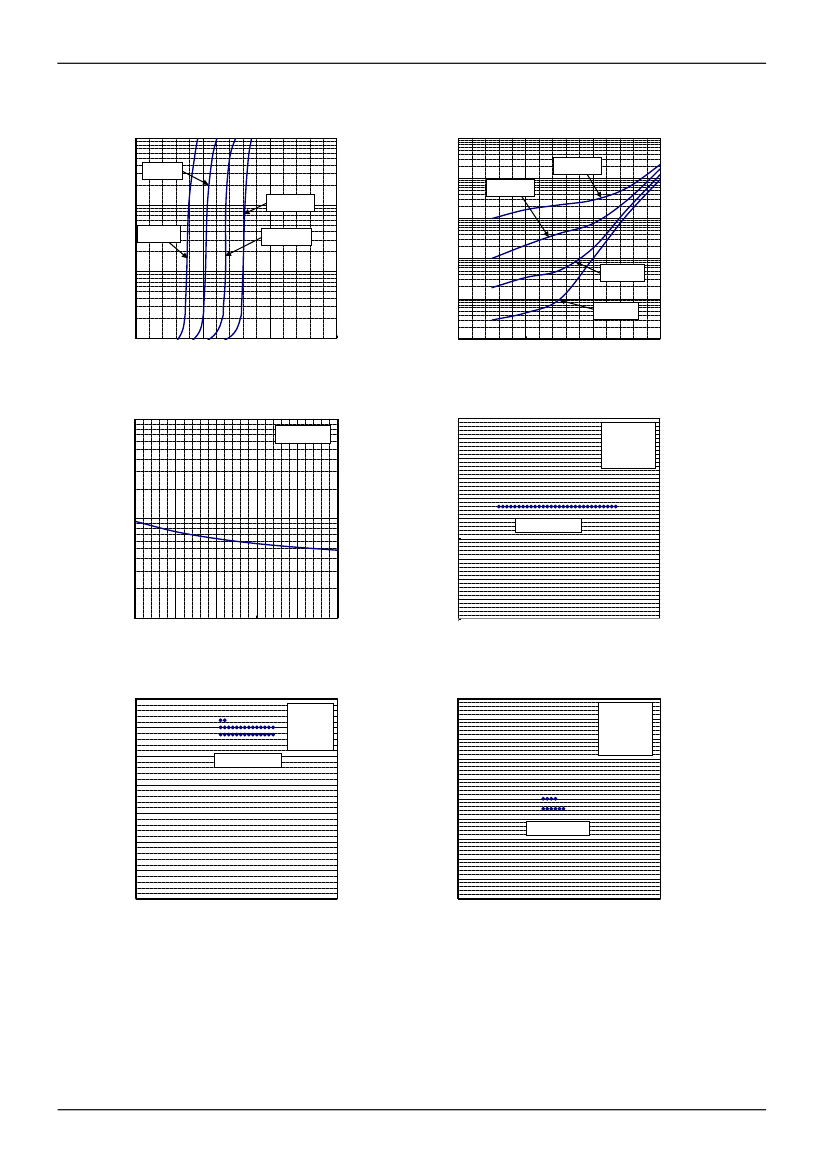

UDZU5.6B
Data Sheet
10
10000
Ta=150°C
REVERSE CURRENT:I
R
(pA)
1000
Ta=125°C
Ta=25°C
ZENER CURRENT:Iz(mA)
Ta=125°C
Ta=-25°C
1
100
Ta=75°C
10
Ta=75°C
1
Ta=25°C
0.1
0.01
5
5.5
6
6.5
0.1
0
1
2
3
ZENER VOLTAGE:Vz(V)
Vz-Iz CHARACTERISTICS
REVERSE VOLTAGE：V
R
(V)
V
R
-I
R
CHARACTERISTICS
100
f=1MHz
CAPACITANCE BETWEEN
TERMINALS:Ct(pF)
10
9
8
ZENER VOLTAGE:Vz(V)
7
6
5
4
3
2
1
AVE:5.59V
Ta=25°C
I
Z
=5mA
n=30pcs
10
1
0
1
2
3
4
5
0
Vz DISPERSION MAP
REVERSE VOLTAGE:V
R
(V)
V
R
-Ct CHARACTERISTICS
140
120
REVERSE CURRENT:I
R
(pA)
100
80
60
40
20
0
I
R
DISPERSION MAP
Ta=25°C
V
R
=2.5V
n=30pcs
AVE:118.29pA
20
18
CAPACITANCE
BETWEEN TERMINALS:Ct(pF)
16
14
12
10
8
6
4
2
0
Ct DISPERSION MAP
AVE:9.4pF
Ta=25°C
f=1MHz
V
R
=0V
n=10pcs
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
2/3
2011.11 - Rev.A
UDZU5.6B
Data Sheet
100
1000
On glass-epoxy substrate
TRANSIENT
THERMAL IMPEDANCE:Rth (°C/W)
Rth(j-a)
DYNAMIC IMPEDANCE:Zz(Ω)
100
Rth(j-c)
10
10
0.1
1
ZENER CURRENT(mA)
Zz-Iz CHARACTERISTICS
10
1
0.001
0.01
0.1
1
10
100
1000
TIME : t(s)
Rth-t CHARACTERISTICS
30
No break at 30kV
25
ELECTROSTATIC
DISCHARGE TEST ESD(KV)
20
15
10
AVE：.4.58kV
5
C=200pF
R=0Ω
C=150pF
R=330Ω
C=100pF
R=1.5kΩ
0
ESD DISPERSION MAP
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
3/3
2011.11 - Rev.A
