Data Sheet
Features
•
•
•
•
•
•
•
•
For Korean PCS applications, Tx
Usable bandwidth 30 MHz
Low loss
High attenuation
No impedance matching required for operation
at 50
Ω
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small size

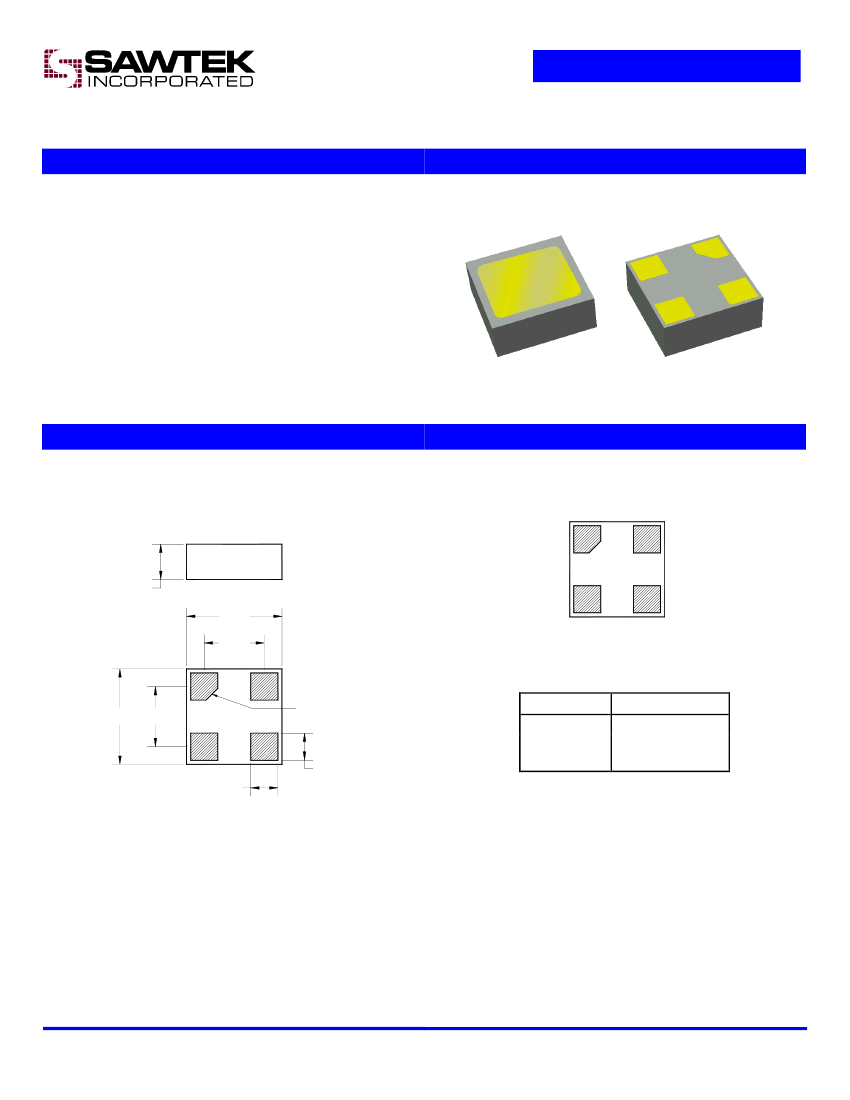

Part Number 856082
1765 MHz SAW Filter
•
Package
Surface Mount 2.00 x 2.00 x 0.76 mm
Pin Configuration
Bottom View
1
2
0.76 NOM.
0.84 MAX.
2.00
4
3
1.30
2.00
1.30
0.25x45°
CHAMFER
0.58
0.58
Pin No.
1
3
2,4
Description
Input
Output
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
28-Aug-2001
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-30 to +85
o
C
Part Number 856082
1765 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss
1750 - 1780 MHz
Amplitude Ripple
1750 - 1780 MHz
Absolute Attenuation
1350 - 1380 MHz
1660 - 1690 MHz
1840 - 1870 MHz
2150 - 2180 MHz
Input/Output VSWR
1750 - 1780 MHz
Terminating Source Impedance:
(4)
Terminating Load Impedance:
(4)
Notes:
1.
2.
3.
4.
Minimum
-
-
-
30
27
37
30
-
-
-
Typical
1765
1.8
0.2
40
32
44
34
1.5:1
50
50
Maximum
-
2.7
1
-
-
-
-
2:1
-
-
Unit
MHz
dB
dB p-p
dB
dB
dB
dB
dB
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
3
50
Ω
50
Ω
Single-ended
50
Ω
2,4
No impedance matching
required
Subject to change or obsolescence without notice
Rev -
28-Aug-2001
Page 2 of 5
Data Sheet
Part Number 856082
1765 MHz SAW Filter

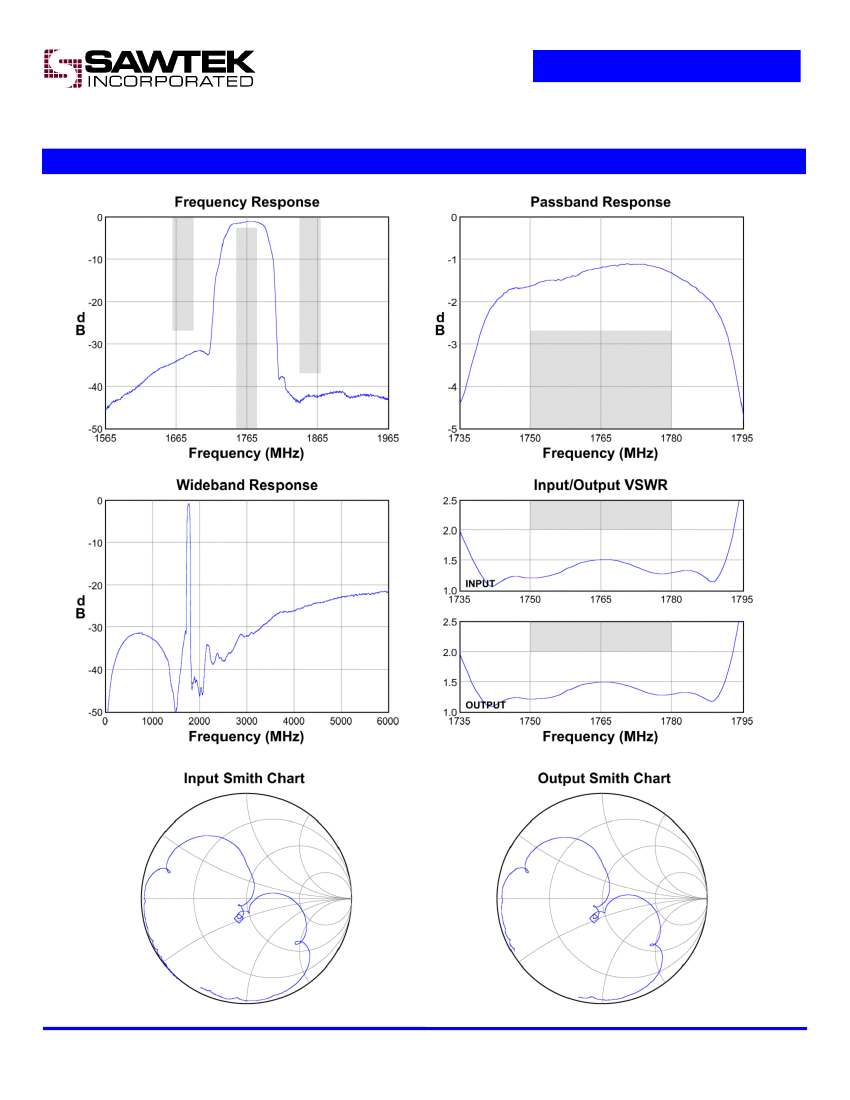

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
28-Aug-2001
Page 3 of 5
Data Sheet
Part Number 856082
1765 MHz SAW Filter

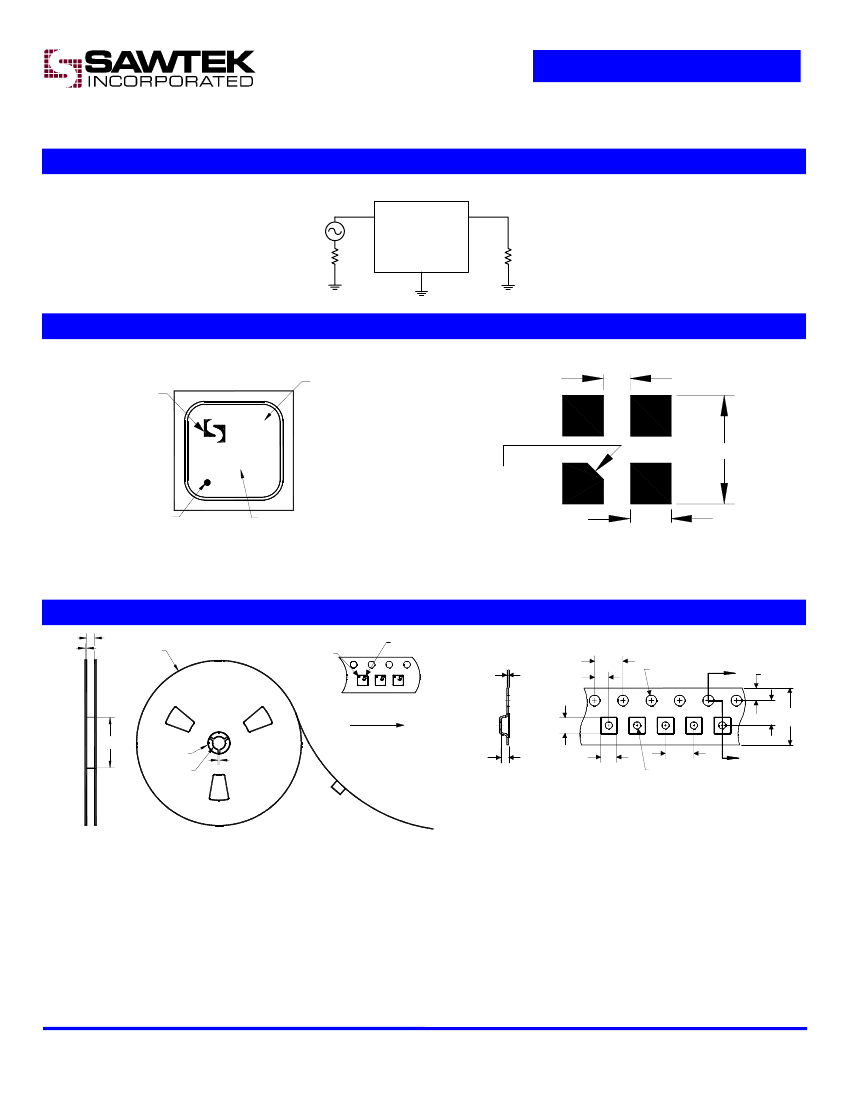

Matching Schematics
1
3
50
Ω
50
Ω
Single-ended
50
Ω
2,4
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
.51
F
JJJYM
.31x45°
CHAMFER
2.08 SQ
ID dot
Date code
.78 SQ
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.5
Ø330
ID dot
Sawtek
logo
4.0
0.254
2.0
Ø1.5
A
1.75
3.5
2.23
8.0
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
1.1
Section A-A
2.23
4.0
Ø1.0
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev -
28-Aug-2001
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856082
1765 MHz SAW Filter
Symbol
T
T
stg
Minimum
-30
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Reel and Packaging Label
Soldering Profile
Other Technical Information
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
custservice@sawtek.com
Web:
www.sawtek.com
Rev -
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
28-Aug-2001
Page 5 of 5
