Varistor Products
Industrial High Energy Terminal Varistors > HA Series
RoHS

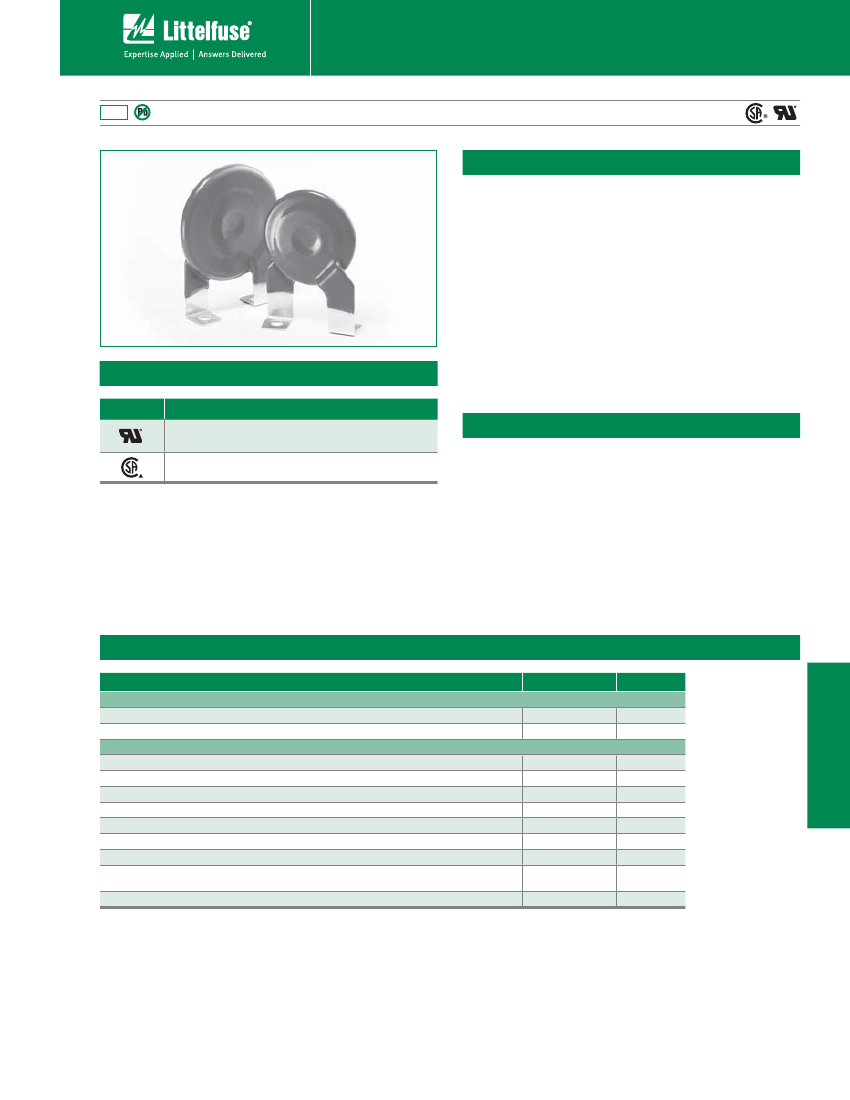

HA Varistor Series
Description
HA Series transient surge suppressors are industrial high
energy Metal-Oxide Varistors (MOVs). They are designed
to provide secondary surge protection in the outdoor
and service entrance environment (distribution panels)
of buildings, and also in industrial applications for motor
controls and power supplies used in the oil-drilling, mining,
and transportation fields.
The design of the HA Series of MOVs provide rigid
terminals for screw mounting. Also available in a clipped
lead version for through hole board placement or to
accommodate soldered leads designation "HC."
Agency Approvals
Agency
Agency File Number
See Ratings and Specifications Table for part number and
brand information.
Features
•
RoHS compliant
and Lead–free
Wide operating
voltage range
V
M(AC)RMS
110V to 750V
Two disc sizes available
32mm and 40mm
High energy absorption
capability
W
TM
= 170J to 1050J
•
•
High peak pulse current
capability, ITM =
25,000A to 40,000A
Rigid terminals for
secure mounting
Available in trimmed
version for through
hole board mounting
– Designation "HC"
No derating up to
85ºC ambient
E320116
LR91788
•
•
•
•
•
Absolute Maximum Ratings
Continuous
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
)
DC Voltage Range (V
M(DC)
)
Transients:
Peak Pulse Current (I
TM
)
For 8/20μs Current Wave (See Figure 2)
Single Pulse Energy Range
For 2ms Current Squarewave (W
TM
)
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Temperature Coefficient (a ) of Clamping Voltage (V
C
) at Specified Test Current
Hi–Pot Encapsulation (COATING Isolation Voltage Capability)
(Dielectric must withstand indicated DC voltage for one minute per MIL–STD 202, Method 301)
V
HA Series
110 to 750
148 to 970
Units
V
V
25,000 to 40,000
160 to 1050
-55 to +85
-55 to +125
<0.01
2500
1000
A
J
ºC
ºC
%/ºC
V
MΩ
COATING Insulation Resistance
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This
is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied.
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ha.html for current information.
Revision: October 29, 2009
HA Varistor Series
HI–ENERGY MOV’S
HA Series
• For ratings of individual members of a series, see Device Ratings and Specifications chart
Varistor Products
Industrial High Energy Terminal Varistors > HA Series
HA Series Ratings & Specifications
Maximum Rating (85°C)
Part
Number
Device
Branding
Continuous
V
RMS
V
M(AC)
(V)
110
110
130
130
140
140
150
150
180
180
200
200
250
250
275
275
300
300
320
320
330
330
350
350
385
385
420
420
440
440
480
480
510
510
550
550
575
575
660
660
680
680
750
750
V
DC
V
M(DC)
(V)
148
148
175
175
188
188
200
200
240
240
265
265
330
330
369
369
410
410
420
420
435
435
460
460
510
510
560
560
585
585
640
640
675
675
710
710
730
730
850
850
875
875
970
970
Transient
Energy
(2ms)
W
TM
Energy
160
220
200
270
210
290
220
300
240
330
260
350
330
370
360
400
370
430
390
460
385
475
390
500
395
550
400
600
420
630
450
650
500
700
530
755
550
770
600
900
610
925
700
1050
Peak Current
8 x 20μs
I
TM
(A)
25000
40000
1
25000
40000
2
25000
40000
3
25000
40000
4
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
25000
40000
Specifications (25°C)
Varistor Voltage at 1mA
DC Test Current
Min
(V)
156
156
184
184
198
198
212
212
254
254
283
283
354
354
389
389
433
433
462
462
467
467
495
495
545
545
610
610
622
622
670
670
735
735
778
778
805
805
940
940
962
962
1080
1080
V
N(DC)
(V)
173
173
200
200
220
220
240
240
282
282
314
314
390
390
430
430
478
478
510
510
519
519
550
550
604
604
680
680
691
691
750
750
820
820
864
864
910
910
1050
1050
1068
1068
1200
1200
Max
(V)
190
190
228
228
248
248
268
268
310
310
345
345
429
429
473
473
526
526
561
561
570
570
604
604
663
663
748
748
759
759
825
825
910
910
949
949
1000
1000
1160
1160
1173
1173
1320
1320
Maximum
Clamping Volt
V
C
at 200A
Current (8/20μs)
V
C
(A)
293
288
350
345
380
375
410
405
475
468
540
533
650
630
710
690
795
780
845
825
860
843
910
894
1020
1000
1120
1100
1200
1147
1290
1230
1355
1295
1515
1430
1570
1480
1820
1720
1830
1780
2050
2000
Typical
Capaci-
tance
f
=
1MHz
C
(pF)
5450
11600
4700
10000
4230
9000
4000
8000
3200
6800
3180
6350
2500
5000
2200
4500
2050
4100
1900
3800
1870
3750
1800
3600
1750
3500
1500
3000
1450
2900
1300
2700
1200
2500
1190
2390
1100
2200
1000
2000
850
1900
800
1800
V111HA32
V111HA40
V131HA32
V131HA40
V141HA32
V141HA40
V151HA32
V151HA40
V181HA32
V181HA40
V201HA32
V201HA40
V251HA32
V251HA40
V271HA32
V271HA40
V301HA32
V301HA40
V321HA32
V321HA40
V331HA32
V331HA40
V351HA32
V351HA40
V391HA32
V391HA40
V421HA32
V421HA40
V441HA32
V441HA40
V481HA32
V481HA40
V511HA32
V511HA40
V551HA32
V551HA40
V571HA32
V571HA40
V661HA32
V661HA40
V681HA32
V681HA40
V751HA32
V751HA40
NOTE: Average power dissipation of transients not to exceed 2.0W per varistor
1. 40kA capability depends on applications rated up to 97Vrms. 30kA applies if > 97 Vrms.
2. 40kA capability depends on applications rated up to 115Vrms. 30kA applies if > 115 Vrms.
3. 40kA capability depends on applications rated up to 123Vrms. 30kA applies if > 123 Vrms.
4. 40kA capability depends on applications rated up to 132Vrms. 30kA applies if > 132Vrms.
HA Varistor Series
Revision: October 29, 2009
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ha.html for current information.
Varistor Products
Industrial High Energy Terminal Varistors > HA Series

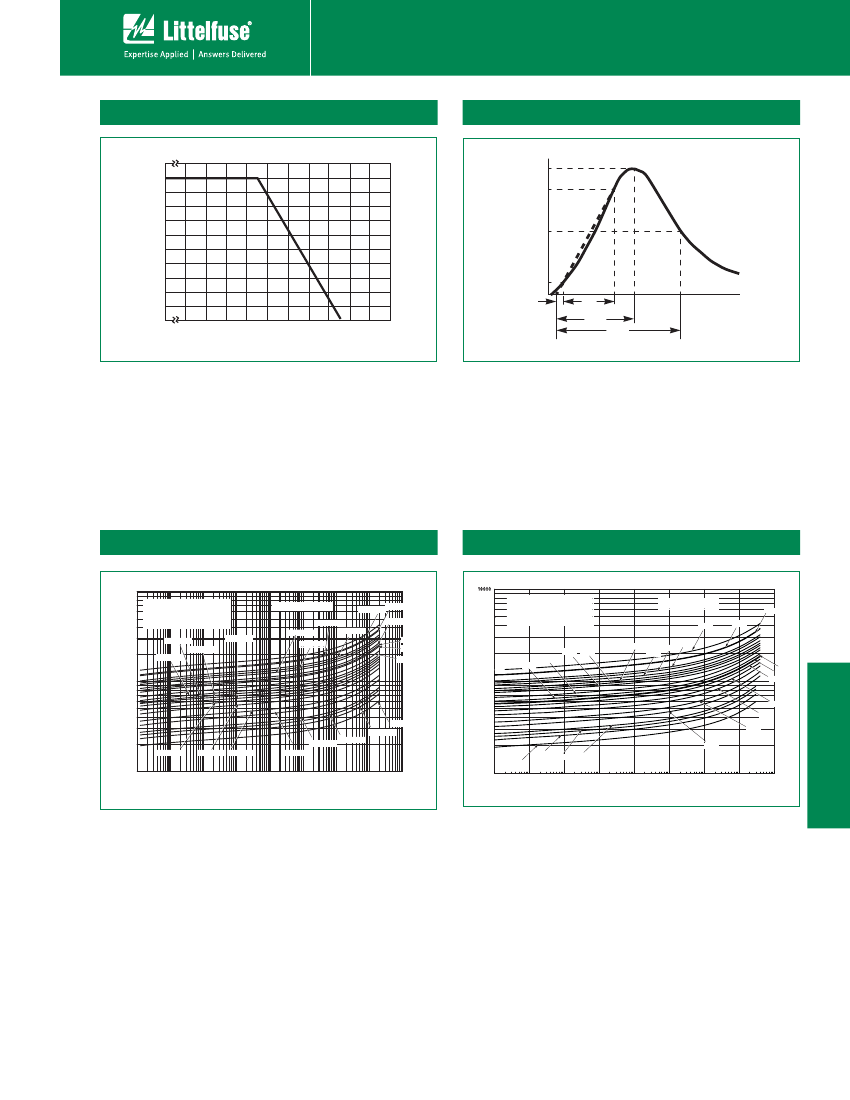

Power Dissipation Ratings
Current , Energy and Power De–Rating Curve
100
Peak Pulse Current Test Waveform
PERCENT OF PEAK VALUE
100
90
PERCENT OF RATED VALUE
90
80
70
60
50
40
30
20
10
0
-55
50
60
70
80
90
100
110
120
130
140
150
50
10
O
1
T
T
1
T
2
TIME
Figure 1
AMBIENT TEMPERATURE (
o
C)
Figure 2
Should transients occur in rapid succession, the average power
dissipation required is simply the energy (watt-seconds) per
pulse times the number of pulses per second. The power
so developed must be within the specifications shown on
the Device Ratings and Specifications table for the specific
device. Furthermore, the operating values need to be derated
at high temperatures as shown in above. Because varistors
can only dissipate a relatively small amount of average power
they are, therefore, not suitable for repetitive applications that
involve substantial amounts for average power dissipation.
0
1
= Virtual Origin of Wave
T = Time from 10% to 90% of Peak
T
1
= Rise Time = 1.25 x T
T
2
= Decay Time
Example
- For an 8/20
μs
Current Waveform:
8μs = T
1
= Rise Time
20μs = T
2
= Decay Time
Maximum Clamping Voltage for 32mm Parts
V111HA32–V751HA32
10000
Maximum Clamping Voltage for 40mm Parts
V111HA40–V751HA40
10000
Maximum Clamping Voltage
HA32 Series
110 to 750V AC Rating
V321CA32
V331CA32
V351CA32
Voltage (V)
V301CA32
TA = -55 C to 85C
V661HA32
V511CA32
V551CA32
V751CA32
V681CA32
V481CA32
Maximum Clamping Voltage
HA40 Series
110 to 750V AC Rating
TA = -55 C to 85C
V661
V751
V681
V571CA32
V441CA32
V421CA32
V391CA32
V391
V481
V421
V441
V511
V551
V571
Voltage
(V)
1000
1000
V321
V301
V271
V251
C111CA32
V131CA32
V151CA32
V271CA32
V251CA32
V201CA32
V181CA32
V111
V201
V181
V131
V141
V151
V141CA32
100
0.001
0.01
0.1
1
10
Current (A)
100
1000
10000
100000
100
0.001
0.01
0.1
1
10
100
1000
10000
100000
Current - (A)
Figure 3
Figure 4
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ha.html for current information.
Revision: October 29, 2009
HA Varistor Series
HI–ENERGY MOV’S
HA Series
V351
V331
Varistor Products
Industrial High Energy Terminal Varistors > HA Series

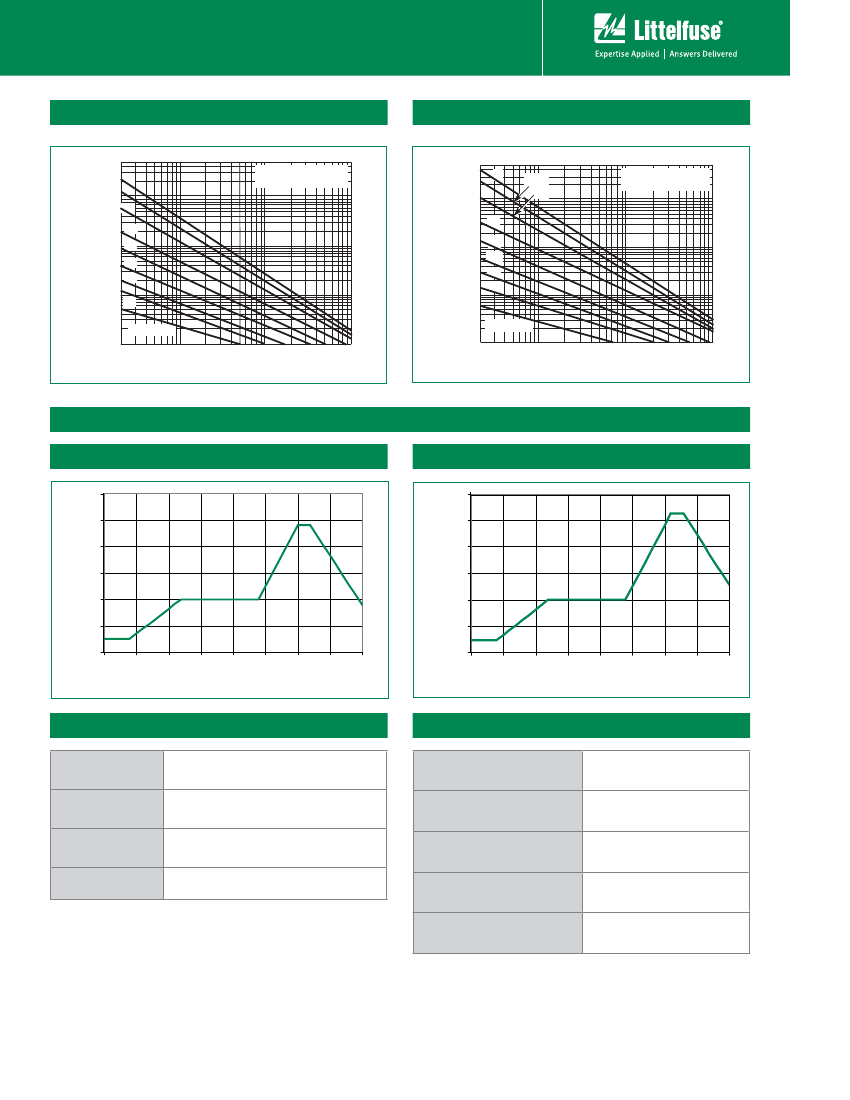

Repetitive Surge Capability for 32mm Parts
V111HA32 – V751HA32
50,000
20,000
10,000
1
2
DISC SIZE 32mm
V111HA32 - V751HA32
Repetitive Surge Capability for 40mm Parts
V111HA40 – V751HA40
50,000
20,000
10,000
SURGE CURRENT (A)
5,000
2,000
1,000
500
200
100
50
20
INDEFINITE
20
100
1,000
IMPULSE DURATION ( μs)
10,000
10
2
10
3
10
4
10
5
10
6
1
2
10
DISC SIZE 40mm
V111HA40 - V751HA40
SURGE CURRENT (A)
5,000 10
2
2,000 10
1,000 10
3
500 10
4
5
200 10
100
50
20
10
10
6
INDEFINITE
20
100
1,000
IMPULSE DURATION ( μs)
10,000
10
Figure 5
Figure 6
Wave Solder Profile
Non Lead–free Profile
300
250
TEMPERATURE (ºC)
200
150
100
50
0
0
0.5
1
1.5
2
2.5
3
3.5
4
TIME(MINUTES)
Lead–free Profile
300
Maximum Wave 240C
TEMPERATURE (ºC)
Maximum Wave 260C
250
200
150
100
50
0
0
0.5
1
1.5
2
2.5
3
3.5
4
TIME(MINUTES)
Figure 7
Figure 8
Physical Specifications
Environmental Specifications
Operating/Storage
Temperature
Humidity Aging
-55°C to +85°C/
-55°C to +125°C
+85°C, 85% RH, 1000 hours
+/- 10% typical resistance
change
+85°C to -40°C 10 times
+/- 10% typical resistance
change
MIL–STD–202, Method 215F
Lead Material
Soldering
Characteristics
Insulating Material
Device Labeling
Tin–plated Copper
Solderability per MIL–STD–202,
Method 208E
Cured, flame retardant epoxy polymer
meets UL94V–0 requirements.
LF Part Number and date code
,
Thermal Shock
Solvent Resistance
Moisture Sensitivity
Level 1, J–STD–020C
HA Varistor Series
Revision: October 29, 2009
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ha.html for current information.
Varistor Products
Industrial High Energy Terminal Varistors > HA Series
Dimensions
D
D
H
H
B
W
o
A
B
X
T
W
T
T
1
X
S
S
C
R
HA Series Outline Specifications
(Dimensions in Millimeters)
D
H
Max Max
HA32 35.5 50.00
HA40 42.5 5700
B
X
T
T1
øA
Min Nom Nom Max Max
3.0
3.0
25
25
9.3
9.3
10.4
10.4
4.2
4.2
s
Offset
Depends
on Device
Voltage
(See Table
Below
HC Series Outline Specifications
(Dimensions in Millimeters)
D
Max
HC32
HC40
35.5
42.5
H
Max
50.00
57
.00
B
Min
5.0
5.0
X
Nom
25
25
T
Nom
9.30
9.30
R
Max
1.0
1.0
s
c
Offset
Depends
on Device
Voltage (See
Table Below
HA Series Maximum Thickness and Terminal Offsets
(Dimensions in Millimeters)
Voltage
V111 - V351
V391 - V511
V551 - V751
Thickness "W"
HA32
9.00
11.00
13.00
HA40
9.00
11.00
13.00
Dimension "S"
(-/+1mm)
HA32
3.90
2.60
1.00
HA40
3.90
2.60
1.00
HC Series Maximum Thickness and Terminal Offsets
(Dimensions in Millimeters)
Voltage
V111 - V351
V391 - V511
V551 - V751
Thickness "W"
HC32
9.00
11.00
13.00
HC40
9.00
11.00
13.00
Dimension "S
C
"
(-/+1mm)
HC32
6.00
7
.30
8.90
HC40
8.10
10.00
Part Numbering System
V XX X HA XX
VARISTOR
DISC SIZE (mm)
V
M(AC)
First Two Significant Digits
V
M(AC)
Decade Multiplier
SERIES DESIGNATOR
HA or HC
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ha.html for current information.
Revision: October 29, 2009
HA Varistor Series
HI–ENERGY MOV’S
HA Series
6.00
京公网安备 11010802033920号
EEWORLD
