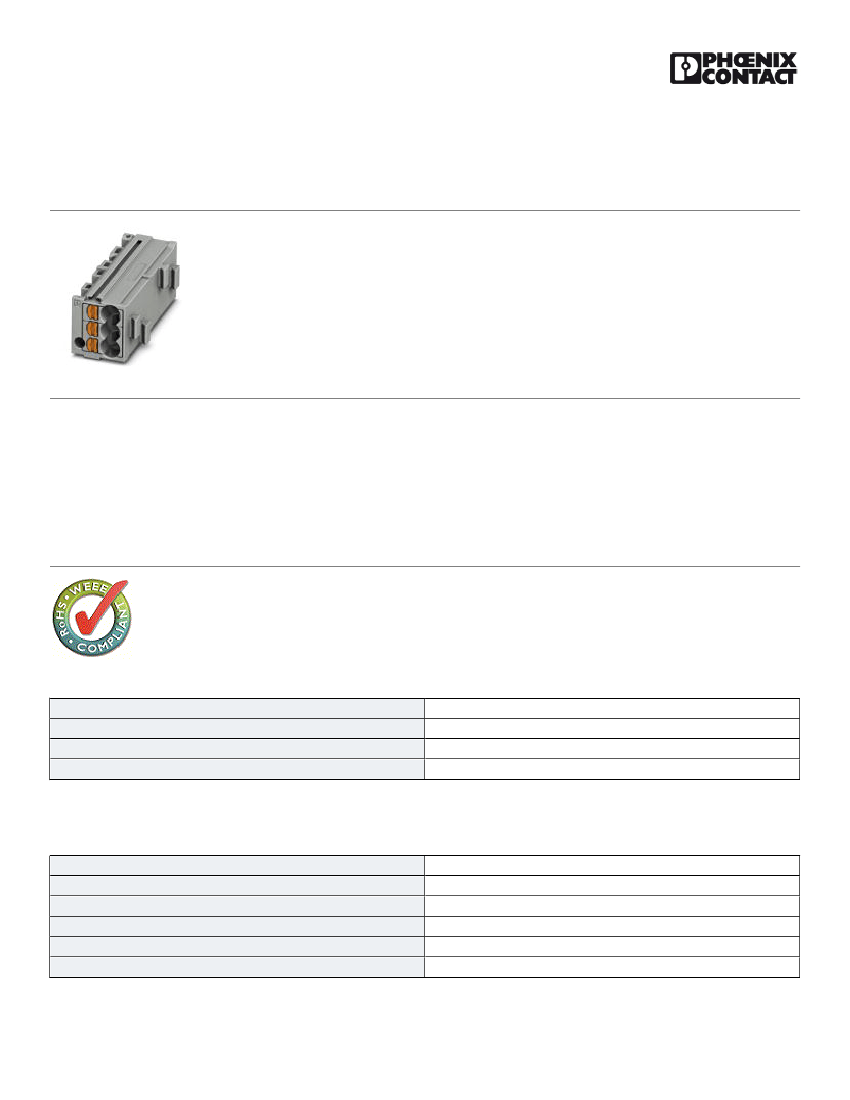

Marshalling patchboard - PTMC 1,5-3 /BU - 3270420
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling patchboard, Nom. voltage: 500 V, Nominal current: 17.5 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 12 - 26, Connection type: Push-in connection, Number of positions: 1, Number of connections: 6, Width: 11
mm, Length: 12.2 mm, Color: gray, Color of connection elements: blue, Assembly: for snapping onto a DIN rail
adapter, for snapping onto a cover flange
Image shows the version in gray
Why buy this product
■
■
■
■
■
■
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Individual color assignment of cable and terminal point to ensure error-free, safe operation
Color configuration possible according to VDE 0812, VDE 0815, DIN 47100 or unlimited.
Tool-free wiring in a confined space thanks to compact size
Individual setup thanks to modular principle
Suitable for DIN rail mounting and panel cutouts with corresponding accessories
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
10 STK
85366990
Poland
Technical data
General
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Color of connection elements
1
1
6
1.5 mm²
gray
blue
08/08/2016 Page 1 / 9
https://www.phoenixcontact.com/us/products/3270420
Marshalling patchboard - PTMC 1,5-3 /BU - 3270420
Technical data
General
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
PA
V0
4 kV
3
III
I
22 A (with a 2.5 mm² conductor cross section)
17.5 A
500 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height
11 mm
12.2 mm
30 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
08/08/2016 Page 2 / 9
https://www.phoenixcontact.com/us/products/3270420
Marshalling patchboard - PTMC 1,5-3 /BU - 3270420
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
12
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141124
27141124
27141120
27141120
ETIM
ETIM 5.0
EC000897
Accessories
Accessories
Labeled terminal marker
08/08/2016 Page 3 / 9
https://www.phoenixcontact.com/us/products/3270420
Marshalling patchboard - PTMC 1,5-3 /BU - 3270420
Accessories
Zack marker strip - ZB 10 CUS - 0824941
Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap into
tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Zack marker strip - ZB10,LGS:FORTL.ZAHLEN - 1053014
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Consecutive numbers 1 - 10, 11
- 20, etc. up to 991 - 1000, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field:
10.15 x 10.5 mm
Zack marker strip - ZB10,QR:FORTL.ZAHLEN - 1053027
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed vertically: Consecutive numbers 1 - 10, 11 -
20, etc. up to 991 - 1000, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field:
10.15 x 10.5 mm
Zack marker strip - ZB10,LGS:GLEICHE ZAHLEN - 1053030
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Identical numbers 1 or 2, etc. up
to 100, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Marker for terminal blocks - ZB10,LGS:L1-N,PE - 1053412
Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: L1, L2, L3, N, PE, L1, L2, L3, N,
PE, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
08/08/2016 Page 4 / 9
https://www.phoenixcontact.com/us/products/3270420
Marshalling patchboard - PTMC 1,5-3 /BU - 3270420
Accessories
Marker for terminal blocks - ZB10,LGS:U-N - 1053438
Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: U, V, W, N, GND, U, V, W, N,
GND, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Marker for terminal blocks - UC-TM 10 CUS - 0824605
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 9.6 x 10.5 mm
Marker for terminal blocks - UCT-TM 10 CUS - 0829623
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 8.9 x 9.6 mm
Zack Marker strip, flat - ZBF10 CUS - 0825031
Zack Marker strip, flat, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 10 mm, Lettering field: 5.15 x 10 mm
Zack Marker strip, flat - ZBF10,LGS:FORTL.ZAHLEN - 0810009
Zack Marker strip, flat, Strip, white, labeled, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 991 -
1000, Mounting type: Snap into flat marker groove, for terminal block width: 10 mm, Lettering field: 5.15 x 10 mm
08/08/2016 Page 5 / 9
