ROHS COMPLIANT

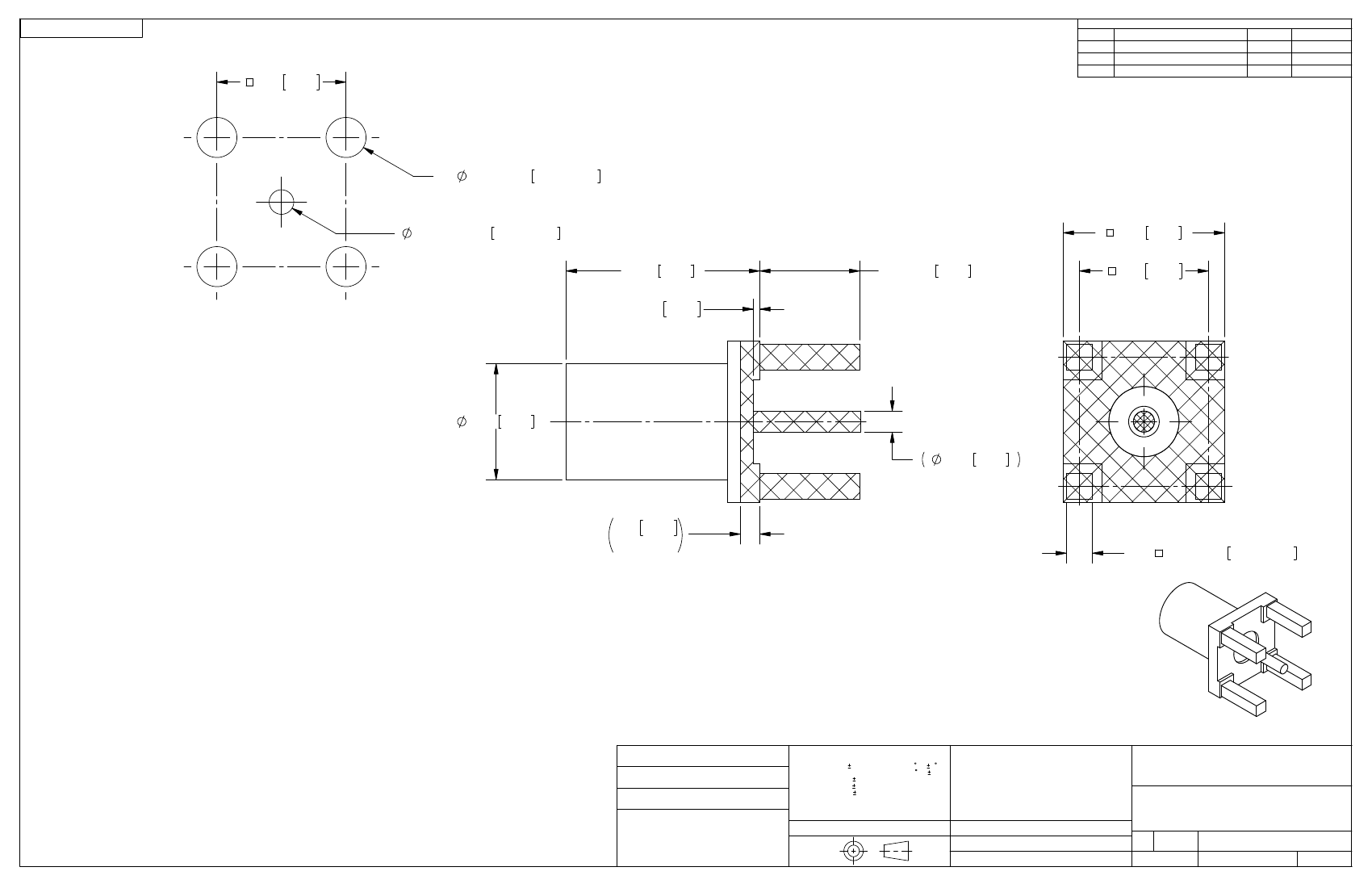

PRODUCT DATA DRAWING
.200 5.08
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 42247
05/16
DAL
4X
.062±.001 1.57±0.03
.0380±.0015 0.97±0.04
.300 7.62
.010 0.25
RECOMMENDED MOUNTING HOLE PATTERN
5X .155 3.94
.250 6.35
.200 5.08
.180 4.57
.035 0.88
MATERIAL:
BODY:
CONTACT:
INSULATOR:
FINISH:
BODY &
CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
.030 0.76
SOLDER
4X
.040±.002 1.02±0.05
NOTES:
1.
2.
MATERIAL:
TO BE TIN DIPPED USING Sn96 SOLDER.
ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING.
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
INSERTION LOSS:
DWV:
50 OHMS
DC TO 18.0 GHz
1.30:1 DC TO 18.0 GHz
.03 X SQRT(F(F IN GHz))
1000 VRMS
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
FINISH:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
BMZ FEMALE
PCB MOUNT
SIZE CAGE CODE DWG. NO.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
GPF 05/16/16
DAL 05/16/16
DAL 05/16/16
B
95077
SCALE: 8:1
8921-60031-TD
SHEET 1 OF 1
