30FQ-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 30FQ-A

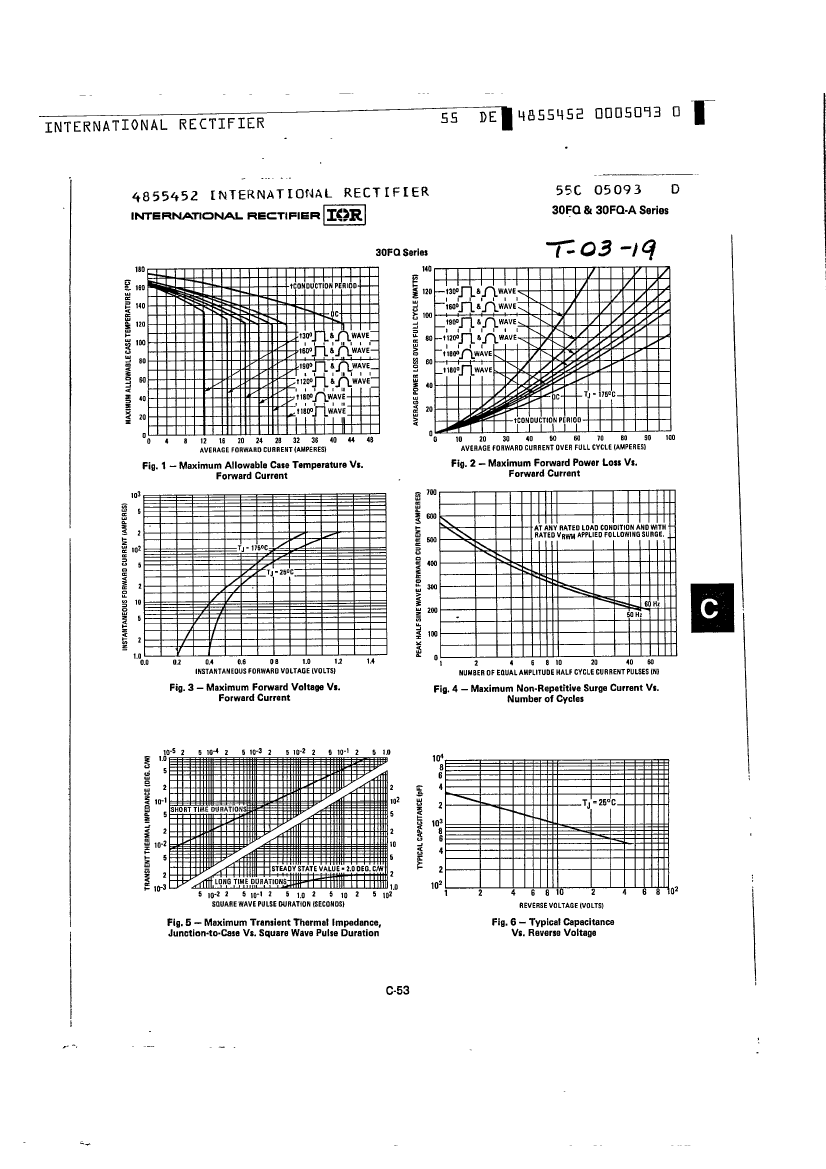

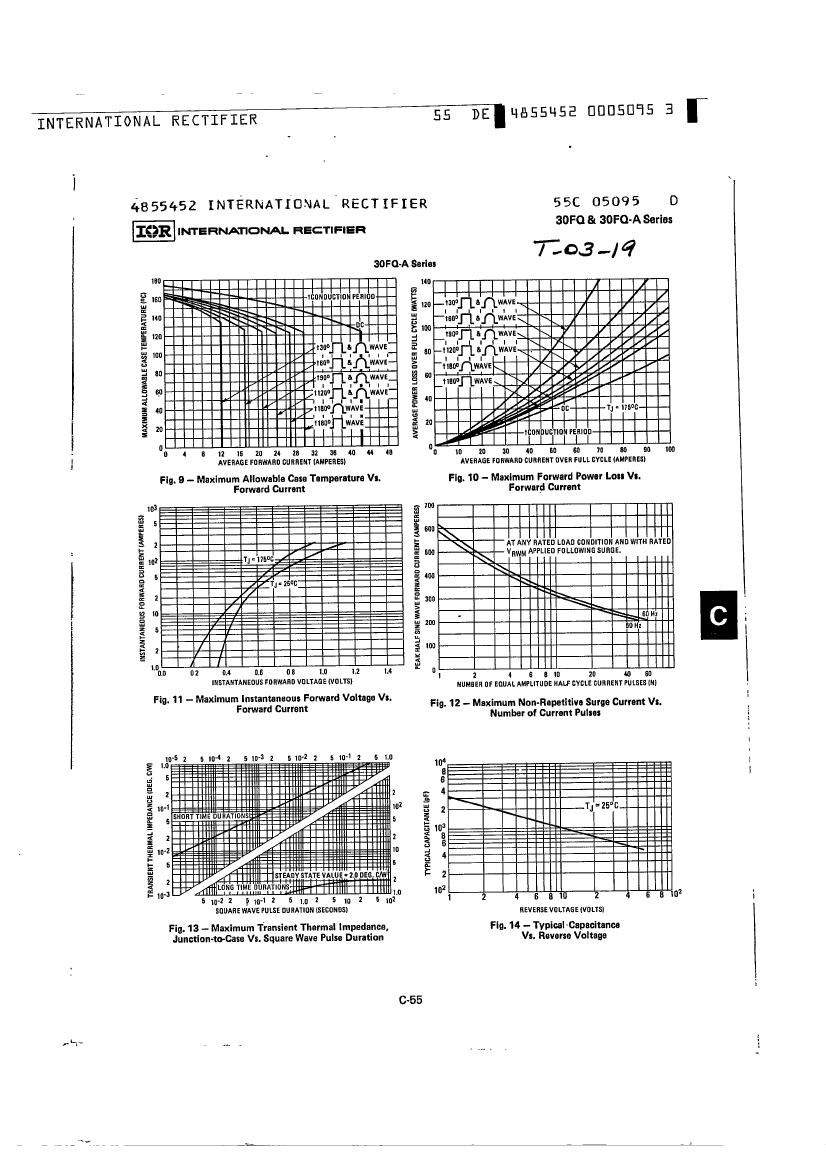

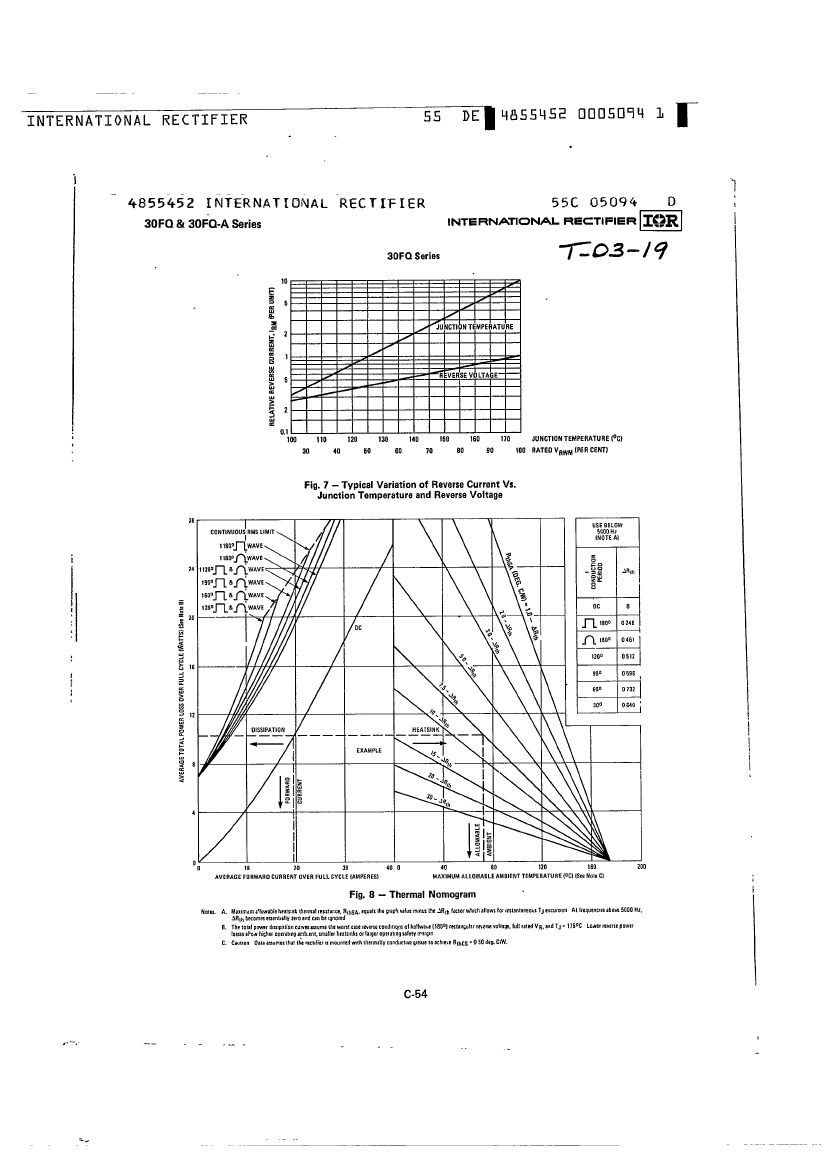

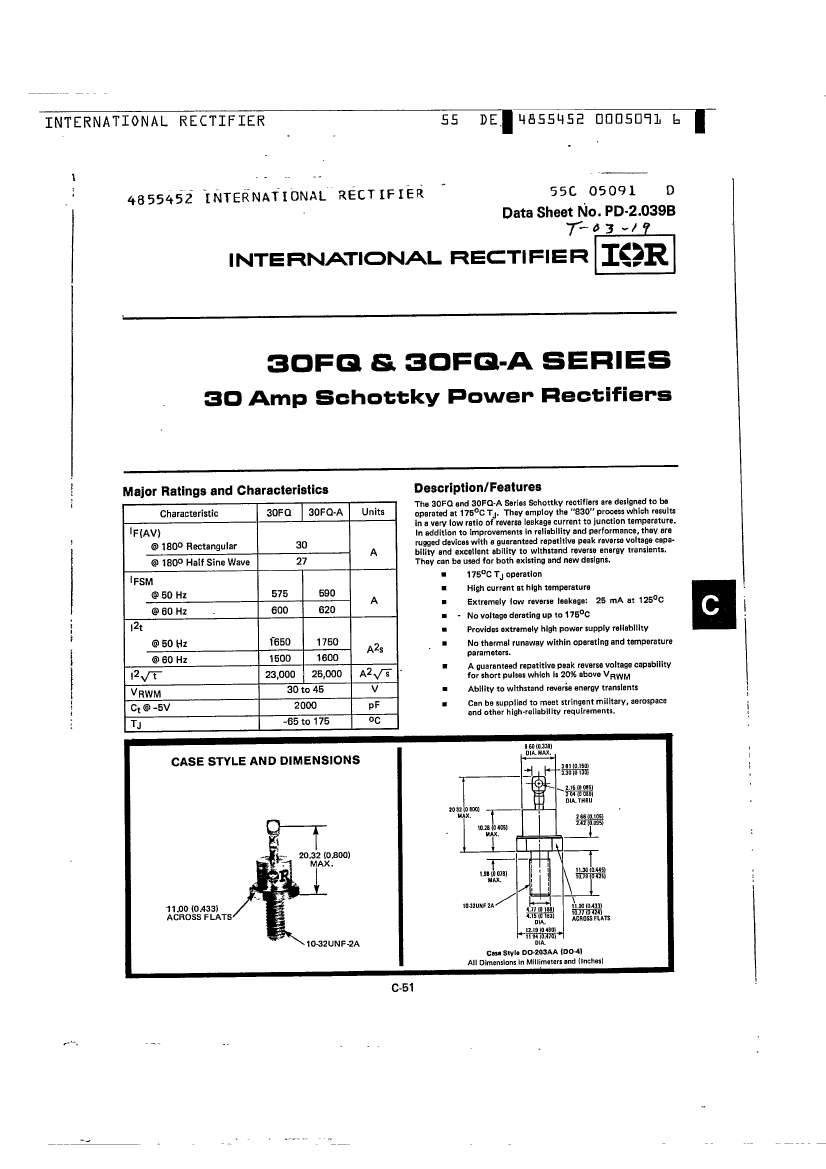

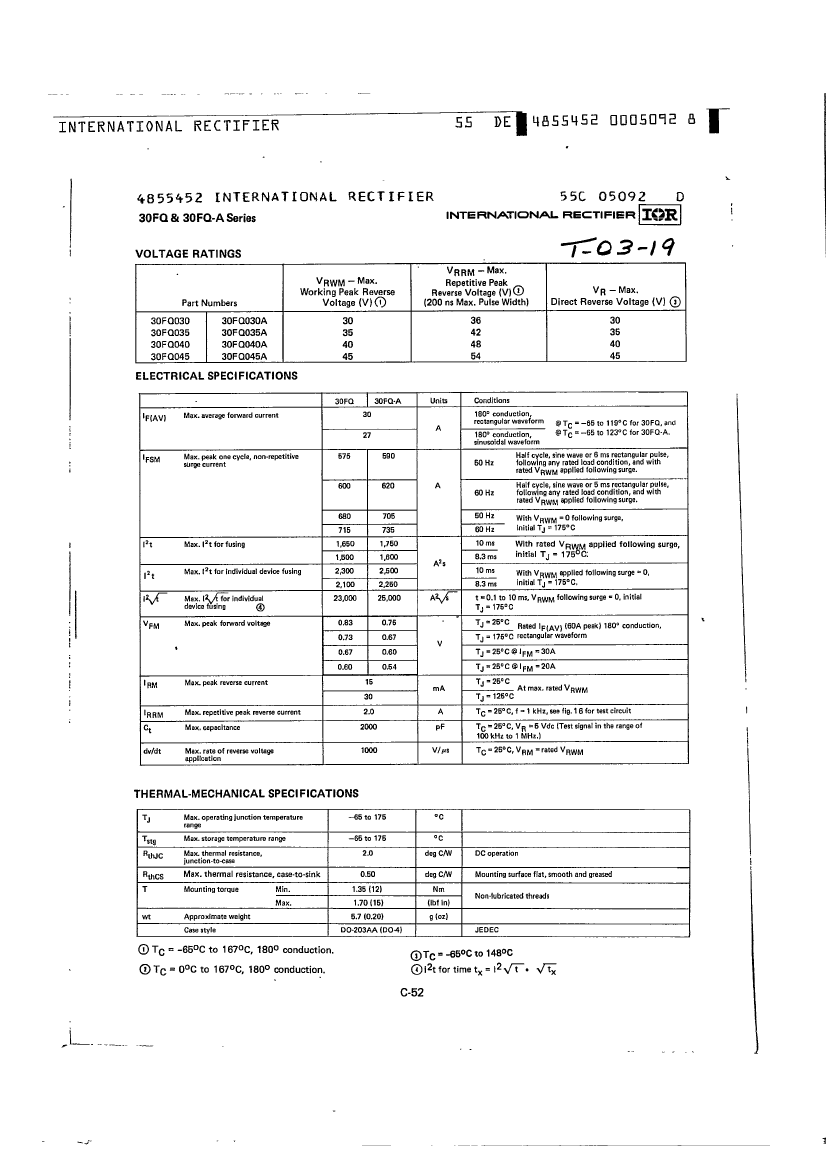

Preview

30FQ-A: Description30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA; Categorysemiconductor Discrete semiconductor; File Size278KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Compare View All

30FQ-A Overview

30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA

Preview

Download Datasheet

View All

30FQ-A Related Products

	30FQ-A	30FQ	30FQ030A	30FQ035	30FQ040	30FQ040A	30FQ045A	30FQ030	30FQ035A	30FQ045
Description	30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 35 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 40 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 40 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 45 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 30 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 35 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 45 V, SILICON, RECTIFIER DIODE, DO-203AA
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	-	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	-	-	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	-	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	-	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	-	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	-	-	0.75 V	0.54 V	0.54 V	0.75 V	0.75 V	0.83 V	0.75 V	0.54 V
JEDEC-95 code	-	-	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA
JESD-30 code	-	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	-	-	620 A	9600 A	9600 A	620 A	620 A	600 A	620 A	9600 A
Number of components	-	-	1	1	1	1	1	1	1	1
Phase	-	-	1	1	1	1	1	1	1	1
Number of terminals	-	-	1	1	1	1	1	1	1	1
Maximum operating temperature	-	-	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	-	-	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	-	-	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	-	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	-	-	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	-	30 V	35 V	40 V	40 V	45 V	30 V	35 V	45 V
surface mount	-	-	NO	NO	NO	NO	NO	NO	NO	NO
technology	-	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	-	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	-	-	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	-	-	-	1	1	1	1	1	1	1
