EPA3685-3: DescriptionCommon Mode Choke; CategoryAnalog mixed-signal IC filter; File Size64KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric Compare View All

EPA3685-3 Overview

Common Mode Choke

EPA3685-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	PCA Electronics Inc.
package instruction	SMT, 4 PIN
Reach Compliance Code	compli
Other features	INDUCTANCE 3 MILLI HENRY
Certification	UL
filter type	SINGLE PHASE EMI FILTER
high	9.91 mm
JESD-609 code	e0
length	19.05 mm
Installation type	SURFACE MOUNT
working frequency	50Hz Hz
Maximum operating temperature	130 °C
Minimum operating temperature	-30 °C
physical size	L19.05XB16.51XH9.91 (mm)/L0.75XB0.65XH0.39 (inch)
Rated current	2.5 A
Rated voltage	250 V
Terminal surface	Tin/Lead (Sn/Pb)
width	16.51 mm
Base Number Matches	1

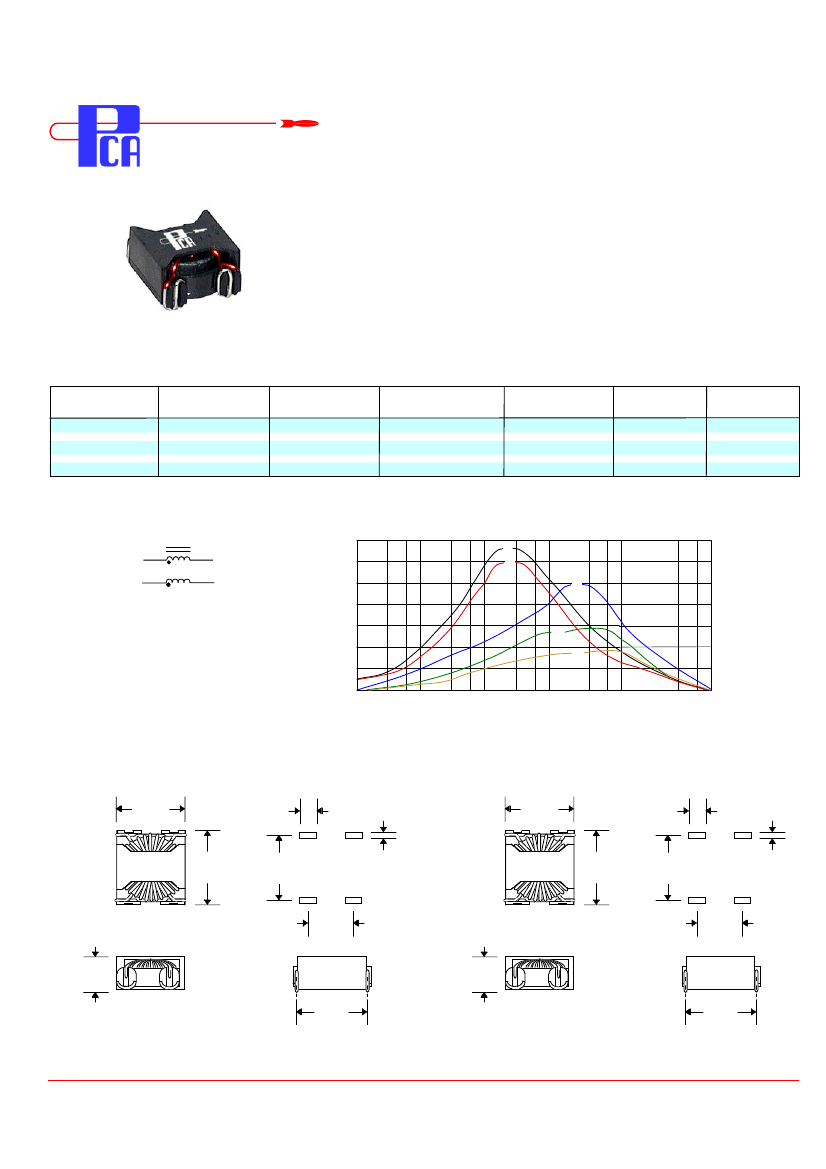

EPA3685-3 Preview

Common Mode Choke

ELECTRONICS INC.

EPA3685-X

• Used in AC Power Line Filtering

• UL 94V-0 Recognized Components

• UL 1446 Class B Insulation System

• Rated Voltage 250 Vac

• Self-Lead SMT

Electrical Parameters @ 25° C

Part

Number

EPA3685-1

EPA3685-2

EPA3685-3

EPA3685-4

EPA3685-5

Inductance

(mH ± 30%)

1.0

3.0

10.0

22.0

SRF

(MHZ Typ.)

4.0

2.0

2.2

0.5

0.3

Rated Current {RMS}

(Amp)

3.6

1.5

2.5

1.0

0.5

Impedance

Curve

1

2

3

4

5

DCR

(Ω Max.)

.05

.06

.08

.45

.85

Package

A

B

A

B

Schematic

7K

1

4

1:1

2

6K

Impedance Characteristic

5

4

3

Ω

Impedance (Ω )

3

5K

4K

3K

2K

1K

0

0.01

0.1

1

2

1

10

100

Frequency

(MHz)

Package A

.650

(16.51)

4

3

Package B

.060

(1.52)

4

3

.175

(4.45)

.550

(13.97)

4

3

.175

(4.45)

4

3

.060

(1.52)

PCA

.750

EP3685-X

(19.05)

D.C.

1

2

.720

(18.29)

1

2

PCA

.630

EPA3685-X

(16.00)

D.C.

1

2

.590

(14.99)

1

2

.620

(15.75)

.390 Max.

(9.91)

.660

(16.76)

.350 Max.

(8.89)

.445

(11.30)

.530

(13.46)

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSA3685-X

Rev. 1

5/20/03

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
