A3B-10D-2C

Description
Headers & Wire Housings 10P DR CRIMP SOCKET
CategoryThe connector    The connector
File Size358KB,16 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Environmental Compliance
Download Datasheet Parametric View All

A3B-10D-2C Online Shopping

Suppliers Part Number Price MOQ In stock
A3B-10D-2C - - View Buy Now

A3B-10D-2C Overview

Headers & Wire Housings 10P DR CRIMP SOCKET

A3B-10D-2C Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHirose
Reach Compliance Codeunknown
Other featuresCOMPATIBLE CONTACTS: A3B-2630SCFC; A3B-2630SCC; A3B-3236SCFC
body width0.157 inch
subject depth0.276 inch
body length0.394 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance
Contact styleSQ PIN-SKT
DIN complianceNO
Durability100 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)
GuidelineUL
reliabilityCOMMERCIAL
Terminal length
Termination typeCRIMP
Total number of contacts10
UL Flammability Code94V-0
Maximum wire diameter26 AWG
Minimum wire diameter36 AWG
Base Number Matches1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
2mm Pitch Miniature Connector
A3 • A4 Series

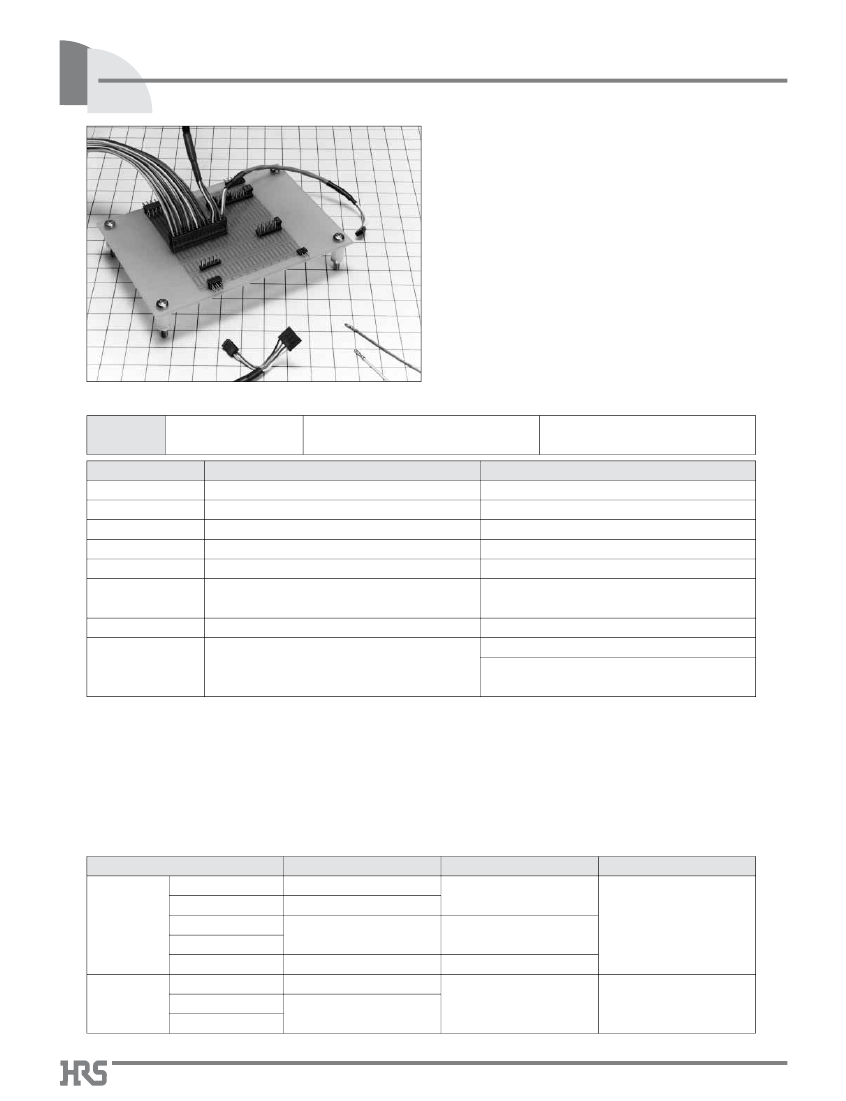

■Features
1. Miniature Type and High Density Mounting
These connectors are designed in a miniature and light
weight product, and mounted in the high density. The
crimping case is structured in the 2mm pitch grid, so that
connectors can be arranged for use.
2. Variation in Number of Contacts
Feb.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
In addition to the dip type, SMT and crimping types are
available with broad variations.
3. Stacking Variation
When the connector is used for board to board, set 6mm
between boards in conjunction with the pin header A3B,
or 5.1mm between boards in conjunction with the pin
header A3C.
■Product
Specifications
Rating
Item
1. Insulation Resistance
1000M ohms min.
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact Resistance
4. Vibration
15m ohms max
No electrical discontinuity of 10μs or more
Current rating 1A
Voltage rating 200V AC
Operating Temperature Range
–55
to
+85ç
(Note 1) Storage Temperature Range
–10
to
+60ç
(Note 2)
Operating Moisture Range
Specification
500V DC
650V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–65ç: 30 minutes
15 to 35ç: 5 minutes max.
(125ç:
30 minutes
15 to 35ç: 5 minutes max.) 5 cycles
100 cycles
Solder bath: 260ç for 10 seconds
No deformation of components affecting performance.
Manual soldering: DIP: 350ç for 3 seconds
SMT: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
40 to 80%
Storage Humidity Range
Condition
40 to 70% (Note 2)
5.
Humidity (Steady state)
Insulation resistance: 1000M ohms min.
6.
Humidity resistance
(Steady state)
7. Operating Life
8. Resistance to
Soldering heat
No damage, cracks, or parts looseness.
Contact resistance: 20m ohms max.
■Applications
VTR, vehicle telephones, and other various kinds of electronic equipment
■Material
Part
Pin header (Through hole)
Receptacle (Through hole)
Insulator
Pin header (SMT)
Receptacle (SMT)
Crimping socket
Pin header
Contact
Receptacle
Crimping contact
PPS (Note)
PBT
Brass
Phosphor bronze
Selective gold plated
---------------
Material
Polyamid
PBT
Finish
Black
Light brown
Black
UL94V-0
Remarks
Note : Slight variations in color of the plastic compounds do not affect form ,fit or function of the connector.
C10
