3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, Extended Bright
AMBER, 12V UltraProfile
AMBER 5VCurrentProfile
Ultra
Ultra Bright
Super
AMBER, Extended
B
3AX-201-X
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses
Available in a Shouldered (S) Lead Frame Style
Ideal for Status Indication and Display
Bivar 3mm T1 Package Extended Profile LED may be used in almost any application and provides ad-
ditional protrusion for those applications with thicker face plates. Bivar offers water clear LED lens for
maximum light output, diffused LED lens for uniform light output, and tinted lens to identify the color of
the LED. The Shouldered Lead frame LED is ideal for vertical spacer assemblies without lead bends
and also has a built in strain relief feature which is ideal for right angle holder assemblies that require
lead bends.
Part Number
3AC-201-S
3AD-201-S
3AT-201-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Viewing Angle
20°
35°
20°
GaAsP/Gap
AMBER
605nm
Amber Diffused
Amber Tinted
Part Number Designation
3 X X-2 0 1 - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -S, Shouldered
Extended Profile
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright Profile
BLUE, Low Bright Bright
GREEN, 12V UltraProfile
AMBER, 5VCurrentProfile
AMBER Low Current
Ultra
Extended Profile
Ultra Bright
Super
Extended
AMBER, Extended
Extended

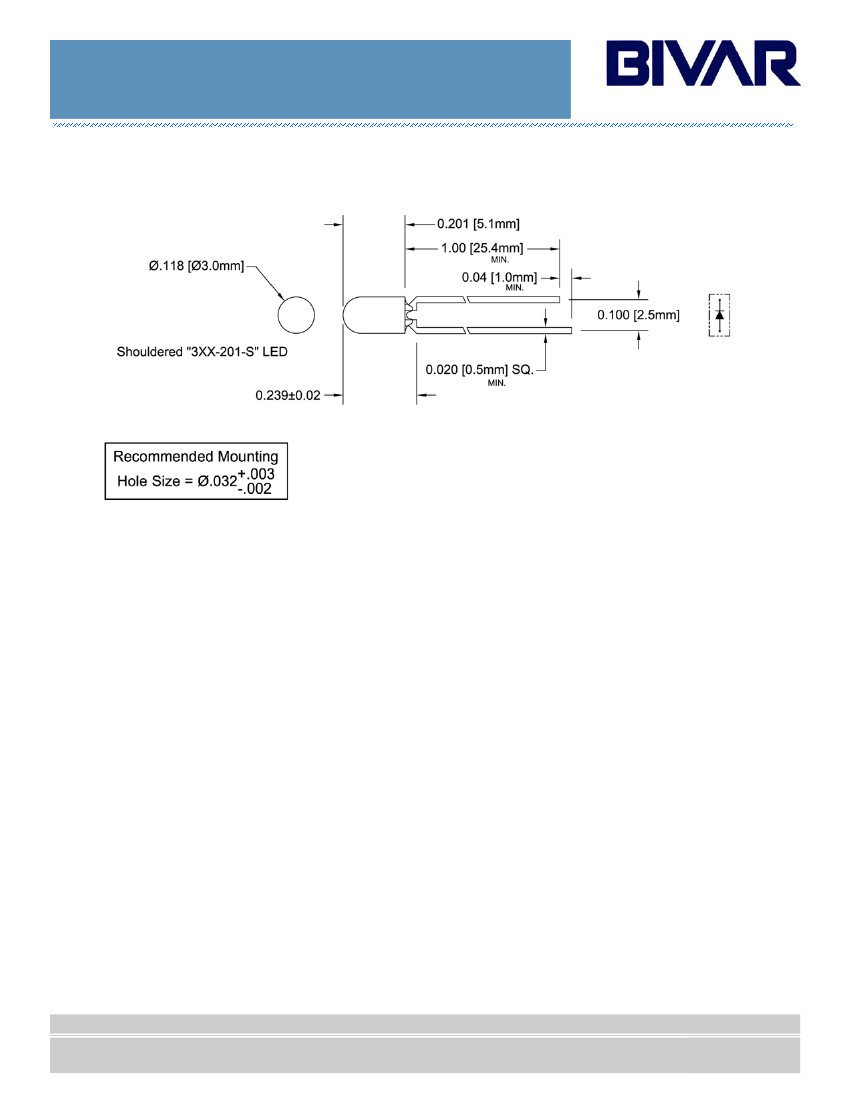

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright Profile
BLUE, Low Bright Bright
GREEN, 12V UltraProfile
AMBER, 5VCurrentProfile
AMBER Low Current
Ultra
Extended Profile
Ultra Bright
Super
Extended
AMBER, Extended
Extended
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
80 mW
30 mA
150 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
MIN
/
/
2.0
2.8
/
20
/
100
/
/
TYP
/
/
/
MAX
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
TYP
40
25
40
MAX
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
20
35
20
Part Number
MIN TYP MAX MIN TYP MAX
3AC-201-S
3AD-201-S
3AT-201-S
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright Profile
BLUE, Low Bright Bright
GREEN, 12V UltraProfile
AMBER, 5VCurrentProfile
AMBER Low Current
Ultra
Extended Profile
Ultra Bright
Super
Extended
AMBER, Extended
Extended
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
1.0
20°
35°
0.5
0.0
550
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
600
650
700
750
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
1000
100
10
1
0.1
1.0
Vf (V)
Iv
3.0
2.0
1.0
2.0
3.0
4.0
5.0
0.0
1
10
100
1000
If (mA)
Fig. 3 Forward Current vs. Forward Voltage
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Iv
Vf (V)
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
0
40
80
0.0
T (°C)
-40
0
40
80
Fig. 5 Forward Voltage vs. Temperature
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright Profile
BLUE, Low Bright Bright
GREEN, 12V UltraProfile
AMBER, 5VCurrentProfile
AMBER Low Current
Ultra
Extended Profile
Ultra Bright
Super
Extended
AMBER, Extended
Extended
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
Anti-Static Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision C 06/15
Page 4 of 4
Page 5 of 5
