SU-2

Description
Power Transformers Power Isolation Transformer
Categorysemiconductor    Power management
File Size176KB，2 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric Compare View All

SU-2 Online Shopping

Suppliers Part Number Price MOQ In stock
SU-2 - - View Buy Now

SU-2 Overview

Power Transformers Power Isolation Transformer

SU-2 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerBel
Product CategoryPower Transformers
RoHSDetails
ProductPower Transformers
Primary Voltage Rating208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V
Secondary Voltage Rating0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V
Power Rating2 kVA
Secondary Current Rating4.5 A/9 A
Mounting StyleChassis
Primary WindingDual Primary Winding
Secondary WindingDual Secondary Winding
Length192.1 mm
Width209.6 mm
Height187.3 mm
Operating Frequency50 Hz to 500 Hz
Termination StyleScrew
TypePower Isolation Transformer
NumOfPackaging1
Factory Pack Quantity1
Unit Weight56 lbs

Preview

Download Datasheet

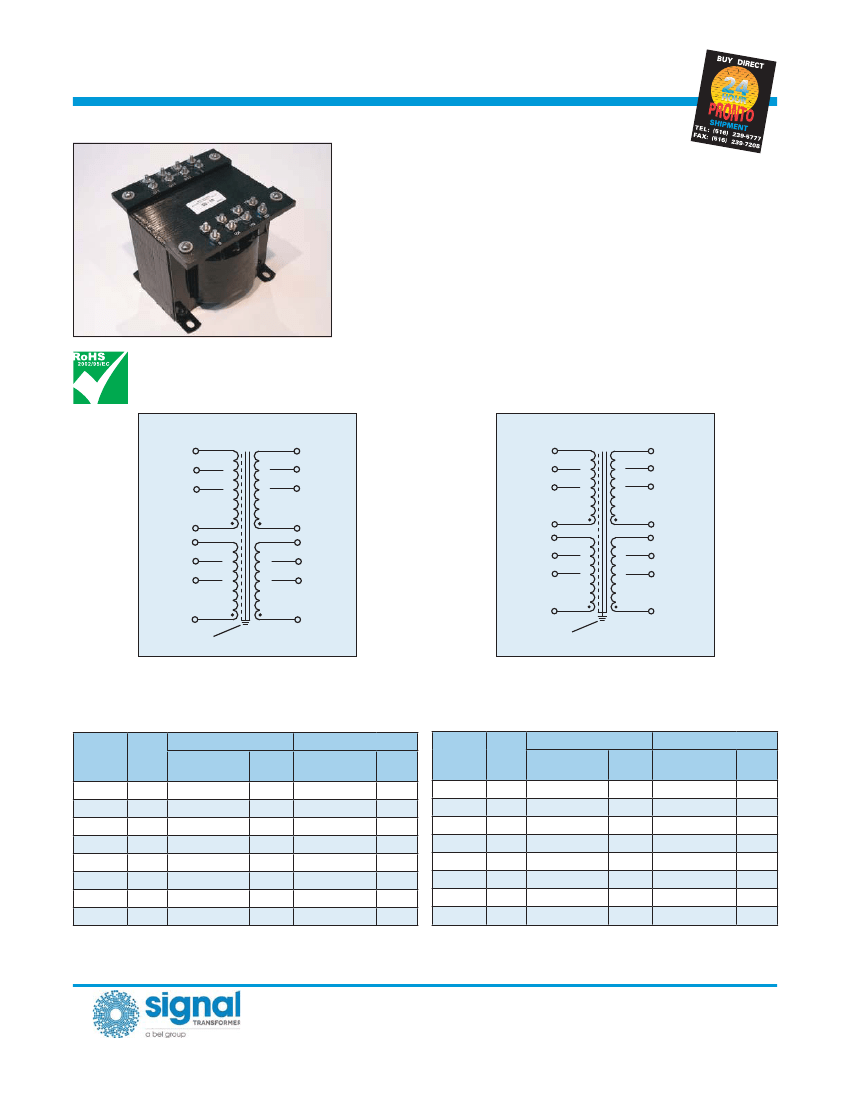

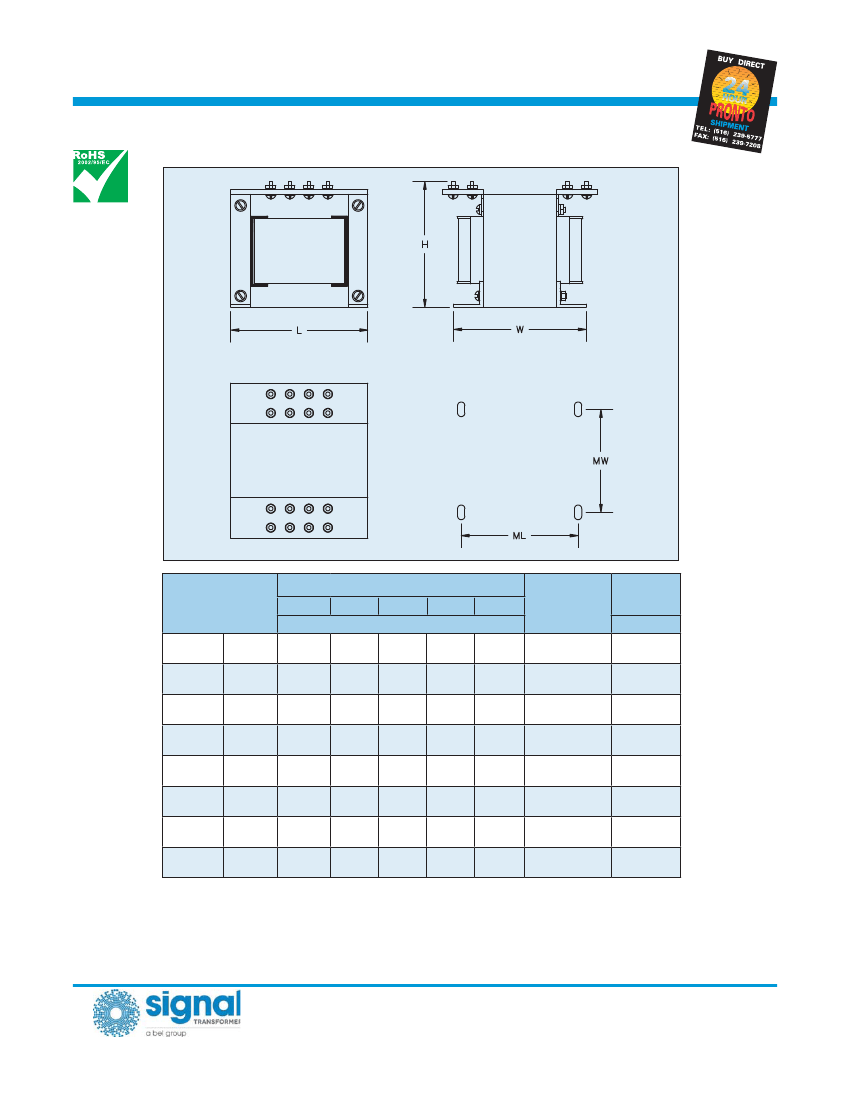

Industrial Grade Step-Up or Step-Down Transformers
SU Transformer
120
110
104
Primaries
DU Transformer
240
220
208
Secondaries
120
110
104
Primaries
120
110
104
Secondaries
0
120
110
104
0
240
220
208
0
120
110
104
0
120
110
104
0
Electrostatic Shield
0
0
Electrostatic Shield
0
1.1
2.3
DU-1
DU-2
DU-3
DU-5
DU-7.5
DU-10
1
2
3
5
7.5
10
23
31
9
2.2
SU-1
SU-2
SU-3
SU-5
62
82
SU-7.5
SU-10
1
2
3
5
7.5
10
0.55
1.15
1.1
2.3
9
18
28
2.25
9
7
11.5
15.5
20.5
23
31
500 Bayview Avenue, Inwood, NY 11096
Toll Free 866-239-5777
Tel
Fax 516-239-7208
48

SU-2 Related Products

SU-2 SU-1 SU-7.5 SU-10 SU-1/2 DU-5 DU-2 DU-7.5
Description Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Transformers Power Isolation Transformer Power Isolation Transformer
Product Category Power Transformers Power Transformers Power Transformers Power Transformers Power Transformers Power Transformers Power Transformers Power Transformers
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value -
Manufacturer Bel Bel Bel Bel Bel Bel Bel -
RoHS Details Details Details Details Details Details Details -
Primary Voltage Rating 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V 208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V -
Secondary Voltage Rating 0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V 0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V 0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V 0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V 0 V, 416 V, 440 V, 480 V/0 V, 208 V, 220 V, 240 V 0 V, 208 V, 220 V, 240 V/0 V, 104 V, 110 V, 120 V 0 V, 208 V, 220 V, 240 V/0 V, 104 V, 110 V, 120 V -
Power Rating 2 kVA 1 kVA 7.5 kVA 10 kVA 500 VA 5 kVA 2 kVA -
Secondary Current Rating 4.5 A/9 A 2.25 A/4.5 A 15.5 A/31 A 20.5 A/41 A 1.15 A/2.3 A 23 A/46 A 9 A/18 A -
Mounting Style Chassis Chassis Chassis Chassis Chassis Chassis Chassis -
Primary Winding Dual Primary Winding Dual Primary Winding Dual Primary Winding Dual Primary Winding Dual Primary Winding Dual Primary Winding Dual Primary Winding -
Secondary Winding Dual Secondary Winding Dual Secondary Winding Dual Secondary Winding Dual Secondary Winding Dual Secondary Winding Dual Secondary Winding Dual Secondary Winding -
Length 192.1 mm 192.1 mm 228.6 mm 228.6 mm 134.9 mm 192.1 mm 192.1 mm -
Width 209.6 mm 158.8 mm 273.1 mm 330.2 mm 134.9 mm 273.1 mm 209.6 mm -
Height 187.3 mm 187.3 mm 203.2 mm 203.2 mm 133.4 mm 187.3 mm 187.3 mm -
Operating Frequency 50 Hz to 500 Hz 50 Hz to 500 Hz 50 Hz to 500 Hz 50 Hz to 500 Hz 50 Hz to 500 Hz 50 Hz to 500 Hz 50 Hz to 500 Hz -
Termination Style Screw Screw Screw Screw Screw Screw Screw -
Factory Pack Quantity 1 1 1 1 1 1 1 -
Unit Weight 56 lbs 33.003 lbs 105.006 lbs 150.003 lbs 18 lbs 89.001 lbs 56 lbs -
