VSF-04-10-30-04-G datasheet, PDF

Datasheet> All Categories > The connector> VSF-04-10-30-04-G

VSF-04-10-30-04-G: DescriptionRectangular MIL Spec Connectors CONNECTOR, VERSI; CategoryThe connector; File Size300KB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

VSF-04-10-30-04-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VSF-04-10-30-04-G	-	-	View	Buy Now

VSF-04-10-30-04-G Overview

Rectangular MIL Spec Connectors CONNECTOR, VERSI

VSF-04-10-30-04-G Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AirBorn
Product Category	Rectangular MIL Spec Connectors
Product	Connectors
Number of Positions	40 Position
Number of Rows	4 Row
Termination Style	Through Hole
Mounting Style	Mounting Flange
Contact Gender	Socket (Female)
Contact Plating	Gold
Mounting Angle	Straight
Current Rating	2 A
Housing Material	Liquid Crystal Polymer (LCP)
Voltage Rating	200 V
Contact Material	Beryllium Copper
Pitch	1.27 mm
Insulation Resistance	5000 MOhms
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
NumOfPackaging	1

Preview

Download Datasheet

View All

CONTACT CUSTOMER SERVICE

CALL 512-863-5585

x6400

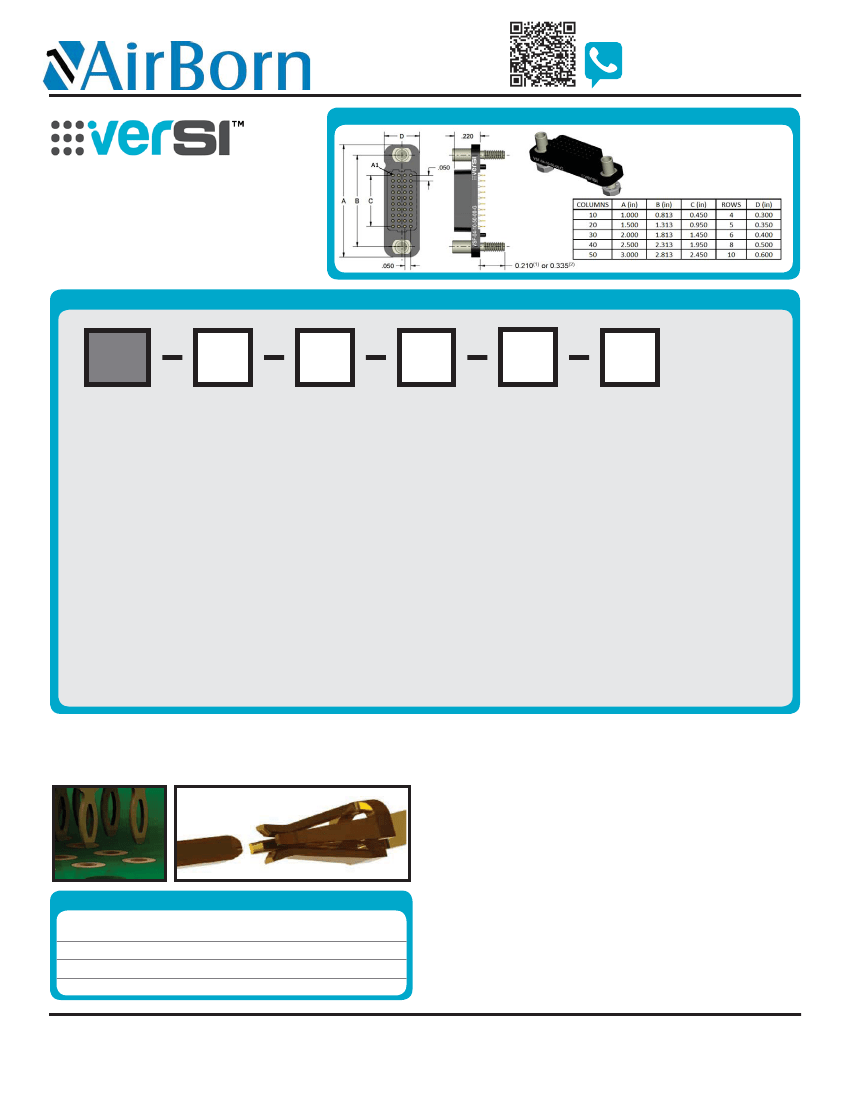

DIMENSIONS

Pitch: 1.27 mm

VSF signal-integrity connectors are used in

vertical, PCB-mount applications where a female

interface is required. Termination styles include

press-fit, paste-in-hole, plated thru-hole, and

surface-mount.

VSF

SERIES

Vertical

1.27 mm

ROWS

COLUMNS

CONTACT PLATING

TERMINATION

OPTIONS

NOTES

Connector potting is standard.

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

FEATURES

Guide hardware is optional.

MATERIALS and FINISHES

..............................................

Contact Finish: . . . . . . . . . . . . . . . . . . . . . . . .

ASTM B689 Type I, 50

μIN

min

Molded Insulators: . . . . . . . . . . . . . . . . .

Potting Compound: . . . . . . . . . . . . . . . . . . . . . . . . .Frey Eng. Co. insulating compound CF3003-80

.....

Washers: . . . . . . . . . . . . . . . . . . . . .

PERFORMANCE

Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 amperes maximum

Operating Temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55° C to 125° C

Min. Contact Wipe: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27 mm (0.050”)

Contact Normal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35–40 grams

Max Recommended Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V, RMS, 60 Hz

Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC

Durability:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2500 connector mating cycles

Sinusoidal Vibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 g (EIA-364-28, condition IV)

Shock: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 g (EIA-364-27, condition E)

www.airborn.com

VSF-PNB-1M

(512 ) 863-5585
