REV.
DESCRIPTION
DATE
APPROVED
B
C
D
Engineering Release
Revised Side View, See Page 4
Corrected Typo in Recom. Soldering Pattern
02/27/15
03/20/15
09/12/16
J. C.
J. C.
J. C.
0.360 [9.1mm]
3
4
0.236 [6.0mm]
2
1
0.245 [6.2mm]
1
CATHODE ID
RECOMMENDED SOLDERING PATTERN
B
B
2
2X 0.100 [2.5mm]
4
0.256 [6.5mm]
4
2X 0.144 [3.7mm]
3
PIN INFORMATION
ABSOLUTE MAXIMUM RATINGS at Ta=25°C
REVERSE VOLTAGE
REVERSE CURRENT
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE
MAX SOLDERING TEMPERATURE
5V
100
μ
A
−35°C − 85°C
−35°C − 85°C
260°C FOR 3 SECONDS
2
1
0.129 [3.3mm]
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
STANDARD TOLERANCE
± .1
± .02
± .010
X°
®
NOTES:
2. DERATING OF FORWARD CURRENT PER SEGMENT, 0.30mA/°C at T
≥
25°C
1. ACCEPTS BIVAR FLEXIBLE LIGHT PIPE STYLE FLPS2031
.X
.XX
.XXX
DESIGNED:
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
SMT FLP VERTICAL ADAPTER, BLUE
DATE:
PART NO:
REVISION:
A. Wright
CHECKED:
03/13/14
DATE:
SMTV01−BXX
D
B. Oliver
03/13/14
CAGE CODE : 32559
SHEET #
1
OF
4
CAD GENERATED DOCUMENT,
DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
SEE SHEET #1
Chip
Part Number
Emitted
Color
λ
D
[nm]
MIN TYP MAX
460 465 470
Absolute Maximum Ratings
Per Segment
P
d
[mW]
100
l
f
[mA]
25
25
25
Peak l
f
[mA]
100
100
100
2.8
Electro-Optical Data
@40mA, 25°C
V
f
[V]
MIN TYP MAX
3.3
3.8
l
v
[mcd]
TYP
110
161
187
SMTV01-B11
SMTV01-B16
SMTV01-B19
BLUE
100
100
Note: 10% Duty Cycle, Pulse Width
≤0.1msec
for Peak I
f
.
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
STANDARD TOLERANCE
± .1
± .02
± .010
X°
®
.X
.XX
.XXX
DESIGNED:
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:
SMT FLP VERTICAL ADAPTER, BLUE
PART NO:
A. Wright
CHECKED:
03/13/14
DATE:
SMTV01−BXX
REVISION:
D
B. Oliver
03/13/14
CAGE CODE : 32559
SHEET #
2
OF
4
CAD GENERATED DOCUMENT,
DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
SEE SHEET #1

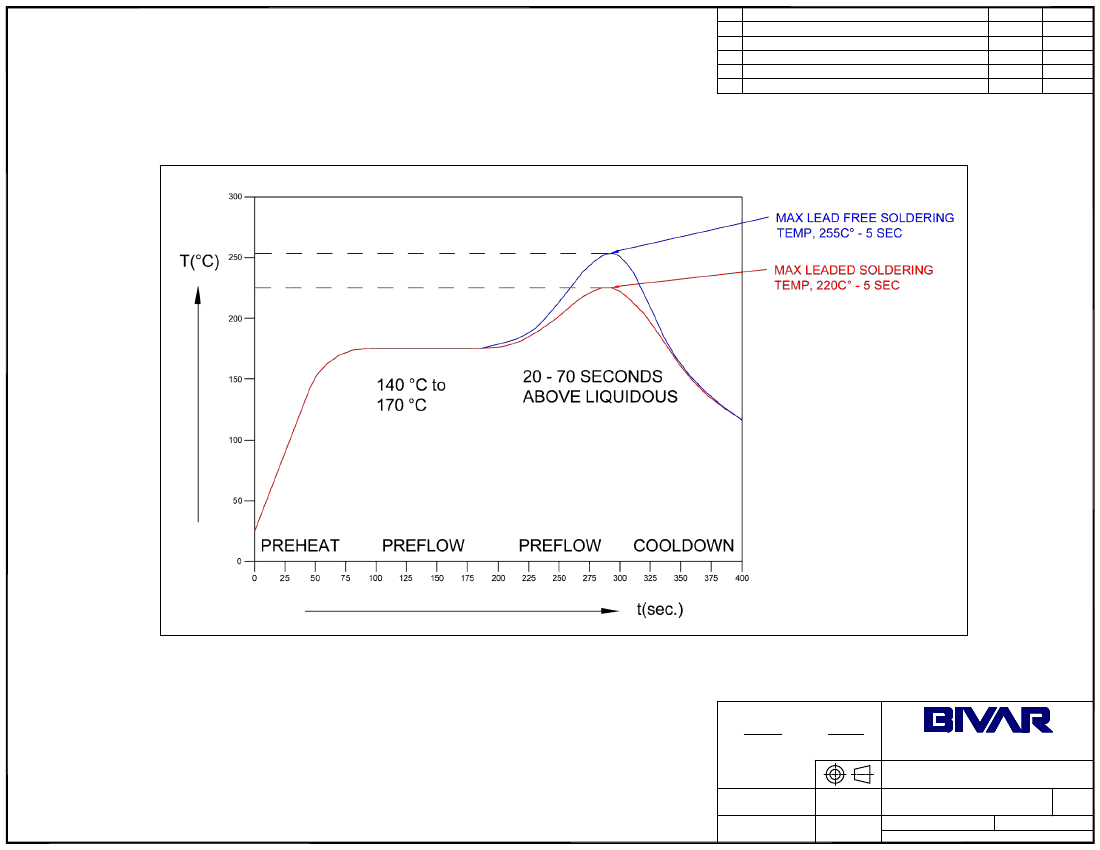

Recommended Reflow Soldering Profile
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
NOTE:
.X
.XX
.XXX
DESIGNED:
± .1
± .02
± .010
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:
SMT FLP VERTICAL ADAPTER , BLUE
REVISION:
PART NO:
1. Do not clean after soldering. Only use no-clean solder paste.
A. Wright
CHECKED:
03/13/14
DATE:
SMTV01−BXX
D
B. Oliver
03/13/14
CAGE CODE : 32559
SHEET #
3
OF
4
CAD GENERATED DOCUMENT,
DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
SEE SHEET #1
0.157 [4.0mm]
TYP
Ø0.059 [Ø1.5mm]
TYP
0.472 [12.0mm]
TYP
0.079 [2.0mm]
TYP
0.069 [1.7mm]
0.424 [10.8mm]
CATHODE ID
0.945 [24.0mm]
Ø0.060 [Ø1.5mm]
TYP
0.389 [9.9mm]
FEED DIRECTION
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
NOTES:
3. MOISTURE SENSITIVITY LEVEL: 4
2. UNLESS OTHERWISE SPECIFIED, PACKAGING TO COMPLY WITH EIA−481−D
1. 500 pcs PER REEL
.X
.XX
.XXX
DESIGNED:
± .1
± .02
± .010
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
DATE:
TITLE:
SMT FLP VERTICAL ADAPTER, BLUE
REVISION:
PART NO:
A. Wright
CHECKED:
03/13/14
DATE:
SMTV01−BXX
D
B. Oliver
03/13/14
CAGE CODE : 32559
SHEET #
4
OF
4
CAD GENERATED DOCUMENT,
DO NOT MEASURE DRAWING.
