First Sensor PSD Data Sheet
Part Description DL16-7 SMD
Order # 500162
Version 04-07-11
Features
• 16 mm² PSD
• Dual-axis, duo-lateral
• High position resolution
• High NIR sensitivity
Description
Square active area position sensing
PIN photodiode with 16 mm² active
area. Ceramic carrier type non-
hermetic package with clear glass
window.
Application
• Laser positioning
• Precision photometry
• Instrumentation
• Medical equipment
• Pulsed light sensor
RoHS
2002/95/EC
Absolute maximum ratings
Symbol
T
STG
T
OP
V
max
I
PEAK
Parameter
Storage temp
Operating temp
Max reverse voltage
Peak DC current
Min
-20
-20
15
Max
80
60
10
Unit
°C
°C
V
mA
Spectral response (23 °C)
0,70
0,60
0,50
Responsivity (A/W)
0,40
0,30
0,20
0,10
0,00
400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
Wavelength (nm)
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Capacitance
Responsivity
t
R
Rise time
Interelectrode Resistance
Noise lim. resolution
Position detection error
Breakdown voltage
Test Condition
Min
Typ
4000 x 4000
16.0
5
80
15
0.4
0.62
500
10
0.06
±1
15
Max
Unit
µm
mm²
nA
pF
pF
A/W
A/W
ns
kΩ
µm
%
V
I
D
C
V
BR
V
R
= 10 V
V
R
= 0 V
V
R
= 10 V
λ = 633 nm
λ = 850 nm
V
R
= 10 V; λ = 865 nm; R
L
= 50 Ω
E = 0 lx
λ = 632 nm; P = 0.5 µW, spot dia. 0.5 mm
λ = 632 nm; P = 0.5 µW, spot dia. 0.5 mm
I
R
= 2 µA
30
1000
European, International Sales:
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
ta Sheet
First Sensor PSD Data Sheet
Part Description DL16-7 SMD
Order # 500162
Version 04-07-11
16-7 SMD
# 500162
sion 04-07-11
Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
80,0
Quantum efficiency (%)
80
60,0
60
Capacitance (pF)
400 450 500 550 600 650 700 750 800 850 900 950 100010501100
40,0
40
20
20,0
0
0,0
0
5
10
15
20
Wavelength (nm)
Reverse bias (V)
Dark current as fct of bias (23 °C)
1,0E-08
Dark current (A)
1,0E-09
1,0E-10
1,0E-11
0
5
10
15
20
Reverse bias [V]
European, International Sales:
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
ta Sheet
First Sensor PSD Data Sheet
Part Description DL16-7 SMD
Order # 500162
Version 04-07-11
16-7 SMD
# 500162
sion 04-07-11

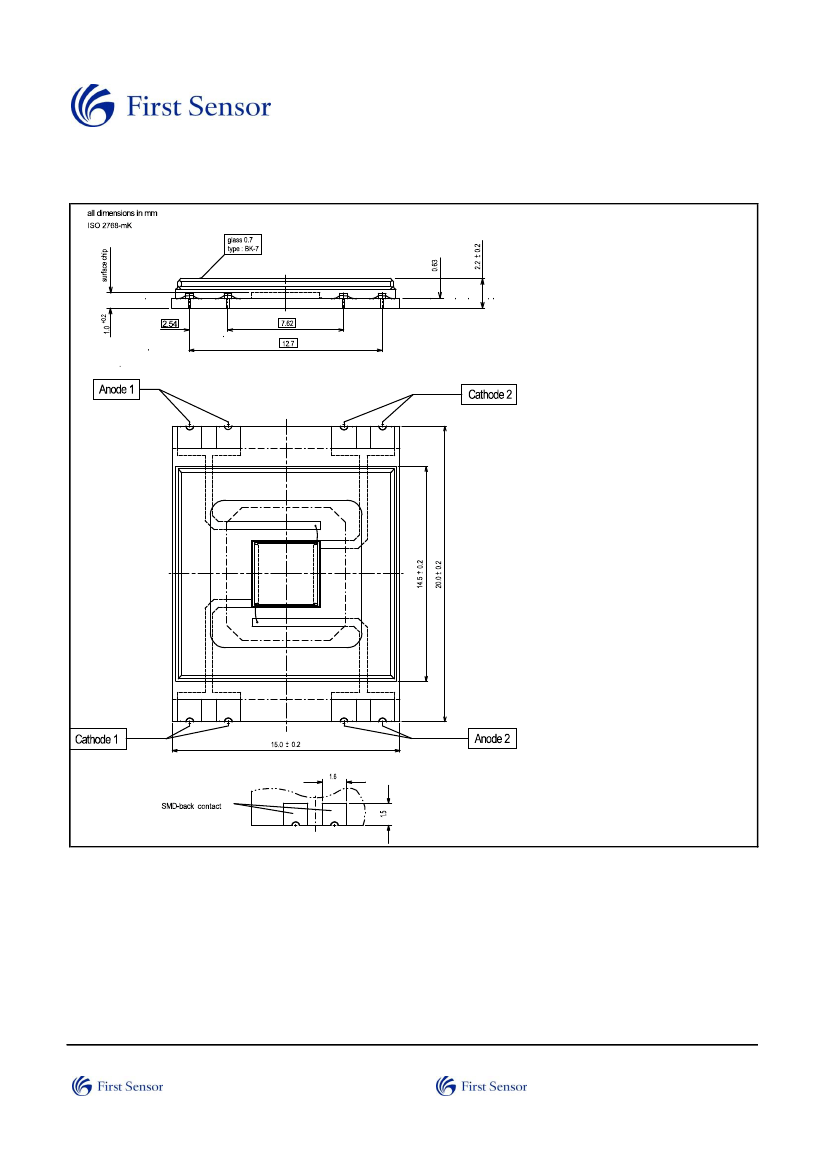

Technical Drawing, Package: CERsmd
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Handling:
Please refer to document "Instructions for handling and processing"
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
European, International Sales:
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
