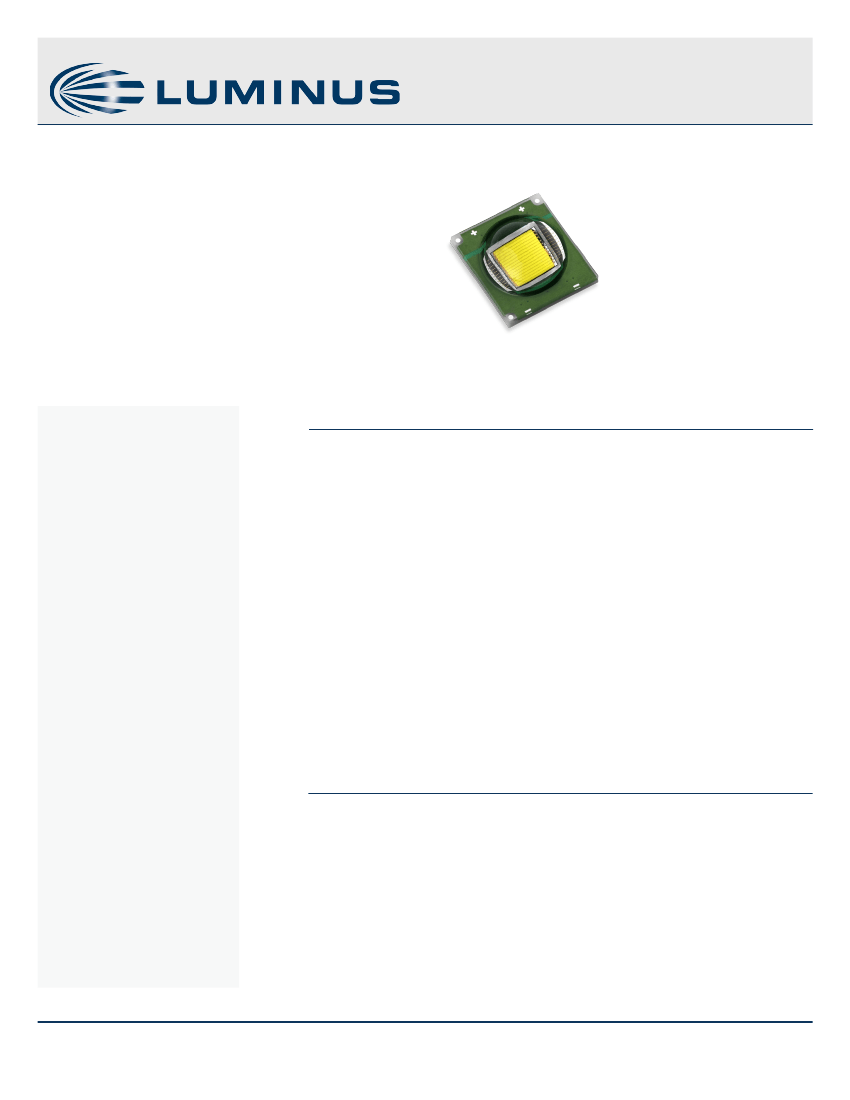

SST-90-W Product Datasheet
SST-90-W LEDs
Features:
•
Extremely high optical output White LED: up to 4,000lm at 18A
•
5700K Daylight and 6500K Cool White color points available.
•
High thermal conductivity package - junction to case thermal resistance of only
0.5 °C/W
•
Large, monolithic chip with uniform emitting area of 9 mm
2
•
Variable drive currents: less than 1 A through 18 A continuous waveform.
•
Electrically isolated thermal path
•
Environmentally friendly: RoHS compliant
Table of Contents
Technology Overview . . . . . .2
Binning Structure . . . . . . . . . .3
Ordering Information . . . . . .4
Shipping and Labeling . . . . .6
Electrical Characteristics . . . .7
Product Characteristics . . . . .8
Mechanical Dimensions . . 11
Solder Profile . . . . . . . . . . . . 14
Tape and Reel Drawing . . . 11
History of Changes . . . . . . . 12
Applications
•
Machine vision
•
High- output strobing applications
•
Beacons, obstruction Lighting
•
Industrial Applications
•
Portable Lighting
•
Medical Lighting
•
Emergency Vehicle Lighting
•
Displays and Signage
•
High-output, directional transporta-
tion lighting
•
Search Lights
•
Work Lights
1
PDS-001342 Rev 14
© 2015 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
SST-90-W Product Datasheet
Technology Overview
Luminus LEDs™ benefit from a suite of innovations in the fields of chip technology, packaging and thermal management. These
breakthroughs allow illumination engineers and designers to achieve solutions that are high brightness and high efficiency.
Luminus Technology
Luminus’ technology enables large area LED chips with uniform
brightness over the entire LED chip surface. The optical power
and brightness produced by these large monolithic chips
enable solutions which replace arc and halogen lamps where
arrays of traditional high power LEDs cannot.
Reliability
Designed from the ground up, Luminus LEDs are one of the
most reliable light sources in the world today. Luminus LEDs
have passed a rigorous suite of environmental and mechanical
stress tests, including mechanical shock, vibration, temperature
cycling and humidity, and have been fully qualified for use in
extreme high power and high current applications. With very
low failure rates and median lifetimes that typically exceed
60,000 hours, Luminus LEDs are ready for even the most
demanding applications.
Packaging Technology
Thermal management is critical in high power LED applications.
With a thermal resistance from junction to case of
0.5º C/W. Luminus SST-90-W LEDs have the lowest thermal
resistance of any LED on the market. This allows the LED to be
driven at higher current densities while maintaining a low
junction temperature, thereby resulting in brighter solutions
and longer lifetimes.
Environmental Benefits
Luminus LEDs help reduce power consumption and the amount
of hazardous waste entering the environment. All LED products
manufactured by Luminus are RoHS compliant and free of
hazardous materials, including lead and mercury.
Understanding Luminus LED Test Specifications
Every Luminus LED is fully tested to ensure that it meets the high quality standards expected from Luminus’ products.
Testing Temperature
Luminus surface mount LEDs are typically tested with a 20mSec
input pulse and a junction temperature of 25ºC. Expected flux
values in real world operation can be extrapolated based on the
information contained within this product data sheet.
Large Operating Range
The tables on the following pages provide typical optical and
electrical characteristics. Since the LEDs can be operated over a
wide range of drive conditions (currents from less than 1.0 A to
18.0 A, and duty cycle from <1% to 100%), multiple drive
conditions are listed.
SST-90-W LEDs are production tested at 3.15 A. The values
shown at other 6.3 A and 9.0 A are for additional reference at
other possible drive conditions.
2
PDS-001342 Rev 14
© 2015 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
SST-90-W Product Datasheet
SST-90-W White Binning Structure
SST-90-W white LEDs are tested for luminous flux and chromaticity at a drive current of 3.15 A (350 mA/mm
2
) and placed into one of the
following luminous flux (FF) and chromaticity (WW) bins. Please note that single bins cannot be ordered. Refer to ordering information
to see the highest minimum bin orderable.
Flux Bins
Flux Bin (FF)
N2
N3
P
P2
P3
*Note: Luminus maintains a +/- 6% tolerance on flux measurements.
Minumum Flux (lm) @ 3.15A
900
950
1000
1060
1130
Maximum Flux (lm) @ 3.15A
950
1,000
1060
1130
1200

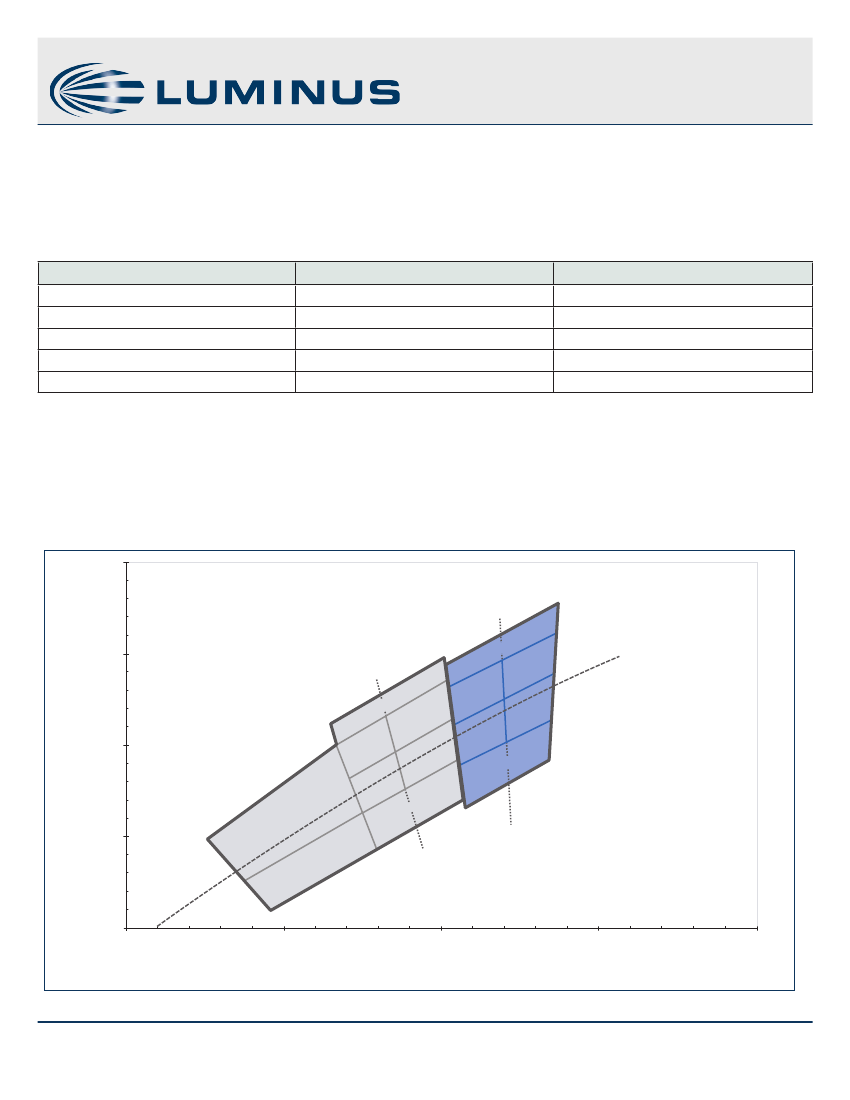

Chromaticity Bins
Luminus’ Standard Chromaticity Bins: 1931 CIE Curve
0.380
5700
EH
0.355
BB Locus
6500
H4
EF
G4
H3
G3
F3
DE
DG
DJ
J4
J3
CIEy
0.330
F4
0.305
DF
0.280
0.270
0.295
0.320
CIEx
0.345
0.370
3
PDS-001342 Rev 14
© 2015 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
SST-90-W Product Datasheet
The following tables describe the four chromaticity points that bound each chromaticity bin. Chromaticity bins are grouped together
based on the color temperature.
6500K
Chromaticity Bins
Bin Code
(WW)
DG
CIEx
0.307
0.322
0.323
0.309
0.305
0.313
0.315
0.307
0.303
0.312
0.313
0.305
0.313
0.321
0.322
0.315
0.312
0.321
0.321
0.313
0.302
0.320
0.321
0.303
0.283
0.303
0.307
0.289
0.289
0.307
0.309
0.293
5700K
Chromaticity Bins
CIEy
0.311
0.326
0.316
0.302
0.321
0.329
0.319
0.311
0.330
0.339
0.329
0.321
0.329
0.337
0.326
0.319
0.339
0.348
0.337
0.329
0.335
0.354
0.348
0.330
0.304
0.330
0.311
0.293
0.293
0.311
0.302
0.285
Bin Code
(WW)
DJ
CIEx
0.322
0.337
0.336
0.323
0.321
0.329
0.329
0.322
0.321
0.329
0.329
0.321
0.329
0.337
0.337
0.330
0.329
0.338
0.337
0.329
0.320
0.338
0.338
0.321
CIEy
0.324
0.337
0.326
0.314
0.335
0.342
0.331
0.324
0.346
0.354
0.342
0.335
0.342
0.349
0.337
0.331
0.354
0.362
0.349
0.342
0.352
0.368
0.362
0.346
F3*
H3*
F4*
H4*
G3*
J3*
G4*
J4*
EF
EH
DE
DF
*Sub-bins within ANSI defined quadrangles per ANSI C78.377-2008
Note : CIE Measurement uncertainty for white devices is in estimated to be +/- 0.01
4
PDS-001342 Rev 14
© 2015 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
SST-90-R Product Datasheet
Ordering Information
SS<X>
Product Family
SST: Surface mount device,
Encapsulated
SSR: Surface mount device
mounted on an aluminum
star board
90: 9.0 mm
2
90
LED Emission Area
W<NN>S
Color
<Z>11
Package Configuration
<abnnn>
Bin kit
W = White
NN: 57=5700k
65=6500k
S: Standard CRI
F11: 10.0 mm x 11.0 mm -
Surface mount, shipped in
25 unit trays.
Flux and Chromaticity bin kit
T11:surface mount, shipped code - See available ordering
in tape and reel [see p15]
codes below
R11: Surface mount device
mounted on an aluminum
star board (15/tray)
SST-90-W and SSR-90-W Bin Kit Order Codes
The following table describes the bin kit ordering codes for the SST-90-W and SSR-90-W. Each kit specifies a minimum flux and allowed
chromaticity bins. A maximum flux is not specified. Within each kit, Luminus may ship any part meeting or exceeding the minimum flux
specification as well as chromaticity specification but no specific mix of bins is guaranteed.
Luminous Flux
Color
Bin Kit Flux
Code
N2
Min. Flux
Chromaticity Bins
F4, F3, G4, G3, EF, DG, DE, DF
White
W65S
6500K, Standard CRI (typ. 70)
900
F4, F3, G4, G3, EF, DG
F4, F3, G4, G3
F4, F3, G4, G3, EF, DG, DE, DF
N3
950
F4, F3, G4, G3, EF, DG
F4, F3, G4, G3
White
WDLS
6500K & 5700K
Standard CRI (typ. 70)
White
W57S
5700K, Standard CRI (typ. 70)
N2
N3
N2
N3
900
950
900
950
F4, F3, G4, G3, EF, DG, DE, DF
H4, H3, J4, J3, EH, DJ
F4, F3, G4, G3, EF, DG, DE, DF
H4, H3, J4, J3, EH, DJ
H4, H3, J4, J3, EH, DJ
H4, H3, J4, J3
H4, H3, J4, J3, EH, DJ
H4, H3, J4, J3
Kit Number
N2100
N2101
N2102
N3100
N3101
N3102
N2150
N3150
N2200
N2201
N3200
N3201
5
PDS-001342 Rev 14
© 2015 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
