Infinity Series Outd r LED Flex
Bring all the comforts of home to the great outdoors
with the
Infinity Series Weather Resistant Dura-Flex
System.
Compatible with both AC/DC power sources,
this unique 12 volt system makes it possible to run up
to seventy-five feet of continuous light without
voltage drop. A lightweight weatherproof silicone seal
makes it the perfect lighting solution indoors and out,
ideal for patios, stairs, walkways, gazebos, and more!

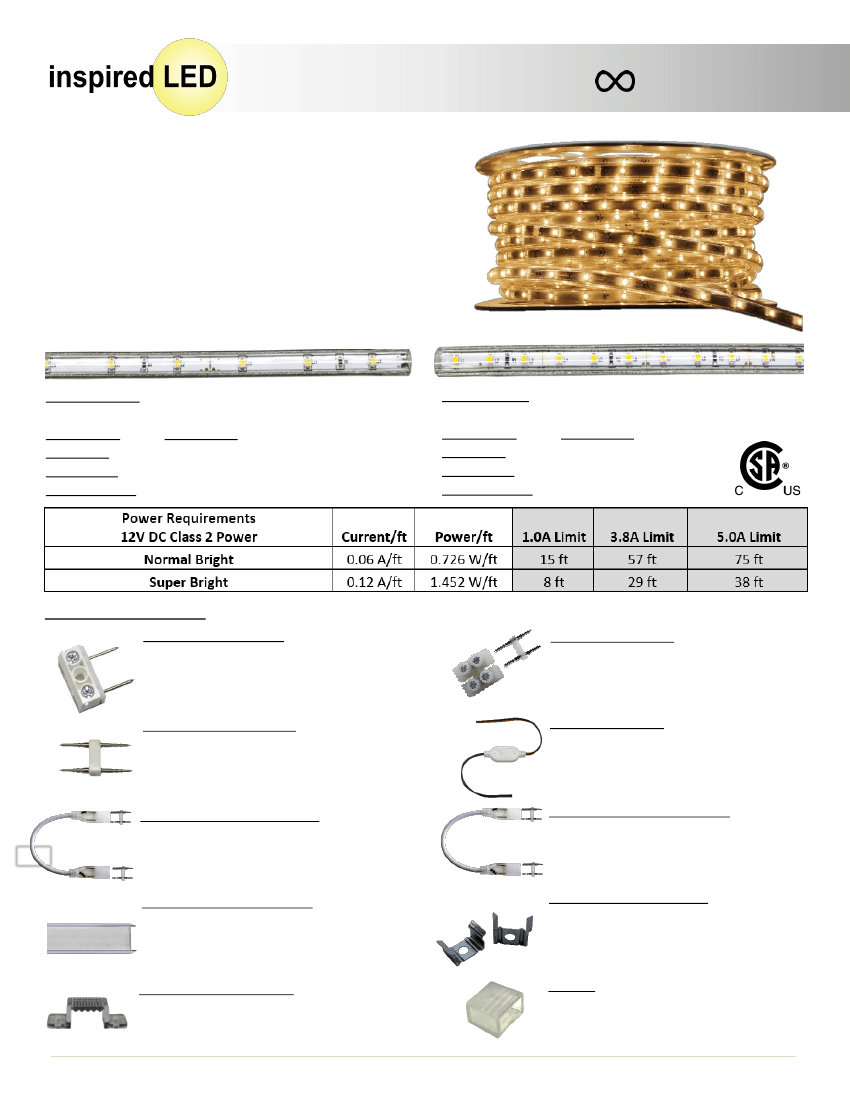

Normal Bright: SKU# 3562
30 LEDs per meter (9 LEDs per foot)
LED Spacing: 1.31” Reel Length: 50M
Cut Points: Every 4”
Color Temp: Warm (~2700K)
Lumen Output: 65 lm per ft.
Super Bright: SKU# 3572 (Warm) 3573 (Pure)
60 LEDs per meter (18 LEDs per foot)
LED Spacing: 0.66” Reel Length: 50M
Cut Points: Every 1.97”
Color Temp: Warm (~2700K), Pure (~4000K)
Lumen Output: 125 lm per ft.
Infinity Accessories:
Pronged Screw Terminal
SKU#:
3571
Poke connector posts into flexible LED strip and
terminate 12V DC 18-22AWG cable into screw
terminals.
Quad Screw Terminal
SKU#:
3697
Combines with single barb connector to allow
screw terminal connection from posts to 12V DC
18-22AWG cable.
Double Barb Flex Extender
SKU#:
3508
Extend the LED flex strip length by terminating 2
flexible LED strips together using double barb flex
extender.
AC-DC Diode Bridge
SKU#:
3512
Use when terminating to AC power source.
Bridge can be located anywhere between
transformer and LED strip.
Jumper Cable Connector (12 ft)
Jumper Cable Connector (10 in)
SKU#:
3696
Combines with 2 single barb connectors, rubber
caps slip over ends of LED flex, connecting one strip
to the next, or cut off end to wire nut own cable.
Metal Outdoor Mounting Clips
SKU#:
3567 (small) 3687 (large)
Use small size to mount LED strip directly, or large
size to mount clear channel. Sold in packs of 10 with
1 screw per clip.
≈
SKU#:
3695
Combines with 2 single barb connectors, rubber caps
slip over end of LED flex, connecting one strip to the
next, or cut off end to wire nut own cable.
Clear Mounting Channel (6 ft)
SKU#:
3698
Hold LED strips securely in place without need
for adhesive, can be screwed directly onto flat
surface or mounted using large metal clips.
Clear Outdoor Mounting Clips
SKU#:
CLEAR
Use to mount Infinity flexible LED strips.
Sold in packs of 10 with 2 screws per clip.
End Cap
SKU#:
3509
Enclose open end of LED strip, combine
with silicone to create weatherproof seal.
Inspired LED ● 1733 E. McKellips Rd. Suite #112 Tempe, AZ 85281 ● (480) 941-4286 ● www.inspiredled.com
Warning:
! DO NOT CONNECT DIRECTLY TO HIGH VOLTAGE. Turn off main breaker and read all instructions prior to
installation. Products to be installed in accordance with NEC regulations by a licensed electrician.
Instructions:
To install, you will need Infinity Dura-flex, heavy duty scissors or PCV cutters, wire strippers,
painters or masking tape, small screw driver, 2-conductor outdoor rated cable, compatible Infinity accessories

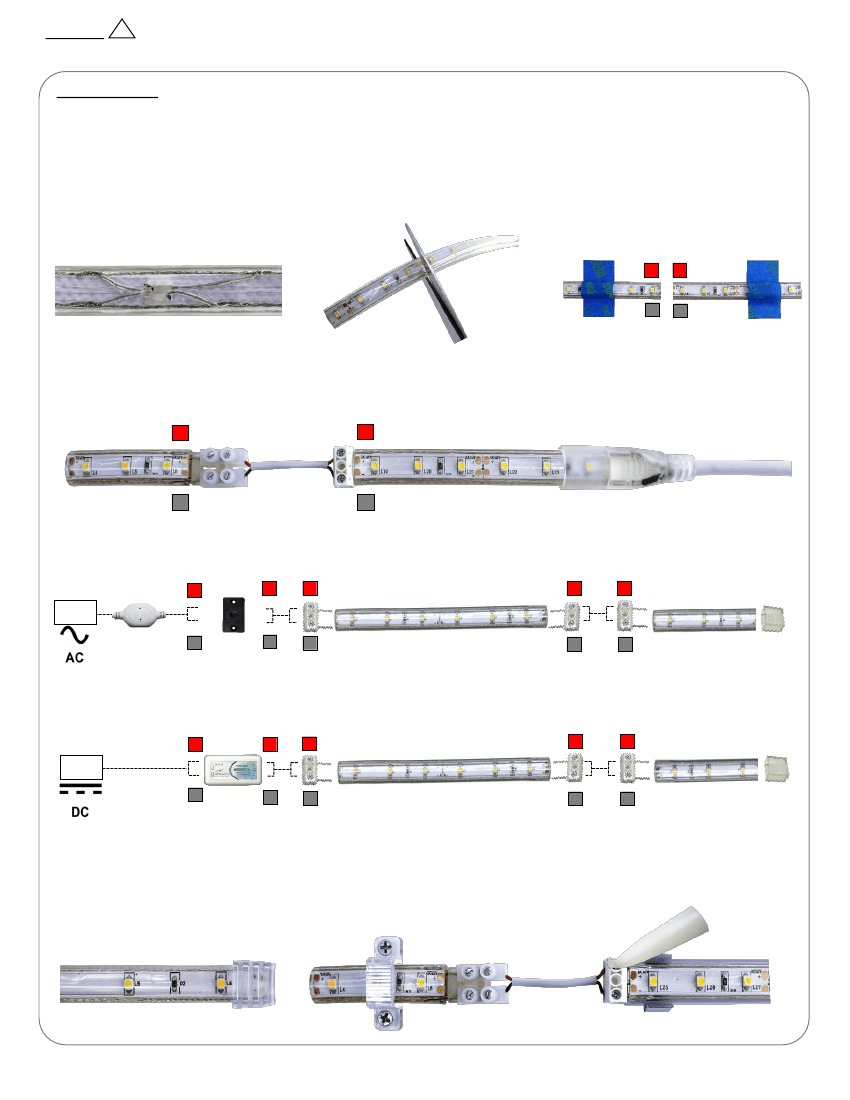

1. Measure Infinity Series Dura-flex
to desired length, ensuring that each
piece has at least 1 solder joint
connection on the underside to
supply power
2. Use heavy duty scissors or PVC
cutters to cut Infinity Dura-flex to
length along copper solder pads ONLY
3. Line desired area with flex,
mounting in place temporarily using
masking or painter’s tape, ensuring
that polarities of each strip are
aligned
+
-
+
-
4. Connect LEDs in series by terminating ends of flex with preferred compatible Infinity Series connectors- quad screw
terminal or two prong screw terminal with bulk outdoor rated cable, or Infinity jumper cables (see individual product
instructions for more details). Ensure that polarities match from strip to strip.
+
+
-
-
5. If utilizing AC power source, connect to Infinity Diode Bridge, then follow product instructions to connect to
compatible low voltage switch or controller (if desired), and continue running 2-conductor cable to first strip in series
+
+
+
+
+
12V
AC-DC Diode
Bridge
-
Switch/
Dimmer
-
-
-
-
6. If utilizing DC power source, make direct connection to compatible low voltage switch or controller (if desired),
then continue running 2-conductor cable to first strip in series
+
+
+
+
+
12V
-
Switch/
Dimmer
-
-
-
-
7. Once satisfied with placement of
LEDs, test all connections and add
end caps to bare ends of flex, sealing
with silicone as needed
8. Mount in place using mounting
clips, clear channel, or outdoor
rated silicone
(if using silicone, use
clamps or vice grips to hold in place
until dry)
9. Use outdoor rated silicone to
reinforce and seal connection points,
allow silicone to dry completely
before exposing to moisture
Inspired LED 1733 E. McKellips Rd. Suite #112 Tempe, AZ 85281 ● (480) 941-4286 ● www.inspiredled.com
