507-5064-3734-500 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 507-5064-3734-500

507-5064-3734-500: DescriptionPanel Mount Indicator Lamps DATALITE BLUE 5VDC; CategoryLED optoelectronic/LED photoelectric; File Size97KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

507-5064-3734-500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-5064-3734-500	-	-	View	Buy Now

507-5064-3734-500 Overview

Panel Mount Indicator Lamps DATALITE BLUE 5VDC

507-5064-3734-500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
Is Samacsys	N
color	BLUE
Configuration	SINGLE
Maximum forward current	0.01 A
JESD-609 code	e0
Nominal luminous intensity	275.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	23.8 mm
method of packing	BULK
shape	ROUND
size	7.14 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

DIALIGHT

PART NUMBER

507-4756-3331-500F

507-4756-3731-500F

507-4757-3331-500F

507-4757-3731-500F

507-4759-3331-500F

507-4759-3731-500F

507-4760-3331-500F

507-4760-3731-500F

507-4761-3331-500F

507-4761-3731-500F

507-4856-3332-500F

507-4856-3732-500F

507-4857-3332-500F

507-4857-3732-500F

507-4859-3332-500F

507-4859-3732-500F

507-4860-3332-500F

507-4860-3732-500F

507-4861-3332-500F

507-4861-3732-500F

507-4956-3333-500F

507-4956-3733-500F

507-4957-3333-500F

507-4957-3733-500F

507-4959-3333-500F

507-4959-3733-500F

507-4960-3333-500F

507-4960-3733-500F

507-4961-3333-500F

507-4961-3733-500F

507-5062-3334-500F

507-5062-3734-500F

507-5064-3334-500F

507-5064-3734-500F

507-5066-3334-500F

507-5066-3734-500F

507-5067-3334-500F

507-5067-3734-500F

507-5068-3334-500F

507-5068-3734-500F

507-5164-3337-500F

507-5164-3737-500F

507-5166-3337-500F

507-5166-3737-500F

507-5167-3337-500F

507-5167-3737-500F

507-5168-3337-500F

507-5168-3737-500F

COLOR

RED

GREEN

YELLOW

BLUE

WHITE

VOLTAGE

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3 VDC

5 VDC

10 VDC

14 VDC

28 VDC

5 VDC

10 VDC

14 VDC

28 VDC

LENS

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

.020 #

.005

[0,51 #

0,12 ]

.330 #

.010

[8,38 #

0,25 ]

ANODE MARK

.284 #

.010

[7,21 #

0,25 ]

.160 #

.010

[4,06 #

0,25 ]

.160 #

.010

[4,06 #

0,25 ]

ANODE

.203

[5,15]

ALUMINUM

HOUSING

PLASTIC LENS

(SEE NOTE 3)

.26

[6,6]

.26

[6,6]

.275

[6,99]

.282

[7,16]

RoHS COMPLIANT 507-XXXX-3X3X-500F

Part Numbers with the "F" suffix ending are RoHS Compliant.

For example: 507-4756-3331-500F

Packaging is marked with "RoHS Compliant" label or equivalent

markings.

REV

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

AJF KLJ CJC 1-21-10

ADDED P/Ns: 507-5164-3337-500F,

507-5164-3737-500F, 507-5166-3337-500F,

507-5166-3737-500F, 507-5167-3337-500F,

507-5167-3737-500F, 507-5168-3337-500F,

507-5168-3737-500F

AJF KLJ CJC 5-27-10

FIG. 1

(CYLINDRICAL LENS)

FIG. 2

(STOVEPIPE LENS)

NOTES:

1. POLARITY OF LAMP IS CRITICAL.

2. THE RATED VOLTAGE IS NOT TO BE EXCEEDED BY

MORE THAN 5% IN ORDER TO AVOID DAMAGE TO LAMP.

3. LENS CONTAINS AN INTERNAL FRESNEL RING PATTERN TO ASSURE

MAXIMUM LIGHT OUTPUT.

4. DIALIGHT PART NUMBER 507-XXXX-3X3X-500F.

5. PART CAN BE USED WITH DIALIGHT 250 AND 508 SERIES HOLDERS FOR .375"

MOUNTING HOLE OR 515 SERIES CONNECTORS FOR 9/32" MOUNTING HOLE.

.90

[22,86]

6. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE

DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING

ASSEMBLY, HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.

.90

[22,86]

ATTENTION:

OBSERVE PRECAUTIONS FOR

HANDLING ELECTROSTATIC

SENSITIVE DEVICES

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: 4.000

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

DRAWING NUMBER

REV

C-17811

TITLE

.040 #

.002

PIN DIA.

[1,02 #

0,05 ]

TYP.

FRACTIONS: #

1/64

DECIMALS (.XX): #

.02

DECIMALS (.XXX): #

.015

ANGLES:

# $

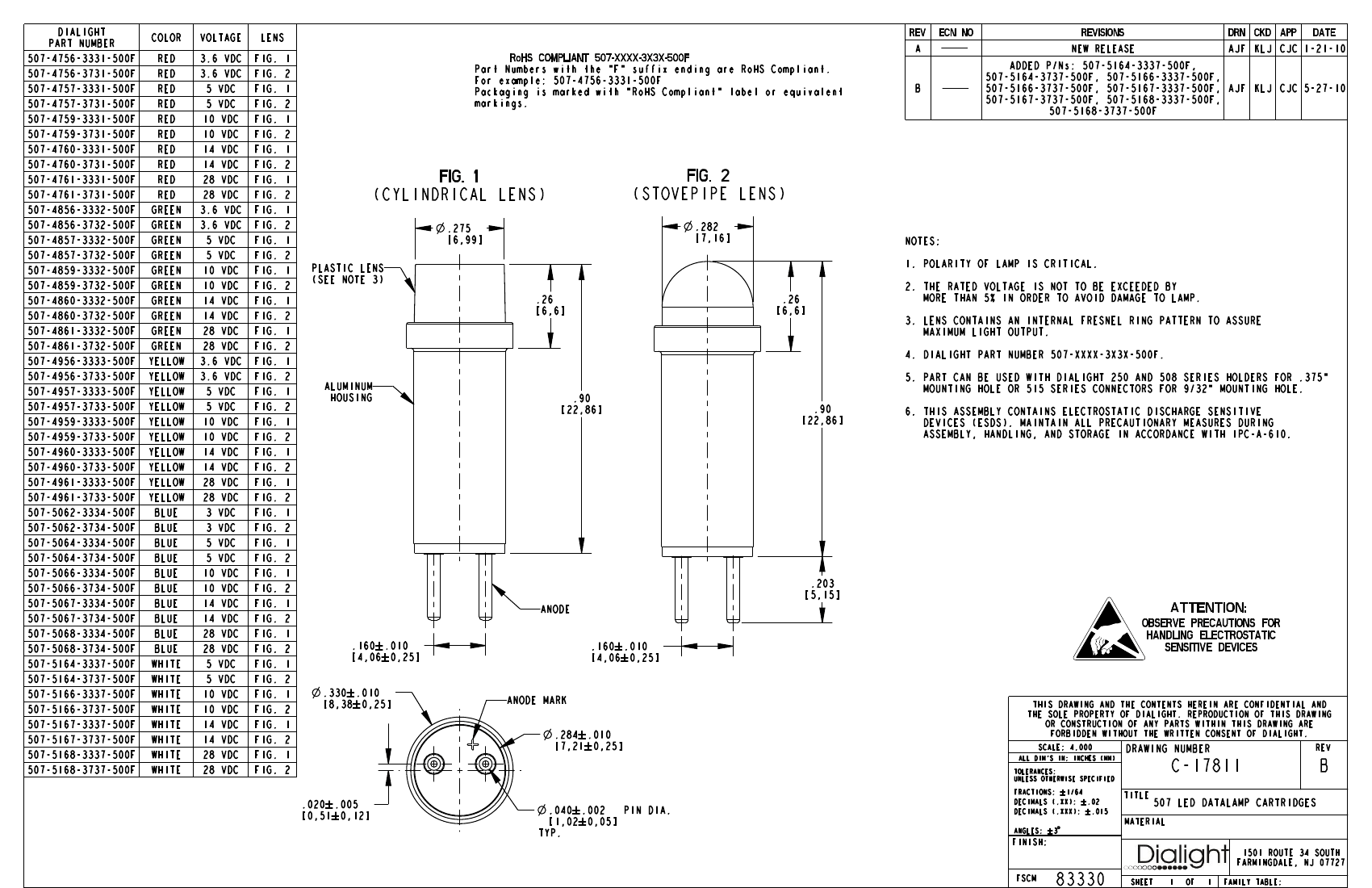

507 LED DATALAMP CARTRIDGES

MATERIAL

FINISH:

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

FSCM

83330

SHEET

FAMILY TABLE:
