3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
RED
GREEN
AMBER
RED
3HX-X
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses
Available in Flange (F) and Shouldered (S) Lead Frame
styles
Ideal for Status Indication and Display

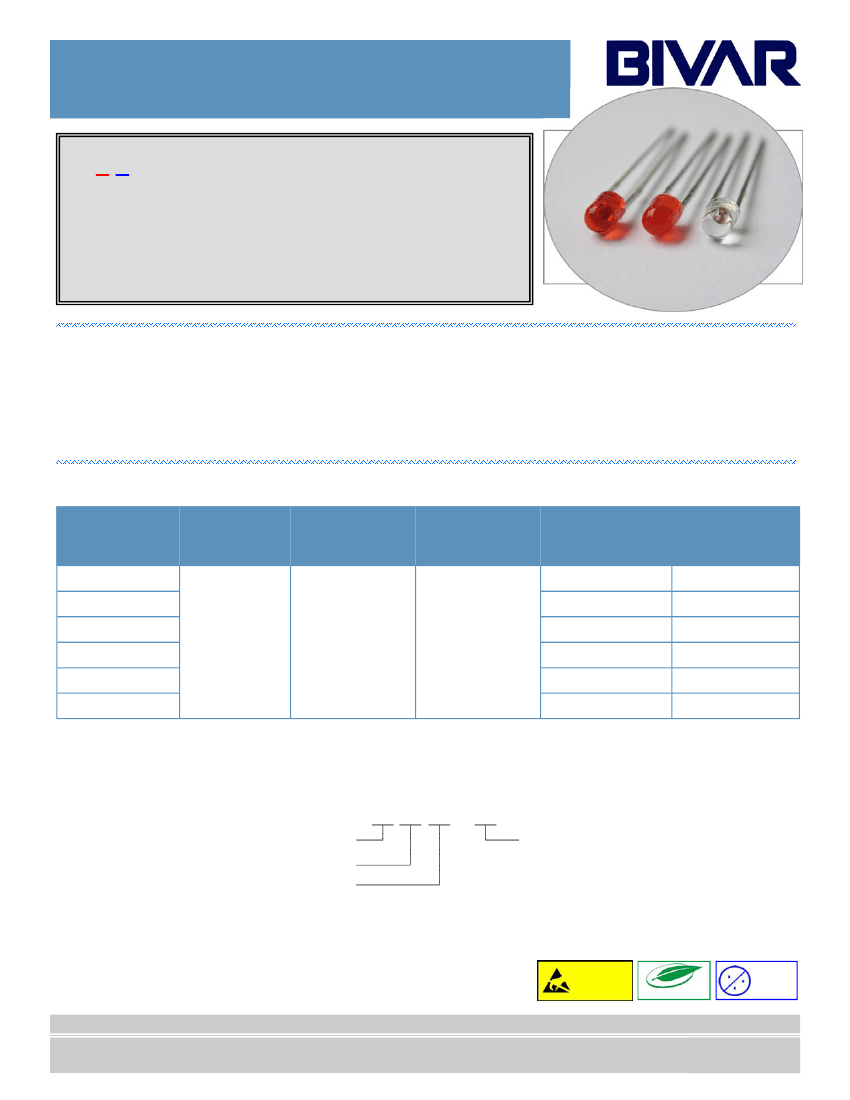

Bivar 3mm T1 Package LED may be used in almost any application. Bivar offers water clear LED lens
for maximum light output, diffused LED lens for uniform light output, and tinted lens to identify the col-
or of the LED. The Flanged LED is ideal for Panel Mount Clip & Ring assemblies. The Shouldered
Lead frame LED is ideal for vertical spacer assemblies without lead bends and also has a built in strain
relief feature which is ideal for right angle holder assemblies that require lead bends.
Part Number
3HC-F
3HD-F
3HT-F
3HC-S
3HD-S
3HT-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Red Diffused
Viewing Angle
20°
35°
20°
30°
40°
30°
GaAsP/GaP
RED
625nm
Red Tinted
Water Clear
Red Diffused
Red Tinted
Part Number Designation
3 X X - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, -S
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
GREEN
AMBER
RED

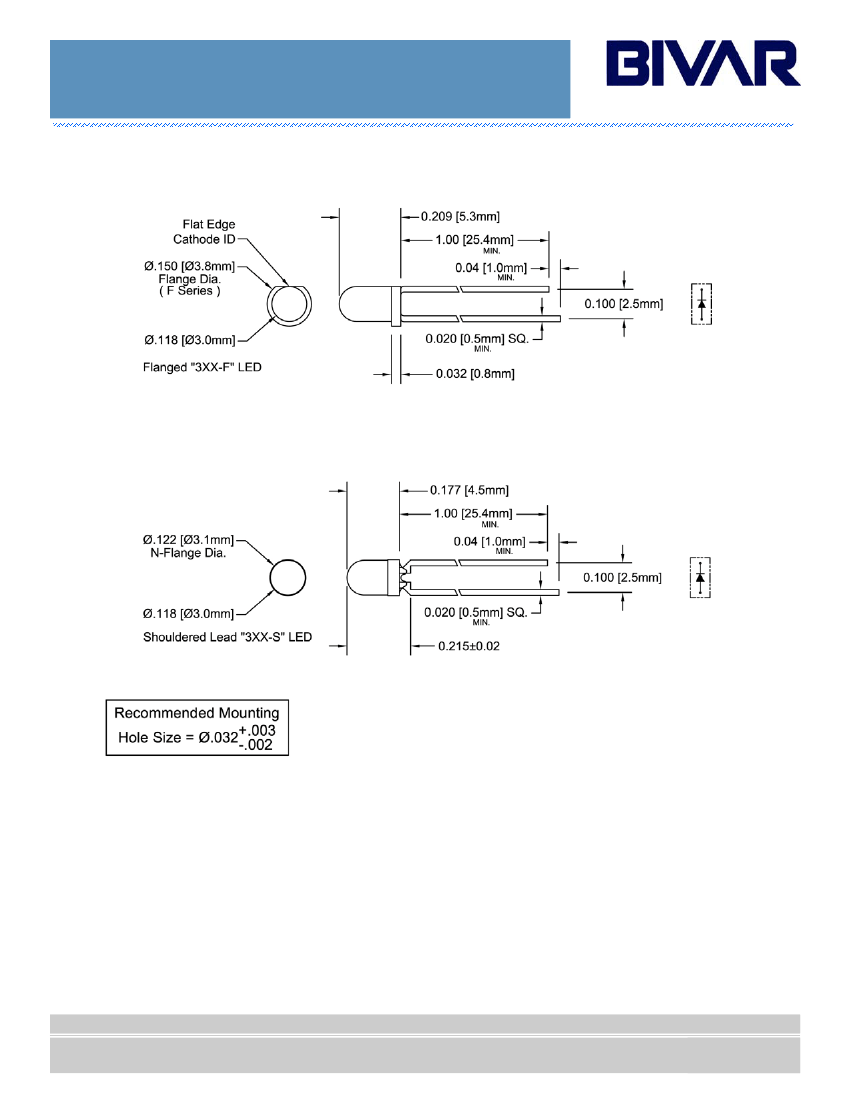

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
GREEN
AMBER
RED
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
80 mW
30 mA
150 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
MIN
/
/
2.0
2.8
/
20
/
100
/
/
/
/
2.0
2.8
/
20
/
100
/
/
TYP
/
/
/
/
/
/
MAX
/
/
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
/
/
/
TYP
50
30
50
50
30
50
MAX
/
/
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
20
35
20
30
40
30
Part Number
MIN TYP MAX MIN TYP MAX
3HC-F
3HD-F
3HT-F
3HC-S
3HD-S
3HT-S
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
GREEN
AMBER
RED

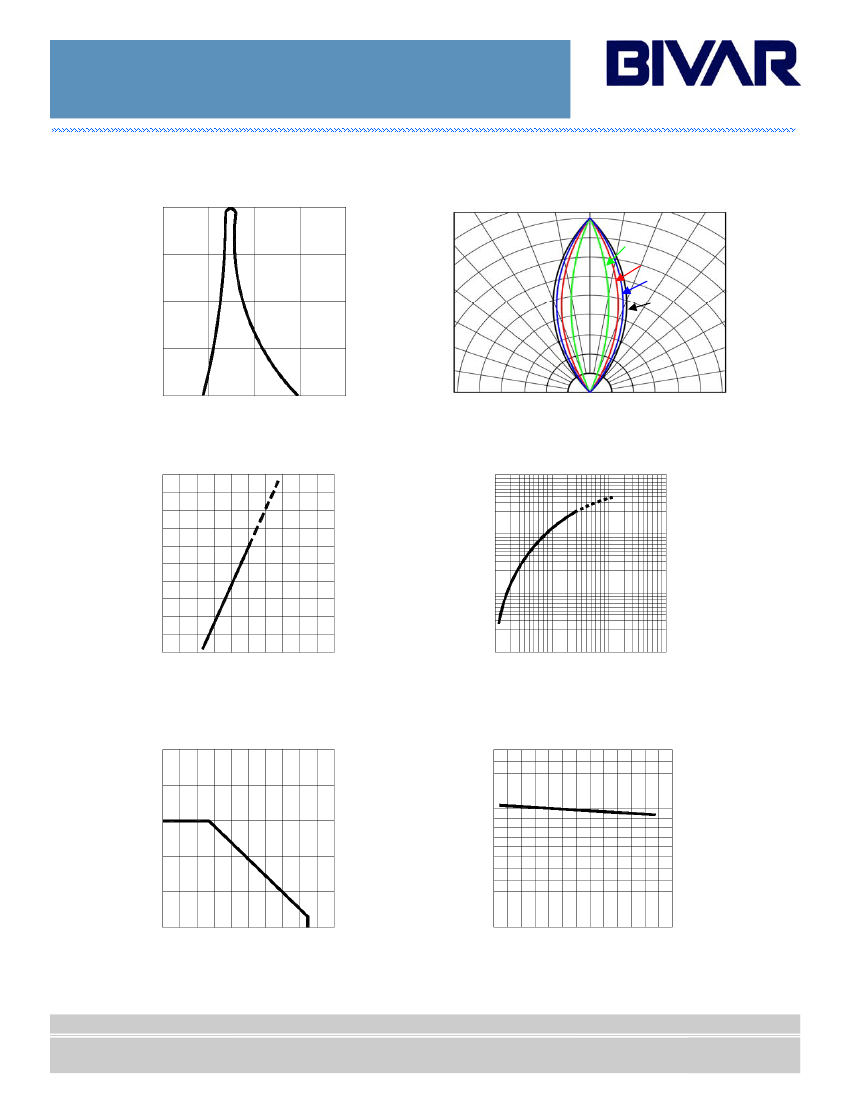

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
1.0
20°
30°
35°
0.5
40°
λ(nm)
0.0
550 600
650 700 750
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
Iv
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
Iv (%)
50
40
30
20
10
.01
1.2
Vf (V)
1000
100
10
1
1
10
100
1000
If (mA)
1.6
2.0 2.4
2.8 3.0
Fig. 3 Relative Intensity (10mA) vs.
Forward Voltage
50
40
30
20
10
0
0
20
40
60
80
100
T (°C)
If(mA)
Fig. 4 Relative Luminous Intensity (%) vs.
Forward Current
400
200
100
50
20
10
T (°C)
Iv (%)
-20
0 20 40
60
80 100
Fig. 5 Forward Current vs. Temperature
Fig. 6 Relative Intensity (%) vs. Temperature
@ 20 mA
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
GREEN
AMBER
RED
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
Anti-Static Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision C 06/15
Page 4 of 4
Page 5 of 5
