M83723-35A32R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> M83723-35A32R

Preview

M83723-35A32R: DescriptionCircular MIL Spec Backshells M83723/35A BKSHLL NON ENV STRAIN RLF; CategoryThe connector; File Size108KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83723-35A32R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M83723-35A32R	-	-	View	Buy Now

M83723-35A32R Overview

Circular MIL Spec Backshells M83723/35A BKSHLL NON ENV STRAIN RLF

M83723-35A32R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
MIL Type	MIL-DTL-83723 II
NumOfPackaging	1
Factory Pack Quantity	1

Preview

Download Datasheet

View All

E

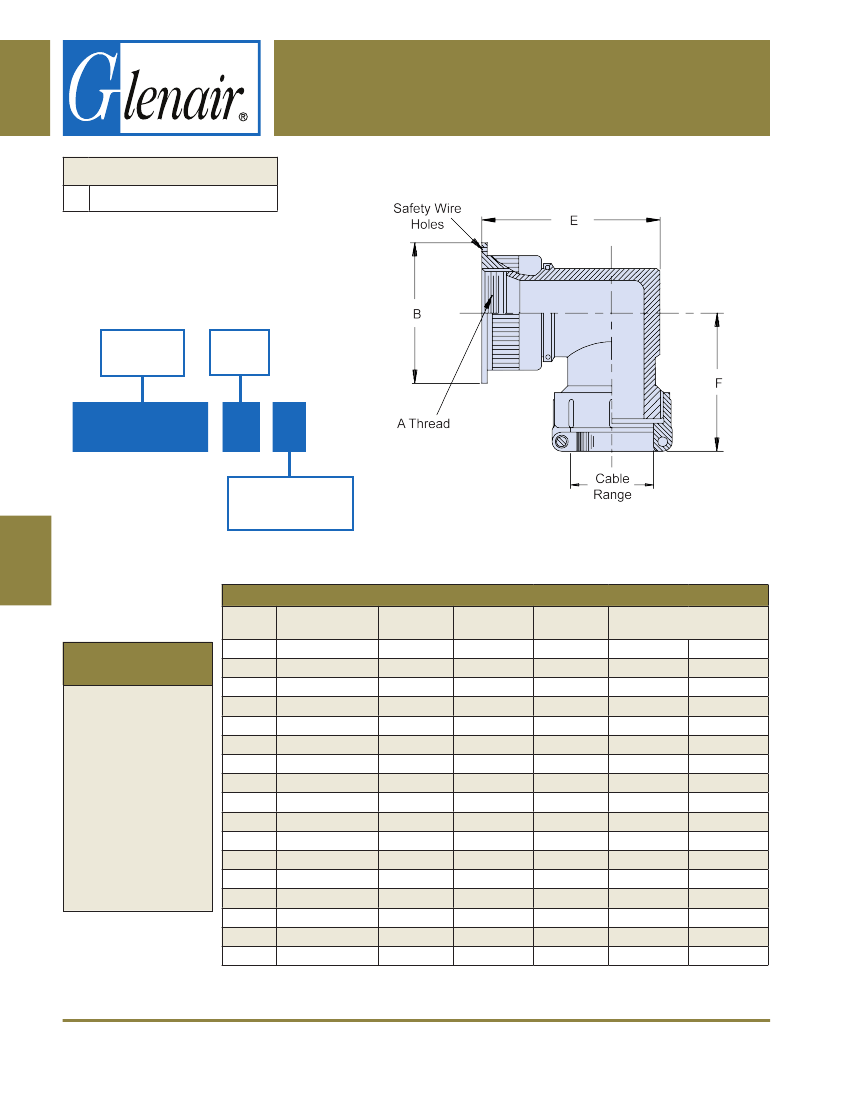

TABLE I: Shell Size, Cable Range and Dimensions

Shell

Size

A Thread

Class 2B

.438 - 28 UNEF

.500 - 28 UNEF

.562 - 24 UNEF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.125 - 18 UNEF

1.250 - 18 UNEF

1.375 - 18 UNEF

1.625 - 18 UNEF

1.875 - 16 UN

2.125 - 16 UN

2.375 - 16 UN

B Dia

Max

.805 (20.4)

.890 (22.6)

.975 (24.8)

1.005 (25.5)

1.130 (28.7)

1.255 (31.9)

1.350 (34.3)

1.475 37.5)

1.600 (40.6)

1.725 (43.8)

1.975 (50.2)

2.225 56.5)

2.475 (62.9)

2.750 (69.9)

E

Max

1.187 (30.1)

1.312 (33.3)

1.468 (37.3)

1.437 (36.5)

1.594 (40.5)

1.531 (38.9)

1.687 (42.8)

1.765 (44.8)

2.000 (50.8)

2.265 (57.5)

2.578 (65.5)

2.815 (71.5)

F

Max

1.220 (31.0)

1.250 (31.8)

1.280 (32.5)

1.405 (35.7)

1.529 (38.8)

1.593 (40.5)

1.655 (42.0)

1.718 (43.6)

1.894 (48.1)

1.973 (50.1)

2.187 (55.5)

2.405 (61.1)

.102

.140

.195

.255

.285

.350

Cable Range

Min

Max

(2.6)

(3.6)

(5.0)

(6.5)

(7.2)

(8.9)

.235

.297

(6.0)

(7.5)

MIL-DTL-83723

CONNECTOR DESIGNATOR:

M83723/35A

90° Non-Environmental Strain Relief Backshell

K

MIL-DTL-83723 Series II

Basic

Part Number

Shell

Size

M83723/35A

-

22

A

Finish

A

= Anodize Black

R

= Electroless Nickel

APPLICATION

NOTES

1.

For complete

dimensions see the

applicable Military

Specification.

Metric dimensions

(mm) are in

parentheses.

Cable Range is

defined as the

accommodation

range for the wire

bundle or cable.

Dimensions shown

are not intended for

inspection criteria.

08

10

11

13

12

15

14

17

16

18

20

22

24

28

32

36

40

2.

.422 (10.7)

.547 (13.9)

.610 (15.5)

.735 (18.7)

.922 (23.4)

1.235 (31.4)

1.360 (34.5)

1.630 (41.4)

3.

.468 (11.9)

.664 (16.9)

.694 (17.6)

.911 (23.1)

5.800 (147.3) 5.100 (129.5)

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-4

E-Mail: sales@glenair.com
