33472-0442

Description
Automotive Connectors MX150 ASSY 15 RCPT
CategoryThe connector    The connector
File Size45KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

33472-0442 Online Shopping

Suppliers Part Number Price MOQ In stock
33472-0442 - - View Buy Now

33472-0442 Overview

Automotive Connectors MX150 ASSY 15 RCPT

33472-0442 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time10 weeks 1 day
Other featuresPOLARIZED
Body/casing typeRECEPTACLE
Connector typeCOMBINATION LINE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number33472
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE
Total number of contacts4
Base Number Matches1

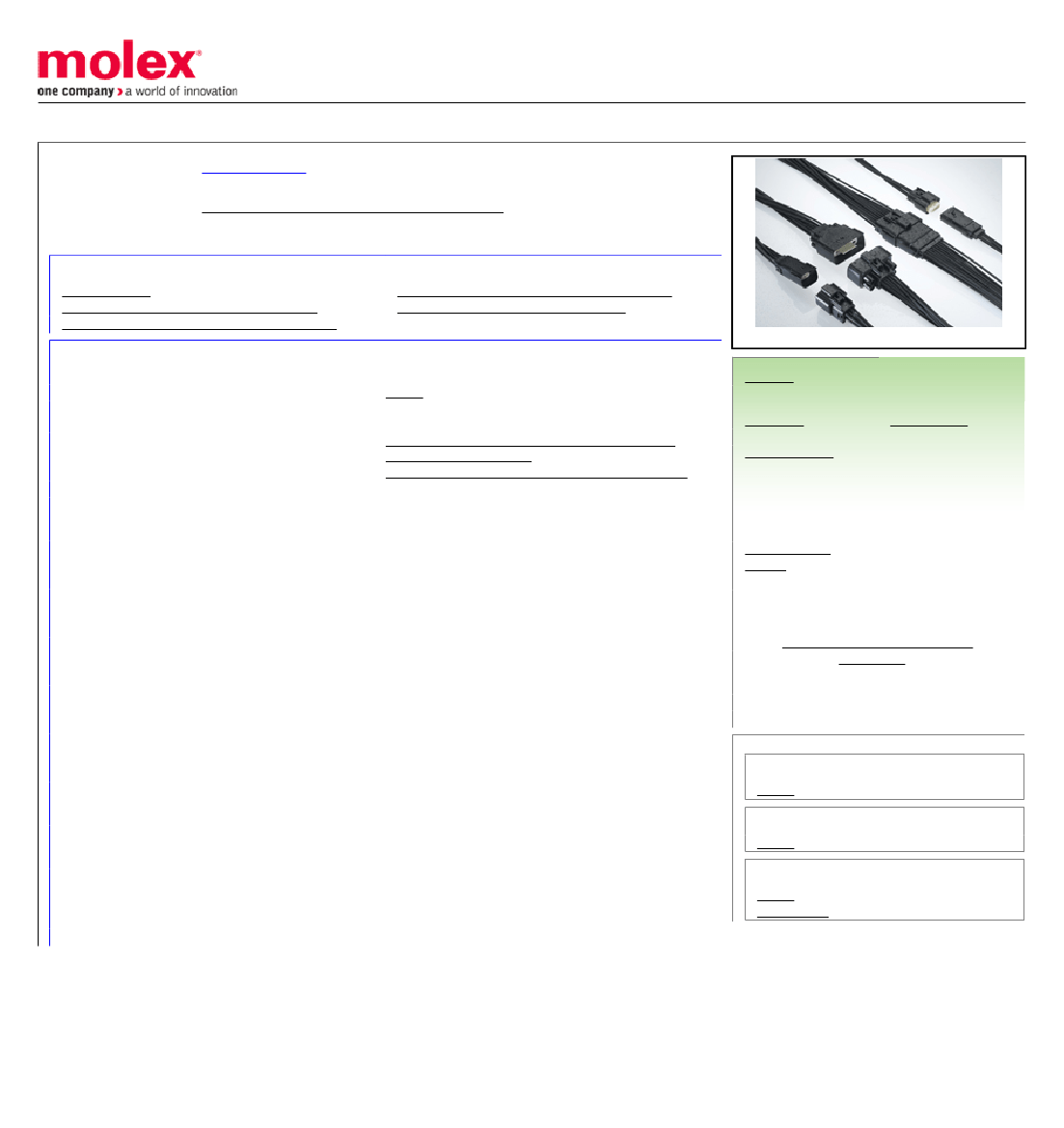

This document was generated on 04/04/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0334720442
Active
MX150™ Sealed and Unsealed Connector System
MX150™ Sealed Female Connector, Dual Row, 4 Circuits, Polarization C, without
Connector Position Assurance, Dark Gray
Documents:
Drawing (PDF)
Product Specification PS-33472-000 (PDF)
Application Specification AS-33472-100 (PDF)
General
Product Family
Series
Application
Comments
More Detailed Tech Information
Overview
Product Name
UPC
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
Application Specification AS-33611-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
Crimp Housings
33472
Power, Wire-to-Wire
No Connector Position Assurance (CPA)
http://uscar.org/guest/teams/10/Electrical-Wiring-
Component-Applications -Partnership
MX150™ Sealed and Unsealed Connector System
MX150™
884982055360
4
4
Gray (Dark), Natural
Female
No
Yes
Yes
Modified Polystyrene Alloy
8.101/g
2
Bag
No
3.50mm
Yes
No
-40°C to +125°C
N/A
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Contained Per -
ED/79/2015 (17
December 2015)
N,N-
dimethylacetamide
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Not Relevant
Compliant
Search Parts in this Series
33472 Series
Mates With
33482 Male Dual Row Sealed Connector
Use With
33012 MX150™ Female Terminal,
34345-0001 MX150™ Cavity Plug Sealed
AS-33472-100, AS-33611-001
PS-33472-000
150-S-004-2-Z02, SD-33472-0002, SD-33472-041
This document was generated on 04/04/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
