51281-1294 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51281-1294

51281-1294: DescriptionFFC & FPC Connectors 0.5 FPC Non-ZIF 12Ck ZIF 12Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51281-1294 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51281-1294	-	-	View	Buy Now

51281-1294 Overview

FFC & FPC Connectors 0.5 FPC Non-ZIF 12Ck ZIF 12Ckt EmbsTp Pkg

51281-1294 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT, LOW PROFILE
Board mount options	FITTING NAIL
body width	0.047 inch
subject depth	0.159 inch
body length	0.319 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

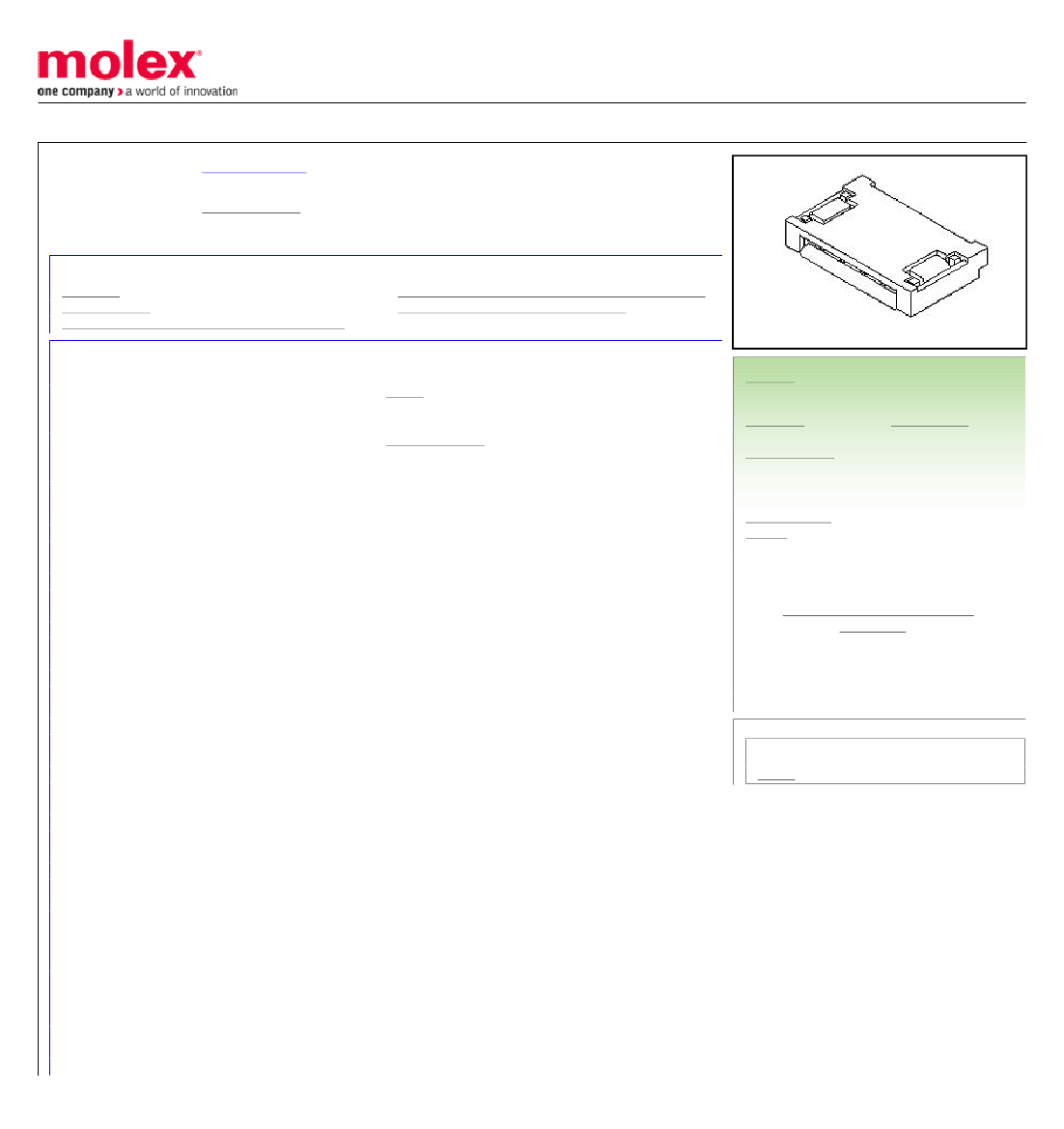

0512811294

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right Angle, Non-ZIF,

Dual Contact Style, 1.20mm Mated Height, 12 Circuits, Gold (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51281-003-001 (PDF)

General

Product Family

Series

Data Load Status

Made From

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-51281-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

FFC/FPC Connectors

51281

Data Bulk Loaded from Saqqara

0512811280, 0561848129, 0561858129, 0565700028

FFC-FPC (SMT)

Easy-On

Non-ZIF

822348700042

Natural

Dual

90° Angle

1.20mm

Phosphor Bronze

Gold

Tin

80.536/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

0.102µm

1.016µm

Yes

N/A

-20°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

51281 Series

SPK-51281-001-001

PS-51281-003-001

SD-51281-011, SD-51281-012
