HDSL2 & G.SHDSL Magnetics
TM02305
•
Designed to comply with the requirements of UL1950
and EN60950 to provide a supplementary insulation
barrier with a working voltage of 250V
Minimum interwinding breakdown voltage of 1500 Vrms
Minimum interwinding breakdown voltage of 600 Vrms
between pin 9 and 10 for 1 minute
•
•
•
Operating and storage temperature range: -40° to +85° C
Meets IEC 695, 2-2 flammability requirements
PWB Process Capability: standard printed wiring board
assembly techniques, total-immersion cleaning
Reliability testing: shock, vibration, temperature cycling,
temperature - humidity - bias
•
•
•
ELECTRICAL SPECIFICATIONS AT 25° C
Turns
Ratio
±2%
Part Number
Chip : Line
Line Side
Line Side
Chip
Side
Line
Side
20 kHz -
300 kHz
100 kHz
40 kHz -
500 kHz
4 Vac
5 kHz
Fundamental
-78
Inductance
1
mH ±7%
Leakage
Inductance
2
µH max
DCR
Ω
max
Longitudinal
Balance
3
dB max
Insertion
Loss
3
dB max
Frequency
Response
3
dB
Harmonic
Distortion
3
dB max
S560-6600-H3
1 : 5.4
3.2
14
0.46
3.0
-55
0.5
±0.3
All measurements are made with pins 2 and 3 connected and pins 6 and 7 connected
1. Inductance measured at 10 kHz, 0.1 Vac
2. Measured at 100 kHz, 0.1 Vac
3. Measured with line impedance of 135
Ω
and chip impedance of 4.6
Ω
SCHEMATIC
S560-6600-H3
8
1
6
IC
7
3
Line
2
5
4
©2002 Bel Fuse Inc. Specifications subject to change without notice. 05.02
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 1
HDSL2 & G.SHDSL Magnetics
TM02305

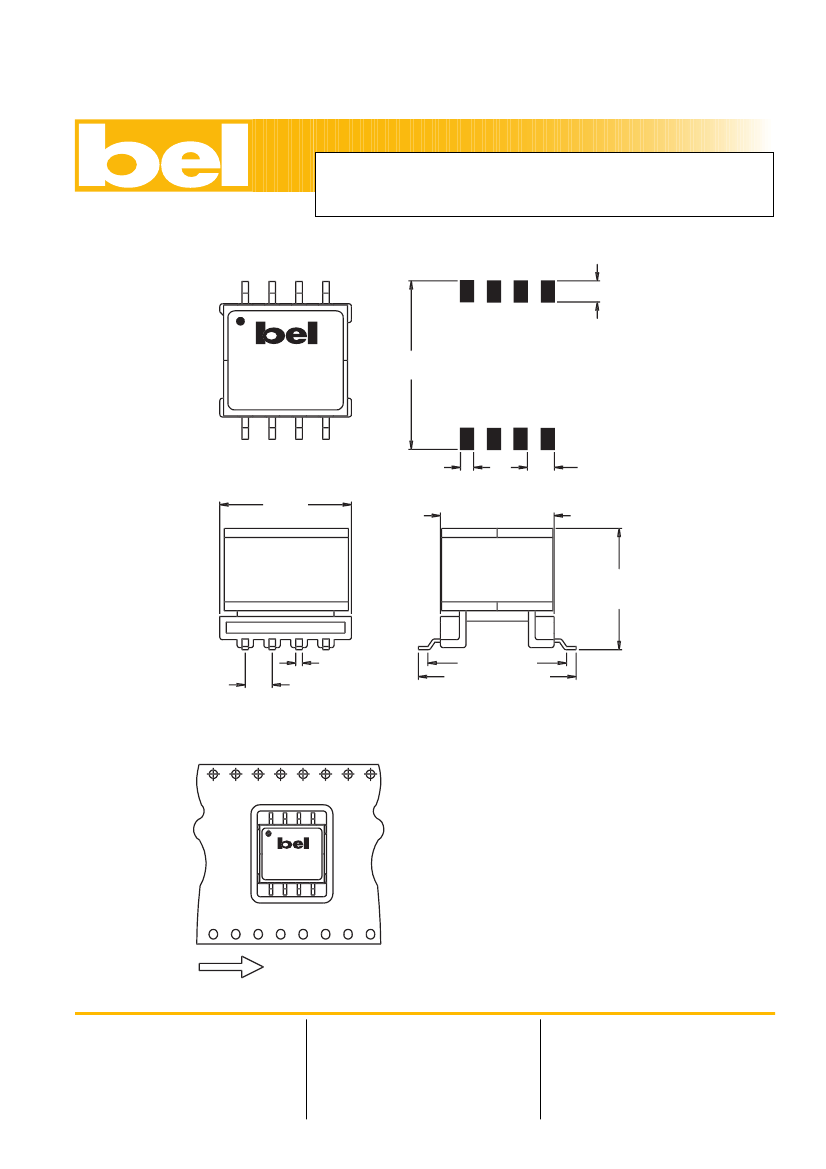

MECHANICAL
S560-6600-H3
Suggested PCB Pad Layout
0.077
[1.96]
0.615
[15.62]
0.048
[1.22]
0.490
[12.45]
max
0.098
[2.50]
0.430 [10.92] max
0.450
[11.43]
max
0.024 [0.61]
0.098 [2.50]
0.492 [12.50]
0.600 [15.24] max
Dimensions are in inches [millimeters].
Standard dimension tolerance is ±0.005 [0.13] unless otherwise noted.
Tape and Reel Packaging
32 mm wide by 24 mm pitch; 13 inch OD, 4 inch ID
200 components per reel, maximum
Meets ANSI/EIA 481-2 Carrier Tape Standards
User Feed Direction
Orientation of Component Inside Pocket
©2002 Bel Fuse Inc. Specifications subject to change without notice. 05.02
CORPORATE
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
FAR EAST
Bel Fuse Ltd.
8F / 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
EUROPE
Bel Fuse Europe Ltd.
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
page 2
