S560-6600-Z6: DescriptionADSL Magnetics For Texas Instruments AC5 (CO); File Size130KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet View All

S560-6600-Z6 Overview

ADSL Magnetics For Texas Instruments AC5 (CO)

S560-6600-Z6 Preview

ADSL Magnetics

For Texas Instruments AC5 (CO)

•

Designed to comply with the requirements of UL1950

and EN60950 to provide a supplementary insulation

barrier with a working voltage of 250V

UL File Number E150991

BABT certificate number: NC4/000185

•

Minimum interwinding breakdown voltage of 2000 Vrms

Reliability testing: shock, vibration, temperature cycling,

temperature - humidity - bias

•

TM01338

Operating and storage temperature range -40° to +85°C

Meets IEC 695, 2-2 flammability requirements

PWB Process Capability: standard printed wiring board

assembly techniques, total-immersion cleaning

•

ELECTRICAL SPECIFICATIONS at 25°C

Leakage

Inductance

µH max

Interwinding

Capacitance

pF max

Chip

Side

1.1

DCR

Ω

max

Line

Side

1.0

Longitudinal

Balance

dB min

30 kHz -

1.1 MHz

Insertion

Loss

dB max

Frequency

Response

dB max

30 kHz -

1.1MHz

±0.35

Harmonic

Distortion

dB max

100 kHz

15 Vpp

-80

Turns Ratio

±2%

Part Number

Chip : Line

Inductance

µH ±5%

Line Side

1&8

300 kHz

S560-6600-Z6

1 : 1.9

400

0.25

All measurements are made with pins 2 and 3 connected and pins 6 and 7 connected

1. Inductance measured at 10 kHz, 0.1 Vac

2. Measurements made with 100Ω source and 28Ω load impedance

SCHEMATIC

S560-6600-Z6

Chip

Line

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com

page 1

ADSL Magnetics

TM01338

For Texas Instruments AC5 (CO)

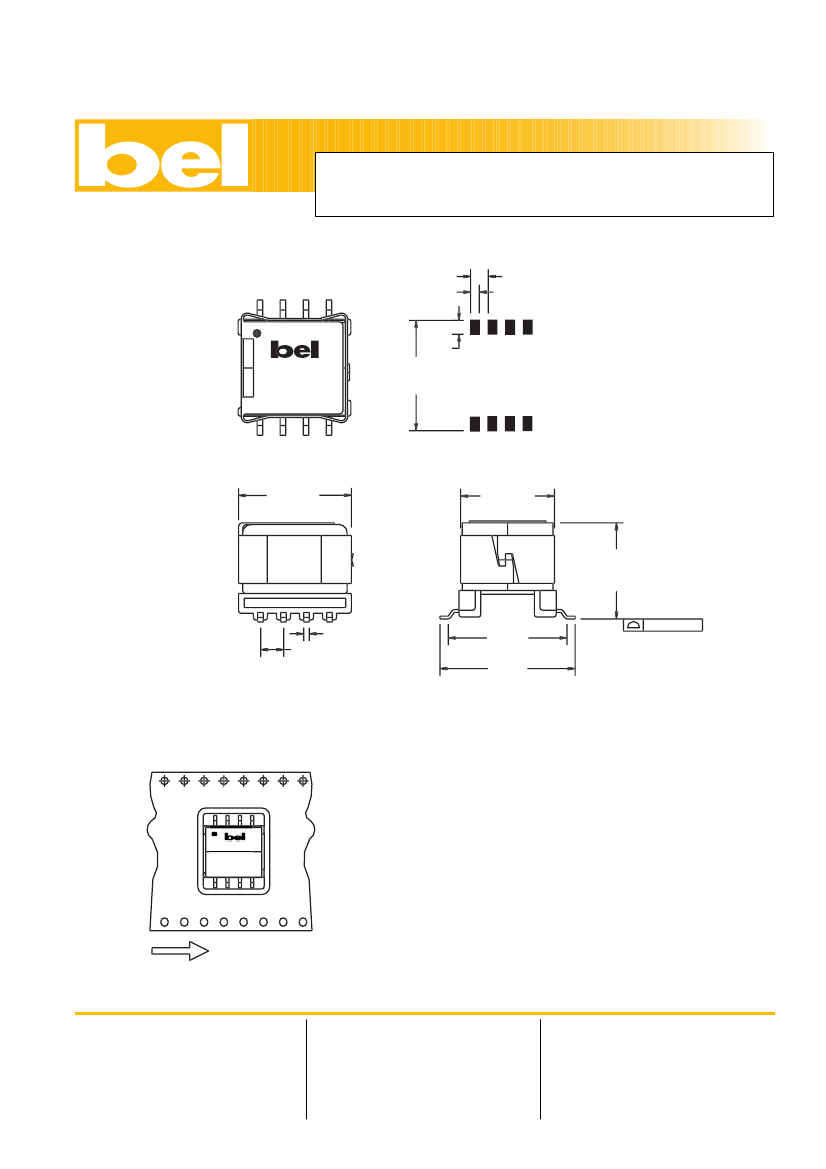

MECHANICAL

0.098

(2.50)

S560-6600-Z6

0.048

(1.22)

0.077

(1.96)

0.615

(15.62)

0.510

(12.95)

max

Suggested PCB Pad Layout

0.475

(12.07)

max

0.460

(11.68)

max

0.492

(12.50)

0.600

(15.24)

max

0.024 (0.60)

0.098 (2.50)

0.004 (0.10)

8 Edges

Dimensions are in inches (millimeters).

Standard dimension tolerance is ±0.005 (0.13) unless otherwise noted.

Tape and Reel Packaging

32 mm wide by 24 mm pitch; 13 inch OD, 4 inch ID

200 components per reel, maximum

Meets ANSI/EIA 481-2 Carrier Tape Standards

User Feed Direction

Orientation of Component Inside Pocket

CORPORATE

Bel Fuse Inc.

206 Van Vorst Street

Jersey City, NJ 07302

Tel 201-432-0463

Fax 201-432-9542

www.belfuse.com

FAR EAST

Bel Fuse Ltd.

8F / 8 Luk Hop Street

San Po Kong

Kowloon, Hong Kong

Tel 852-2328-5515

Fax 852-2352-3706

www.belfuse.com

EUROPE

Bel Fuse Europe Ltd.

Preston Technology Management Centre

Marsh Lane, Suite G7, Preston

Lancashire, PR1 8UD, U.K.

Tel 44-1772-556601

Fax 44-1772-888366

www.belfuse.com

page 2
