319-043
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
Standard Profile - Direct Coupling
319
CONNECTOR
DESIGNATORS
*
* Conn. Desig. B See Note 6
319 F J 043 M 16 06-6-4 T
Product Series
Connector
Designator
Shrink Boot (Table IV -
Omit for None)
Length: S only
(1/2 inch increments:
e.g. 4 = 2 inches)
Shield Length (1 inch increments:
Minimum 6 inches)
Cable Entry (Table IV)
Shell Size (Table I)
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 5)
Cable
Entry

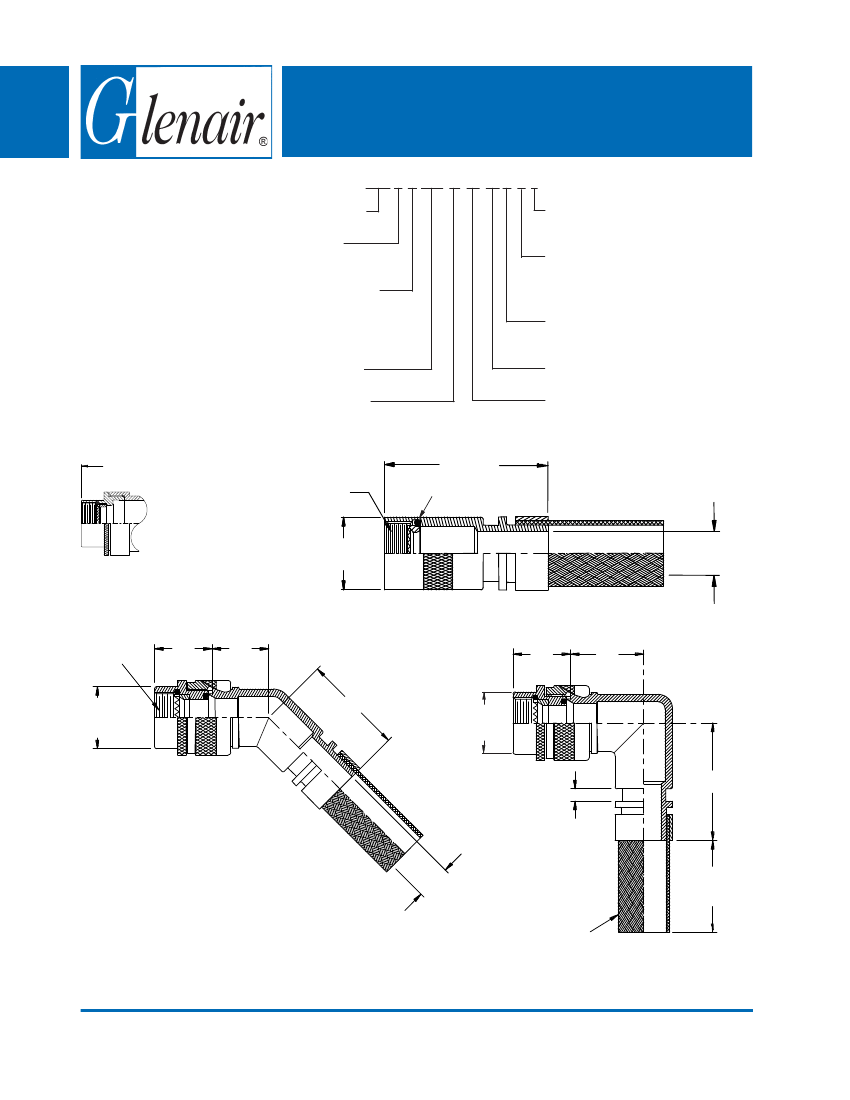

A-B -C-D-E-F
Angle and Profile
G-H-J-K-L-S
J ==90°
H 45°
DIRECT
COUPLING
S = Straight
Basic Part No.
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 5)
A Thread
(Table I)
Length *
O-Ring
STYLE 2
(STRAIGHT
See Note 7)
A Thread
(Table I)
E
J
(Table IV)
(Table III)
B (Table I)
J
(Table III)
F (Table IV)
G
(Table IV)
B
(Table I)
B
(Table I)
H (Table IV)
.140/.130
(3.6/3.3)
Typ.
Cable Entry
Shield Length
(Approx.)
Single Layer Shield
(Tinned Copper)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 8
with Optional Shrink Boot
Standard Profile - Direct Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
TABLE IV: DIMENSIONS
Dash
No.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
E
Max
.639 (16.2)
.664 (16.9)
.688 (17.5)
.688 (17.5)
.705 (17.9)
.705 (17.9)
.732 (18.6)
.732 (18.6)
.748 (19.0)
.773 (19.6)
.773 (19.6)
.800 (20.3)
.800 (20.3)
.823 (20.9)
1.041 (26.4)
1.092 (27.7)
1.138 (28.9)
1.184 (30.1)
.823 (20.9)
1.041 (26.4)
1.092 (27.7)
F
Max
.952 (24.2)
.982 (24.9)
1.002 (25.5)
1.002 (25.5)
1.032 (26.2)
1.032 (26.2)
1.052 (26.7)
1.052 (26.7)
1.062 (27.0)
1.082 (27.5)
1.082 (27.5)
1.122 (28.5)
1.122 (28.5)
1.152 (29.3)
1.322 (33.6)
1.362 (34.6)
1.412 (35.9)
1.452 (36.9)
1.152 (29.3)
1.322 (33.6)
1.362 (34.6)
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.870 (22.1)
.920 (23.4)
.920 (23.4)
.980 (24.9)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.080 (27.4)
1.140 (29.0)
1.140 (29.0)
1.200 (30.5)
1.480 (37.6)
1.610 (40.9)
1.720 (43.7)
1.830 (46.5)
1.200 (30.5)
1.480 (37.6)
1.610 (40.9)
H
Max
1.062 (27.0)
1.122 (28.5)
1.182 (30.0)
1.182 (30.0)
1.252 (31.8)
1.252 (31.8)
1.312 (33.3)
1.312 (33.3)
1.332 (33.8)
1.392 (35.4)
1.392 (35.4)
1.472 (37.4)
1.472 (37.4)
1.542 (39.2)
1.782 (45.3)
1.872 (47.5)
1.982 (50.3)
2.092 (53.1)
1.542 (39.2)
1.780 (45.2)
1.872 (47.5)
TABLE V: CABLE ENTRY
SHRINK BOOT
Dash
No.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Cable
Entry
.188 (4.8)
.250 (6.4)
.312 (7.9)
.375 (9.5)
.438 (11.1)
.500 (12.7)
.562 (14.3)
.625 (15.9)
.688 (17.5)
.750 (19.1)
.812 (20.6)
.875 (22.2)
.938 (23.8)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.000 (50.8)
1.125 (28.6)
1.375 (34.9)
1.625 (41.3)
1.062 (27.0)
1.188 (30.2)
1.875 (47.6)
Shrink
Boot
n/a
n/a
770-001S103
770-001S103
770-001S103
770-001S104
770-001S104
770-001S104
770-001S105
770-001S105
770-001S105
770-001S106
770-001S106
770-001S106
770-001S107
770-001S108
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
GLENAIR
SYMBOL
B
M
NF
TABLE II: STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
1. Cable Entry or range is defined as the accomodation range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
2. See Shrink Boot Reference Information (page 40).
3. Metric dimensions (mm) are indicated in parentheses.
4. O-Ring not supplied with Connector Designator A.
5. Consult factory for shorter lengths on straight backshells.
6. When using Connector Designator B refer to pages 18 and 19 for part number development.
7. When maximum cable entry (page 22) is exceeded, Style 2 will be supplied. (Function S only.)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 9
