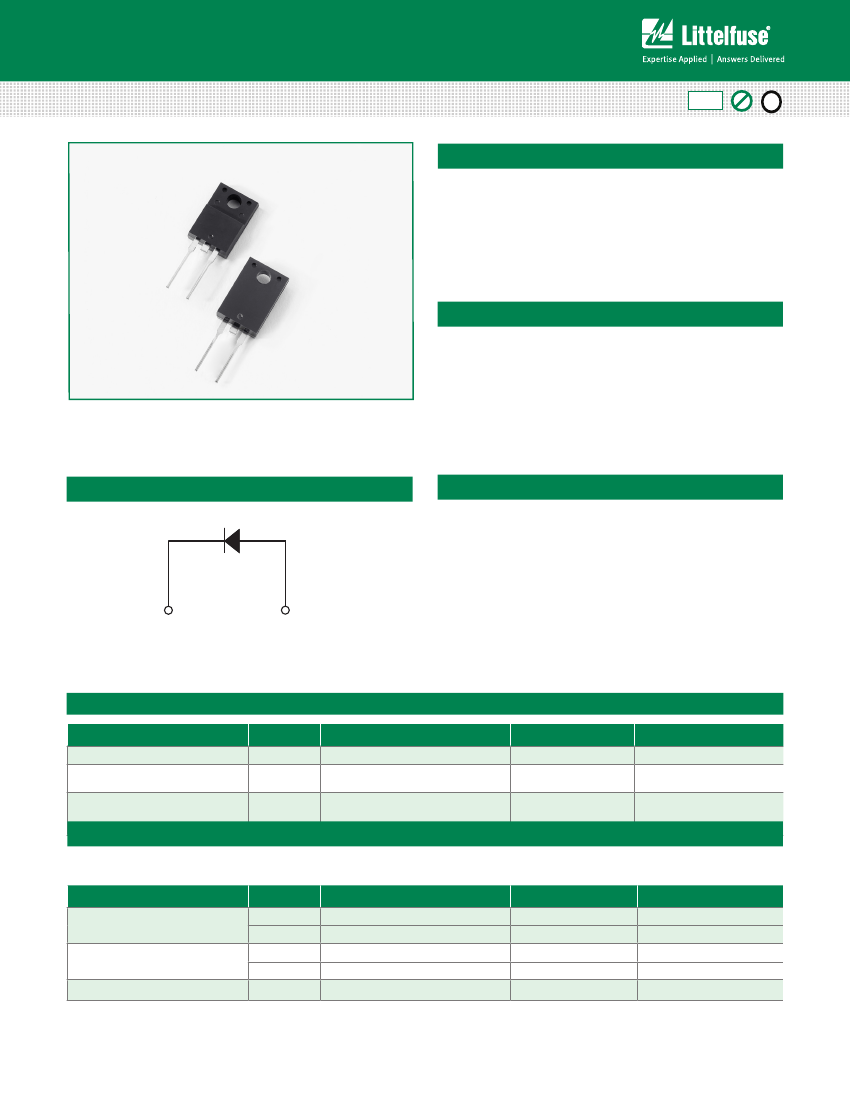

Ultrafast Recovery Rectifier
DURF1060, 10A, 600V, ITO-220AC
DURF1060
Description
RoHS
Pb
e3
Features
• Ultra-fast switching
• Low reverse leakage
current
• High surge current
capability
• Low forward voltage drop
• Single die in two-leaded,
Circuit Diagram
Applications
• Output rectifiers in switch
mode power supplies
(SMPS) and DC to DC
converters
• Free-wheeling diode or
boost diode in converters
and motor control circuits
• Anti-parallel diode for
high frequency switching
devices such as IGBT
• Uninterruptible Power
Supplies (UPS)
• Inductive heating and
melting
• Ultrasonic cleaners and
welders
electrically isolated ITO-
220AC package
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
1
Cathode
2
Anode
Maximum Ratings
Characteristics
Peak Inverse Voltage
Average Forward Current
Peak One Cycle Non-
Repetitive Surge Current ( Per Leg)
Symbol
V
RWM
I
F(AV)
I
FSM
Conditions
-
50% duty cycle @T
C
=105 °C,
rectangular wave form
8.3 ms, half sine pulse
Max.
600
10
100
Unit
V
A
A
Electrical Characteristics
Characteristics
Forward Voltage Drop
1
Reverse Current
1
Reverse Recovery Time
Symbol
V
F1
V
F2
I
R1
I
R2
t
rr1
Conditions
@10A, Pulse, T
J
= 25 °C
@10A, Pulse, T
J
= 100 °C
@V
R
= Rated V
R
, T
J
= 25 °C
@V
R
= Rated V
R
, T
J
= 125 °C
I
F
=500mA, I
R
=1A,and I
rm
=250mA
Max.
2.2
2.0
10
500
32
Unit
V
V
μA
μA
ns
Footnote
1
: Pulse Width < 300μs, Duty Cycle <2%
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/22/15
SP3051
Littelfuse DUR series Ultrafast Recovery Rectifier is
designed to meet the general requirements of commercial
applications by providing low Trr, high-temperature, low-
leakage and low forward voltage drop products. It is suit-
able for output rectifier, free-wheeling or boost diode in
high-frequency power switching application such as switch
mode power supply and DC-DC converters.
Ultrafast Recovery Rectifier
DURF1060, 10A, 600V, ITO-220AC
Thermal-Mechanical Specifications
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal
Resistance Junction to Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
wt
-
Conditions
-
-
DC operation
-
ITO-220AC
Specification
-55 to +150
-55 to +150
6.0
1.65
-
Unit
°C
°C
°C/W
g
-

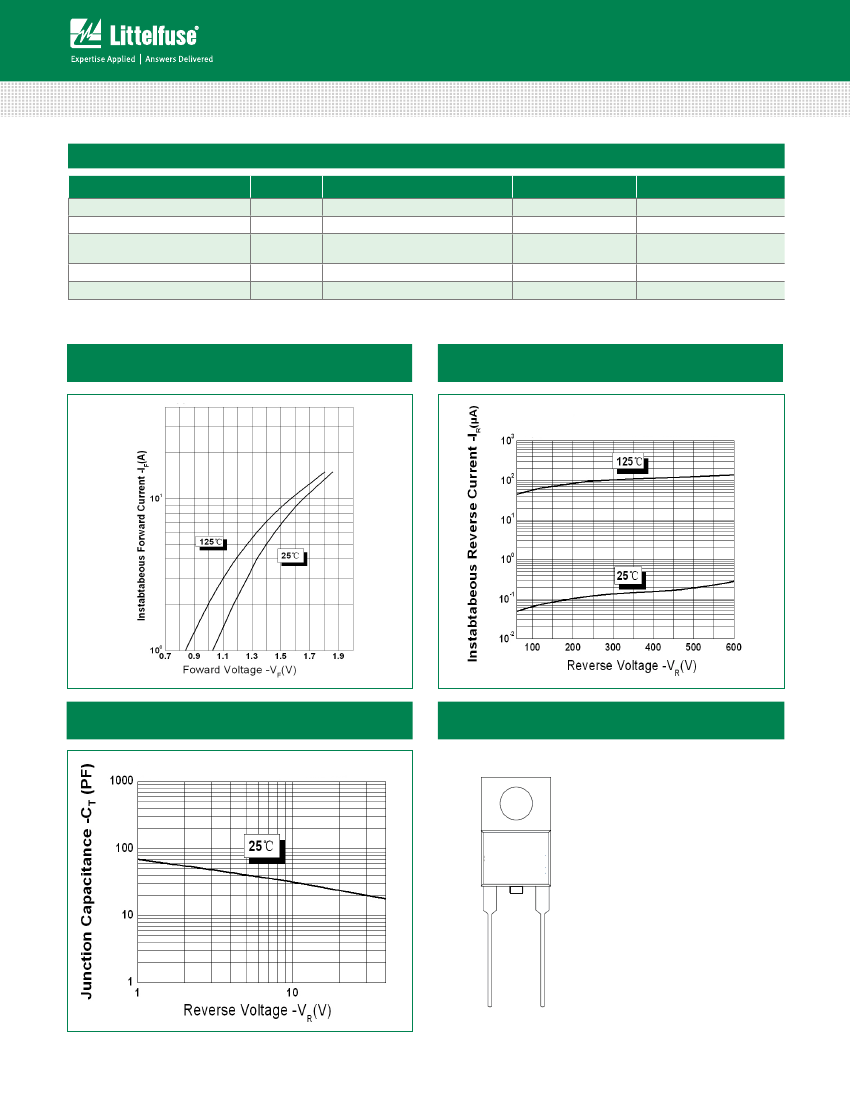

Figure 1: Typical Forward Characteristics
Figure 2: Typical Reverse Characteristics
Figure 3: Typical Junction Capacitance
Part Numbering and Marking System
*xxxxx is YYWWL
DUR
F
10
60
LF
YY
WW
L
= Device Type
= Package type
= Forward Current (10A)
= Reverse Voltage (600V)
= Littelfuse
= Year
= Week
= Lot Number
DURF1060
LF
xxxxx
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/22/15
Ultrafast Recovery Rectifier
DURF1060, 10A, 600V, ITO-220AC
Packing Options
Part Number
DURF1060
Marking
DURF1060
Packing Mode
50pcs / Tube
M.O.Q
1000
Symbol
A
A1
A2
A3
b
b1
b2
c
D
E
e
e1
H1
L
L1
L2
L3
L4
øP1
øP2
Q
θ1
θ2
θ3
θ4
θ5
Millimeters
Min
4.30
1.10
2.80
2.50
0.50
1.10
1.50
0.55
14.80
9.96
-
-
6.50
12.70
1.60
0.80
0.60
-
3.30
2.99
2.50
-
-
-
-
-
Typ
4.50
1.30
3.00
2.70
0.60
1.20
1.60
0.60
15.00
10.16
2.55
5.10
6.70
13.20
1.80
1.00
0.80
1.10
3.50
3.19
2.70
5°
4°
10°
5°
5°
Max
4.70
1.50
3.20
2.90
0.75
1.35
1.75
0.75
15.20
10.36
-
-
6.90
13.70
2.00
1.20
1.00
1.50
3.70
3.39
2.90
-
-
-
-
-
Tube Specification ITO-220AC
7mm
530mm
32mm
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/22/15
SP3051

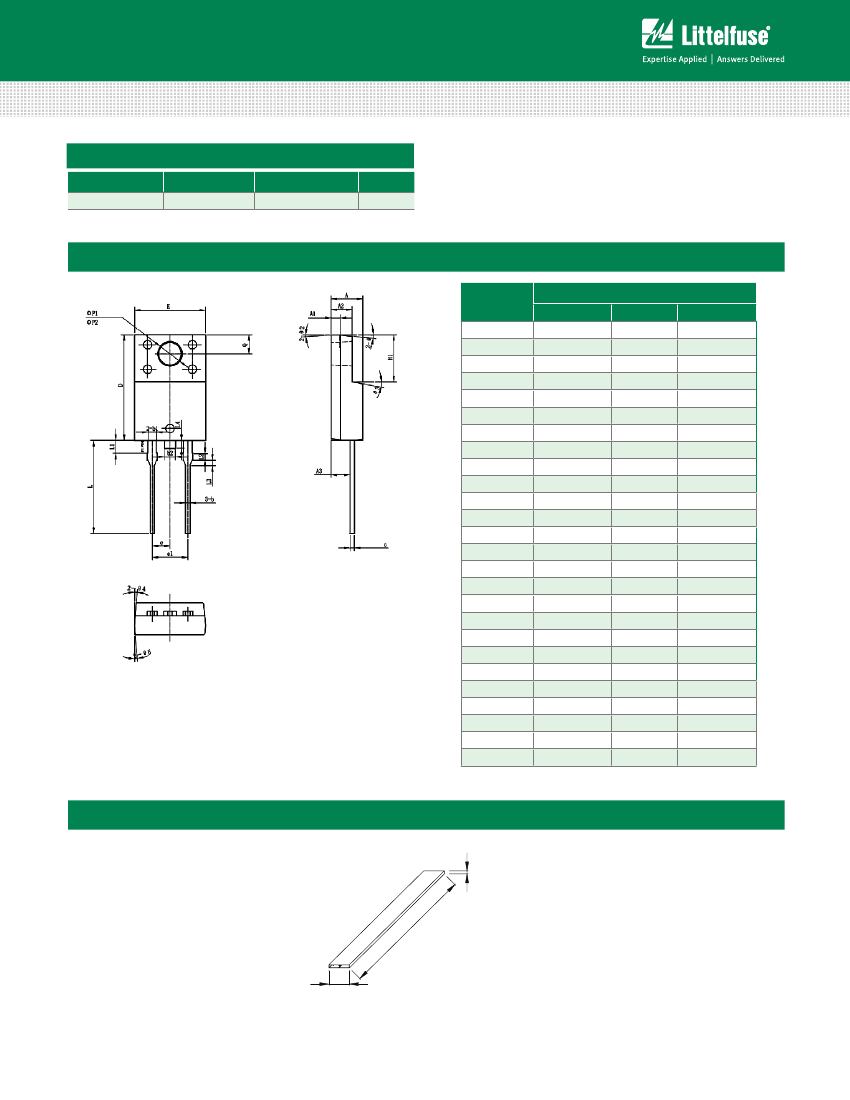

Dimensions-Package ITO-220AC
