IDT74LVCH162374A
3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
INDUSTRIAL TEMPERATURE RANGE
3.3V CMOS 16-BIT
IDT74LVCH162374A
EDGE TRIGGERED D-TYPE FLIP-
FLOP WITH 3-STATE OUTPUTS,
5 VOLT TOLERANT I/O, BUS-HOLD
• Typical t
SK(o)
(Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
• V
CC
= 3.3V ± 0.3V, Normal Range
• V
CC
= 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4μ W typ. static)
μ
• All inputs, outputs, and I/O are 5V tolerant
• Available in TSSOP package
FEATURES:
DESCRIPTION:
DRIVE FEATURES:
APPLICATIONS:
• Balanced Output Drivers: ±12mA
• Low switching noise
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
The LVCH162374A 16-bit edge-triggered D-type flip-flop is built using
advanced dual metal CMOS technology. This high-speed, low-power
register is ideal for use as a buffer register for data synchronization and
storage. The output enable (OE) and clock (CLK) controls are organized
to operate each device as two 8-bit registers or one 16-bit register with
common clock. Flow-through organization of signal pins simplifies layout.
All inputs are designed with hysteresis for improved noise margin.
All pins of the LVCH162374A can be driven from either 3.3V or 5V
devices. This feature allows the use of this device as a translator in a mixed
3.3V/5V supply system.
The LVCH162374A has series resistors in the device output structure
which will significantly reduce line noise when used with light loads. This
driver has been developed to drive
±
12mA at the designated thresholds.
The LVCH162374A has “bus-hold” which retains the inputs’ last state
whenever the input goes to a high impedance. This prevents floating inputs
and eliminates the need for pull-up/down resistors.
FUNCTIONAL BLOCK DIAGRAM
1
OE
1
2
OE
24
1
CLK
48
2
CLK
25
1
D
1
47
1D
C1
2
2
D
1
36
1D
C1
13
1
Q
1
2
Q
1
TO SEVEN OTHER CHANNELS
TO SEVEN OTHER CHANNELS
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
INDUSTRIAL TEMPERATURE RANGE
1
© 2015 Integrated Device Technology, Inc.
JANUARY 2015
DSC-4678/5
IDT74LVCH162374A
3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
INDUSTRIAL TEMPERATURE RANGE
PIN CONFIGURATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
1
CLK
1
D
1
1
D
2
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
Description
Max
V
TERM
Terminal Voltage with Respect to GND
Storage Temperature
DC Output Current
Continuous Clamp Current,
V
I
< 0 or V
O
< 0
Continuous Current through each
V
CC
or GND
–0.5 to +6.5
–65 to +150
–50 to +50
–50
±100
T
STG
I
OUT
I
IK
I
OK
I
CC
I
SS
Unit
V
°C
mA
mA
mA
1
OE
1
Q
1
1
Q
2
GND
1
Q
3
1
Q
4
GND
1
D
3
1
D
4
V
CC
1
Q
5
1
Q
6
V
CC
1
D
5
1
D
6
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
GND
1
Q
7
1
Q
8
2
Q
1
2
Q
2
GND
1
D
7
1
D
8
2
D
1
2
D
2
CAPACITANCE
(T
A
= +25°C, F = 1.0MHz)
Symbol
C
IN
C
OUT
C
I/O
Parameter
(1)
Input Capacitance
Output Capacitance
I/O Port Capacitance
Conditions
V
IN
= 0V
V
OUT
= 0V
V
IN
= 0V
Typ.
4.5
6.5
6.5
Max.
6
8
8
Unit
pF
pF
pF
GND
2
Q
3
2
Q
4
GND
2
D
3
2
D
4
NOTE:
1. As applicable to the device type.
V
CC
2
Q
5
2
Q
6
V
CC
2
D
5
2
D
6
PIN DESCRIPTION
Pin Names
xDx
xCLK
xQx
xOE
Data Inputs
(1)
Clock Inputs
3-State Outputs
3-State Output Enable Inputs (Active LOW)
Description
GND
2
Q
7
2
Q
8
2
OE
GND
2
D
7
2
D
8
2
CLK
NOTE:
1. These pins have "Bus-Hold". All other pins are standard inputs, outputs, or I/Os.
FUNCTION TABLE
TSSOP
TOP VIEW
Inputs
xOE
L
L
L
H
xCLK
↑
↑
H or L
X
(EACH FLIP-FLOP)
(1)
Outputs
xDx
H
L
X
X
xQx
H
L
Q
(2)
Z
NOTES:
1. H = HIGH Voltage Level
X = Don’t Care
L = LOW Voltage Level
Z = High-Impedance
2. Output level before the indicated steady-state input conditions were established.
2
IDT74LVCH162374A
3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
INDUSTRIAL TEMPERATURE RANGE
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE
Following Conditions Apply Unless Otherwise Specified:
Operating Condition: T
A
= –40°C to +85°C
Symbol
V
IH
V
IL
I
IH
I
IL
I
OZH
I
OZL
I
OFF
V
IK
V
H
I
CCL
I
CCH
I
CCZ
ΔI
CC
High Impedance Output Current
(3-State Output pins)
Input/Output Power Off Leakage
Clamp Diode Voltage
Input Hysteresis
Quiescent Power Supply Current
V
CC
= 0V, V
IN
or V
O
≤
5.5V
V
CC
= 2.3V, I
IN
= –18mA
V
CC
= 3.3V
V
CC
= 3.6V
V
IN
= GND or V
CC
—
—
—
—
—
—
—
–0.7
100
—
—
—
±50
–1.2
—
10
10
500
μA
V
mV
μA
V
CC
= 3.6V
V
O
= 0 to 5.5V
—
—
±10
μA
Parameter
Input HIGH Voltage Level
Input LOW Voltage Level
Input Leakage Current
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 3.6V
V
I
= 0 to 5.5V
Test Conditions
Min.
1.7
2
—
—
—
Typ.
(1)
—
—
—
—
—
Max.
—
—
0.7
0.8
±5
μA
V
Unit
V
Quiescent Power Supply Current
Variation
3.6
≤
V
IN
≤
5.5V
(2)
One input at V
CC
- 0.6V, other inputs at V
CC
or GND
μA
NOTES:
1. Typical values are at V
CC
= 3.3V, +25°C ambient.
2. This applies in the disabled state only.
BUS-HOLD CHARACTERISTICS
Symbol
I
BHH
I
BHL
I
BHH
I
BHL
I
BHHO
I
BHLO
NOTES:
1. Pins with Bus-Hold are identified in the pin description.
2. Typical values are at V
CC
= 3.3V, +25°C ambient.
Parameter
(1)
Bus-Hold Input Sustain Current
Bus-Hold Input Sustain Current
Bus-Hold Input Overdrive Current
V
CC
= 3V
V
CC
= 2.3V
V
CC
= 3.6V
Test Conditions
V
I
= 2V
V
I
= 0.8V
V
I
= 1.7V
V
I
= 0.7V
V
I
= 0 to 3.6V
Min.
– 75
75
—
—
—
Typ.
(2)
—
—
—
—
—
Max.
—
—
—
—
±500
Unit
μA
μA
μA
3
IDT74LVCH162374A
3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
INDUSTRIAL TEMPERATURE RANGE
OUTPUT DRIVE CHARACTERISTICS
Symbol
V
OH
Parameter
Output HIGH Voltage
V
CC
= 2.3V
V
CC
= 2.7V
V
CC
= 3V
V
OL
Output LOW Voltage
V
CC
= 2.3V to 3.6V
V
CC
= 2.3V
V
CC
= 2.7V
V
CC
= 3V
Test Conditions
(1)
V
CC
= 2.3V to 3.6V
I
OH
= – 0.1mA
I
OH
= – 4mA
I
OH
= – 6mA
I
OH
= – 4mA
I
OH
= – 8mA
I
OH
= – 6mA
I
OH
= – 12mA
I
OL
= 0.1mA
I
OL
= 4mA
I
OL
= 6mA
I
OL
= 4mA
I
OL
= 8mA
I
OL
= 6mA
I
OL
= 12mA
Min.
V
CC
– 0.2
1.9
1.7
2.2
2
2.4
2
—
—
—
—
—
—
—
Max.
—
—
—
—
—
—
—
0.2
0.4
0.55
0.4
0.6
0.55
0.8
V
Unit
V
NOTE:
1. V
IH
and V
IL
must be within the min. or max. range shown in the DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE table for the appropriate V
CC
range.
T
A
= – 40°C to + 85°C.
OPERATING CHARACTERISTICS, V
CC
= 3.3V ± 0.3V, T
A
= 25°C
Symbol
C
PD
C
PD
Parameter
Power Dissipation Capacitance per Flip-Flop Outputs enabled
Power Dissipation Capacitance per Flip-Flop Outputs disabled
Test Conditions
C
L
= 0pF, f = 10Mhz
Typical
Unit
pF
—
—
SWITCHING CHARACTERISTICS
(1)
V
CC
= 2.7V
Symbol
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
SU
t
H
t
W
t
SK
(o)
Parameter
Propagation Delay
xCLK to xQx
Output Enable Time
xOE to xQx
Output Disable Time
xOE to xQx
Set-up Time HIGH or LOW, xDx before xCLK
Hold Time HIGH or LOW, xDx after xCLK
xCLK Pulse Width HIGH or LOW
Output Skew
(2)
2.5
1.5
3
—
—
—
2.5
1.5
3
—
—
—
500
ns
ns
ns
ps
1.5
6.2
1.5
6
ns
1.5
6.3
1.5
6.1
ns
Min.
2
Max.
6.5
V
CC
= 3.3V ± 0.3V
Min.
2
Max.
6.2
Unit
ns
—
—
—
NOTES:
1. See TEST CIRCUITS AND WAVEFORMS. T
A
= – 40°C to + 85°C.
2. Skew between any two outputs of the same package and switching in the same direction.
4
IDT74LVCH162374A
3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
INDUSTRIAL TEMPERATURE RANGE

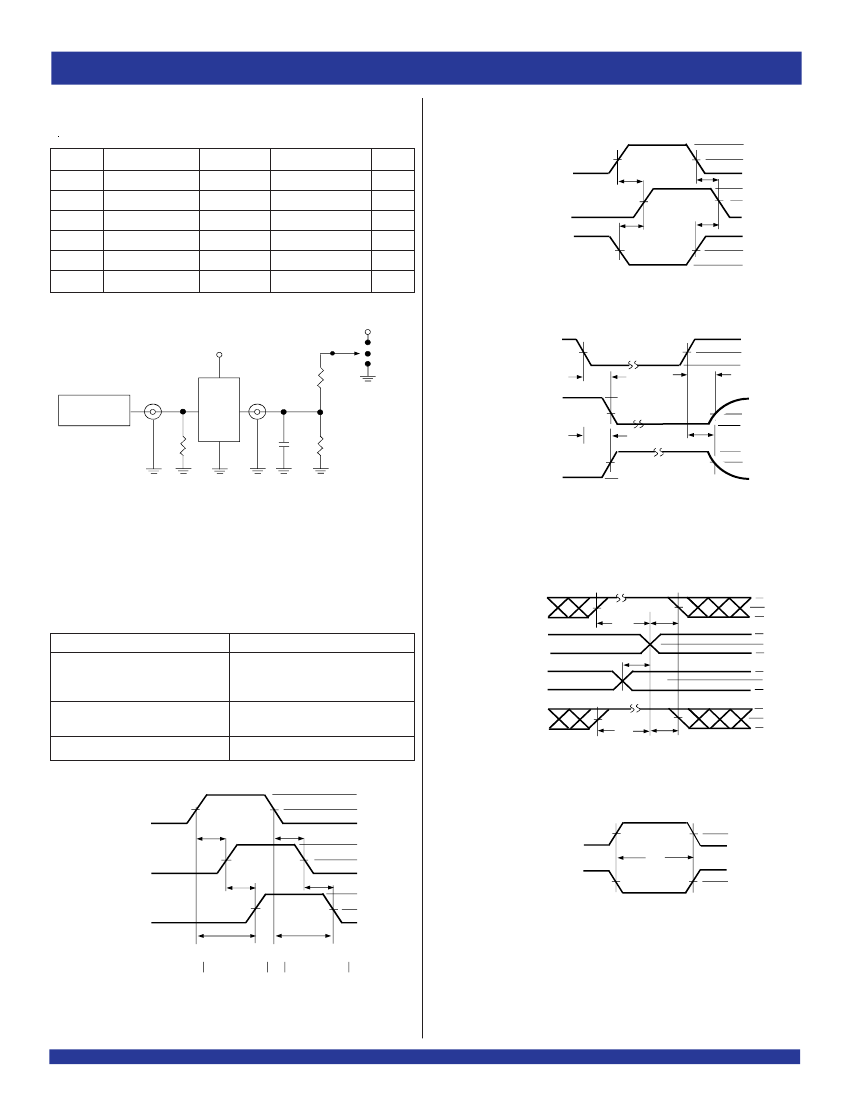

TEST CIRCUITS AND WAVEFORMS
TEST CONDITIONS
Symbol
V
LOAD
V
IH
V
T
V
LZ
V
HZ
C
L
V
CC
= 3.3V±0.3V
6
2.7
1.5
300
300
50
(1)
V
CC(1)
= 2.7V
6
2.7
1.5
300
300
50
V
CC
= 2.5V±0.2V
2 x Vcc
Vcc
Vcc / 2
150
150
30
(2)
Unit
V
V
V
mV
mV
pF
SAME PHASE
INPUT TRANSITION
t
PLH
OUTPUT
t
PLH
OPPOSITE PHASE
INPUT TRANSITION
t
PHL
t
PHL
V
IH
V
T
0V
V
OH
V
T
V
OL
V
IH
V
T
0V
LVC Link
Propagation Delay
V
CC
500
Pulse
(1, 2)
Generator
V
IN
D.U.T.
R
T
500
C
L
LVC Link
V
LOAD
Open
GND
V
OUT
CONTROL
INPUT
ENABLE
DISABLE
t
PZL
OUTPUT
SWITCH
NORMALLY
CLOSED
LOW
t
PZH
OUTPUT
SWITCH
NORMALLY
OPEN
HIGH
V
LOAD/2
V
T
t
PHZ
V
T
0V
t
PLZ
V
IH
V
T
0V
V
LOAD/2
V
LZ
V
OL
V
OH
V
HZ
0V
LVC Link
Test Circuit for All Outputs
DEFINITIONS:
C
L
= Load capacitance: includes jig and probe capacitance.
R
T
= Termination resistance: should be equal to Z
OUT
of the Pulse Generator.
NOTES:
1. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2.5ns; t
R
≤
2.5ns.
2. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2ns; t
R
≤
2ns.
NOTE:
1. Diagram shown for input Control Enable-LOW and input Control Disable-HIGH.
Enable and Disable Times
SWITCH POSITION
Test
Open Drain
Disable Low
Enable Low
Disable High
Enable High
All Other Tests
Switch
V
LOAD
GND
Open
DATA
INPUT
TIMING
INPUT
ASYNCHRONOUS
CONTROL
SYNCHRONOUS
CONTROL
t
SU
t
H
t
REM
t
SU
t
H
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
LVC Link
INPUT
t
PLH1
t
PHL1
V
IH
V
T
0V
V
OH
V
T
V
OL
V
OH
V
T
V
OL
Set-up, Hold, and Release Times
LOW-HIGH-LOW
PULSE
t
W
HIGH-LOW-HIGH
PULSE
V
T
LVC Link
V
T
OUTPUT 1
t
SK
(x)
t
SK
(x)
OUTPUT 2
t
PLH2
t
PHL2
t
SK
(x)
= t
PLH2
-
t
PLH1
or
t
PHL2
-
t
PHL1
Pulse Width
LVC Link
Output Skew - t
SK
(
X
)
NOTES:
1. For t
SK
(o) OUTPUT1 and OUTPUT2 are any two outputs.
2. For t
SK
(b) OUTPUT1 and OUTPUT2 are in the same bank.
5
京公网安备 11010802033920号
EEWORLD
