CCM01-1NF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CCM01-1NF

Preview

CCM01-1NF: DescriptionPCB CONNECTOR; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CCM01-1NF Overview

PCB CONNECTOR

CCM01-1NF Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITH CARD DETECTION SWITCH
Board mount options	SPLIT BOARD LOCK
body width	1.575 inch
subject depth	0.256 inch
body length	2.441 inch
Body/casing type	RECEPTACLE
Connector type	PCB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	100 mΩ
Contact style	COMPRESSION
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	10000 Cycles
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	CCM01
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	38.1 mm
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Evacuation force-minimum value	.973 N

CCM01-1NF Preview

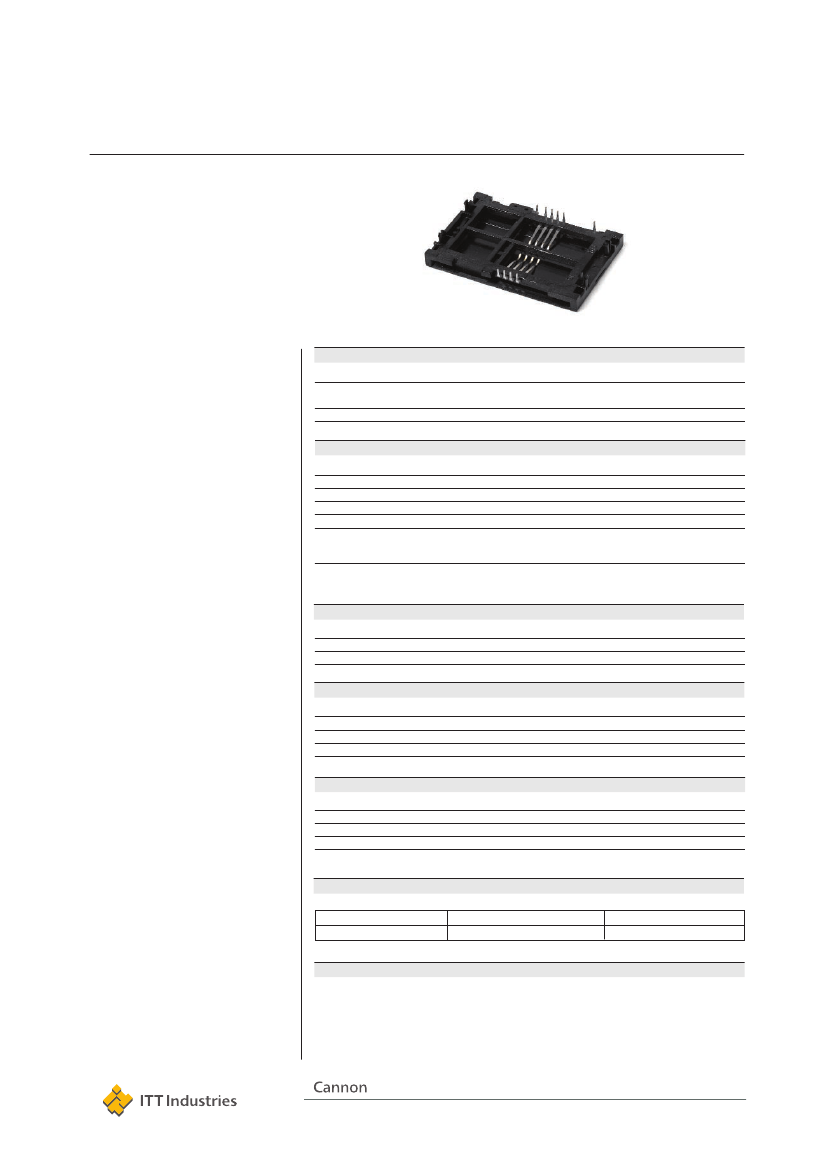

CCM01 MK I

CCM01 MK I connectors have ﬁxed

contacts and a blade card detection

switch unsealed.

These connectors are intended for

applications where the card usage is

relatively low and the environment is

benign.

Features

• Available with 8 through hole

contacts.

• A normally closed blade switch

detects when the card is fully

inserted.

• Snap in boardlocks hold the connec-

tor in place prior to soldering.

Construction

Contacts

Plating

Moldings

Card detection switch

Mechanical Data

Number of Contacts

Mechanical life

Card insertion force

Card extraction force

Contact force

Vibration

Shock

8

10,000 cycles min

10 N max

1 N min / 10N max

0.20 N min / 0.60 N max

Frequency 10 to 500 Hz. Acceleration 50m/s

2

Duration 6 hours - amplitude 0.35 mm

(0.014) Max electrical discontinuity 1µs

Peak value 500 m/s

2

– Duration 11 ms

3 shocks in each direction of each axis

Max electrical discontinuity 1 µs

Copper alloy

Contact area : Gold over nickel

Terminals : Tin lead (2µ min)

Thermoplastic UL 94V-0 rated

Copper alloy

Contact Electrical Data

Insulation resistance

Resistance

Current rating

Dielectric strength

Switch Electrical Data

Card detection switch

Contact resistance

Dielectric strength

Current rating

Maximum power

Environmental Data

Operating temperature

Soldering temperature

Damp heat

Salt mist

Card detection switch

Ordering Code

Part Number

CCM01-1NF

Number of Contacts

8

Packaging Multiple

200

-40°C to +85°C

Wave : 260°C / 5 sec

IEC 512 test number 11c (10 days)

IEC 512 test number 11f (96 hours)

Not sealed blade switch

Normally closed

100 mΩ max

250 Vrms min

1 mA min /10 mA max

0.2 VA

1,000 MΩ min

100 mΩ max

10 µA min / 1 A max

750 Vrms min

Packaging

20 per tray, 10 trays per box.

Dimensions are shown in mm

Dimensions subject to change

www.ittcannon.com

6

CCM01 MK I

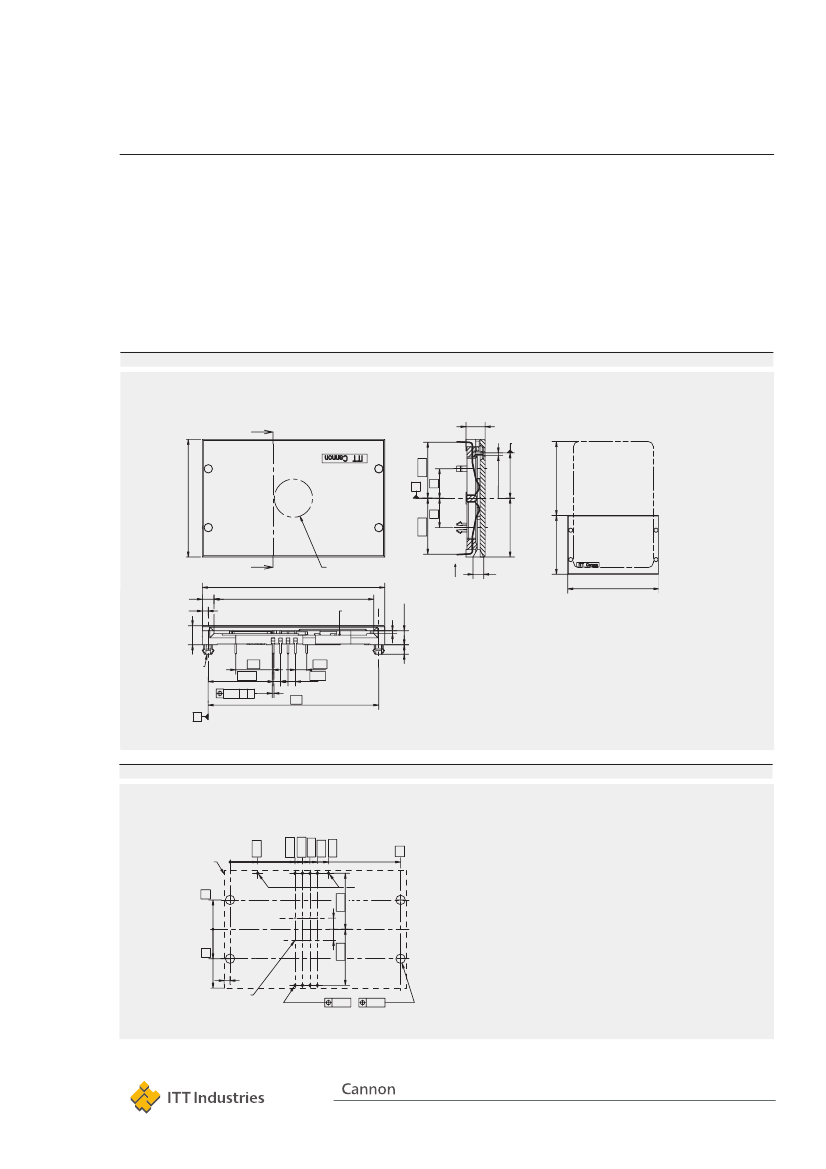

Dimensional Drawings

CCM01-1NF

A-A

6,5

Card stop

0,9

±0,25

15,4

19,05

50,3 (REF.)

A

40

B

19,05

10

20

40 (REF.)

A

4,0

2,0

6,5

62±0,2

54,3

Pick and place area

ø13

Card insertion

direction

3,65±0,3

Card entry

62 (REF.)

Embossed

Channel

4 Snap

Feet

10x

12,7

22,08

0,3 A B

0,6

3,81

3x 2,54

58

A

PCB Layout

CCM01-1NF

(Component side)

22,08

24,62

27,16

29,7

33,51

9,38

Plastic outline

0

SW

C1 C2 C3 C4 SW

0

3,81 3,81

10

2

20

Contact location according to

ISO 7816-2

C5C6C7C8 10x

+0,1

ø1 0

ø0,1

19,05

10

Card end travel

switch terminal

4x

ø0,1

ø3,2+0,1

0

58

3,2

1

4,8±0,2

Unless otherwise stated, tolerances are ± 0,10 mm

Dimensions are shown in mm

Dimensions subject to change

www.ittcannon.com

7

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
