NCP623MN-30R2G

Description
LDO Voltage Regulators ANA 150mA LDO
CategoryPower/power management    The power supply circuit
File Size189KB,16 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

NCP623MN-30R2G Online Shopping

Suppliers Part Number Price MOQ In stock
NCP623MN-30R2G - - View Buy Now

NCP623MN-30R2G Overview

LDO Voltage Regulators ANA 150mA LDO

NCP623MN-30R2G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
Parts packaging codeDFN
package instructionHVSON, SOLCC6,.12,25
Contacts6
Manufacturer packaging code488AE
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
AdjustabilityFIXED
Maximum drop-back voltage 10.26 V
Nominal dropback voltage 10.18 V
Maximum absolute input voltage12 V
Maximum input voltage12 V
Minimum input voltage4 V
JESD-30 codeS-PDSO-N6
JESD-609 codee3
length3 mm
Maximum grid adjustment rate0.01%
Maximum load regulation0.045%
Humidity sensitivity level1
Number of functions1
Output times1
Number of terminals6
Working temperatureTJ-Max150 °C
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current 10.15 A
Maximum output voltage 13.11 V
Minimum output voltage 12.89 V
Nominal output voltage 13 V
Package body materialPLASTIC/EPOXY
encapsulated codeHVSON
Encapsulate equivalent codeSOLCC6,.12,25
Package shapeSQUARE
Package formSMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
method of packingTR
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1 mm
surface mountYES
technologyBIPOLAR
Terminal surfaceTin (Sn)
Terminal formNO LEAD
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
Maximum voltage tolerance3.6%
width3 mm
Base Number Matches1
NCP623
Ultra Low Noise
150 mA Low Dropout
Voltage Regulator with
ON/OFF Control

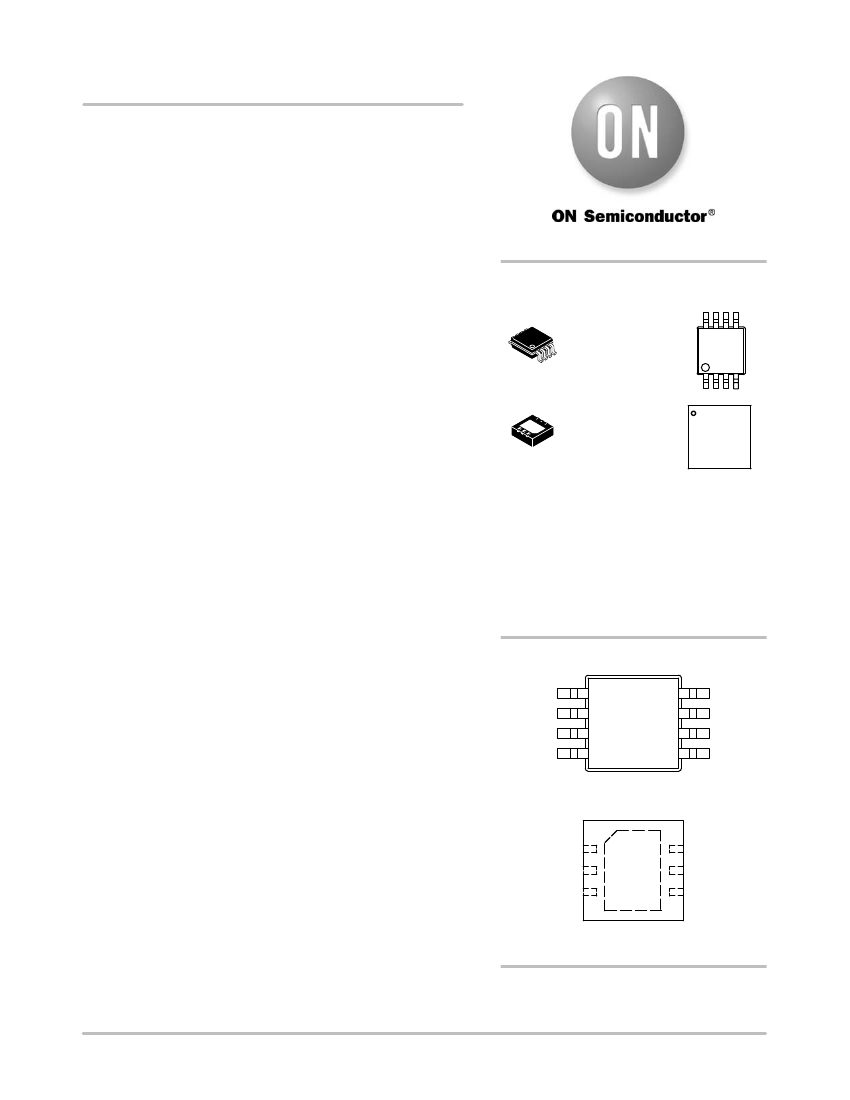

The NCP623 low dropout linear regulator can deliver up to 150 mA
of output current with a typical dropout voltage of 180 mV. This low
dropout feature helps to maintain a regulated output voltage for a
longer period of time as the lifetime of the battery decreases.
It is the ideal choice for noise sensitive environments like portable
applications where noise performance and space are at a premium. The
typical output noise voltage specification is 25
mV
RMS
. The space
saving package choices include a Micro8™ or DFN6. An additional
noise saving feature of this device is its ability to filter choppy signals
on the power supply by providing a typical DC ripple rejection of
−90
dB and
−70
dB at 1.0 kHz.
The NCP623 is designed to work with very low ESR capacitors such
as ceramic capacitors which are common in the industry now.
Additional features such as thermal shutdown and short−circuit
protection provide for a robust system design.
Features
http://onsemi.com
MARKING
DIAGRAMS
8
Micro8
DM SUFFIX
CASE 846A
1
DFN6, 3X3
MN SUFFIX
CASE 488AE
NCP6
23yy
ALYW
G
G
Lxx
AYW
G
G
1
Very Low Quiescent Current 170
mA
(ON, no load), 100 nA
(OFF, no load)
Very Low Dropout Voltage, Typical Value is 137 mV at an Output
Current of 100 mA
Very Low Noise with External Bypass Capacitor (10 nF),
Typically 25
mV
RMS
over 100 Hz to 100 kHz
Internal Thermal Shutdown
Extremely Tight Line Regulation Typically
−90
dB
Ripple Rejection
−70
dB @ 1.0 kHz
Line Transient Response: 1.0 mV for
DV
in
= 3.0 V
Extremely Tight Load Regulation, Typically 20 mV at
DI
out
= 150 mA
Multiple Output Voltages Available
Logic Level ON/OFF Control (TTL−CMOS Compatible)
Output Capacitor ESR Can Vary from 0
W
to 3.0
W
Pb−Free Packages are Available
ON/OFF
Applications
Telephones, Radio Control Systems, Toys and Low Voltage Systems
V
IN
1
2
3
6
5
4
GND
V
OUT
DFN6
(Top View)
ORDERING INFORMATION
See detailed ordering and shipping information on page 14 of
this data sheet.
©
Semiconductor Components Industries, LLC, 2011
January, 2011
Rev. 9
1
Publication Order Number:
NCP623/D
ÇÇ
ÇÇ
ÇÇ
Ç
Ç
Ç
All Portable Systems, Battery Powered Systems, Cellular
Ç
Ç
Ç
1
= Device Code (Micro8)
xx = See Ordering Information
NCP623yy = Device Code (DFN6)
yy = 25, 28, 30, 33, 40, or 50
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= Pb Free Package
(Note: Microdot may be in either location)
Lxx
PIN CONNECTIONS
Bypass
NC
NC
1
2
3
4
Micro8
(Top View)
8
7
6
5
V
OUT
GND
GND
V
IN
ON/OFF
GND
Bypass

NCP623MN-30R2G Related Products

NCP623MN-30R2G NCP623MN-25R2G NCP623MN-28R2G
Description LDO Voltage Regulators ANA 150mA LDO LDO Voltage Regulators SBN BE LDO LDO Voltage Regulators ANA 150mA LDO
Brand Name ON Semiconductor ON Semiconductor ON Semiconductor
Is it lead-free? Lead free Lead free Lead free
Parts packaging code DFN DFN DFN
package instruction HVSON, SOLCC6,.12,25 HVSON, SOLCC6,.12,25 HVSON, SOLCC6,.12,25
Contacts 6 6 6
Manufacturer packaging code 488AE 488AE 488AE
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Is Samacsys N N N
Adjustability FIXED FIXED FIXED
Maximum drop-back voltage 1 0.26 V 0.26 V 0.26 V
Nominal dropback voltage 1 0.18 V 0.18 V 0.18 V
Maximum absolute input voltage 12 V 12 V 12 V
Maximum input voltage 12 V 12 V 12 V
Minimum input voltage 4 V 3.5 V 3.8 V
JESD-30 code S-PDSO-N6 S-PDSO-N6 S-PDSO-N6
JESD-609 code e3 e3 e3
length 3 mm 3 mm 3 mm
Maximum grid adjustment rate 0.01% 0.01% 0.01%
Maximum load regulation 0.045% 0.045% 0.045%
Humidity sensitivity level 1 1 1
Number of functions 1 1 1
Output times 1 1 1
Number of terminals 6 6 6
Working temperatureTJ-Max 150 °C 150 °C 150 °C
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Maximum output current 1 0.15 A 0.15 A 0.15 A
Maximum output voltage 1 3.11 V 2.59 V 2.9 V
Minimum output voltage 1 2.89 V 2.41 V 2.7 V
Nominal output voltage 1 3 V 2.5 V 2.8 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HVSON HVSON HVSON
Encapsulate equivalent code SOLCC6,.12,25 SOLCC6,.12,25 SOLCC6,.12,25
Package shape SQUARE SQUARE SQUARE
Package form SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
method of packing TR TR TR
Peak Reflow Temperature (Celsius) 260 260 260
Certification status Not Qualified Not Qualified Not Qualified
Regulator type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height 1 mm 1 mm 1 mm
surface mount YES YES YES
technology BIPOLAR BIPOLAR BIPOLAR
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn)
Terminal form NO LEAD NO LEAD NO LEAD
Terminal pitch 0.65 mm 0.65 mm 0.65 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 40 40 40
Maximum voltage tolerance 3.6% 2% 3.6%
width 3 mm 3 mm 3 mm
Base Number Matches 1 1 1
