NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16 A Output

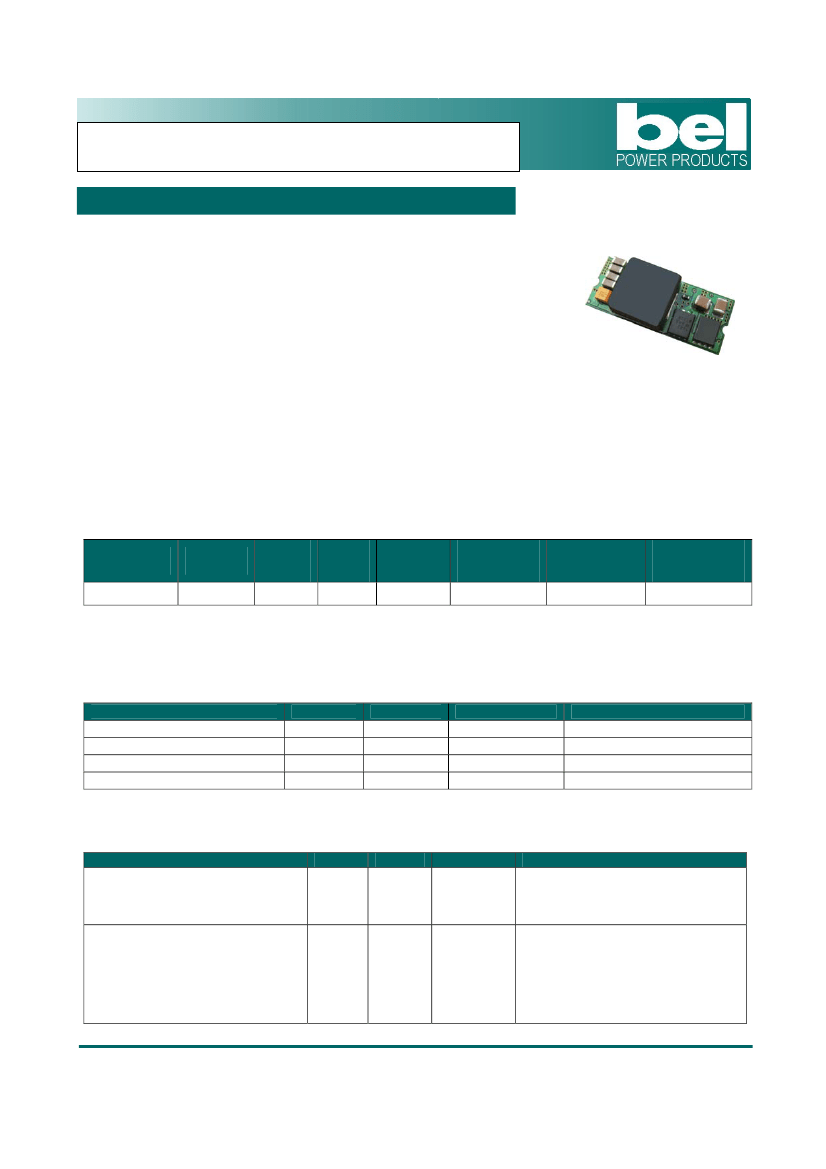

SRBC-16F1Ax Series
Non-Isolated
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Remote On/Off
Converter Can Sink and Source
Current
RoHS Compliant
Under-voltage Lockout (UVLO)
Over Temperature Protection
OCP/SCP
Wide Input
Wide Trim Range
Remote Sense
Active High/Low (option)
Description
The Bel SRBC-16F1Ax modules are a series of non-isolated dc/dc converters that deliver up to 16 A of output
current with full load efficiency of 94% at 3.3 V output. These modules provide precisely regulated voltage
programmable via external resistor from 0.75 V to 3.63 V over a wide range of input voltage (Vin=2.4-5.5V). The
open-frame construction and small footprint enable designers to develop cost and space-efficient solutions.
Standard features include remote On/Off, over current protection, short current protection, wide input, and
programmable output voltage.
Part Selection
Output
Voltage
0.75 V
-
3.63 V
1
Input
Voltage
2.4 V
-
5.5 V
Max.
Output
Current
16 A
Max.
Output
Power
58 W
Typical
Efficiency
94%
Model
Number
Active Low
SRBC-16F1AL
Model
Number
Active High
SRBC-16F1A0
Model
Number
Active Low
SRBC-16F1AW
2
Notes
:
1. These modules use a buck topology, so the output voltages must be 0.8 V less than the input voltage.
2. “W” indicates special coating.
3. Add “G” to the end of the Model Number to indicate Tray Packaging.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Output Enable Terminal Voltage
Ambient Temperature
Storage Temperature
Min
-0.3 V
-0.3 V
-40
°C
-55
°C
Typ
-
-
-
-
Max
5.8 V
5.8 V
85
°C
125
°C
Notes
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Input Specifications
Parameter
Input Voltage
Vo≤1.5 V
Vo=1.8 - 2.5 V
Vo=3.3 V
Input Current (full load)
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
Vo=1.2 V
Vo=0.75 V
-
-
-
-
-
-
11.23 A
8.70 A
6.40 A
5.45 A
4.52 A
3.05 A
15.10 A
14.81 A
13.64 A
11.76 A
9.64 A
6.69 A
2.4 V
3.0 V
4.5 V
-
-
-
5.5 V
5.5 V
5.5 V
Min
Typ
Max
Notes
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16 A Output
Input Specifications (continued)
Parameter
Input Current (no load)
Remote Off Input Current
Input Reflected Ripple Current (pk-pk)
Input Reflected Ripple Current (rms)
I t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
2
Min
-
-
-
-
-
-
-
Typ
80 mA
10 mA
100 mA
40 mA
0.15 A s
2.2 V
2.0 V
2
Max
-
22 mA
-
-
0.3 A s
-
-
2
Notes
With simulated source impedance of
1 uH, 5 Hz to 20 MHz and two 100 uF
/10 V external input Tantalum
capacitors at the input.
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Output Specifications
Parameter
Output Voltage Set Point
Output Voltage Set Point
Load Regulation
Line Regulation
Regulation Over Temperature
(-40
°C
to +85
°C)
Output Current
Current Limit Threshold
Short Circuit Surge Transient
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
Turn on Time
Overshoot at Turn on
Output Capacitance
ESR
≥1
mohm
ESR
≥10
mohm
Transient Response
50% ~ 100% Max Load
Settling Time
100% ~ 50% Max Load
Settling Time
50% ~ 100% Max Load
Settling Time
100% ~ 50% Max Load
Settling Time
Vo=0.75-3.3 V
Vo=0.75-3.3 V
Min
-2% Vo,set
-3% Vo,set
-
-
-
0A
19 A
-
-
-
-
-
0 uF
0 uF
-
-
-
-
-
-
-
-
Typ
-
-
0.4% Vo,set
0.3% Vo,set
0.5% Vo,set
-
-
1.6 A s
25 mV
8 mV
4 mS
0%
-
-
300 mV
50 uS
300 mV
50 uS
150 mV
100 uS
150 mV
100 uS
2
Max
2% Vo,set
3% Vo,set
-
-
-
16 A
35 A
2A s
50 mV
15 mV
8 mS
3%
1000 uF
5000 uF
-
-
-
-
-
-
-
-
2
Notes
Vin=5 V, lo=lo max
Over all operating input voltage,
resistive load, and temperature
conditions
lo=lo min to lo max
Vin=Vin min to Vin max
Tested with 0-20 MHz, with external
10 uF/16 V tantalum capacitor &1 uF
/10 V TDK ceramic capacitor
di/dt=2.5 A/uS; Vin=5 V; and with
external 10 uF / 16 V Tantalum
capacitors and 1 uF/10 V ceramic
capacitor at the output
di/dt=2.5 A/uS; Vin=5 V; and with
external 2 x 150 uF / 10 V Tantalum
capacitors and 1 uF/10 V ceramic
capacitor at the output
Note:
All specifications are typical at nominal input, full load at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16 A Output
General Specifications
Parameter
Efficiency
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
Vo=1.2 V
Vo=0.7525 V
Switching Frequency
Over Temperature Shutdown
Output Voltage Trim Range
Remote Sense Compensation
MTBF
Dimensions
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Weight
-
1.3 x 0.53 x 0.315
33.02 x 13.46 x 8.00
6.6 g
-
92%
90%
88%
85%
82%
76%
250 kHz
-
0.7525 V
-
94%
92%
90%
88%
85%
79%
300 kHz
125
°C
-
-
5,438,000 hours
-
-
-
-
-
-
350 kHz
-
3.63 V
5%
Total adjustment of trim, setpoint and
remote sense combined should not
exceed 3.63 V. Vo=0.7525 V when trim
pin open
Calculated Per Bell Core SR-332 (I
O
=
80% Io, max; Vo=1.8 V; Vin=5.0 V; T
a
=
25
°C)
Measured at Vin=5 V, full load
Min
Typ
Max
Notes
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Control Specifications
Parameter
Remote On/Off
Signal Low (Unit Off)
Signal High (Unit On)
Signal Low (Unit On)
Signal High (Unit Off)
Min
-0.3 V
1.5 V
-0.3 V
1.5 V
Typ
-
-
-
-
Max
0.3 V
5.8 V
0.3 V
5.8 V
Notes
SRBC-16F1A0; Remote On/Off pin open, Unit
on.
SRBC-16F1AL & SRBC-16F1AW; Remote
On/Off pin open, Unit on.
Output Trim Equations
Equation for calculating the trim resistor (in KΩ) given the desired adjusted voltage (Vadj) is shown below. The
Trim Up resistor should be connected between the Trim pin and Ground.
Vout
R
trim
21.07
=
5.11
V
adj
0.7525
Module
Trim
GND
Rtrim
Equation for calculating the trim voltage (in V) given the desired adjusted voltage (Vadj) is shown below. The
Trim Up voltage should be connected between the Trim pin and Ground.
Vout
V
trim
=
0.7
0.1698
×
(
V
adj
0.7525)
Module
Trim
Vtrim
GND
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16 A Output

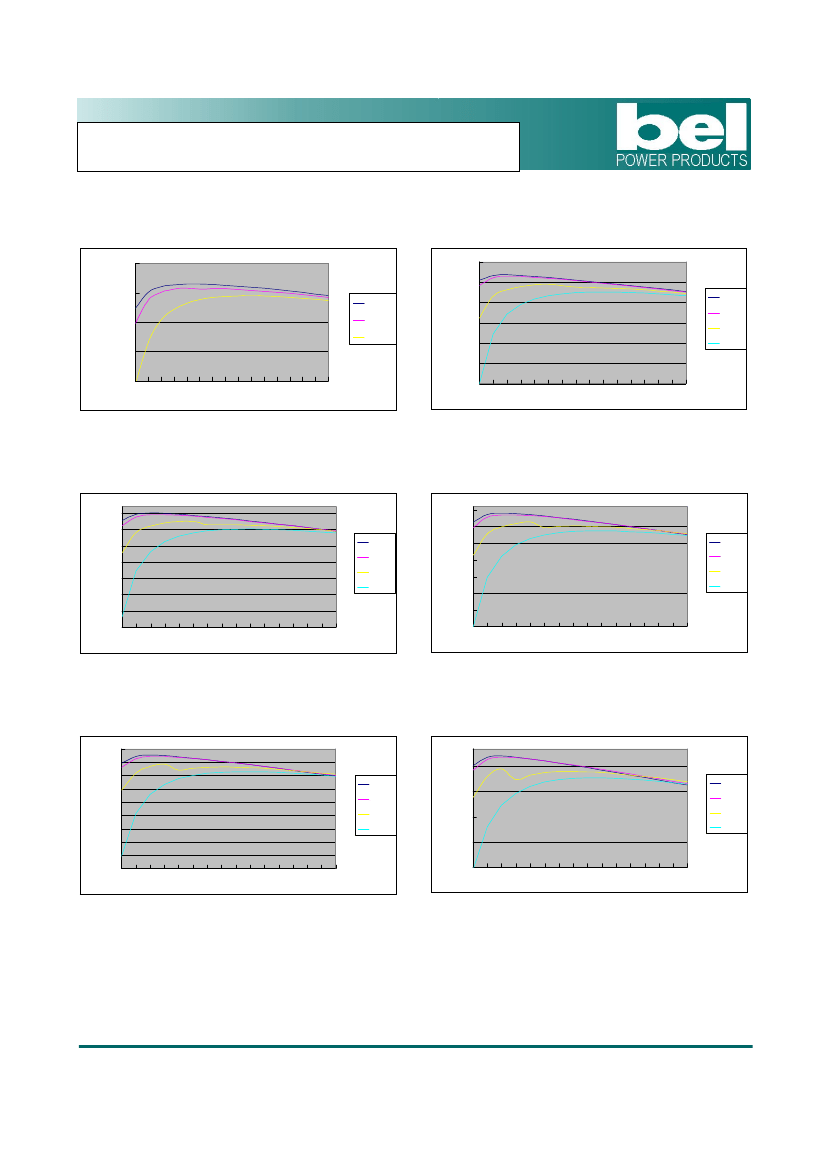

Efficiency Data
100.0%
95.0%
90.0%
85.0%
80.0%
1 2 3 4 5 6 7 8 9 10111213141516
4.5V
5V
5.5V
100.0%
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
3.0V
3.3V
5V
5.5V
Vo=3.3 V
Vo=2.5 V
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
3V
3.3
5V
5.5V
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
3V
3.3V
5V
5.5V
Vo=1.8 V
Vo=1.5 V
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
55.0%
50.0%
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
85.0%
3V
3.3V
5V
5.5
75.0%
65.0%
55.0%
45.0%
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
3V
3.3V
5V
5.5V
Vo=1.2 V
Vo=0.75 V
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16 A Output

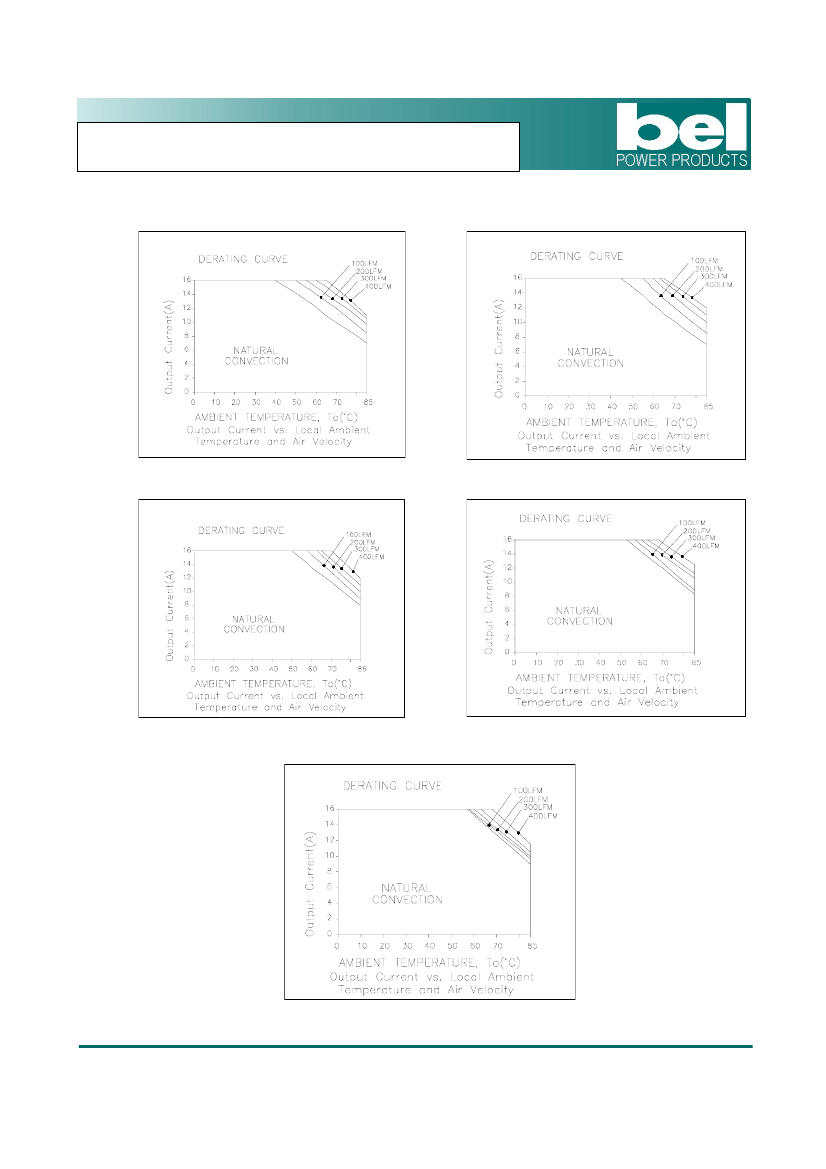

Thermal Derating Curves
Vin=5.0 V, Vo=3.3 V or 2.5 V
Vin=5.0 V, Vo=1.8 V or 1.5 V
Vin=5.0 V, Vo=0.7525 V or 1.2 V
Vin=3.3 V, Vo=1.8 V or 1.5 V
Vin=3.3 V, Vo=0.7525 V or 1.2 V
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
