B350A-M3-61T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> B350A-M3-61T

B350A-M3-61T: DescriptionSchottky Diodes & Rectifiers 3A,50V,SM SCHOTTKY RECT; Categorysemiconductor Discrete semiconductor; File Size80KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

B350A-M3-61T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B350A-M3-61T	-	-	View	Buy Now

B350A-M3-61T Overview

Schottky Diodes & Rectifiers 3A,50V,SM SCHOTTKY RECT

B350A-M3-61T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Vishay
Product Category	Schottky Diodes & Rectifiers
RoHS	Details
Product	Schottky Rectifiers
Mounting Style	SMD/SMT
Package / Case	DO-214AC
If - Forward Current	3 A
Vrrm - Repetitive Reverse Voltage	50 V
Vf - Forward Voltage	0.55 V
Ifsm - Forward Surge Current	50 A
Configuration	Single
Technology	Si
Ir - Reverse Current	2.9 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	2.29 mm
Length	4.5 mm
Width	2.54 mm
NumOfPackaging	3
Factory Pack Quantity	1800
Vr - Reverse Voltage	50 V
Unit Weight	0.002258 oz

Preview

Download Datasheet

View All

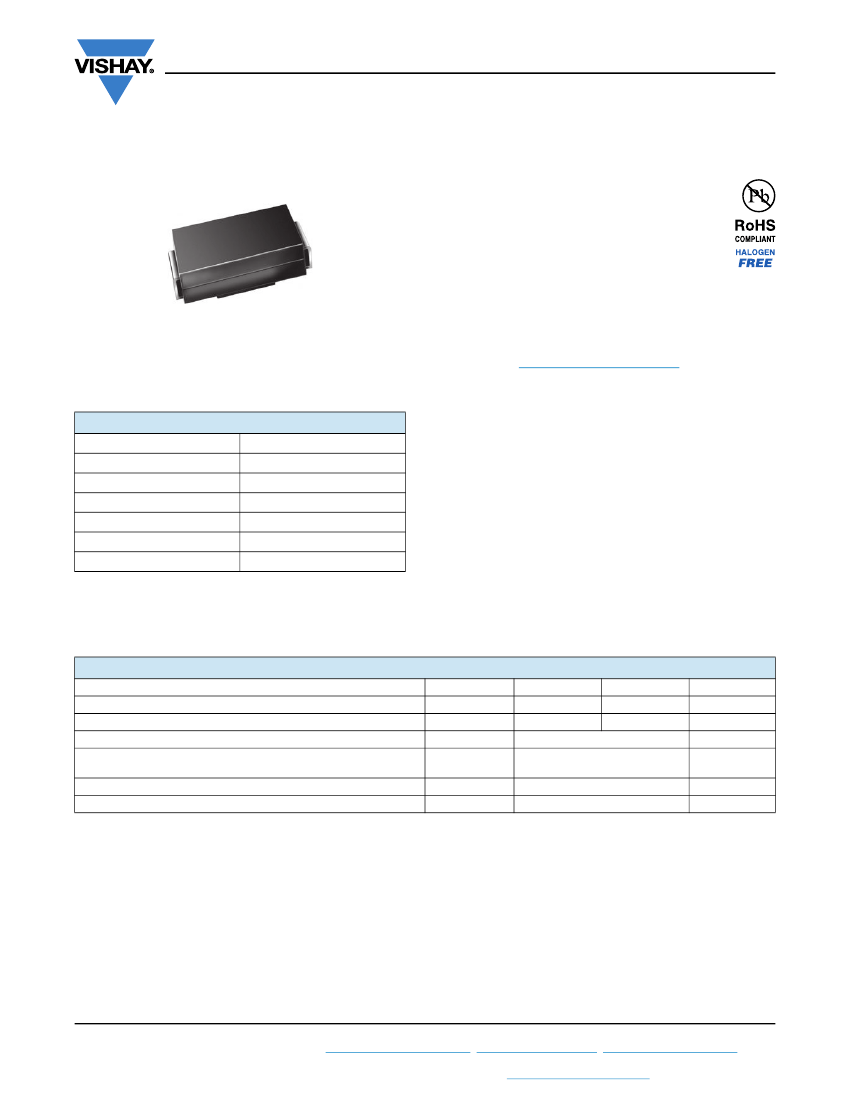

B350A-M3, B360A-M3

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Low forward voltage drop, low power losses

• High efficiency

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 3.0 A

max.

Package

Diode variation

3.0 A

50 V, 60 V

50 A

0.55 V

150 °C

DO-214AC (SMA)

Single die

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

RRM

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

B350A

B35

3.0

10 000

-55 to +150

B360A

B36

V/μs

°C

UNIT

Revision: 09-Dec-13

Document Number: 89414

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
