T-149-622A-G3-B-01-GR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> T-149-622A-G3-B-01-GR

T-149-622A-G3-B-01-GR: DescriptionReceiver, 1475nm Min, 1505nm Max, 622Mbps, TO-46, Through Hole Mount, ROHS COMPLIANT, TO-46, 4 PIN; CategoryWireless rf/communication Optical fiber; File Size840KB，3 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric Compare View All

T-149-622A-G3-B-01-GR Overview

Receiver, 1475nm Min, 1505nm Max, 622Mbps, TO-46, Through Hole Mount, ROHS COMPLIANT, TO-46, 4 PIN

T-149-622A-G3-B-01-GR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Source Photonics
package instruction	TO-46
Reach Compliance Code	unknown
body height	6.32 mm
Body length or diameter	4.7 mm
Built-in features	AMPLIFIER
Communication standards	ATM, SDH, SONET
data rate	622 Mbps
Emitter/Detector Type	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1505 nm
Minimum operating wavelength	1475 nm
Nominal operating wavelength	1490 nm
Package form	TO-46
Receive type	DIGITAL
Sensitivity	-33 dBm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

622Mbps BiDi PIN-TIA 1490nm Reciever(3.3V)

T-149-622A-G3-B-01

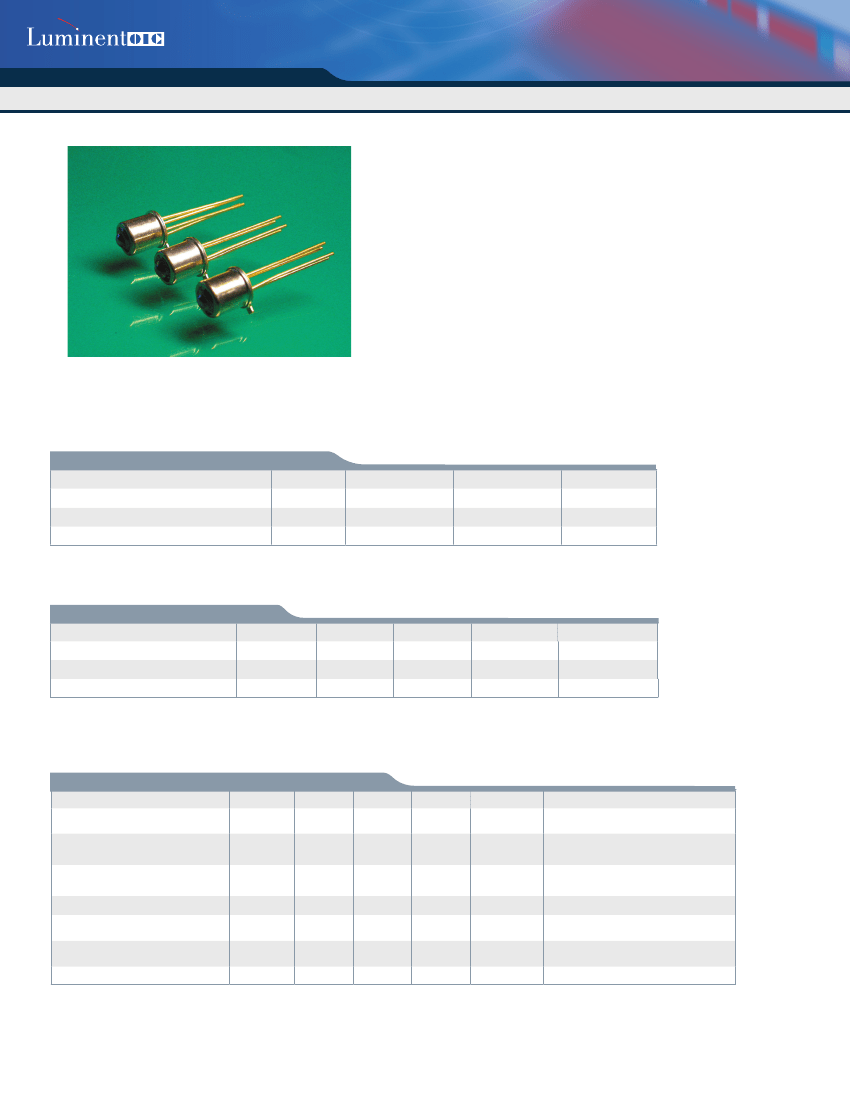

Features

• InGaAs/InP PIN Photodiode with transimpedance ampliﬁer

• High sensitivity with AGC

• Differential ended output

• 3.3 supply voltage

• -40 to 85ºC operating temperature

• Integrated 4-pin TO-46 with ball lens cap package

• 622Mpbs SONET/SDH/ATM receivers

• Bi-Directional optical module/transceiver

• RoHS compliance available

Absolute Maximum Rating (Tc=25ºC)

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

Symbol

opr

stg

Min

-40

Max

6.5

+85

Unit

ºC

DC Electrical Characteristics( Tc=25ºC )

Parameter

Power Supply

Differential Output offset Voltage

Supply Current (Vcc=3.3V)

Symbol

Min

3.0

Typical

3.3

+/-5

Max

3.6

Unit

Operating at V

=3.3V, T

= 25ºC, 9/125µm SM ﬁber

AC/Optical and Electrical Characteristics( Tc=25ºC )

Parameter

Detection Range

Wavelength Isolation @ 1310nm+/-

50nm&1550nm+/-10nm

Gain @ 10 Mbps Differential

Bandwidth (to -3dB point)

Saturation Power

Sensitivity

Output Resistance

Symbol

sat

Sens

out

Min

1475

404

-3

Typical

1490

470

-33

Max

1505

-31

Unit

V/mW

MHz

dBm

Test Condition

Measure differentially AC coupled,

RL=50Ω

BER

@ 622Mbps, PRBS 2

-1

Er = 10 dB

BER <10

-10

@ 622Mbps, PRBS 2

-1

Er = 10 dB

<10

-10

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1195-AUG1805

rev. A.0

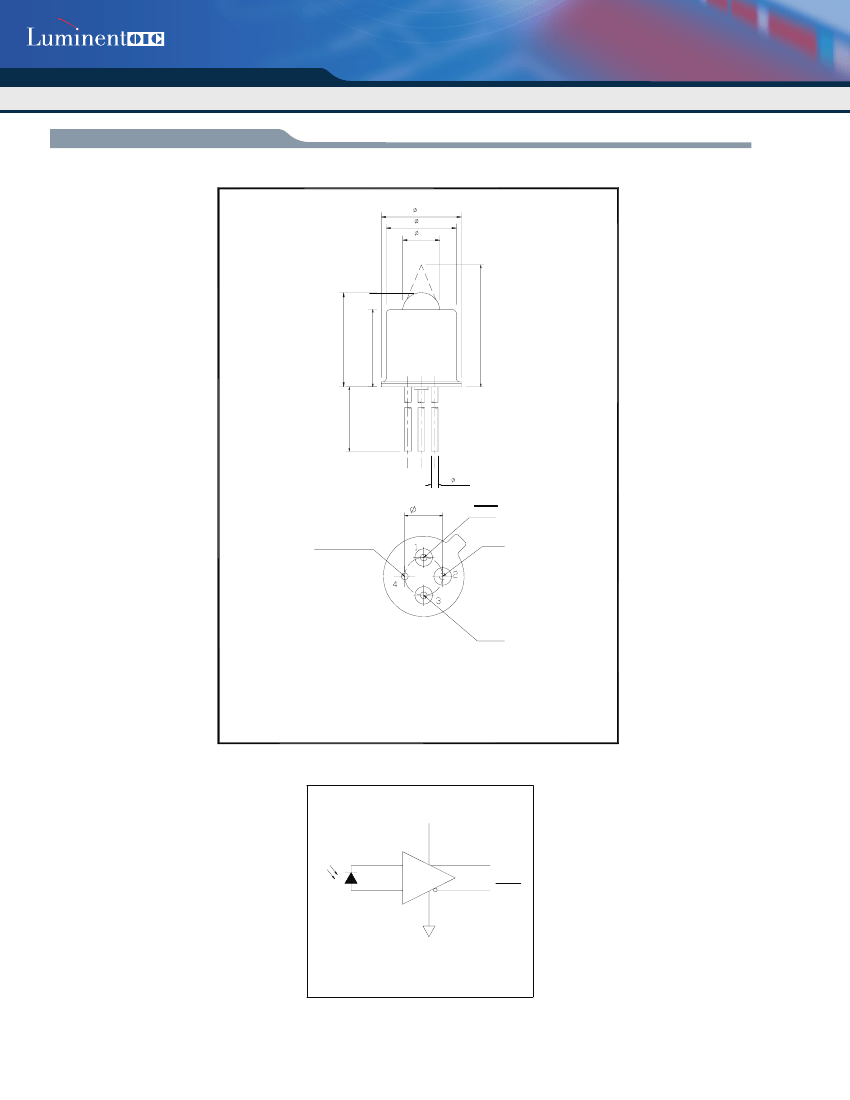

622Mbps BiDi PIN-TIA 1490nm Reciever(3.3V)

T-149-622A-G3-B-01

Ordering Information

Available Options:

T-149-622A-G3-B-01

T-149-622A-G3-B-01-G5

T-149-622A-G3-B-01-GR

Family

T -

Detection Range

149

- 622

Data Rate

Pinout

- G

Header Type

Supply Voltage

- B -

Cap Type

B=Ball Lens

Customer Specifics

RoHS compliance

T=PIN TIA

149=1475nm-1505nm

622=622Mbps

A=A-type

G=TO-46

3=3.3V

Special spec.

Blank = RoHS non-compliant product

G5 = RoHS 5/6-compliant product (lead exemption)

GR = Full RoHS compliant product (no exemption)

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow

guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at LuminentOIC’s sole and absolute discretion. LuminentOIC warrants performance

of its products to current speciﬁcations only in accordance with the company’s standard one-year warranty; however, speciﬁcations designated as “preliminary” are

given to describe components only, and LuminentOIC expressly disclaims any and all warranties for said products, including express, implied, and statutory warran-

ties, warranties of merchantability, ﬁtness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of

Sale for further warranty information.

LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual

property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and LuminentOIC makes

no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this docu-

ment are NOT intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. LuminentOIC customers

using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify LuminentOIC for any damages resulting from

such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that LuminentOIC is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact

LuminentOIC to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1195-AUG1805

rev. A.0

T-149-622A-G3-B-01-GR Related Products

	T-149-622A-G3-B-01-GR	T-149-622A-G3-B-01-G5	T-149-622A-G3-B-01
Description	Receiver, 1475nm Min, 1505nm Max, 622Mbps, TO-46, Through Hole Mount, ROHS COMPLIANT, TO-46, 4 PIN	Receiver, 1475nm Min, 1505nm Max, 622Mbps, TO-46, Through Hole Mount, TO-46, 4 PIN	Receiver, 1475nm Min, 1505nm Max, 622Mbps, TO-46, Through Hole Mount, TO-46, 4 PIN
Is it lead-free?	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	incompatible
Maker	Source Photonics	Source Photonics	Source Photonics
package instruction	TO-46	TO-46	TO-46
Reach Compliance Code	unknown	unknown	unknown
body height	6.32 mm	6.32 mm	6.32 mm
Body length or diameter	4.7 mm	4.7 mm	4.7 mm
Built-in features	AMPLIFIER	AMPLIFIER	AMPLIFIER
Communication standards	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET
data rate	622 Mbps	622 Mbps	622 Mbps
Emitter/Detector Type	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER	RECEIVER	RECEIVER
Fiber type	9/125, SMF	9/125, SMF	9/125, SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum operating wavelength	1505 nm	1505 nm	1505 nm
Minimum operating wavelength	1475 nm	1475 nm	1475 nm
Nominal operating wavelength	1490 nm	1490 nm	1490 nm
Package form	TO-46	TO-46	TO-46
Receive type	DIGITAL	DIGITAL	DIGITAL
Sensitivity	-33 dBm	-33 dBm	-33 dBm
Maximum supply voltage	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO
Base Number Matches	1	1	1
