AR4PD, AR4PG, AR4PJ
www.vishay.com
Vishay General Semiconductor
Fast Switching Avalanche Surface Mount Rectifiers
FEATURES
• Very low profile - typical height of 1.1 mm
Available
eSMP
®
Series
K
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast reverse recovery time
• Controlled avalanche characteristics
• Low leakage current
1
2
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
E
AS
V
F
at I
F
= 4.0 A
T
J
max.
Package
Diode variation
4.0 A
200 V, 400 V, 600 V
65 A
140 ns
20 mJ
1.02 V
175 °C
TO-277A (SMPC)
Single die
For use in lighting, fast switching rectification of power
supplies, inverters, converters, and freewheeling diodes for
consumer, automotive, and telecommunication.
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy at T
J
= 25 °C
I
AS
= 2.5 A max.
I
AS
= 1.0 A typ.
V
RRM
I
F (1)
I
F (2)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
AR4PD
AR4D
200
AR4PG
AR4G
400
4.0
2.0
65
20
30
-55 to +175
AR4PJ
AR4J
600
V
A
A
mJ
°C
UNIT
Operating junction and storage temperature range
Notes
(1)
Mounted on 30 mm x 30 mm pad areas, 1 oz. FR4 PCB
(2)
Free air, mounted on recommended pad area
Revision: 23-Feb-16
Document Number: 89334
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR4PD, AR4PG, AR4PJ
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Instantaneous forward voltage
TEST CONDITIONS
I
F
= 4.0 A
Rated V
R
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F (1)
I
R (2)
t
rr
C
J
TYP.
1.24
1.02
0.6
60
110
77
MAX.
1.6
1.20
10
250
140
-
UNIT
V
Reverse current
Maximum reverse recovery time
Typical junction capacitance per diode
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
μA
ns
pF
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
Rated V
R
= 4.0 V, 1 MHz
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
AR4PD
AR4PG
85
5
AR4PJ
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad are; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 30 mm x 30 mm copper pad areas; R
JM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
AR4PJ-M3/86A
AR4PJ-M3/87A
AR4PJHM3/86A
(1)
AR4PJHM3/86A
(1)
AR4PJHM3_A/H
(1)
AR4PJHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 23-Feb-16
Document Number: 89334
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR4PD, AR4PG, AR4PJ
www.vishay.com
Vishay General Semiconductor

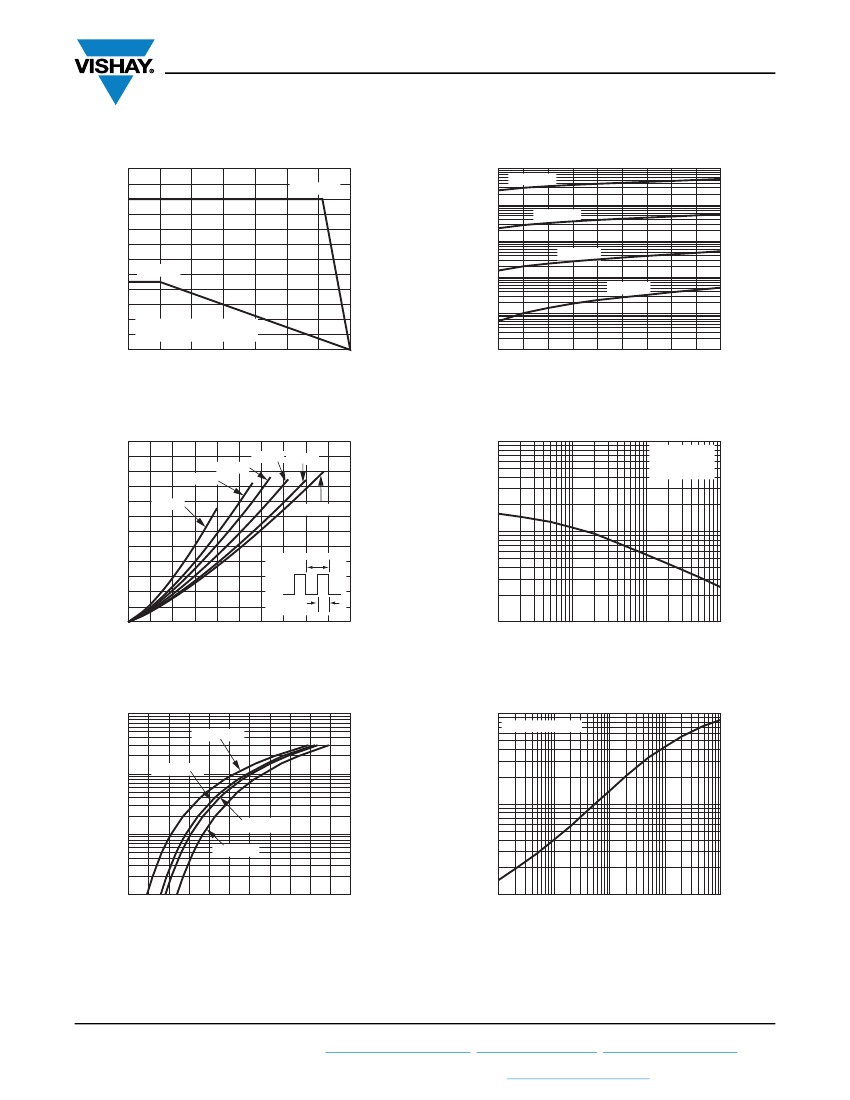

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
4.8
T
M
= 153 °C
1000
4.0
Instantaneous Reverse Current (μA)
4.4
T
A
= 175 °C
100
T
A
= 125 °C
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
DC Forward Current (A)
3.6
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0
0
25
50
75
100
125
150
175
T
M
Measured
at the Cathode Band Terminal
T
A
= 25 °C
0.01
10
20
30
40
50
60
70
80
90
100
Ambient Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
6.0
5.5
5.0
D = 0.3
D = 0.2
D = 0.1
D = 0.5 D = 0.8
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
0.5
1.0
D = 1.0
Junction Capacitance (pF)
5.0
Average Power Loss (W)
10
T
D = t
p
/T
1.5
2.0
2.5
3.0
3.5
4.0
t
p
1
4.5
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Average Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
T
A
= 175 °C
100
10
T
A
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Junction-to-Ambient
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 23-Feb-16
Document Number: 89334
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR4PD, AR4PG, AR4PJ
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 23-Feb-16
Document Number: 89334
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
