5102154-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5102154-1

5102154-1: DescriptionA/L UNIV HDR 10P VERT; CategoryThe connector The connector; File Size272KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5102154-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5102154-1	-	-	View	Buy Now

5102154-1 Overview

A/L UNIV HDR 10P VERT

5102154-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Samacsys Confidence
Samacsys Status	Released
Samacsys PartID	326189
Samacsys Pin Count	10
Samacsys Part Category	Undefined or Miscellaneous
Samacsys Package Category	Other
Samacsys Footprint Name	TYCO_5102154-1
Samacsys Released Date	2017-01-12 10:08:23
Is Samacsys	N
Other features	MILITARY, CENTER AND DUAL POLARIZED
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	1.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL (30)/GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	MIL TYP & CENTER
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	2

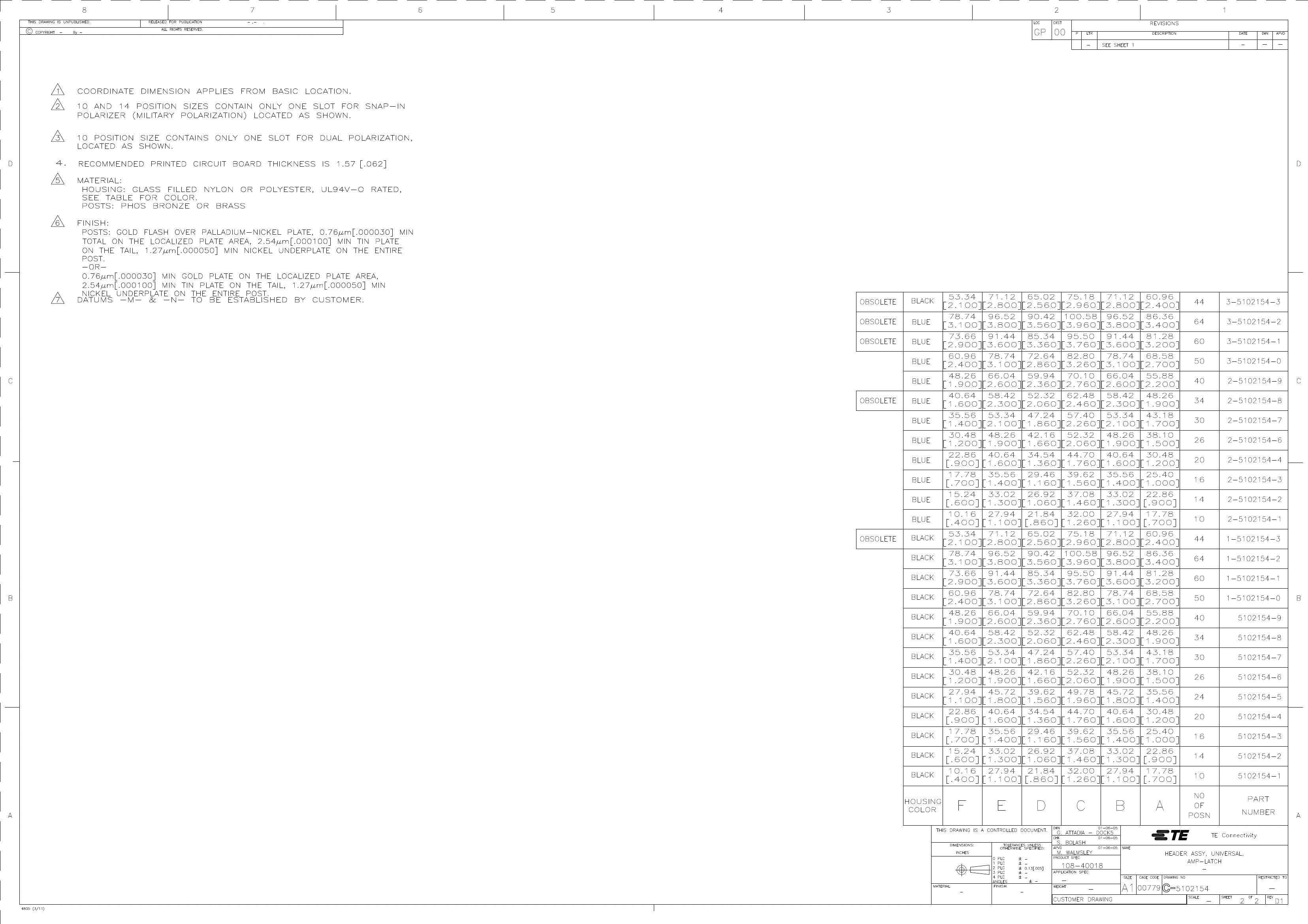

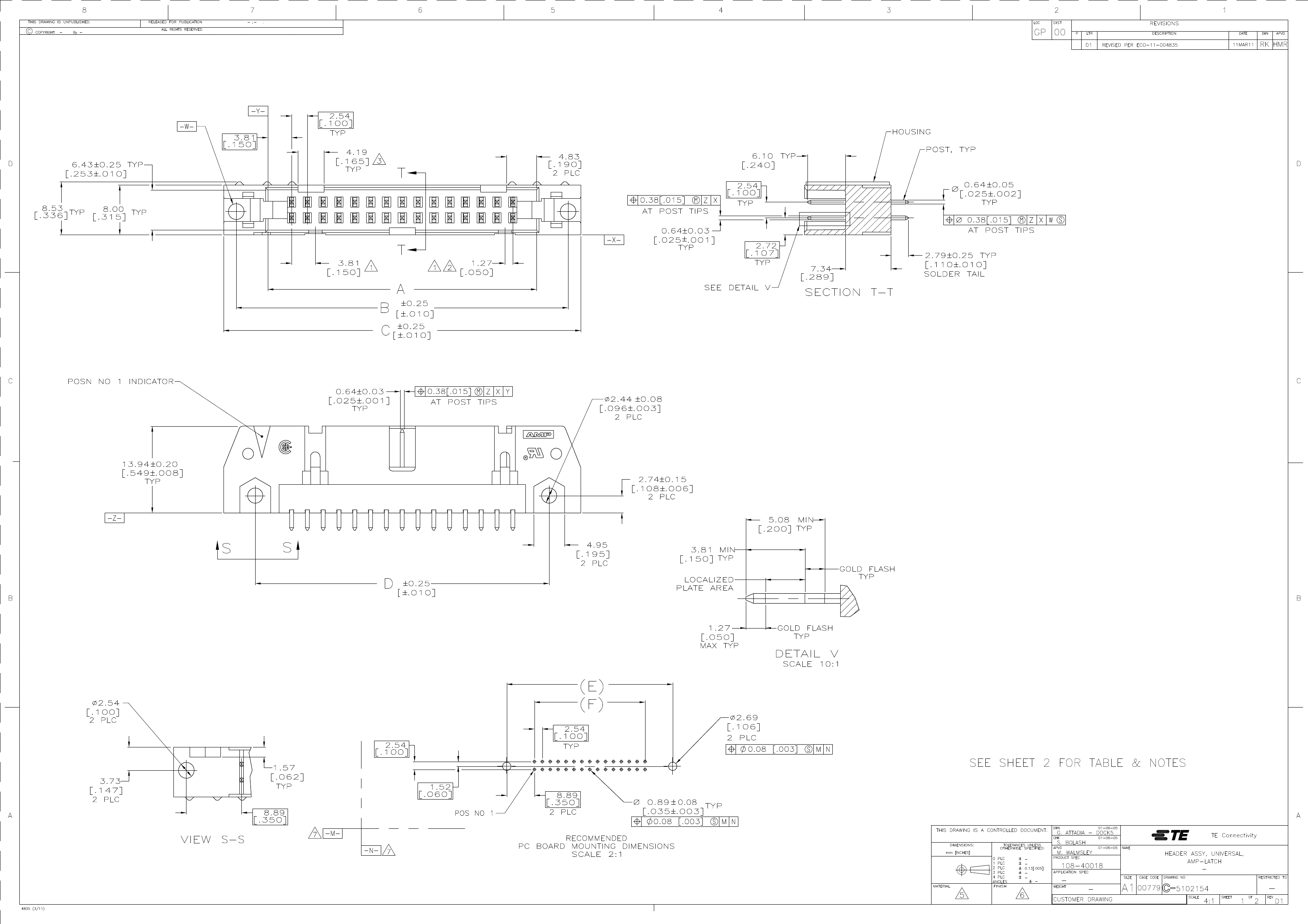

Preview

Download Datasheet

View All
