NOTES

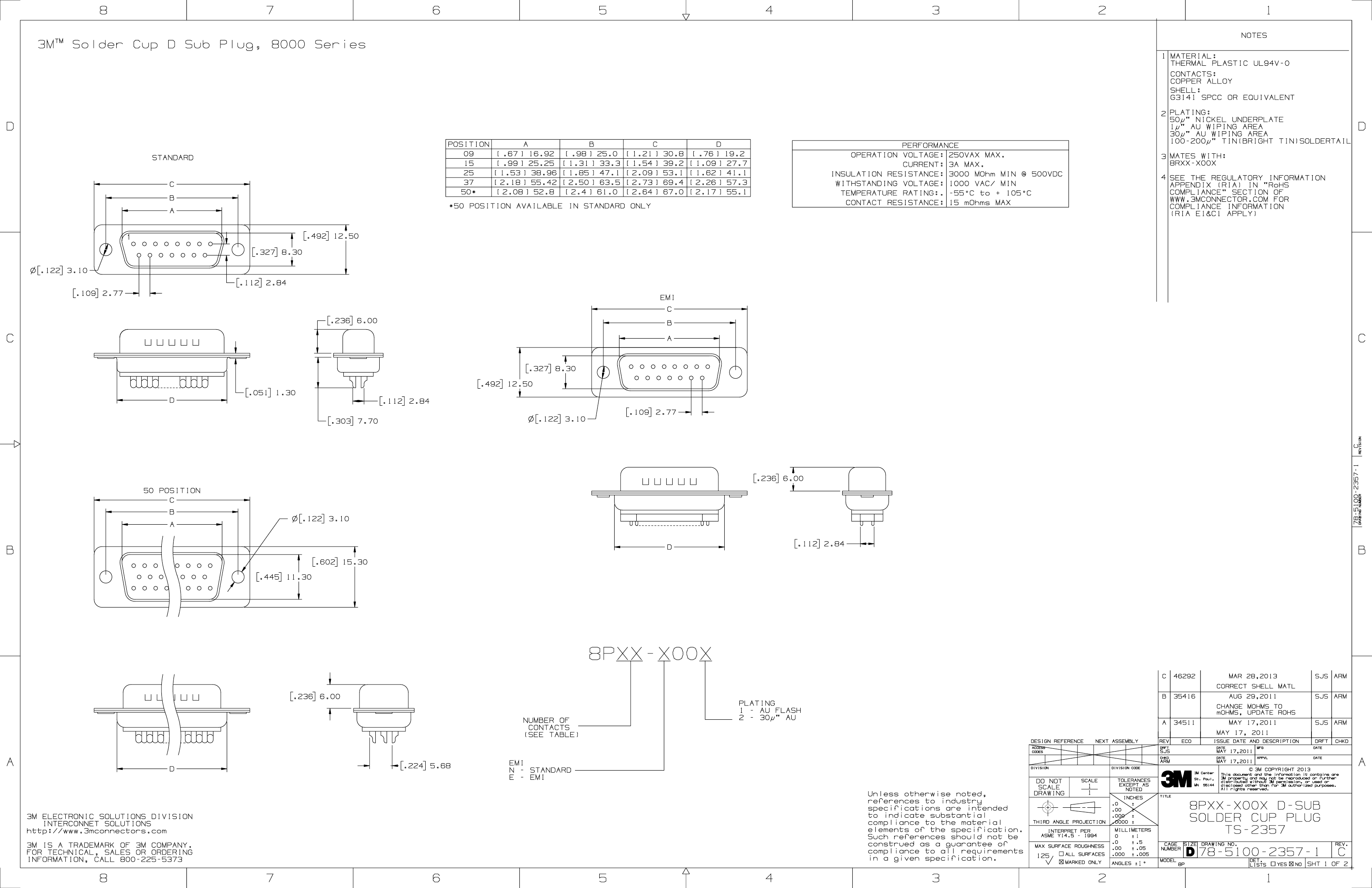

Solder Cup D Sub Plug, 8000 Series
1 MATERIAL:
THERMAL PLASTIC UL94V-0
CONTACTS:
COPPER ALLOY
SHELL:
G3141 SPCC OR EQUIVALENT
2 PLATING:
50 " NICKEL UNDERPLATE
1 " AU WIPING AREA
30 " AU WIPING AREA
100-200 " TIN(BRIGHT TIN)SOLDERTAIL
3 MATES WITH:
8RXX-X00X
4 SEE THE REGULATORY INFORMATION
APPENDIX (RIA) IN "RoHS
COMPLIANCE" SECTION OF
WWW.3MCONNECTOR.COM FOR
COMPLIANCE INFORMATION
(RIA E1&C1 APPLY)
D
STANDARD
POSITION
A
B
C
09
[.67] 16.92
[.98] 25.0 [1.21] 30.8
15
[.99] 25.25 [1.31] 33.3 [1.54] 39.2
25
[1.53] 38.96 [1.85] 47.1 [2.09] 53.1
37
[2.18] 55.42 [2.50] 63.5 [2.73] 69.4
50*
[2.08] 52.8
[2.4] 61.0 [2.64] 67.0
*50 POSITION AVAILABLE IN STANDARD ONLY
D
[.76] 19.2
[1.09] 27.7
[1.62] 41.1
[2.26] 57.3
[2.17] 55.1
PERFORMANCE
OPERATION VOLTAGE: 250VAX MAX.
CURRENT: 3A MAX.
INSULATION RESISTANCE: 3000 MOhm MIN @ 500VDC
WITHSTANDING VOLTAGE: 1000 VAC/ MIN
TEMPERATURE RATING:. -55 C to + 105 C
CONTACT RESISTANCE: 15 mOhms MAX
D
C
B
A
1
.492 12.50
.327 8.30
.122 3.10
.112 2.84
.109 2.77
EMI
C
.236 6.00
B
A
C
.327 8.30
.492 12.50
.051 1.30
D
.303 7.70
.112 2.84
C
.109 2.77
.122 3.10
REVISION
DRAWING NUMBER
.236 6.00
50 POSITION
C
B
A
.122 3.10
B
.602 15.30
.445 11.30
D
.112 2.84
8PXX-X00X
C
46292
MAR 28,2013
CORRECT SHELL MATL
SJS ARM
.236 6.00
PLATING
1 - AU FLASH
2 - 30 " AU
B
35416
AUG 29,2011
CHANGE MOHMS TO
mOHMS, UPDATE ROHS
SJS ARM
NUMBER OF
CONTACTS
(SEE TABLE)
A
DESIGN REFERENCE
ACCESS
CODES
34511
ECO
MAY 17,2011
MAY 17, 2011
ISSUE DATE AND DESCRIPTION
DATE
MFG
SJS ARM
DRFT
DATE
NEXT ASSEMBLY
REV
DRFT
CHKD
SJS
CHKD
MAY 17,2011
DATE
APPVL
DATE
A
D
.224 5.68
EMI
N - STANDARD
E - EMI
Unless otherwise noted,
references to industry
specifications are intended
to indicate substantial
compliance to the material
elements of the specification.
Such references should not be
construed as a guarantee of
compliance to all requirements
in a given specification.
ARM
DIVISION
DIVISION CODE
3M Center
MAY 17,2011
C
St. Paul,
MN
55144
3M COPYRIGHT 2013
DO NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
1
.0
.5
.00
.05
.000
.005
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
3M ELECTRONIC SOLUTIONS DIVISION
INTERCONNET SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION, CALL 800-225-5373
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
8PXX-X00X D-SUB
SOLDER CUP PLUG
TS-2357
CAGE SIZE
NUMBER
MODEL
8P
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2357-1
DET.
LISTS
YES
NO
C
1
SHT 1 OF 2
8
7
6
5
4
3
2
1
78-5100-2357-1
C
B
A
8
7
6
5
4
3
2
1
POSITION
9
D
15
25
37
50
MOUNTING
METHOD
FRONT
REAR
FRONT
REAR
FRONT
REAR
FRONT
REAR
FRONT
REAR
A
.874[22.2]
.806[20.5]
1.202[30.5]
1.134[28.8]
1.743[44.3]
1.674[42.5]
2.391[60.7]
2.326[59.1]
2.297[58.3]
2.218[56.3]
B
.437[11.1]
.403[10.2]
.601[15.3]
.567[14.4]
.872[22.2]
.837[21.3]
1.196[30.4]
1.163[29.5]
1.149[29.2]
1.109[28.2]
C
.984[25.0]
.984[25.0]
1.312[33.3]
1.312[33.3]
1.852[47.0]
1.852[47.0]
2.500[63.5]
2.500[63.5]
2.406[61.1]
2.406[61.1]
D
.492[12.5]
.492[12.5]
.656[16.7]
.656[16.7]
.926[23.5]
.926[23.5]
1.250[31.8]
1.250[31.8]
1.203[30.6]
1.203[30.6]
E
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.513[13.0]
.449[11.4]
.623[15.8]
.555[14.1]
F
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.257[6.5]
.225[5.7]
.312[7.9]
.278[7.1]
G
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
.120[3.1]
H
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
.060[1.5]
J
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
.083[2.1]
.132[3.4]
D
A
R0.81 MAX TYP
C
H
B
J RADIUS
TYP
C
F
E
G
D
FULL RADIUS
C

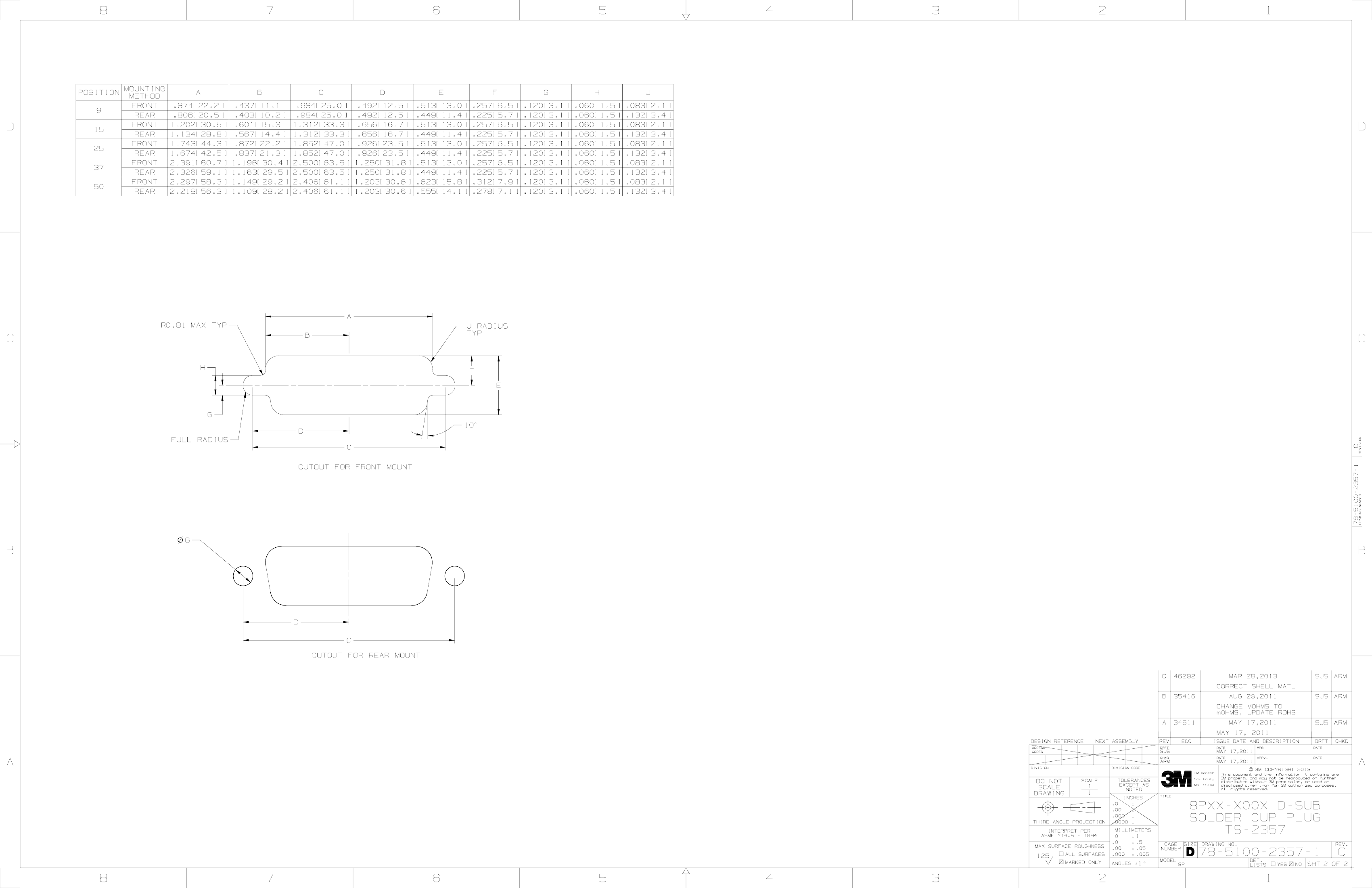

CUTOUT FOR FRONT MOUNT
C
78-5100-2357-1
C
46292
MAR 28,2013
CORRECT SHELL MATL
B
35416
AUG 29,2011
CHANGE MOHMS TO
mOHMS, UPDATE ROHS
A
DESIGN REFERENCE
ACCESS
CODES
10
REVISION
DRAWING NUMBER
G
B
B
D
C
CUTOUT FOR REAR MOUNT
SJS ARM
SJS ARM
34511
ECO
MAY 17,2011
MAY 17, 2011
ISSUE DATE AND DESCRIPTION
DATE
MFG
SJS ARM
DRFT
DATE
NEXT ASSEMBLY
REV
DRFT
CHKD
SJS
CHKD
MAY 17,2011
DATE
APPVL
DATE
A
ARM
DIVISION
DIVISION CODE
3M Center
MAY 17,2011
C
St. Paul,
MN
55144
A
3M COPYRIGHT 2013
DO NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
1
.0
.5
.00
.05
.000
.005
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
8PXX-X00X D-SUB
SOLDER CUP PLUG
TS-2357
CAGE SIZE
NUMBER
MODEL
8P
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2357-1
DET.
LISTS
YES
NO
C
1
SHT 2 OF 2
8
7
6
5
4
3
2
1
