.050" Surfacemount Socket .276" and .315" Mating Heights
P50L Series
• Low profile 0.276" - 0.315" (7-8 mm) addresses
surfacemount board stacking applications
• High temperature insulator compatible with IR and
wave soldering
• Solder brackets increase connector stability to protect
contact solder joint integrity
• Polarized alignment posts ensure correct mating
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 17, 2010
TS-2055-B
Sheet 1 of 2
Physical
Insulator:
Material: Glass Filled PPS
Flammability: UL 94V-0
Color: Brown
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: Gold Flash
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility: TS-2056
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC MSL1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Socket
.050" Surfacemount Socket .276" and .315" Mating Heights

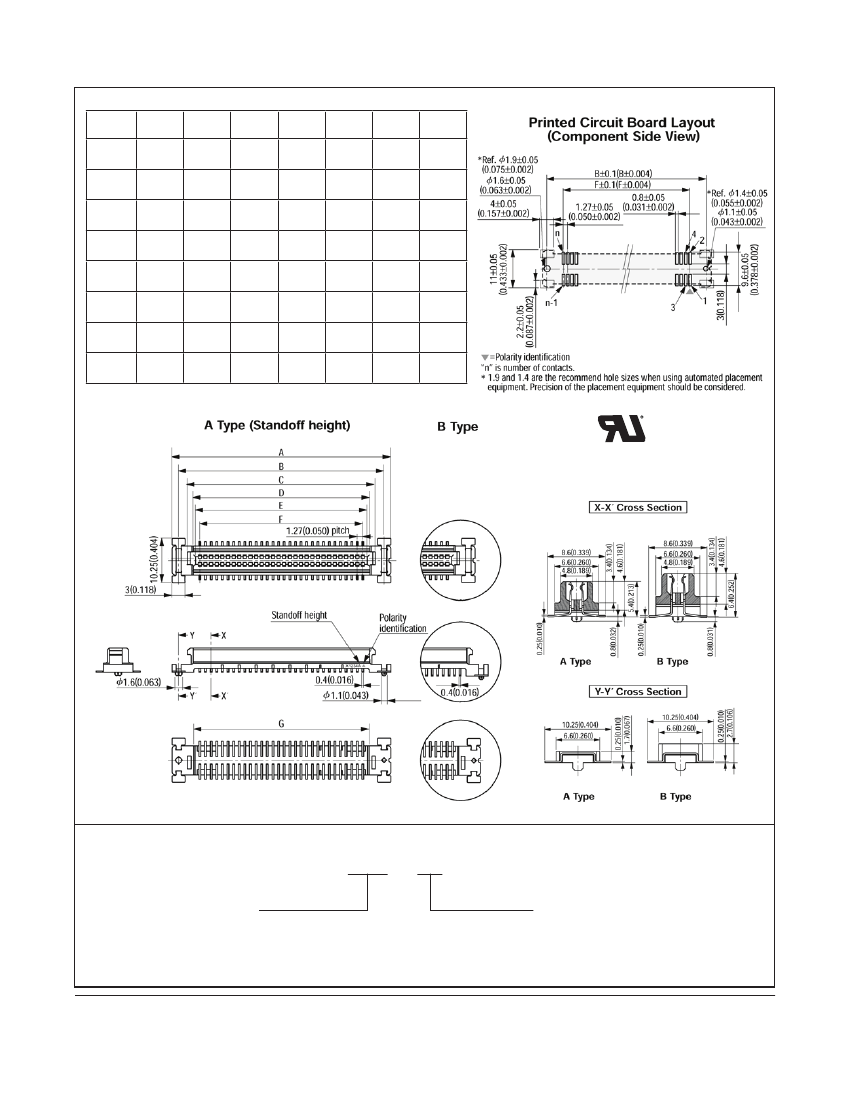

Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
120
A
24.03
[0.946]
30.38
[1.196]
36.73
[1.446]
43.08
[1.696]
49.43
[1.946]
62.13
[2.446]
74.83
[2.946]
87.53
[3.446]
B
21.03
[0.828]
27.38
[1.078]
33.73
[1.328]
40.08
[1.578]
46.43
[1.828]
59.13
[2.328]
71.83
[2.828]
84.53
[3.328]
C
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
D
14.23
[0.560]
20.58
[0.810]
26.93
[1.060]
33.28
[1.310]
39.63
[1.560]
52.33
[2.060]
65.03
[2.560]
77.73
[3.060]
E
13.43
[0.529]
19.78
[0.779]
26.13
[1.029]
32.48
[1.279]
38.83
[1.529]
51.53
[2.029]
64.23
[2.529]
76.93
[3.029]
F
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
G
14.23
[0.560]
20.58
[0.810]
26.93
[1.060]
33.28
[1.310]
39.63
[1.560]
52.33
[2.060]
65.03
[2.560]
77.73
[3.060]
P50L Series
Ordering Information
P50L - XXXS - XX - DA
(RIA E1 and C1 apply)
Contact Quantity:
See Table
AS = SMT, Type A
BS = SMT, Type B
TS-2055-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
