43044065 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 43044065

43044065: DescriptionAC Power Entry Modules FKI2-50-10/I-A APPLN INLET FILTER; CategoryThe connector; File Size514KB，5 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

43044065 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43044065	-	-	View	Buy Now

43044065 Overview

AC Power Entry Modules FKI2-50-10/I-A APPLN INLET FILTER

43044065 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SCHURTER
Product Category	AC Power Entry Modules
RoHS	Details
Product	Inlets
Filtered	Filtered
Fused	Yes
Switch Function	Switched
Packaging	Bulk
NumOfPackaging	1
Factory Pack Quantity	10
Unit Weight	4.585615 oz

Preview

Download Datasheet

View All

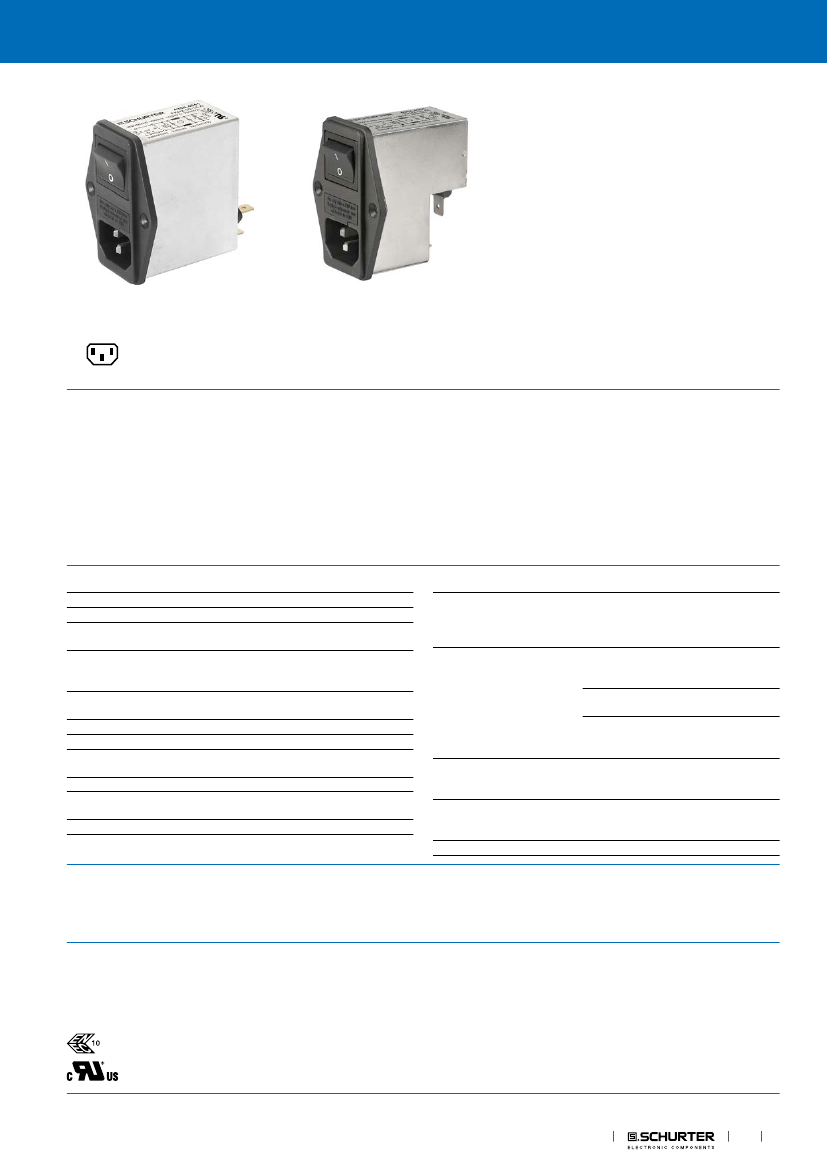

Power Entry Modules with Line Filter

https://www.schurter.com /PG06

FKI

IEC Appliance Inlet C14 with Filter, Fuseholder 2-pole, Line Switch 2-pole

Aluminum

Nickel plated steel

C14

See below:

70° C

Approvals and Compliances

Characteristics

Description

- Panel Mount :

Screw-on mounting from front side

- 4 Functions :

Appliance Inlet Protection class I , Line Switch 2-pole , Fuseholder for

fuse-links 5 x 20 mm 2-pole , Line filter in standard and medical ver-

sion

- Quick connect terminals 6.3 x 0.8 mm

Compact design with optimal shielding

All single elements are already wired

Plug removal necessary for fuse-link replacement

With EMC-shield

Suitable for use in equipment according to IEC/UL 60950

Suitable for use in medical equipment according to IEC/UL 60601-1

Other versions on request

- Medical version M80

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Accessories, Detailed request for product

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz

standard < 0.25 mA (250 V / 60 Hz)

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 85 °C

25/085/21 acc. to IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminals 6.3 x 0.8 mm

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

appliance inlet/-outlet

C14 acc. to IEC 60320-1,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

2-pole, Shocksafe category PC2 acc. to

IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 1.6 W (2-pole)

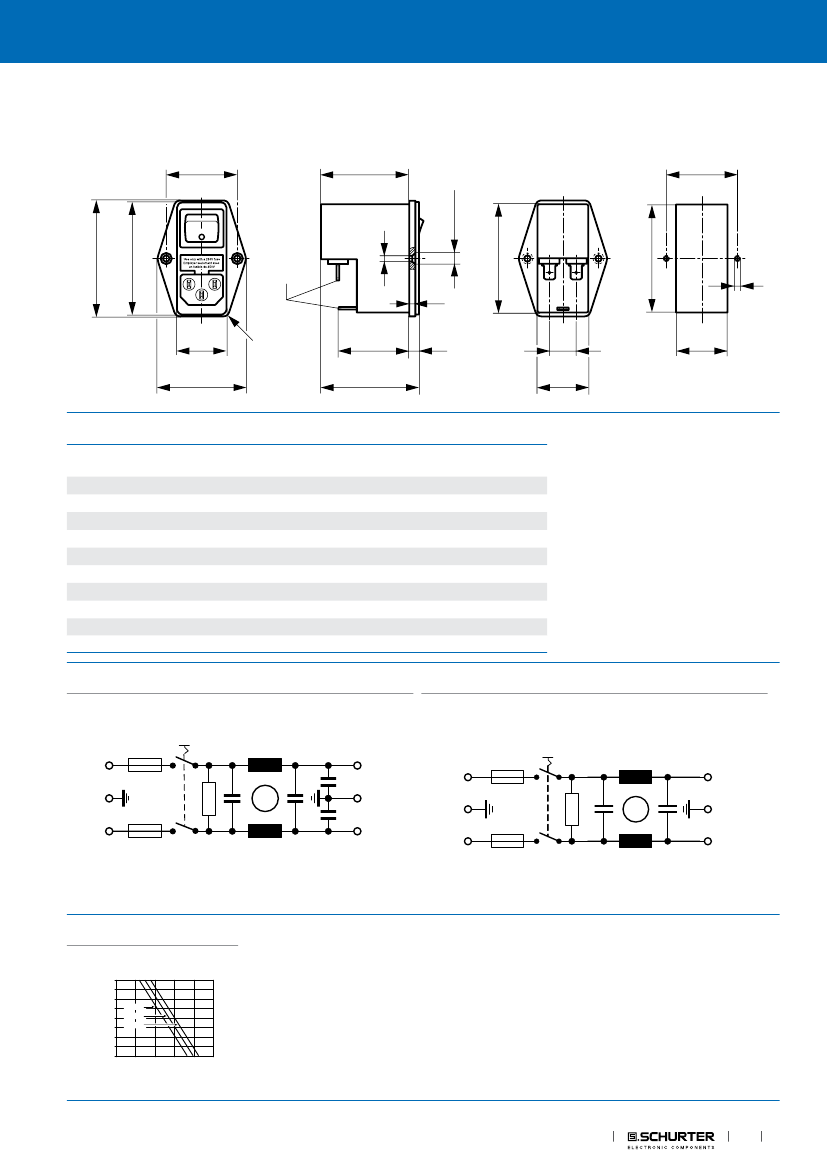

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

2-pole, non-illuminated, acc. to IEC

61058-1

Technical Details

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

Technical Details

> 1'700'000 h acc. to MIL-HB-217 F

Fuseholder

Allowable Operation Tempe-

rature

Climatic Category

IP-Protection

Protection Class

Terminal

Panel Thickness S

Material: Housing

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Line Switch

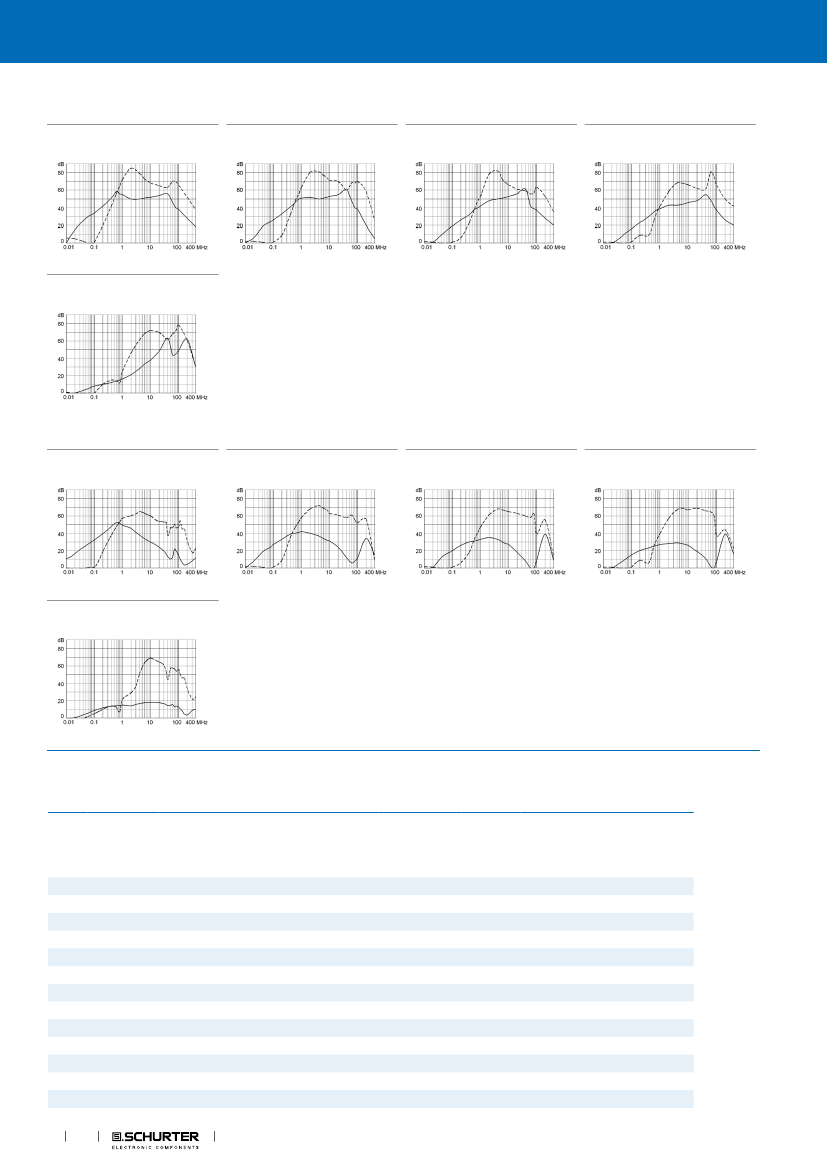

Line Filter

MTBF

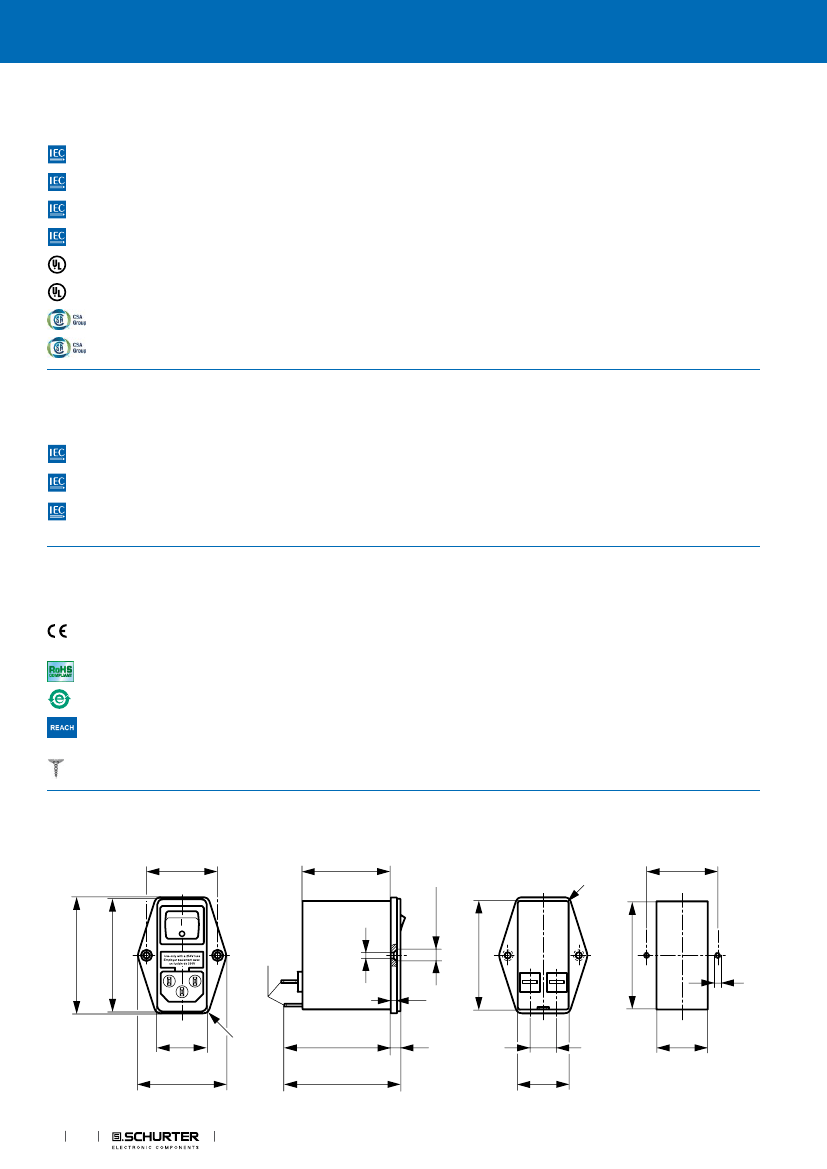

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: FKI

Approval Logo

Certificates

VDE Approvals

UL Approvals

Certification Body

VDE

Description

Certificate Number: 40004665

UL File Number: E72928

EMC Products

43044065 Related Products

	43044065	43044064	4304.4095	4304.4061	4304.4028	4304.4025	4304.4063
Description	AC Power Entry Modules FKI2-50-10/I-A APPLN INLET FILTER	AC Power Entry Modules FKI2-50-6/I-A APPLNC INLET FILTER 6A	AC Power Entry Modules FKI2-50-10/M5A APPLN INLET FILTER	AC Power Entry Modules FKI2-50-1/I-A APPLNC INLET FILTER 1A	AC Power Entry Modules FKI2-50-4/M80 APPLNC INLET FILTER 4A	AC Power Entry Modules w/Fuseholder and Switch 250 VAC 10A	AC Power Entry Modules FKI2-50-4/I-A APPLNC INLET FILTER 4A
Is it lead-free?	-	-	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	-	-	conform to	conform to	-	conform to	conform to
Maker	-	-	SCHURTER	SCHURTER	-	SCHURTER	SCHURTER
package instruction	-	-	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	-	compliant	compliant	-	compliant	compliant
Factory Lead Time	-	-	8 weeks	8 weeks	-	8 weeks	8 weeks
Other features	-	-	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT	-	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT
Body/casing type	-	-	SOCKET	SOCKET	-	SOCKET	SOCKET
Connector type	-	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact to complete cooperation	-	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	-	-	MALE	MALE	-	MALE	MALE
Contact material	-	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Coupling type	-	-	SNAP	SNAP	-	SNAP	SNAP
DIN compliance	-	-	NO	NO	-	NO	NO
IEC compliance	-	-	YES	YES	-	YES	YES
MIL compliance	-	-	NO	NO	-	NO	NO
Power Connector Ratings	-	-	10A, 125/250VAC	1A, 125/250VAC	-	10A, 125/250VAC	4A, 125/250VAC
Manufacturer's serial number	-	-	4304	4304	-	4304	4304
Plug information	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation type	-	-	PANEL	PANEL	-	PANEL	PANEL
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	-	-	ALUMINUM ALLOY	ALUMINUM ALLOY	-	STEEL	ALUMINUM ALLOY
Termination type	-	-	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	-	-	3	3	-	3	3
Base Number Matches	-	-	1	1	-	1	1
