384298 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 384298

384298: DescriptionDIN 41612 Connectors 160P 3MM R/A MALE SLDR DAUG CARD HD; CategoryThe connector The connector; File Size173KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384298 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384298	-	-	View	Buy Now

384298 Overview

DIN 41612 Connectors 160P 3MM R/A MALE SLDR DAUG CARD HD

384298 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	DIN 41612 Connectors 160P 3MM R/A MALE SLDR DAUG CARD HD
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160
Base Number Matches	1

Preview

Download Datasheet

View All

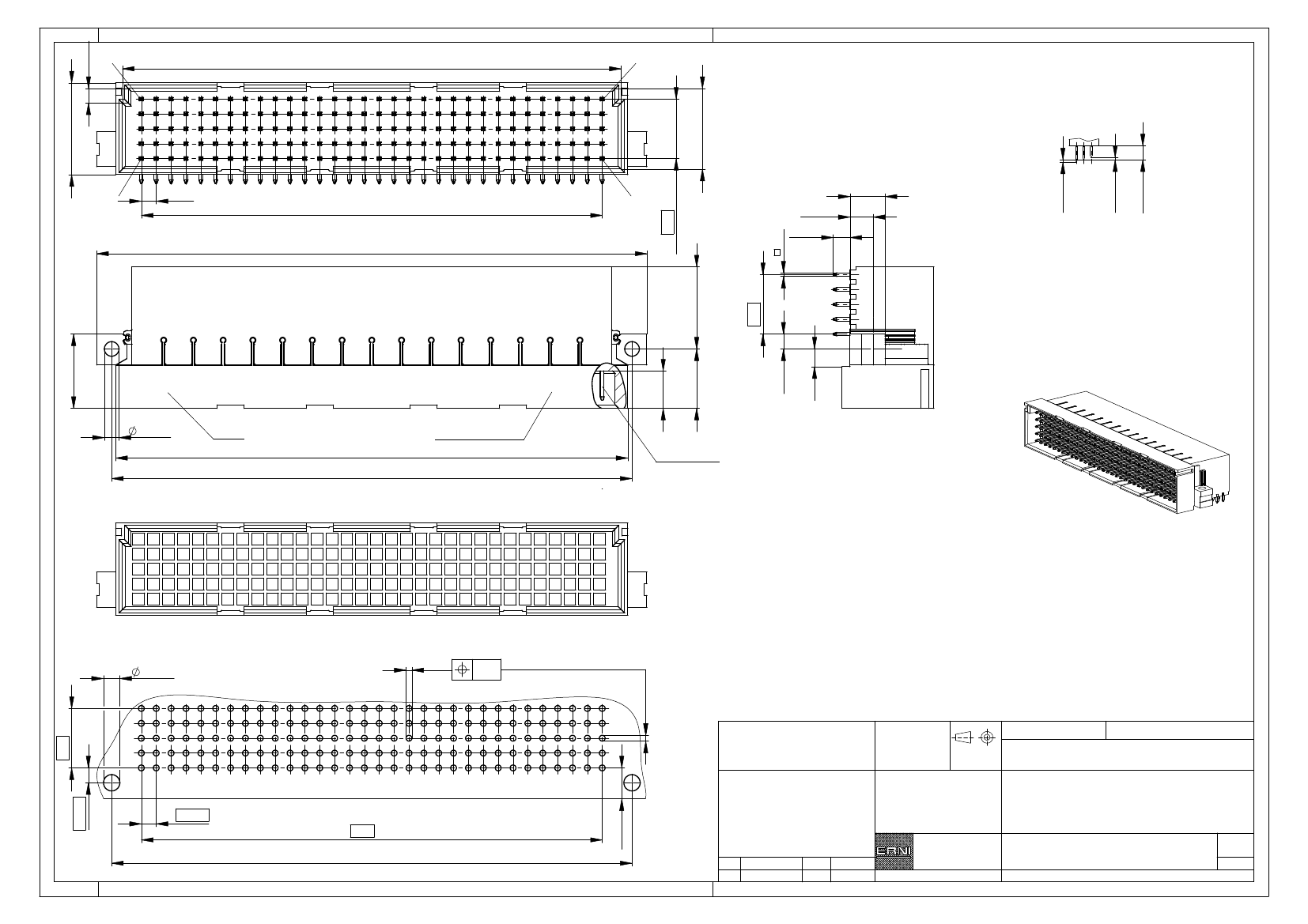

2,5

-0,2

e32

85,2

+0,2

Stecklänge / mating length

max. 16,2

+0,2

4 x 2,54 (=10,16)

13,8

ESL

a32

2,54

31x2,54=78,74

±0,1

3,95

0,6

-0,4

E =

early mate, late break

/ voreilend

S = standard

max. 94

4 x 2,54 (=10,16)

L = late mate, early break / nacheilend

12,7

10,2

-0,2

max.14,6

2,54

XXXXXXX

Datum

ERNI

Anforderungsstufe

RC 2

6,4

-0,1

2,5

+0,1

date

87,5

88,9

class

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

+0,1

a b c d e

Anforderungsstufe 1 = 500 Steckzyklen / performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

4 x 2,54 (=10,16)

+0,1

±0,1

0,05

alle Löcher/

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

18.10.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste E160 Löt

Male Conn. E160 solder

www.ERNI.com

Class

384298

STVE

4,8

±0,2

0,8

±0,1

0,8

±0,1
