3361 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 3361

Preview

3361: DescriptionRESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5 W, 10 ohm - 2000000 ohm; CategoryPassive components; File Size396KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

3361 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3361	-	-	View	Buy Now

3361 Overview

RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5 W, 10 ohm - 2000000 ohm

3361 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Number of terminals	3
Processing package description	1/4 INCH, SQUARE, 3 PINS
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	FLAT
Installation features	SURFACE MOUNT
Rated temperature	70 Cel
Manufacturer Series
Resistor type	TRIMMER
Resistivity	LINEAR
Control valve type	SCREW
Number of turns	1
control valve direction	HORIZONTAL; VERTICAL
Resistor element material	CERMET

3361 Preview

*R

oH

V S C

AV ER OM

AI SIO PL

LA N IA

BL S NT

E

Features

n

Single-Turn / Cermet / Industrial / Sealed

n

Miniature package

n

Rotor designed for automatic machine

adjust interface

n

Withstands harsh environments and

immersion cleaning processes

PL

IA

N

T

n

Compatible with surface mount

manufacturing processes

n

RoHS compliant* - see processing

information on RoHS compliant surface

mount trimmers

n

For trimmer applications/processing

guidelines, click here

Std. Resistance Range...... 10 to 2 megohms

(see standard resistance table)

Resistance Tolerance ................ ±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

.........................................1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

................................ 3 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage .......................................±0.05 %

Resistance .................................±0.15 %

Resolution........................................ Infinite

Insulation Resistance ................... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level ................................... 900 vac

80,000 Feet ................................ 350 vac

Adjustment Angle...................... 240 ° nom.

Maximum Soldering Exposure

(Temp/Time) ..........+260 ˚C/20 sec. max.

above 255 °C

Power Rating (300 volts max.)

70 °C ........................................ 0.50 watt

125 °C ........................................... 0 watt

Temperature Range ........-55 °C to +125 °C

Temperature Coefficient ........ ±100 ppm/°C

Seal Test ......85 °C Fluorinert†/60 seconds

Humidity............ MIL-STD-202 Method 103

96 hours

(2 %

ΔTR;

10 Megohms IR)

Vibration ........... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock.............. 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life .....1,000 hours 0.5 watt @ 70 °C

(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life............................ 200 cycles

(4 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Electrical Characteristics

*R

oH

S

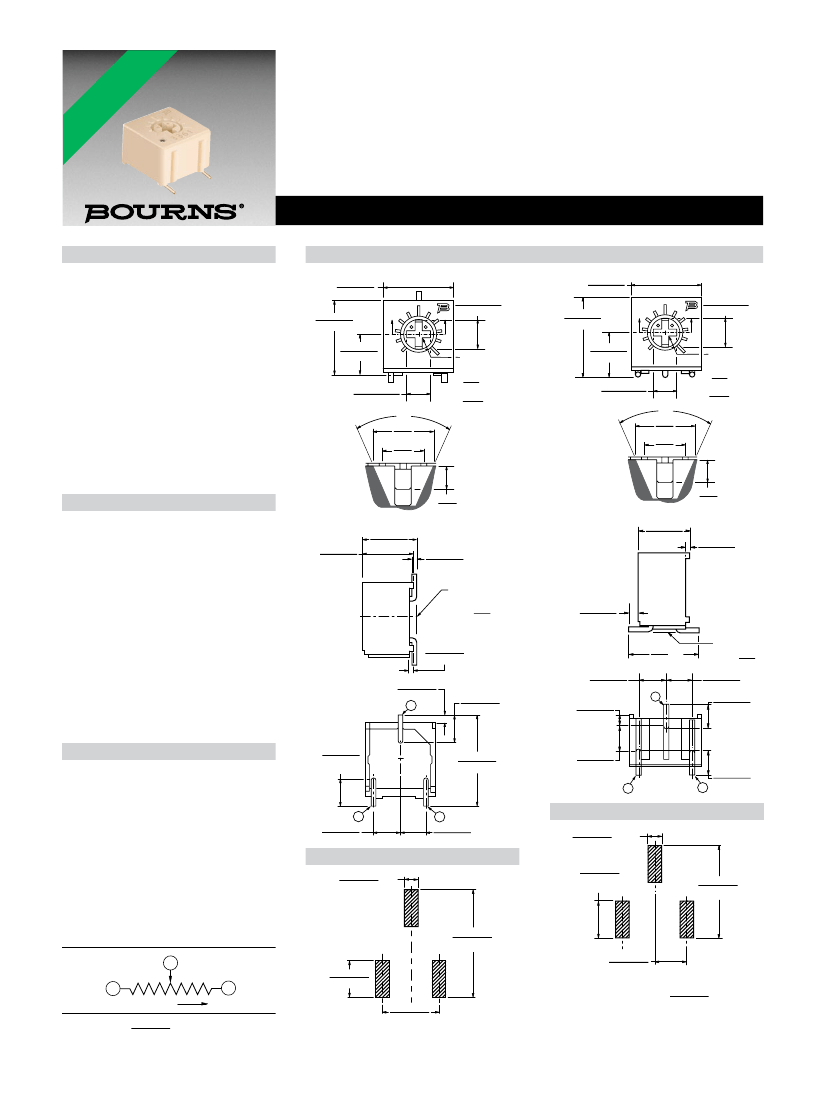

3361 - 1/4 ” Square SMD Trimpot

®

Trimming Potentiometer

Product Dimensions

3361P

F

RE

E

LE

AD

6.71 ± 0.25

(.264 ± .010)

A

C

OM

3361S

2.77 ± .005

(.109 ± .0002)

6.71 ± 0.12

(.264 ± .005)

7.04 ± 0.25

(.277 ± .010)

3.84 ± 0.25

(.151 ± .010)

7.37 ± 0.38

(.290 ± .015)

4.17 ± 0.38

(.164 ± .015)

A

2.77 ± .005

(.109 ± .0002)

1

3361

3

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

NT

*

2.29 ± .005

(.090 ± .0002)

ELECTRICAL

ADJ. SLOT

0.64

WIDE X

(.025)

0.89

DEEP

(.035)

1

3361

3

2.29 ± .005

(.090 ± .0002)

46 °

2.29

(.090)

1.54

(.061)

ELECTRICAL

ADJ. SLOT

0.64

WIDE X

(.025)

0.89

DEEP

(.035)

46 °

2.29

(.090)

1.54

(.061)

Environmental Characteristics

0.89

(.035)

SECTION A-A

5.21 ± 0.63

(.205 ± .025)

0.46 ± 0.02

DIA.

(.018 ± .001)

3 PLACES

LEADS TO BE

COPLANAR

WITHIN 0.10

(.004)

0.89

(.035)

SECTION A-A

4.88

± 0.25

(.192 ± .010)

4.88 ± 0.12

(.192 ± .005)

0.38 ± 0.05

(.015 ± .002)

0.71 ± 0.25

(.028 ± .010)

LEADS TO BE

COPLANAR

WITHIN 0.10

(.004)

2.54 ± 0.25

(.100 ± .010)

2

2.29 ± 0.25

(.090 ± .010)

0.38 ± 0.12

(.015 ± .005)

0.79 ± 0.25

(.031 ± .010)

2

2.54 ± 0.25

(.100 ± .010)

6.65

REF.

(.262)

2.54 ± 0.25

(.100 ± .010)

1.02 ± 0.25

(.040 ± .010)

Physical Characteristics

Mechanical Angle ..................... 270 ° nom.

Torque................................. 3.0 oz-in. max.

Stop Strength...................... 7.0 oz -in. min.

Terminals ........................... Solderable pins

Weight ........................................... 0.02 oz.

Marking ........................... Resistance code,

terminal numbers, manufacturer’s

model number, style

and date code

Wiper ................... 50 % (Actual TR) ±10 %

Flammability .............................. U.L. 94V-0

Standard Packaging

“S” Style ...................... 500 pcs./13 ˝ reel

“P” Style ...................... 750 pcs./13 ˝ reel

Adjustment Tool .................................. H-90

MSL ..........................................................3

2.51 ± 0.25

(.099 ± .010)

TYP.

8.53 ± 0.76

(.336 ± .030)

2.54

± 0.25

(.10 ± .010)

3

1

2.29 ± 0.25

(.090 ± .010)

3

2.54 ± 0.25

(.100 ± .010)

1

2.54 ± 0.25

(.100 ± .010)

Recommended Land Pattern

1.19 ± 0.12 3 PLCS

(.047 ± .005)

3.30 ± 0.25

(.130 ± .010)

3 PLCS

Recommended Land Pattern

1.19 ± 0.12

TYP.

(.047 ± .005)

7.62 ± 0.12

(.300 ± .005)

9.70 ± 0.12

(.381 ± .005)

3.30 ± 0.25

(.130 ± .010)

5.08 ± 0.12

(.200 ± .005)

2

CCW

WIPER

1

CLOCKWISE

3

2.54 ± 0.12

(.100 ± .005)

TYP.

CW

DIMENSIONS:

MM

(INCHES)

TOLERANCES:

0.25

EXCEPT WHERE NOTED

(.010)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

3361 - 1/4 ” Square SMD Trimpot

®

Trimming Potentiometer

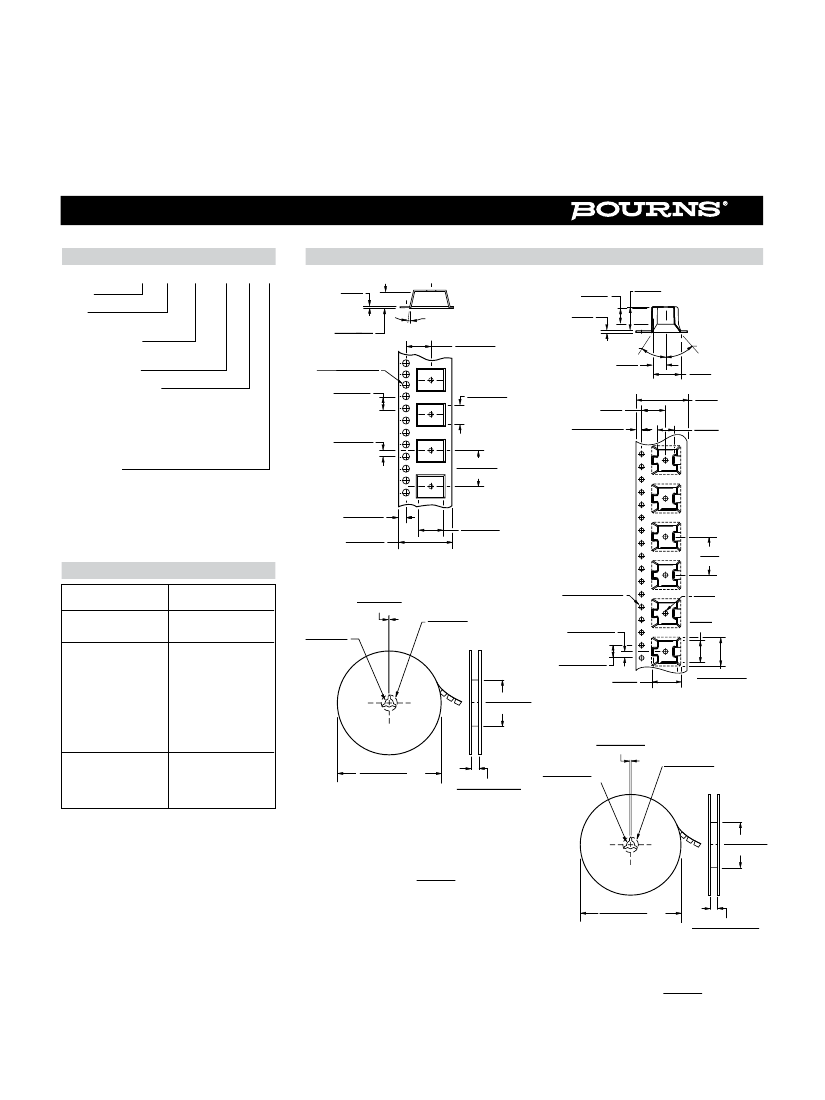

3361 P - 1 - 502 G LF

Packaging Specifications

(P Style)

0.5

MAX.

(0.020)

6.0 ± .10

(.236 ± .004)

DIA.

1.5 + .10/ –.00

(.059 + .004/ –.000)

4.00 ± .10

(.157 ± .004)

How To Order

Model

Style

(S Style)

5.18

(0.204)

0.5

(0.020)

7.56

(0.298)

Standard or Modified

Product Indicator

-1 = Standard Product

Resistance Code

Packaging Designator

G = Embossed Tape

“S” Style = 500 pcs./13 ” reel

“P” Style = 750 pcs./13 ” reel

Tape and reel material meets Antistatic ANSI

ESD 5541-2003 packaging standards.

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

6°±2°

7.50 ± .10

(.295 ± .004)

36 ° ± 2 °

4.25

(0.167)

40 ° ± 2 °

9.0

(0.35)

16.0

(0.630)

5.13

(0.202)

7.24 ± .10

(.285 ± .004)

2.00 ± .10

(.079 ± .004)

7.5

(0.295)

1.75 ± 0.1

(0.069 ± 0.004)

12.00 ± .10

(.472 ± .004)

1.75 ± .10

(.069 ± .004)

16.0 ± .30

(.630 ± .012)

9.52 ± .10

(.375 ± .004)

TAPE

12.0

(.472)

Standard Resistance Table

Resistance

(Ohms)

10

20

50

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

100,000

200,000

250,000

500,000

1,000,000

2,000,000

Resistance

Code

100

200

500

101

201

501

102

202

502

103

203

253

503

104

204

254

504

105

205

1.78

±

.25

(.070

±

.010)

13.0 ± .51

(.512 ± .020)

DIA.

EQUAL SPACED 3 PLCS.

18.69 ± .79

DIA.

(.736 ± .031)

1.5 +0.1/-0.0

(0.059 +.004/-.000)

DIA.

2.0 ± 0.1

(0.079 ± 0.004)

4.0 ± 0.05

(0.157 ± 0.002)

1.5

DIA. MIN.

(0.059)

6.93

(0.273)

99.06

±

1.02

(3.90

±

.040)

8.8

(0.346)

REF.

TAPE

8.9 ± 0.2

(0.351 ± 0.008)

330.2 ± 5.08

DIA.

(13.000 ± .200)

REEL

16.51+ 2.03/ -.000

(.650 + .080/ -.000)

13.0 ± 0.51

(0.512 ± 0.020)

17.78 ± 0.25 EQUAL SPACED 3 PLCS.

(.0700 ± 0.010)

18.69 ± 0.79

DIA.

(0.736 ± 0.031)

DIA.

Popular distribution resistance values listed in

boldface. Special resistances available.

UNITS PACKAGED 750 PIECES PER REEL.

DIMENSIONS:

MM

(INCHES)

330.2 ± 5.08

DIA.

(13.00 ± 0.200)

REEL

99.06 ± 1.02

(3.90 ± 0.040)

16.51 +2.03/-0.00

(0.650 +0.080/-0.000)

UNITS PACKAGED 500 PIECES PER REEL.

DIMENSIONS:

MM

(INCHES)

“Trimpot” is a registered trademark of Bourns, Inc.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

REV. 11/16

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
