33000-1002

Description
Automotive Connectors MX150 M 16-20AWG L Reel of 7500
CategoryThe connector    Connector bracket
File Size25KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

33000-1002 Online Shopping

Suppliers Part Number Price MOQ In stock
33000-1002 - - View Buy Now

33000-1002 Overview

Automotive Connectors MX150 M 16-20AWG L Reel of 7500

33000-1002 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionHALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time3 weeks
Other featuresCONTACT FINISH: TIN OVER NICKEL
Assembly nameCONTACT
Connector bracket typeCONNECTOR ACCESSORY
Contact point genderMALE
Contact resistance8 mΩ
DIN complianceNO
IEC complianceNO
MIL complianceNO
MaterialCOPPER ALLOY
Installation methodSTRAIGHT
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Rated voltage (DC)500 V
Terminal typeCRIMP
used forMX150 CONNECTOR
Maximum wire diameter16 AWG
Minimum wire diameter20 AWG
Base Number Matches1

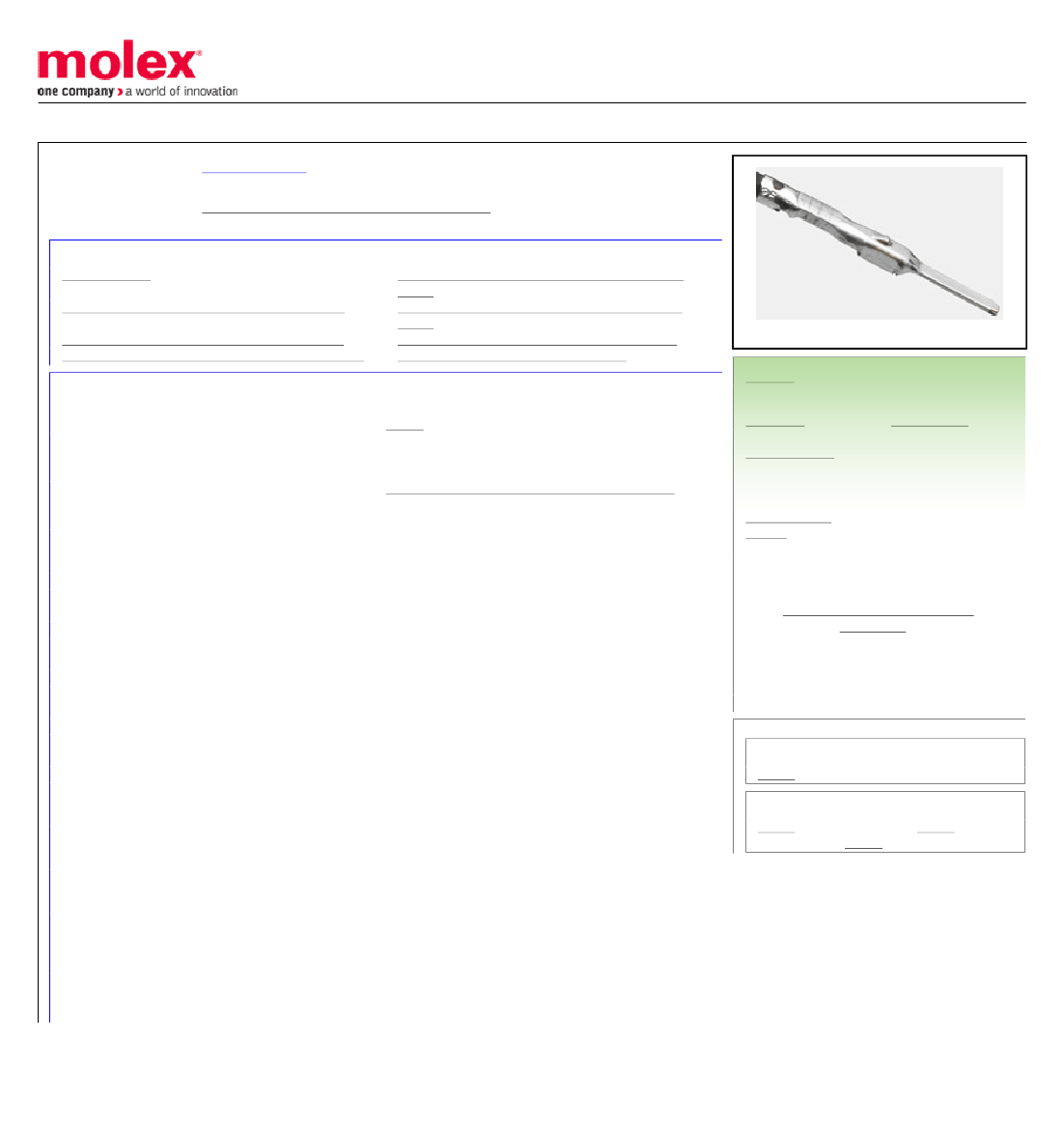

This document was generated on 02/20/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
Drawing (PDF)
Product Specification PS-33012-002-001 (PDF)
Product Specification TS-33000-001-001 (PDF)
Application Specification AS-33000-001-001 (PDF)
General
Product Family
Series
Application
Comments
Crimp Quality Equipment
Overview
Product Name
UPC
Physical
Durability (mating cycles max)
Gender
Grip Code
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
AS-33000-001-001, AS-33000-001-CH-001,
AS-33000-001-FR-001
313025040-000
PS-33012-002-001, TS-33000-001-001
SD-33000-001
0330001002
Active
MX150 Sealed and Unsealed Connector System
MX150 Male Terminal, Tin Plating, 16, 18 and 20 AWG, Left Reel Payoff
Application Specification AS-33000-001-CH-001
(PDF)
Application Specification AS-33000-001-FR-001
(PDF)
Packaging Specification 313025040-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Compliant
Crimp Terminals
33000
Power
Left Reel Payoff
Yes
MX150 Sealed and Unsealed Connector System
MX150
756054586259
25
Male
18
High Performance Alloy (HPA)
Tin
Tin
0.369/g
Reel
0.508µm
0.508µm
Crimp or Compression
2.54mm max.
16, 18, 20
0.75-1.00
Contact Molex
14V DC
N/A
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
Search Parts in this Series
33000 Series
Use With
33482 Dual Row Housing, 33481 Single
Row Housing, 33486 Hybrid Housing
This document was generated on 02/20/2018
