54809-3198 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54809-3198

54809-3198: DescriptionFFC & FPC Connectors .3MM FPC 31 POS R/A SMT ZIF BOTTOM; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54809-3198 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54809-3198	-	-	View	Buy Now

54809-3198 Overview

FFC & FPC Connectors .3MM FPC 31 POS R/A SMT ZIF BOTTOM

54809-3198 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	FFC & FPC Connectors .3MM FPC 31 POS R/A SMT ZIF BOTTOM
Other features	ELV & ROHS COMPLIANT, T/R PKG.
body width	0.051 inch
subject depth	0.171 inch
body length	0.457 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.7592 mm
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	31
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

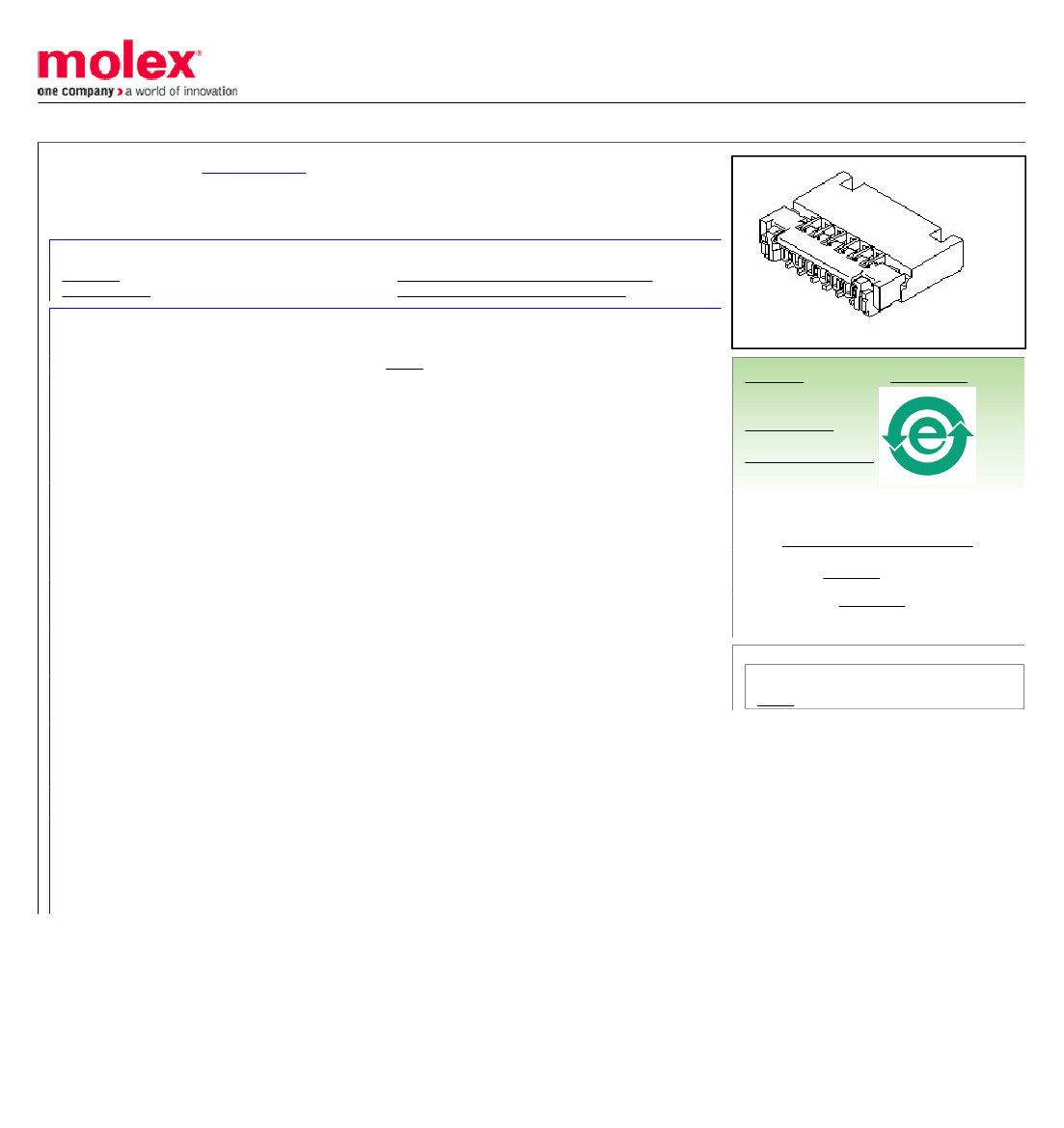

This document was generated on 09/23/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0548093198

Active

0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.30mm (.051") Mated Height,

Right Angle, SMT, ZIF, Bottom Contact Style, 31 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54809-032 (PDF)

RoHS Certificate of Compliance (PDF)

Series

FFC/FPC Connectors

54809

Easy-On™

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Product Name

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Bottom

90° Angle

1.30mm (.051")

Phosphor Bronze

Tin-Bismuth

Right Angle

Yes

Embossed Tape on Reel

0.30mm (.012")

Yes

-20°C to +85°C

Surface Mount

FPC only

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54809Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Product Specification

PS-54809-032, RPS-54809-059, RPS-54809-061,

RPS-54809-062, RPS-54809-063, RPS-54809-065,

RPS-54809-067

SD-54809-036, SD-54809-037

Sales Drawing

This document was generated on 09/23/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
